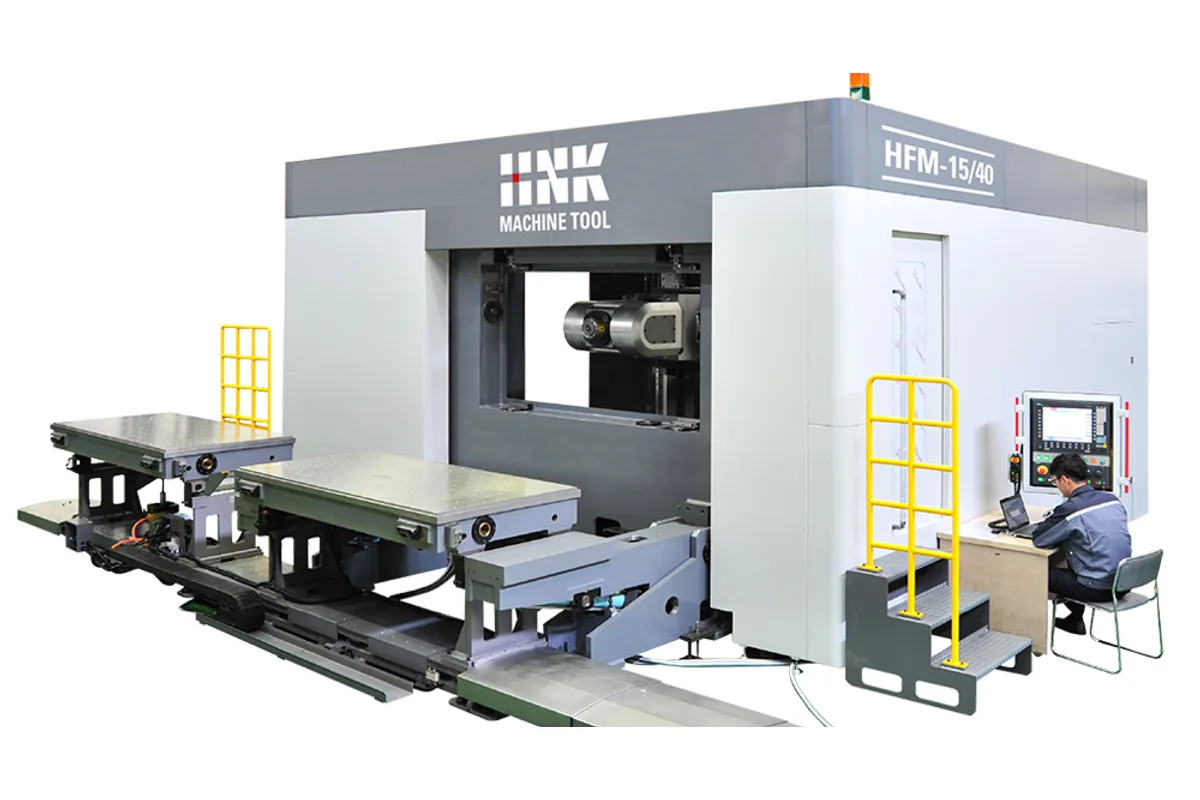

HNK HFM 15X40
Image: en.hnkkorea.com, HNK
Key Specifications
Max Spindle
Spindle Taper
Table Size
distance spindle nose to table
x axis travel
y axis travel
How much does the HNK HFM 15X40 cost?
Price estimate
We do not have a price for the HNK HFM 15X40 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The HNK HFM 15X40 sits in the middle of the HFM 5-axis range, with a 1,500 x 4,000 mm (59.1 x 157.5 in) table and 4,700 mm (185.0 in) of X travel. It is the largest size that still lists the 16,000 rpm spindle as its first figure, with 30,000 rpm in braces.
Y travel is 1,600 mm (63.0 in), enough to reach across the full table width with the universal head tilted. Z remains 550 mm (21.7 in), the same as the two smaller machines, while the table-to-nose distance grows slightly to 550 mm (21.7 in).
Who is it for? HNK names aircraft, electronic and automobile parts for the series. At this size that means wing ribs, bulkhead segments and large battery or chassis plates in aluminium. The spindle nose is HSK63-A and the C-axis swings ±200˚. As on the smaller sizes, the A-axis cell is not printed cleanly, and the page gives no table load.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 1,500 x 4,000 mm (59.1 x 157.5 in) |
| Distance Spindle Nose to Table | 550 mm (21.7 in) |
| Max Spindle Speed | 16,000 rpm {30,000 rpm} |
| Spindle Taper | HSK63-A |
| X Axis Travel | 4,700 mm (185.0 in) |
| Y Axis Travel | 1,600 mm (63.0 in) |
| Z Axis Travel | 550 mm (21.7 in) |
| C Axis Range | ±200˚ |
Specifications sourced from en.hnkkorea.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 1,500 x 4,000 mm (59.1 x 157.5 in) table with 4,700 mm (185.0 in) of X
- Y travel of 1,600 mm (63.0 in) covers the table width
- HSK63-A spindle at 16,000 rpm, 30,000 rpm in braces
Limitations
- Z travel is still 550 mm (21.7 in)
- The HFM 20X40 has the same 4,700 mm X with 2,100 mm (82.7 in) of Y
- No table load or spindle power published
Best For
Frequently Asked Questions
01
1,500 x 4,000 mm (59.1 x 157.5 in). X travel on the table is 4,700 mm (185.0 in), Y on the spindle head is 1,600 mm (63.0 in) and Z is 550 mm (21.7 in), with 550 mm from table surface to spindle nose.
02
Both travel 4,700 mm (185.0 in) in X. The HFM 20X40 has a 2,000 x 4,000 mm (78.7 x 157.5 in) table, 2,100 mm (82.7 in) of Y, 700 mm (27.6 in) of Z and lists 30,000 rpm outright. The HFM 15X40 is the narrower, lower machine.
03
HNK describes an automatic universal head for the HFM series, used for machining various surfaces. The C-axis range in the table is ±200˚ and the spindle nose is HSK63-A. The A-axis range for this size is not printed cleanly on the maker's page.
