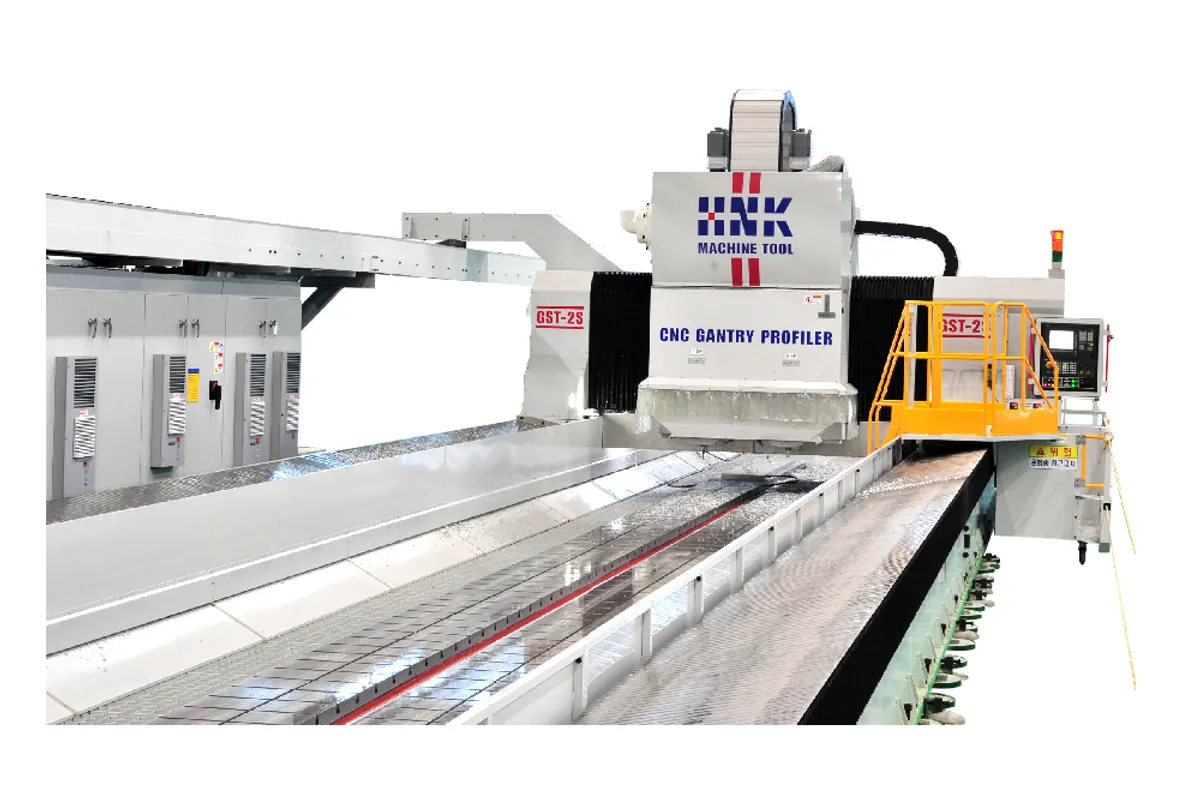

HNK GST-2S
Image: en.hnkkorea.com, HNK
Key Specifications
Max Spindle
Spindle Taper
Spindle Power
spindles
x axis travel
y axis travel
How much does the HNK GST-2S cost?
Price estimate
We do not have a price for the HNK GST-2S that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Two spindles side by side over a 20,000 mm (787.4 in) X stroke: the HNK GST-2S is a gantry profiler that HNK builds for aerospace parts such as panel stringers.
A stringer is long, thin and made in mirrored pairs, and the machine's proportions follow from that. Cross travel is only 1,200 mm (47.2 in) and vertical travel 600 mm (23.6 in). The columns move along the bed, so the part lies still on a fixed table for the full twenty metres. Each spindle has an HSK-A63 nose and runs up to 30,000 rpm.
The spindle head motor is listed at 120 kW (160.9 hp). HNK's text calls this a highly efficient 120kW capacity. The table does not say whether the figure is per spindle or for the head as a whole.
An A-axis indexes the spindles ±20˚, enough to follow a shallow taper or a joggle but not to machine a side wall square-on. Siemens 840D is the control.
Full Specifications
| Parameter | Value |
|---|---|
| Spindle Taper | HSK-A63 |
| Spindles | 2 |
| Max Spindle Speed | Max. 30,000 rpm |
| X Axis Travel | 20,000 mm (787.4 in) |
| Y Axis Travel | 1,200 mm (47.2 in) |
| Z Axis Travel | 600 mm (23.6 in) |
| A Axis Range | ±20˚ |
| Spindle Motor Power | 120 kW (160.9 hp) |
| CNC Control | Siemens 840D |
Specifications sourced from en.hnkkorea.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 20,000 mm (787.4 in) of X travel with moving columns
- Two HSK-A63 spindles at up to 30,000 rpm
- Spindle head motor of 120 kW (160.9 hp)
- A-axis spindle index of ±20˚ for tapered flanges
Limitations
- Y travel of 1,200 mm (47.2 in) rules out wide plates
- Z travel of 600 mm (23.6 in)
- A-axis is limited to ±20˚, so this is not a full 5-axis head
Best For
Frequently Asked Questions
01
Two. The table lists the number of spindles as 2, each with an HSK-A63 nose taper and a maximum speed of 30,000 rpm. HNK says the machine is specialized for parts such as panel stringers, using two spindles and 20,000 mm of X-axis travel.
02
X is 20,000 mm (787.4 in) on the column longitudinal axis, Y is 1,200 mm (47.2 in) on the spindle head and Z is 600 mm (23.6 in). The A-axis, labelled spindle index, covers ±20˚.
03
The spindle head motor row reads 120 kW (160.9 hp), and HNK's description repeats the 120 kW figure alongside the 30,000 rpm maximum speed. The page does not break it down per spindle.
