Haas Automation 5-Axis Machining Centers

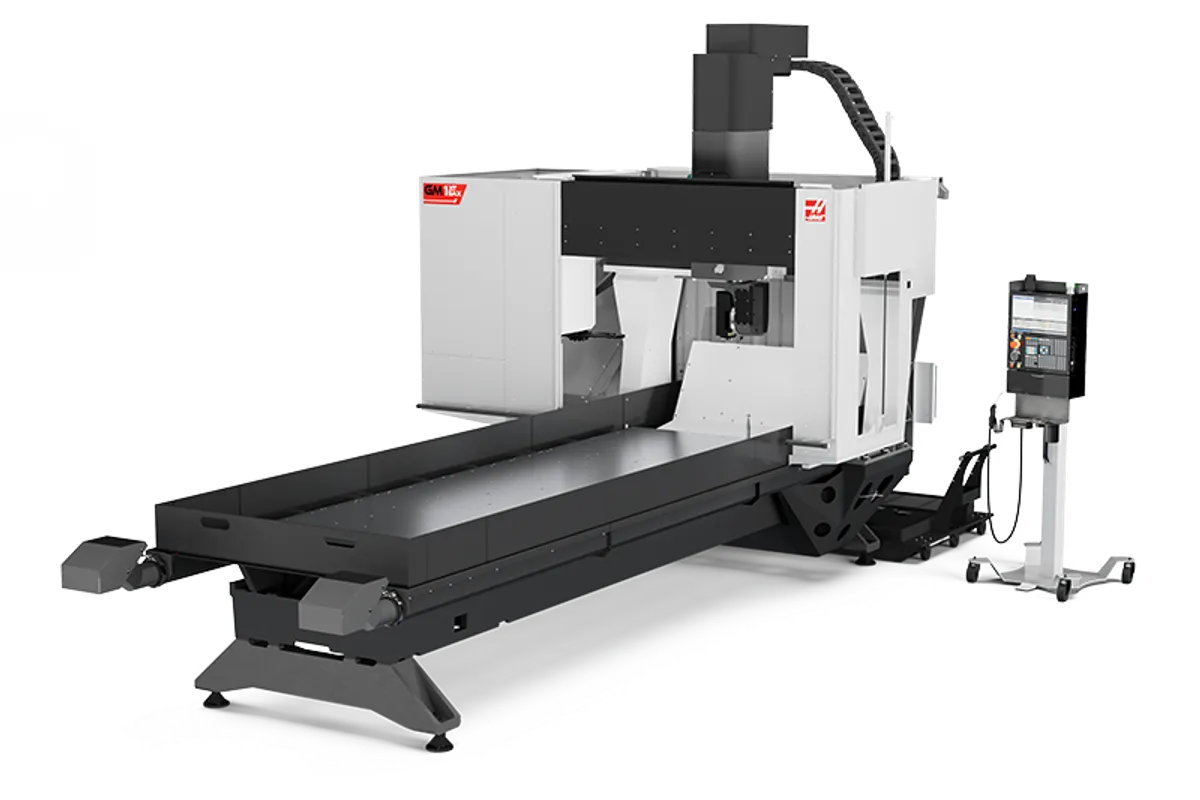

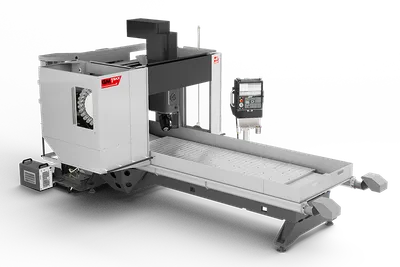

Haas GM-1XT-5AX

List US$339,995 Specs verified 2026-10-02 · haascnc.com Updated 2026-10-02

Key Specifications

X Travel

142 in (3,613 mm)

Y Travel

61 in (1,549 mm)

Z Travel

24 in (610 mm)

Max Spindle

24,000 rpm

Spindle Taper

BT30

Tool Capacity

30+1

How much does the Haas GM-1XT-5AX cost?

Manufacturer list price

US$339,995

As published by Haas Automation, verified 2026-10-02. Options, tooling, freight and installation are extra.

Overview

At 142 in (3,613 mm) of X travel, the Haas GM-1XT-5AX is the stretched version of the GM-1-5AX, which stops at 121 in (3,073 mm). Y and Z are unchanged at 61 in (1,549 mm) and 24 in (610 mm), and so is everything that cuts. What the buyer gets is a longer bed, 144.3 × 53 in (3,664 × 1,346 mm), for parts or nests that would not fit the shorter machine.

Length is the only place the envelope grows. The work surface is 53 in (1,346 mm) wide with 62 in (1,575 mm) between the columns, and the spindle nose sits between 5 in (127 mm) and 29 in (737 mm) above it. A part that needs more width or height points to the GM-2-5AX instead, with 87.5 in (2,223 mm) of Y and 39.3 in (998 mm) of Z on a 144 × 72 in (3,658 × 1,829 mm) table, and an X travel of 145 in (3,683 mm) that is almost the same as here.

The cutting end is light and fast. A BT30 integral spindle turns 24,000 rpm on 15 hp (11.2 kW), peaking at 11 ft-lbf (14.9 N·m) at 5,500 rpm, and it rides in a head with ±120° of B tilt and a C swivel of ±245°. B moves at 105°/sec and C at 100°/sec. With 800 ipm (20.3 m/min) as both the X rapid and the top cutting feed, a full-length traverse of this table takes noticeably longer than a move across it, where Y rapids at 2,100 ipm (53.3 m/min).

Table load is 6,000 lb (2,722 kg), spread over a plate that is 1 in (25 mm) thick. The 30+1 side-mount changer takes tools up to 2 in (51 mm) in diameter and 7 in (177 mm) long. Haas lists a starting price of US$339,995.

Full Specifications

Parameter	Value
X-Axis Travel	142 in (3,613 mm)
Y-Axis Travel	61 in (1,549 mm)
Z-Axis Travel	24 in (610 mm)
Spindle Nose to Table (max)	29 in (737 mm)
Spindle Nose to Table (min)	5 in (127 mm)
Spindle Motor Power	15 hp (11.2 kW)
Max Spindle Speed	24,000 rpm
Spindle Torque	11 ft-lbf @ 5,500 rpm (14.9 N·m @ 5,500 rpm)
Spindle Drive	Integral Spindle/Motor
Spindle Taper	BT30
Spindle Bearing Lubrication	Grease Packed
Spindle Cooling	Liquid Cooled
B Axis Travel	±120°
B Axis Max Speed	105 °/sec
B Axis Torque	112 ft-lbf (152 N·m)
B Axis Brake Torque	100 ft-lbf (136 N·m)
C Axis Travel	245 ° to -245 °
C Axis Max Speed	100 °/sec
C Axis Torque	210 ft-lbf (285 N·m)
C Axis Brake Torque	190 ft-lbf (258 N·m)
Table Size	144.3 × 53 in (3,664 × 1,346 mm)
Table Thickness	1 in (25 mm)
Max Table Load	6,000 lb (2,722 kg)
Table Between Columns	62 in (1,575 mm)
Max Cutting Feedrate	800 ipm (20.3 m/min)
Rapid Traverse X	800 ipm (20.3 m/min)
Rapid Traverse Y	2,100 ipm (53.3 m/min)
Rapid Traverse Z	1,100 ipm (27.9 m/min)
Max Thrust X	2,520 lbf (11,210 N)
Max Thrust Y	1,020 lbf (4,537 N)
Tool Changer Type	SMTC
Tool Capacity	30+1
Max Tool Diameter (full magazine)	2 in (51 mm)
Max Tool Diameter (adjacent pockets empty)	4 in (102 mm)
Max Tool Length	7 in (177 mm)
Max Tool Weight	5.5 lb (2.5 kg)
Coolant Capacity	95 gal (360 L)
Air Required	4 scfm @ 100 psi (113 L/min @ 6.9 bar)
Inline Air Hose	3/8 in
Air Coupler	3/8 in
Air Pressure Min	80 psi (5.5 bar)
Electrical Service (low voltage)	220 VAC 3-phase, 40 A
Electrical Service (high voltage)	440 VAC 3-phase, 20 A

Specifications sourced from haascnc.com — verified 2026-10-02

Strengths & Limitations

Strengths

142 in (3,613 mm) of X travel, against 121 in (3,073 mm) on the GM-1-5AX, with the same 61 in (1,549 mm) Y and 24 in (610 mm) Z
144.3 × 53 in (3,664 × 1,346 mm) table rated for 6,000 lb (2,722 kg)
Tilting, swivelling BT30 head with ±120° of B travel reaches the sides and ends of a part in one clamping
24,000 rpm liquid-cooled spindle for small tools in light alloys and non-metals
Modest services: 40 A at 220 VAC three-phase or 20 A at 440 VAC

Limitations

X moves at 800 ipm (20.3 m/min) at most, in rapid or in cut, on an axis 142 in (3,613 mm) long
Only 11 ft-lbf (14.9 N·m) of spindle torque at 5,500 rpm; the 15 hp (11.2 kW) motor is not meant for heavy stock removal
No extra width or height over the GM-1-5AX: Y stays at 61 in (1,549 mm) and Z at 24 in (610 mm)
Tool weight limit of 5.5 lb (2.5 kg) and a 2 in (51 mm) diameter limit with a full magazine

Best For

Long aluminium extrusions and rails up to 142 in (3,613 mm) Nested sheet work on a 144.3 × 53 in (3,664 × 1,346 mm) table Angled drilling and edge trimming with a ±120° tilting head Low-force, high-speed cutting with BT30 tooling

Frequently Asked Questions

01 How much longer is the GM-1XT-5AX than the GM-1-5AX?

X travel is 142 in (3,613 mm) on the GM-1XT-5AX and 121 in (3,073 mm) on the GM-1-5AX. The GM-1-5AX table is 123 × 53 in (3,124 × 1,346 mm); this one is 144.3 × 53 in (3,664 × 1,346 mm). Width does not change, and neither do Y and Z travel.

02 Should I look at the GM-2-5AX instead?

If the part is wide or tall, yes. The GM-2-5AX has 145 × 87.5 × 39.3 in (3,683 × 2,223 × 998 mm) of travel and a 144 × 72 in (3,658 × 1,829 mm) table, with an HSK-63F / HSK-A63 spindle at 20,000 rpm. If the work is long but fits within 61 in (1,549 mm) of Y and 24 in (610 mm) of Z, the GM-1XT-5AX covers nearly the same length with a 24,000 rpm BT30 spindle.

03 What does the head on the GM-1XT-5AX do?

It supplies the fourth and fifth axes. B tilts ±120° at up to 105°/sec, with 112 ft-lbf (152 N·m) of torque and a 100 ft-lbf (136 N·m) brake. C rotates ±245° at up to 100°/sec, with 210 ft-lbf (285 N·m) and a 190 ft-lbf (258 N·m) brake. C travel is finite, so a program cannot wind the head round indefinitely.

04 How fast are the axes?

Rapids are 800 ipm (20.3 m/min) on X, 2,100 ipm (53.3 m/min) on Y and 1,100 ipm (27.9 m/min) on Z. The maximum cutting feedrate is 800 ipm (20.3 m/min). Maximum thrust is 2,520 lbf (11,210 N) on X and 1,020 lbf (4,537 N) on Y; the table gives no Z thrust figure for this model.

05 What are the tooling limits on the GM-1XT-5AX?

BT30 taper, 30+1 tools in a side-mount changer. Maximum tool diameter is 2 in (51 mm), or 4 in (102 mm) with the adjacent pockets empty. Maximum length is 7 in (177 mm) and maximum weight is 5.5 lb (2.5 kg), so large face mills and long-reach holders are out.
