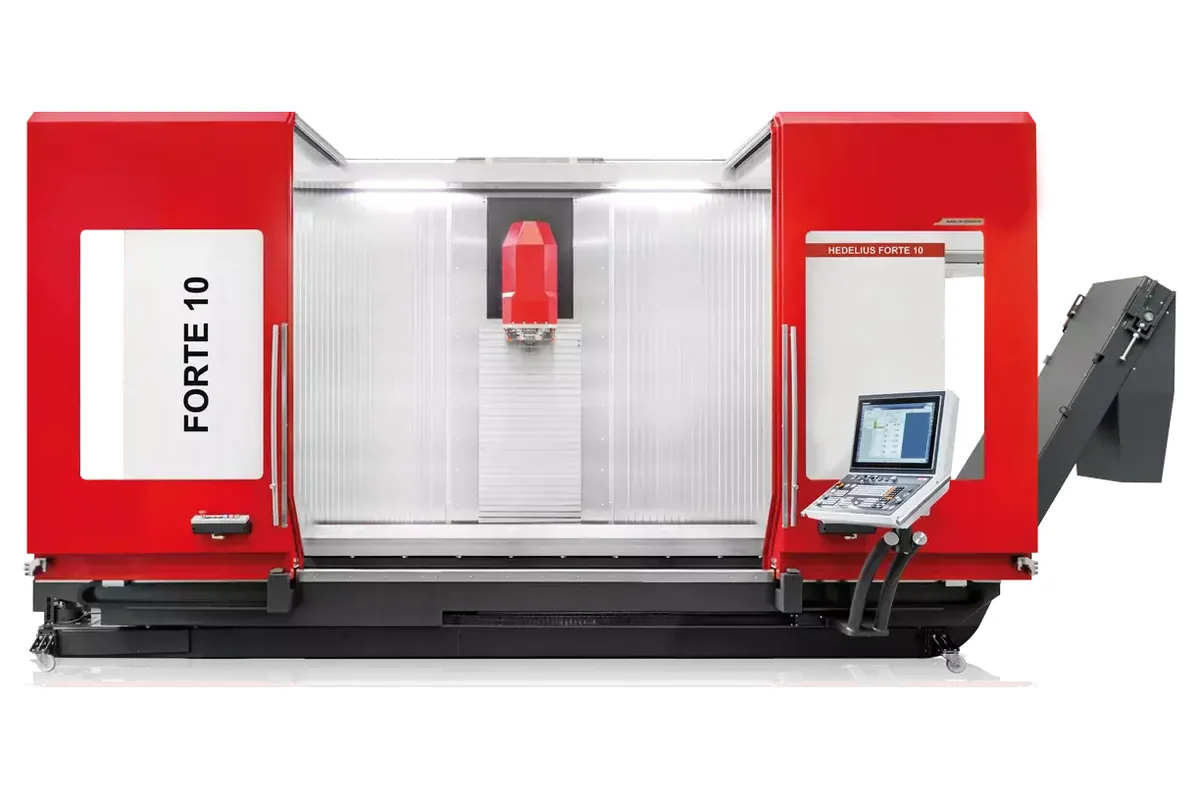

Hedelius FORTE 10-2600
Image: hedelius.de, Hedelius
Key Specifications
Tool Capacity
Table Size
Accuracy
x axis travel
y axis travel
z axis travel
How much does the Hedelius FORTE 10-2600 cost?
Price estimate
We do not have a price for the Hedelius FORTE 10-2600 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Hedelius FORTE 10-2600 puts an SK50 spindle with 300 Nm and 50 kW on the shortest bed of the FORTE 10 series. It is a 3-axis travelling column machining centre with 2,600 mm (102.4 in) of X, 1,000 mm (39.4 in) of Y and 1,165 mm (45.9 in) of Z, sold by Hedelius under the line "high output in a small space".
Everything that separates this series from the 40-size FORTE machines follows from the spindle interface. Tooling is SK50 or BT50, with HSK A100 as the optional system. Two spindles are listed, both with 300 Nm and 50 kW, one running to 8,000 rpm and one to 12,000 rpm. For either, Hedelius quotes 1,050 cm3/min of milling, a Ø 60 mm drill and an M 30 thread in E335/St60-2. Feed force rises to 34,000 N.
Tools are correspondingly bigger: up to 12 kg, 400 mm long, and 100 mm in diameter with a full magazine or 140 mm with free adjoining places. The magazine holds 40 tools as standard and can be given access to up to 192. A change takes ca. 15 s chip to chip, so this is a machine for long cuts with large cutters, not for parts with many short operations.
The fixed table measures 3,080 x 1,000 mm, has nine 18 mm T-slots and carries 4,500 kg (9,921 lb). A work area partition allows oscillation mode, listed in the data sheet as 965 x 965 mm. Standard equipment includes direct measuring systems, stainless steel slats and smooth-running work area doors. Weight is 21,000 kg (46,296 lb), transport height 3,240 mm.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,600 mm (102.4 in) |
| Y Axis Travel | 1,000 mm (39.4 in) |
| Z Axis Travel | 1,165 mm (45.9 in) |
| Pendulum Operation | 965 x 965 mm (38.0 x 38.0 in) |
| Spindle Option 1 | SK50 / BT50 / HSK A100, 8,000 min-1, 300 Nm (221 lb-ft), 50 kW (67.1 hp); in E335/St60-2: milling 1,050 cm3/min, drilling Ø 60 mm (Ø 2.4 in), thread cutting M 30 |
| Spindle Option 2 | SK50 / BT50 / HSK A100, 12,000 min-1, 300 Nm (221 lb-ft), 50 kW (67.1 hp); in E335/St60-2: milling 1,050 cm3/min, drilling Ø 60 mm (Ø 2.4 in), thread cutting M 30 |
| Spindle Distance | 20 - 1,185 mm (0.8 - 46.7 in) |
| Table Size | 3,080 x 1,000 mm (121.3 x 39.4 in) |
| T-Slots | 18 mm (0.71 in) T-slots, number 9, distance 100 mm (3.9 in) |
| Max Table Load | 4,500 kg (9,921 lb) |
| Feed Rate Xyz | 40 / 40 / 40 m/min (1,575 / 1,575 / 1,575 ipm) (infinitely variable) |
| Feed Force Max | 34,000 N (7,643 lbf) |
| Formingstar 3d Package | optional |
| Tool Capacity | 40 / 192 |
| Max Tool Diameter (full magazine) | 100 / 140 mm (3.9 / 5.5 in); 140 mm with free adjoining areas (option) |
| Max Tool Length | 400 mm (15.7 in) |
| Max Tool Weight | 12 kg (26 lb); other weights on request |
| Chip to Chip Time | ca. 15 s (for pre-selected follow-on tools) |
| Positioning Accuracy | A=6 µm/1,000 mm (ISO 230-2, X, Y, Z) |
| Machine Weight | 21,000 kg (46,296 lb) |
| Transport Height | 3,240 mm (127.6 in) |
| Transport Width | 4,230 / 3,940 mm (166.5 / 155.1 in) |
Specifications sourced from hedelius.de — verified 2026-10-04
Strengths & Limitations
Strengths
- SK50 / BT50 spindle with 300 Nm and 50 kW, at 8,000 or 12,000 rpm
- Rated at 1,050 cm3/min milling and a Ø 60 mm drill in E335/St60-2
- 1,165 mm of Z travel with a spindle distance of 20 to 1,185 mm
- Feed force of up to 34,000 N on a fixed table for 4,500 kg (9,921 lb)
- Tools up to 12 kg and 400 mm long, with magazine access to up to 192 tools
Limitations
- 40 tools as standard, fewer than the 40-size FORTE series carry
- Chip-to-chip time of ca. 15 s
- Top speed is 12,000 rpm, which limits small-diameter tools
- 21,000 kg (46,296 lb) for a machine with 2,600 mm of X; HSK A100 is an option, not standard
Best For
Frequently Asked Questions
01
An SK50 / BT50 spindle with 300 Nm and 50 kW, available with a top speed of 8,000 rpm or 12,000 rpm; HSK A100 is the optional tool system. Hedelius rates both versions at 1,050 cm3/min milling, a Ø 60 mm drill and an M 30 thread in E335/St60-2.
02
X 2,600 mm, Y 1,000 mm and Z 1,165 mm. The fixed table has a clamping area of 3,080 x 1,000 mm with nine 18 mm T-slots at 100 mm spacing, and a table load of 4,500 kg (9,921 lb). The spindle distance is 20 to 1,185 mm.
03
Up to 400 mm long and 12 kg, with other weights on request. Diameter is 100 mm with every place occupied, or 140 mm with free adjoining places, which is an option. The magazine holds 40 tools as standard, with access to up to 192.
04
Yes, with a work area partition. The data sheet lists pendulum operation as 965 x 965 mm, two work areas of 965 mm each. That is short, so it suits compact series parts; longer parts use the full 2,600 mm of X without the partition.
