DMG Mori Vertical Machining Centers (VMC)

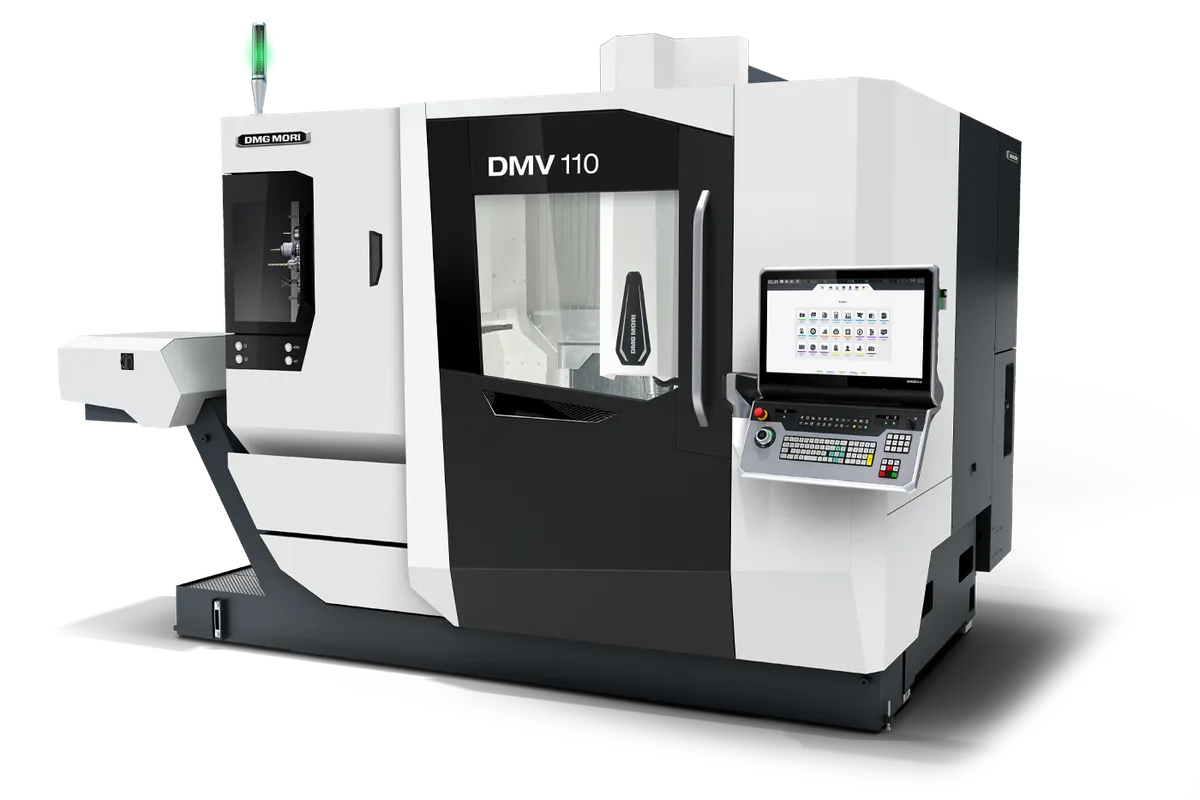

DMG Mori DMV 110

Est. $175,000 - $245,000 Specs verified 2026-10-02 · dmgmori.com Updated 2026-10-02

Image: dmgmori.com, DMG Mori

Key Specifications

X Travel

1,100 mm (43.3 in)

Y Travel

600 mm (23.6 in)

Z Travel

510 mm (20.1 in)

Max Spindle

inlineSPINDLE 12,000 rpm; speedMASTER 15,000 rpm High Torque; speedMASTER 20,000 rpm

Rapid Traverse

42 m/min in all linear axes

max workpiece length

1,400 mm (55.1 in)

How much does the DMG Mori DMV 110 cost?

Estimated price range

Est.$175,000 - $245,000

Our best estimate for a vertical machining centers (vmc) in this class — not a quote from DMG Mori. Configuration moves it a long way.

Overview

A fixed table rated for 1,700 kg (3,747.9 lb) is the defining feature of the DMG MORI DMV 110, a vertical machining center with 1,100 mm (43.3 in) of X travel, 600 mm (23.6 in) of Y and 510 mm (20.1 in) of Z. The workpiece stays still and the spindle side does the moving, so a long, heavy part is never accelerated and the machine behaves the same loaded or empty.

The largest workpiece is 1,400 × 600 × 550 mm (55.1 × 23.6 × 21.7 in). The length limit is greater than the X travel, so the ends of a full-length part lie outside the cutting range and need a second clamping. Up to 1,100 mm, a mold base or long plate is finished in one setup without the weight changing how the axes respond.

Motion and measurement are spelled out in the Highlights. X and Y have direct drive transmission; Z is not included in that statement. Linear scales sit in all linear axes, rapid traverse is 42 m/min in each of them, and DMG MORI quotes circular interpolation by ball-bar at under 6 µm in all planes. For mold surfaces, that last figure is the one that shows up on the part.

The bed is monolithic with wide roller guideways in all axes, and static rigidity is stated as 40% above the predecessor. DMG MORI also claims up to 50% more performance than the old generation, without saying how that is measured.

Spindles with the BIG PLUS interface run from a 12,000 rpm inlineSPINDLE through a 15,000 rpm speedMASTER High Torque to a 20,000 rpm speedMASTER. In X the CMX 1100 matches this machine at 1,100 mm (43.3 in), with 560 mm (22 in) of Y. The DMV 145 is the next size up at 1,450 mm (57.1 in) of X and 700 mm (27.6 in) of Y.

Full Specifications

Parameter	Value
Max Workpiece Length	1,400 mm (55.1 in)
Max Workpiece Width	600 mm (23.6 in)
Max Workpiece Height	550 mm (21.7 in)
Max Workpiece Weight	1,700 kg (3,747.9 lb)
X-Axis Travel	1,100 mm (43.3 in)
Y-Axis Travel	600 mm (23.6 in)
Z-Axis Travel	510 mm (20.1 in)
Max Spindle Speed	inlineSPINDLE 12,000 rpm; speedMASTER 15,000 rpm High Torque; speedMASTER 20,000 rpm
Rapid Traverse Rate	42 m/min in all linear axes
Spindle Interface	BIG PLUS
Circular Interpolation Accuracy	Ball-bar in all planes < 6 µm
Linear Scales	Linear scales in all linear axes

Specifications sourced from dmgmori.com — verified 2026-10-02

Strengths & Limitations

Strengths

Fixed table handles workpieces up to 1,700 kg (3,747.9 lb) with dynamics that do not change with the load
1,100 mm (43.3 in) of X with 600 mm (23.6 in) of Y, against 560 mm (22 in) of Y on the CMX 1100
Rapid traverse of 42 m/min in all linear axes
Direct drive transmission in X and Y, with linear scales in all linear axes
Three spindle speeds to choose from: 12,000 rpm, 15,000 rpm High Torque and 20,000 rpm

Limitations

The 1,400 mm (55.1 in) maximum workpiece length is longer than the 1,100 mm (43.3 in) X travel
Z travel of 510 mm (20.1 in) and a 550 mm (21.7 in) height limit restrict tall workpieces
Spindle power and torque are not stated in DMG MORI's Highlights
The DMV 145 has 700 mm (27.6 in) of Y; this machine stops at 600 mm (23.6 in)

Best For

Mold bases and long die plates up to 1,700 kg (3,747.9 lb) Long parts machined in one setup across 1,100 mm (43.3 in) of X Surface finishing where circular interpolation under 6 µm matters Shops that load heavy parts and want the same cutting behaviour at any weight

Frequently Asked Questions

01 How much weight can the DMV 110 table take?

Up to 1,700 kg (3,747.9 lb). The table is fixed, so that weight is not moved by any axis, and DMG MORI states a constant dynamic characteristic regardless of the workpiece weight. The largest workpiece measures 1,400 mm (55.1 in) by 600 mm (23.6 in) by 550 mm (21.7 in).

02 What is the rapid traverse of the DMV 110?

42 m/min in all linear axes. X and Y have direct drive transmission and all linear axes carry linear scales. Travels are 1,100 mm (43.3 in) in X, 600 mm (23.6 in) in Y and 510 mm (20.1 in) in Z.

03 Which spindle should be chosen for the DMV 110?

DMG MORI lists three with the BIG PLUS interface: inlineSPINDLE 12,000 rpm, speedMASTER 15,000 rpm High Torque and speedMASTER 20,000 rpm. The Highlights give no power or torque, so the choice has to be made from the spindle data on the quotation: torque for roughing large die plates, speed for finishing with small tools.

04 How does the DMV 110 differ from the DMV 60?

The DMV 110 has 1,100 mm (43.3 in) of X travel where the DMV 60 has 600 mm (23.6 in). Y and Z are 600 mm (23.6 in) and 510 mm (20.1 in) on both. The DMV 110 handles workpieces up to 1,700 kg (3,747.9 lb).

05 Is the DMV 110 more rigid than the machine it replaced?

DMG MORI states 40% higher static rigidity compared with the predecessor, from a design based on a monolithic machine bed and massive castings with wide roller guideways in all axes. It also claims up to 50% higher performance than the old generation of milling machine, without giving the measure used.
