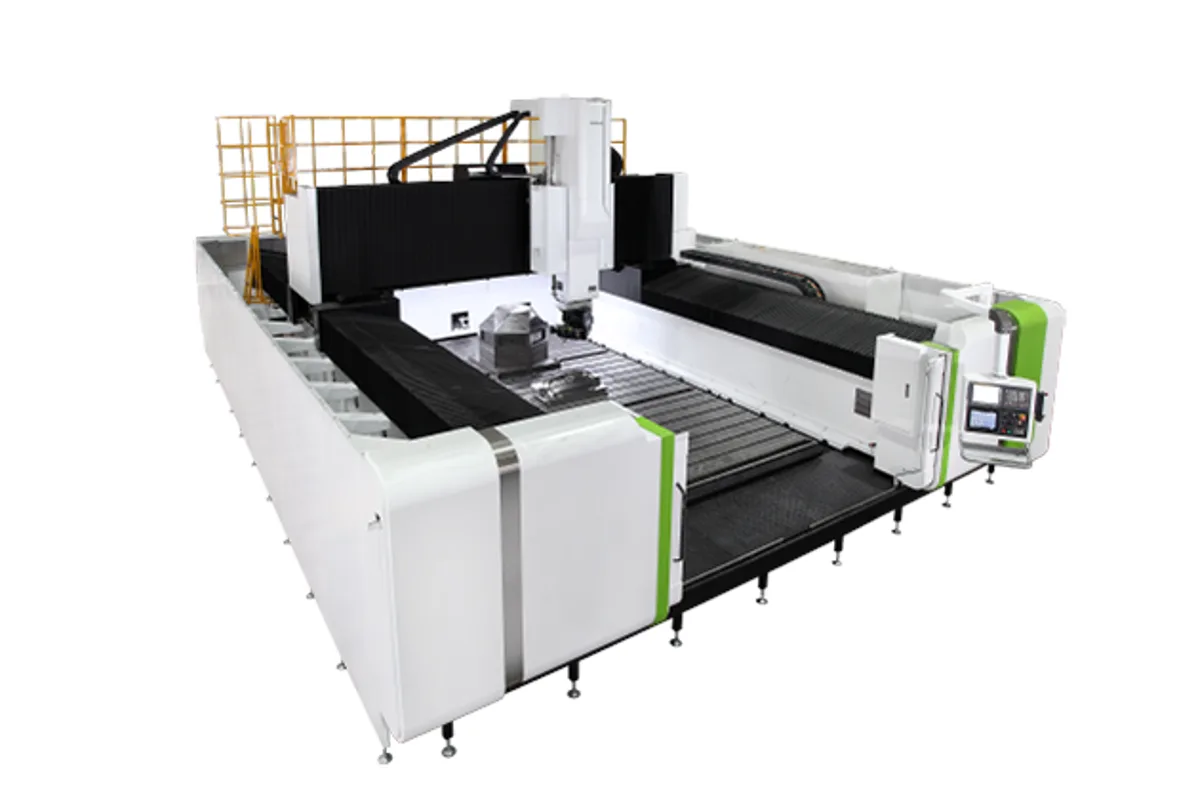

Hartford Aero-836G-5X
Image: hartfordcnc.com, Hartford
Key Specifications
Spindle Taper
Tool Capacity
Table Size
Spindle Power
max table load
x axis travel
How much does the Hartford Aero-836G-5X cost?
Price estimate
We do not have a price for the Hartford Aero-836G-5X that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
At eight metres the Aero 5X changes its X drive, and the Hartford Aero-836G-5X is the first model on the far side of that line. X travel is 8,000 mm (315.0 in), Y travel 3,600 mm (141.7 in), and the table measures 8,000 x 3,100 mm (315.0 x 122.0 in).
Hartford states that rack and pinion drive on the X axis is limited to axes of 8 meters and more, and credits it with no backlash, low noise, improved positioning accuracy and a feed rate up to 50 m/min. That is the only feed figure on the page, and for a gantry that has eight metres to cover between features it is a useful one.
This is also one of two Aero 5X tables with a detailed power row. The standard motor is 34/43 kW, continuous and 30 min, and the options are 21/27, 40/51, 42/53 and 60/80 kW. Spindles are HSK-A63 at 24,000 rpm and HSK-A100 at 12,000 rpm.
Z travel is 1,100 mm with a 1,300 mm option, on twin ballscrews with a cooled drive train. The Y axis has three linear guideways and a linear motor design, and the head is a Cytec 5 axis unit. Table load is 5,000 kg/m².
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 8,000 x 3,100 mm (315.0 x 122.0 in) |
| Max Table Load | 5,000 kg/m² |
| X Axis Travel | 8,000 mm (315.0 in) |
| Y Axis Travel | 3,600 mm (141.7 in) |
| Z Axis Travel | 1,100 (opt 1,300) mm |
| Spindle Taper | HSK-A63 / HSK-A100 |
| Spindle Speed HSK A63 | 24,000 rpm |
| Spindle Speed HSK A100 | 12,000 rpm |
| Tool Capacity | S type 30 (opt 40), A type 40 (opt 60) pcs |
| Spindle Motor Power | 34/43, opt: 21/27, 40/51, 42/53, 60/80 kW (Cont. / 30 min) |
Specifications sourced from hartfordcnc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Rack and pinion X drive with a feed rate up to 50 m/min
- Spindle motors from 21/27 kW to 60/80 kW; 34/43 kW standard
- 8,000 mm (315.0 in) of X travel on an 8,000 x 3,100 mm table
- HSK-A63 at 24,000 rpm or HSK-A100 at 12,000 rpm
Limitations
- The linear motor is not offered on X at this length
- Narrowest eight-metre 5X, with 3,600 mm (141.7 in) of Y travel
- Which motor option suits which spindle is not stated
Best For
Frequently Asked Questions
01
By rack and pinion. Hartford limits this drive to X axes of 8 meters and more and states no backlash, low noise, improved positioning accuracy and a feed rate up to 50 m/min. The linear motor is limited to X axes of up to 6 meters.
02
34/43 kW as standard on the continuous / 30 min basis. The table lists 21/27, 40/51, 42/53 and 60/80 kW as options.
03
Table 8,000 x 3,100 mm (315.0 x 122.0 in), X travel 8,000 mm (315.0 in), Y travel 3,600 mm (141.7 in), Z travel 1,100 mm or 1,300 mm. The table is rated at 5,000 kg/m².
04
The Aero-836G is the 5-faced model with a #50 gear head at 6,000 rpm and 1,000 mm of Z travel. The Aero-836G-5X is the 5-axis model with HSK spindles up to 24,000 rpm, on the same table.
