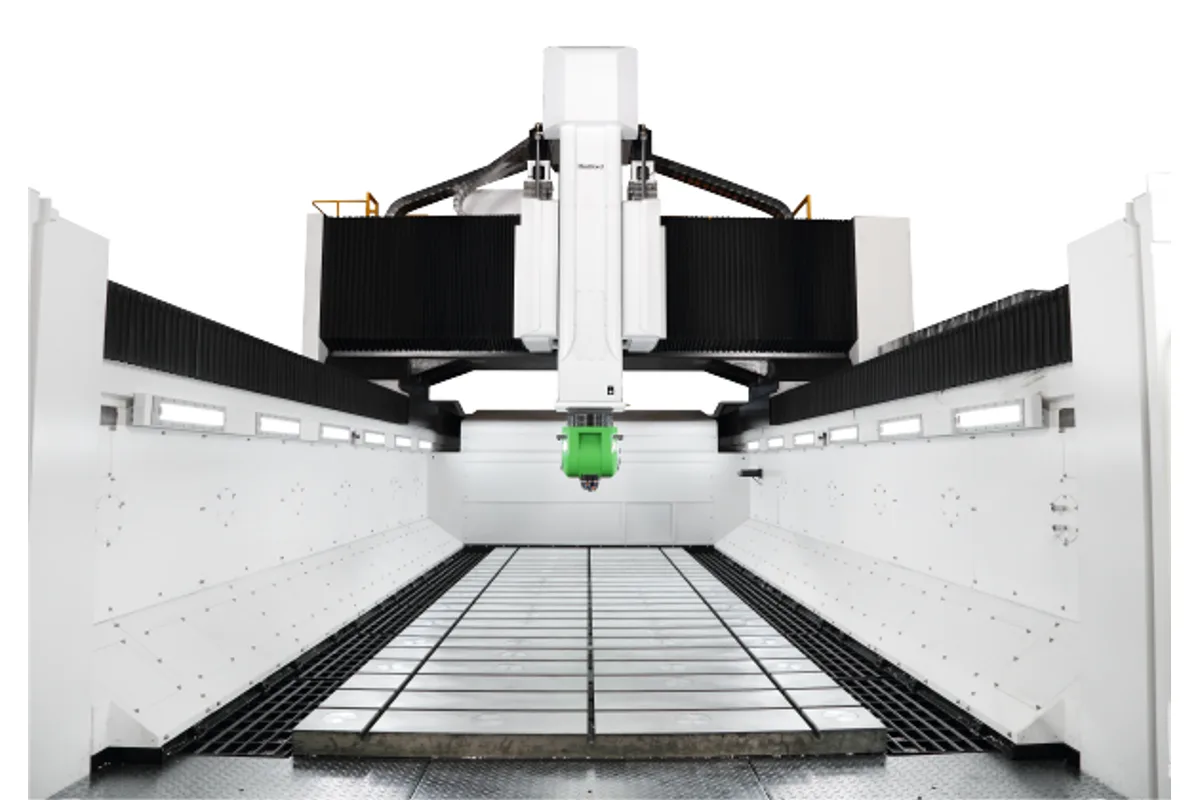

Hartford Aero-1041G-5X
Image: hartfordcnc.com, Hartford
Key Specifications
Spindle Taper
Tool Capacity
Table Size
max table load
x axis travel
y axis travel
How much does the Hartford Aero-1041G-5X cost?
Price estimate
We do not have a price for the Hartford Aero-1041G-5X that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
With 10,000 mm (393.7 in) of X travel and 4,100 mm (161.4 in) of Y, the Hartford Aero-1041G-5X is the mid-width ten-metre gantry type 5-axis machining center of the Aero series. Its table is 10,000 x 3,600 mm (393.7 x 141.7 in).
Hartford gives a clear account of how the frame is guided. The X axis has four linear guideways, two on each side, in what the maker calls a wide open span design. The Y axis has three guideways. All three linear axes run on roller type guideways, which Hartford puts 20 % ahead of ball type, and the Z axis has four guideways of its own in a three binding structure.
What the page leaves out is just as relevant to a buyer. There are no positioning or repeatability figures in the table, no head swivel angles and no spindle power for this model. A machine of this class is normally accepted against a measured volumetric accuracy, so the acceptance protocol should be agreed with Hartford before order.
The spindles are built-in: HSK-A63 at 18,000 or 24,000 rpm and HSK-A100 at 12,000 rpm. Z travel is 1,100 mm with 1,300 mm optional, the X axis is rack and pinion driven at up to 50 m/min, and the table is rated at 5,000 kg/m².
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 10,000 x 3,600 mm (393.7 x 141.7 in) |
| Max Table Load | 5,000 kg/m² |
| X Axis Travel | 10,000 mm (393.7 in) |
| Y Axis Travel | 4,100 mm (161.4 in) |
| Z Axis Travel | 1,100 (opt 1,300) mm |
| Spindle Taper | HSK-A63 / HSK-A100 |
| Spindle Speed Built in HSK A63 | 18,000 / 24,000 rpm |
| Spindle Speed Built in HSK A100 | 12,000 rpm |
| Tool Capacity | S type 30 (opt 40), A type 40 (opt 60) pcs |
Specifications sourced from hartfordcnc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Four guideways on X, three on Y and four on Z, roller type on the linear axes
- 10,000 x 3,600 mm (393.7 x 141.7 in) table with 4,100 mm (161.4 in) of Y travel
- Built-in HSK-A63 spindle at 18,000 or 24,000 rpm
- Rack and pinion X drive, up to 50 m/min
Limitations
- No positioning or repeatability figures in Hartford's table
- Spindle power and head swivel angles are not stated
- Z travel of 1,100 mm, or 1,300 mm with the option
Best For
Frequently Asked Questions
01
Four on the X axis, two on each side, and three on the Y axis, by Hartford's description. Roller type linear guideways are used on three axes, and the Z axis has four linear guideways in a three binding structure.
02
The spec table has no positioning or repeatability row. Hartford's text gives qualitative statements only, for example that rack and pinion drive improves positioning accuracy. Acceptance figures have to be agreed with the maker.
03
X 10,000 mm (393.7 in), Y 4,100 mm (161.4 in) and Z 1,100 mm, with 1,300 mm of Z optional. The table is 10,000 x 3,600 mm (393.7 x 141.7 in).
04
The Aero-1036G-5X has a 10,000 x 3,100 mm (393.7 x 122.0 in) table and 3,600 mm (141.7 in) of Y travel. The Aero-1041G-5X is wider and lists the HSK-A63 spindle at 18,000 or 24,000 rpm.
