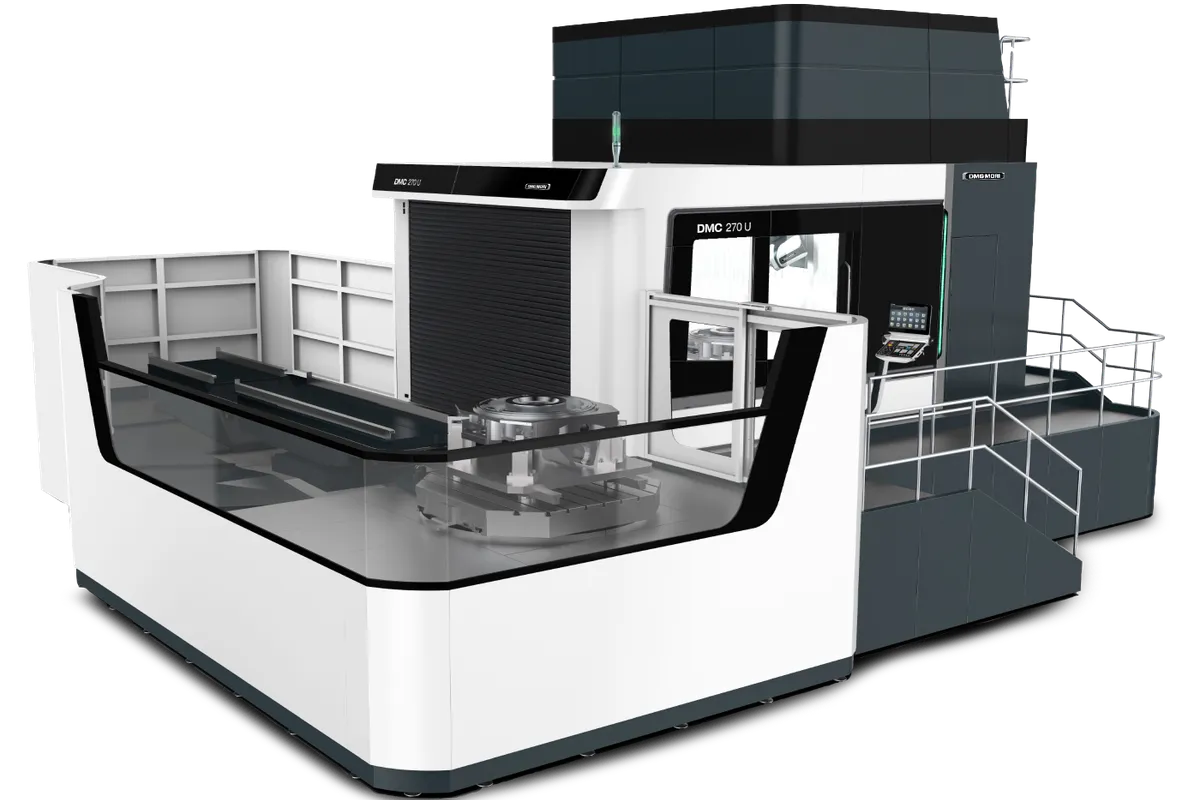

DMG Mori DMC 270 u FD

$3,000,000 - $4,500,000 Updated 2026-03-19

Key Specifications

X Travel

2,700 mm (106.3 in)

Y Travel

2,700 mm (106.3 in)

Z Travel

1,600 mm (63.0 in)

Spindle Taper

HSK-A100

Tool Capacity

Up to 243 tools (wheel magazine)

Max Workpiece ⌀

3,400 mm (133.9 in)

Overview

The DMG Mori DMC 270 u FD is one of the largest portal 5-axis mill-turn machines in the DMG Mori lineup, delivering a massive 2,700 x 2,700 x 1,600 mm (106.3 x 106.3 x 63 in) work envelope for workpieces up to 3,400 mm (133.9 in) diameter, 1,620 mm (63.8 in) height, and 9,000 kg (19,842 lb) in milling mode or 6,000 kg (13,228 lb) in FD mill-turn configuration. This platform handles the largest aerospace structural components, power generation turbine casings, and heavy industrial parts that exceed the DMC 210's capacity.

The portal gantry construction provides thermally symmetric rigidity across the enormous work envelope. The powerMASTER motor spindle delivers 1,000 Nm (738 ft-lb) through HSK-A100, while the torqueMASTER gear spindle option pushes to 1,800 Nm (1,328 ft-lb) for maximum roughing in titanium, Inconel, and hardened steel. The DirectDrive table delivers up to 11,000 Nm (8,113 ft-lb) of table torque for heavy turning operations on the largest workpieces.

Feed speed reaches 60 m/min (2,362 ipm) across all axes, keeping non-cutting time manageable despite the enormous travel distances. The tool magazine holds up to 243 tools in the wheel configuration. Milling, turning, and grinding technology integration run in one setup through SIEMENS SINUMERIK ONE or HEIDENHAIN TNC7 controls with CELOS X.

A pallet changer comes standard for parallel setup on workpieces weighing several tons. The DMC 270 u FD is positioned for shops machining the largest practical workpieces in a single-spindle rotary-table format. Beyond this size, only the DMC 340 u FD and dedicated gantry machines offer more capacity.

Full Specifications

Parameter	Value
X-Axis Travel	2,700 mm (106.3 in)
Y-Axis Travel	2,700 mm (106.3 in)
Z-Axis Travel	1,600 mm (63.0 in)
Max Workpiece Diameter	3,400 mm (133.9 in)
Max Workpiece Height	1,620 mm (63.8 in)
Max Table Load	9,000 kg (19,842 lb) milling / 6,000 kg (13,228 lb) FD
Spindle Torque Powermaster	1,000 Nm / 738 ft-lb (powerMASTER)
Spindle Torque Torquemaster	1,800 Nm / 1,328 ft-lb (torqueMASTER)
Spindle Taper	HSK-A100
Directdrive Table Torque	11,000 Nm / 8,113 ft-lb
Feed Speed	60 m/min (2,362 ipm)
Tool Capacity	Up to 243 tools (wheel magazine)
Pallet Changer	Standard
CNC Control	SIEMENS SINUMERIK ONE / HEIDENHAIN TNC7 with CELOS X
2700 Mm	106.3 in.
1600 Mm	63 in.
3400 Mm	133.9 in.
1620 Mm	63.8 in.
9000 Kg	19841.6 lbs.
Dmg Mori Portal Series The Pinnacle Of Mechanical Engineering	High Precision Machining with µPrecision by DMG MORI
Customer Benefits	User Interface
Customer Benefitsflexible Application Possibilitiesin Process Measurement	Left : Semi-automatic Measurement solution. / Right : Automatic measurement solution.
6000 Kg	13227.7 lbs.

Specifications sourced from us.dmgmori.com — verified 2026-03-28

Strengths & Limitations

Strengths

2,700 x 2,700 x 1,600 mm travel handles workpieces up to 3,400 mm diameter and 9,000 kg that no duoBLOCK or smaller portal can accommodate
11,000 Nm DirectDrive table torque enables heavy turning on the largest workpieces without a dedicated vertical turning lathe
Portal construction maintains symmetric rigidity and thermal stability across the enormous work envelope
FD mill-turn at 6,000 kg capacity eliminates extremely costly multi-machine transfers for large combined-operation parts
TorqueMASTER at 1,800 Nm delivers maximum roughing performance in superalloys on massive components
Standard pallet changer enables parallel setup for multi-ton workpieces

Limitations

Price above $3M is among the highest for rotary-table 5-axis machines, requiring specialized large-part production to justify
Installation requires a purpose-built foundation pit and significant rigging -- total installed cost adds $200,000-$500,000+
243-tool magazine is smaller than the duoBLOCK's 453-tool capacity, potentially requiring manual tool loading for complex parts
Few shops have the workpiece volume and part size to utilize this machine class consistently
Extended lead times for ordering, installation, and critical spare parts

Best For

Aerospace manufacturers machining the largest engine casings, structural bulkheads, and nacelle components Power generation companies machining large gas turbine casings, steam turbine components, and generator housings Oil and gas manufacturers producing large subsea trees, blowout preventers, and wellhead equipment Defense contractors machining large naval propulsion components and submarine structural parts Heavy industrial manufacturers producing large mining, construction, and material handling components

Frequently Asked Questions

01 What does a DMG Mori DMC 270 u FD cost?

New machines typically price between $3,000,000 and $4,500,000 depending on spindle, automation, and accuracy packages. Installation including foundation work adds $200,000-$500,000+. This is specialist capital equipment for high-value large-part production.

02 DMC 270 u FD vs DMC 210 u FD -- when do I need the larger machine?

Step up to the DMC 270 when parts exceed 2,500 mm diameter, need more than 6,000 kg milling capacity, or require the 2,700 mm travel cube. The 270 also provides significantly higher table torque (11,000 Nm vs the 210's lower torque) for heavy turning on large diameters.

03 Can the 11,000 Nm table torque replace a large VTL?

For parts requiring both 5-axis milling and turning, yes. The table torque handles heavy facing, OD turning, and boring on workpieces up to 6,000 kg in FD mode. For pure turning production at maximum throughput, a dedicated VTL remains more efficient.

04 What is the realistic lead time for a DMC 270 u FD?

Lead times typically range from 12 to 18 months from order to installation. Foundation preparation should begin 3-6 months before machine arrival. DMG Mori coordinates installation planning to minimize total project duration.
