Ganesh GEN MILL 5X-24

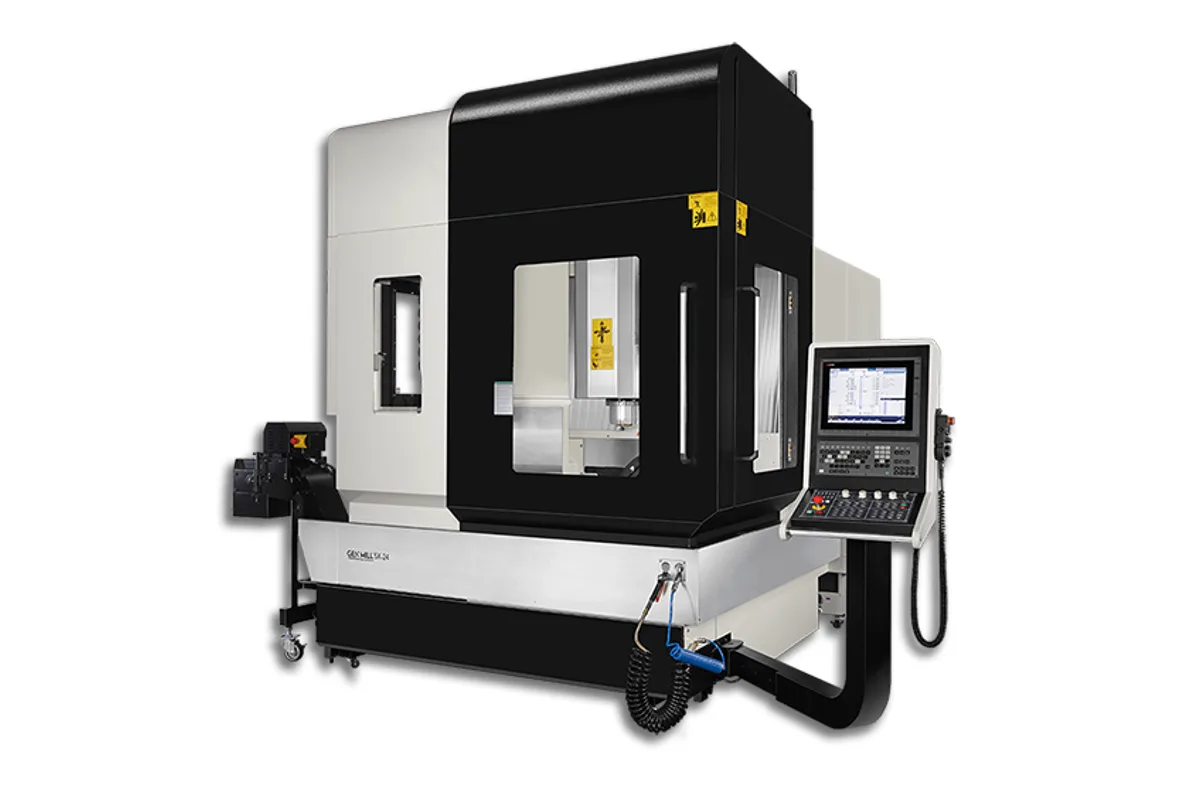

Image: expandmachinery.com, Ganesh
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
How much does the Ganesh GEN MILL 5X-24 cost?
Price estimate
We do not have a price for the Ganesh GEN MILL 5X-24 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The GEN MILL 5X-24 is the largest 5-axis machine in the line, built around a 25.6 in diameter tilting rotary table driven by worm gears. It accepts workpieces up to 20.47 in in diameter and 13 in tall (520 x 330 mm), and its linear travels are 24.41 in (620 mm) in X, 20.47 in (520 mm) in Y and 18.11 in (460 mm) in Z. Expand Machinery labels the rotary axes B and C.
Feedback is by precision glass scales on X, Y and Z and on both rotary axes, so position is measured at the slide and at the table instead of at the motor. All linear axes use roller-bearing ways. Rapids are 1,417 ipm (36 m/min) in X, Y and Z.
The spindle runs at 15,000 rpm with direct drive, and 20,000 rpm is optional. A dual-winding motor gives 70 ft-lb (95.5 Nm) from 0 to 1,500 rpm, with 25 HP peak and 20 HP on the 30 min rating. Compared with the GEN MILL 5X-16, which has the same torque, peak power is 25 HP instead of 20 HP. The taper is CAT 40, with BT 40 or HSK-63 optional.
For long unattended cycles there is a 60-tool twin-arm changer, a 106 gallon (400 liter) coolant tank and 300 psi (20 bar) coolant pressure. Tools can be 5 in (127 mm) in diameter, 3 in (76 mm) with adjacent tools, 10 in (250 mm) long and 15 lb (7 kg). The machine weighs 21,384 lb (9,700 kg), needs 55 kVA and occupies 160 x 130 x 119 in (405 x 328 x 301 cm). The specification table gives no table load, a figure to request for any heavy fixture.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 24.41 in (620 mm) |
| Y Axis Travel | 20.47 in (520 mm) |
| Z Axis Travel | 18.11 in (460 mm) |
| Distance Spindle Nose to Table | 5.51 - 23.62 in (140 - 600 mm) |
| Throat | 17.71 in (450 mm) spindle center to Z-axis way covers |
| Table Size | 25.6 in diameter worm-gear driven tilting rotary table |
| Max Workpiece Size | 20.47 in diameter x 13 in tall (520 x 330 mm) |
| Spindle Motor Power | 25 HP peak, 20 HP 30 min duty rating (S1 / S2 / S3 = 11 / 15 / 18.5 kW) |
| Max Spindle Speed | 15,000 rpm direct drive (20,000 rpm optional) |
| Spindle Torque | 70 ft-lb (95.5 Nm) at 0 - 1,500 rpm, dual winding motor |
| Spindle Taper | CAT 40 (BT 40, HSK-63 optional) |
| Rapid Traverse Xyz | 1,417 ipm (36 m/min) X, Y, Z |
| Cutting Feed Rate | 0.04 - 394 ipm (10,000 mm/min) |
| Axis Motor Power | 4.7 HP (3.5 kW) X, Y, Z |
| Ballscrews | 32 mm, 12 mm pitch (X, Y, Z) |
| Tool Capacity | 60, twin-arm tool changer |
| Tool Change Time | 3.2 sec tool-to-tool |
| Max Tool Diameter (full magazine) | 5 in (127 mm); 3 in (76 mm) with adjacent tools |
| Max Tool Length | 10 in (250 mm) |
| Max Tool Weight | 15 lb (7 kg) |
| Air Requirement | 85 psi at 14 scfm |
| Power Requirement | 55 kVA, 220 VAC ±5%, 60 Hz |
| Coolant Tank Capacity | 106 gallons (400 liters) |
| Coolant Pressure | 300 psi (20 bar) |
| Machine Dimensions | 160 x 130 x 119 in (405 x 328 x 301 cm) W x D x H |
| Machine Weight | 21,384 lb (9,700 kg) |
Specifications sourced from expandmachinery.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 25.6 in diameter worm-gear driven tilting rotary table
- Workpieces up to 20.47 in in diameter and 13 in tall (520 x 330 mm)
- Glass scale feedback on X, Y, Z and both rotary axes
- 15,000 rpm spindle with 25 HP peak and 70 ft-lb (95.5 Nm); 20,000 rpm optional
- 60-tool twin-arm changer for long unattended cycles
- 1,417 ipm (36 m/min) rapids in all three linear axes
Limitations
- Tool change takes 3.2 sec
- Tool length is limited to 10 in (250 mm) and weight to 15 lb (7 kg)
- No table load is given in the specification
- Large installation: 160 x 130 x 119 in (405 x 328 x 301 cm), 21,384 lb (9,700 kg) and 55 kVA
Best For
Frequently Asked Questions
01
Maximum workpiece dimension is 20.47 in in diameter by 13 in tall (520 x 330 mm) on a 25.6 in tilting rotary table. Linear travels are 24.41 in (620 mm), 20.47 in (520 mm) and 18.11 in (460 mm) in X, Y and Z, and spindle nose to table distance is 5.51 - 23.62 in (140 - 600 mm).
02
Expand Machinery lists precision glass-scale feedback on X, Y, Z and the B and C axes, and a roller-bearing heavy-duty linear way system on all linear axes. The rotary table is worm-gear driven. Ballscrews are 32 mm with a 12 mm pitch, driven by 4.7 HP (3.5 kW) motors.
03
15,000 rpm direct drive as standard, with 20,000 rpm optional. The dual-winding motor is rated 25 HP peak and 20 HP on the 30 min duty rating and produces 70 ft-lb (95.5 Nm) from 0 to 1,500 rpm. The taper is CAT 40; BT 40 and HSK-63 are options.
04
The twin-arm changer holds 60 tools and changes in 3.2 sec tool-to-tool. Maximum tool diameter is 5 in (127 mm), or 3 in (76 mm) with adjacent tools. Maximum tool length is 10 in (250 mm) and maximum weight 15 lb (7 kg).
05
A 55 kVA connected load at 220 VAC ±5%, 60 Hz, and air at 85 psi and 14 scfm. Floor space is 160 x 130 x 119 in (405 x 328 x 301 cm). Coolant capacity is 106 gallons (400 liters) and the machine weighs 21,384 lb (9,700 kg).
