Haas Automation Vertical Machining Centers

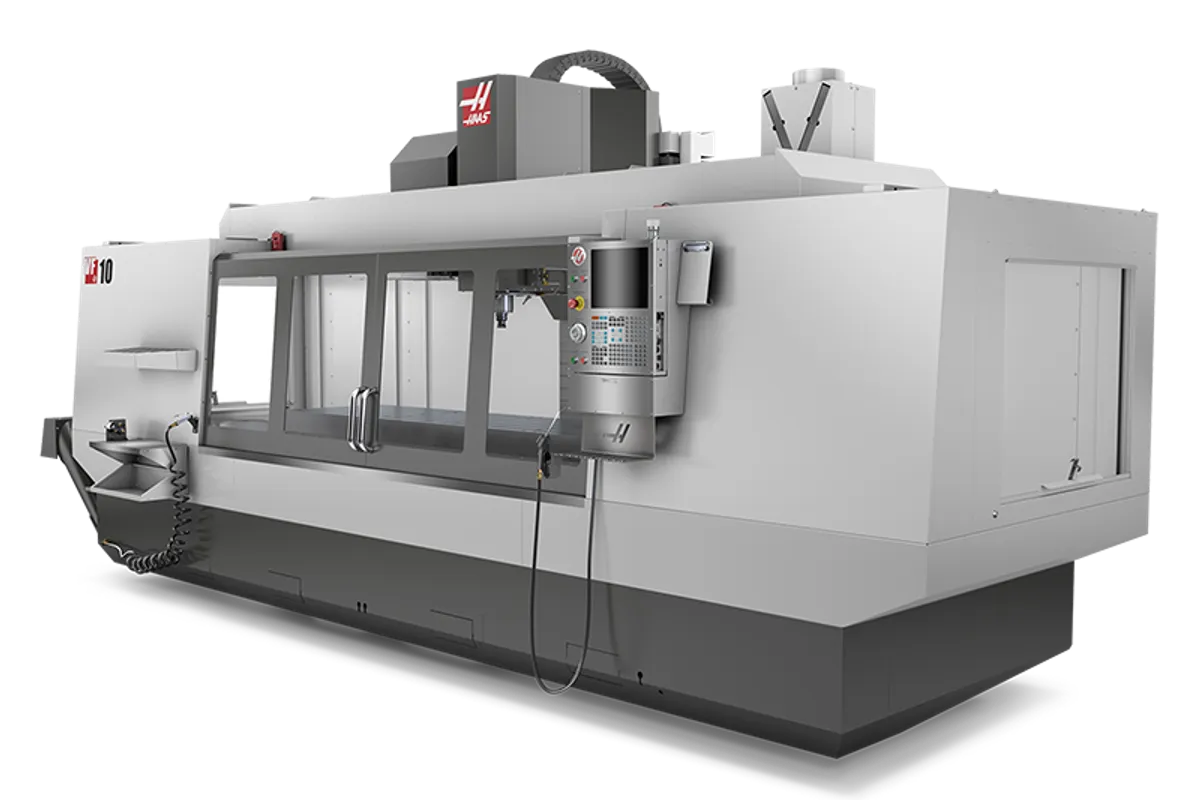

Haas VF-10/40

$189,000 - $240,000 Updated 2026-03-12

Key Specifications

X Travel

3,048 mm (120 in)

Y Travel

813 mm (32 in)

Z Travel

762 mm (30 in)

Max Spindle

10000 rpm

Spindle Taper

CT40 / BT40 / HSK-A63

Tool Capacity

30+1 SMTC

Overview

The Haas VF-10/40 crosses the 10-foot mark with 3,048 mm (120 in) of X-travel, making it the entry point into truly long-bed territory in the Haas 40-taper lineup. Paired with 813 mm (32 in) of Y and 762 mm (30 in) of Z, this machine handles parts that most standard VMCs can't touch without repositioning or refixturing.

The spindle is the same 22.4 kW (30 hp) inline direct-drive unit used across the large VF/40 family, but the VF-10/40 pushes max speed to 10,000 RPM per the electrical specification. Torque stays at 122 Nm (90 ft-lbf) at 2,000 RPM with the optional gearbox delivering 339 Nm (250 ft-lbf) at 450 RPM. It runs CT40, BT40, or HSK-A63 tooling with liquid cooling.

The 3,048 x 711 mm (120 x 28 in) T-slot table is 10 feet long with 5 T-slots on 125 mm centers and handles 1,814 kg (4,000 lb) of evenly distributed load. That table length is where the VF-10/40 earns its keep: you can fixture multiple parts in line, run long extrusions or structural beams, or set up a full 4th-axis tombstone arrangement with room to spare.

The one trade-off with the extended X-axis is rapid traverse. The VF-10/40 runs 9.1 m/min (360 ipm) on X, compared to 15.2 m/min (600 ipm) on the shorter-travel models. Y and Z rapids remain at 15.2 m/min (600 ipm). Max cutting feedrate matches the X rapid at 9.1 m/min (360 ipm). This slower X rapid adds cycle time on parts that require frequent long traverses, so shops running high-volume work should factor that into their time studies.

The SMTC holds 30+1 tools with 2.8-second tool-to-tool and 3.6-second chip-to-chip times. At 13,654 kg (30,100 lb), the VF-10/40 has substantial mass to support heavy cuts across that full 120-inch span. Starting at around $189,000, it matches the VF-9/40 in price while offering 36 inches more X-travel, though with narrower Y. Specs sourced from Haas Automation published data.

Full Specifications

Parameter	Value
X-Axis Travel	3,048 mm (120 in)
Y-Axis Travel	813 mm (32 in)
Z-Axis Travel	762 mm (30 in)
Spindle Nose To Table Max	864 mm (34 in)
Spindle Nose To Table Min	102 mm (4 in)
Max Spindle Speed	10000 rpm
Spindle Taper	CT40 / BT40 / HSK-A63
Spindle Motor Power	30.0 hp
Spindle Torque Max	122 Nm (90 ft-lbf) @ 2,000 RPM
Spindle Torque With Gearbox	339 Nm (250 ft-lbf) @ 450 RPM
Spindle Drive	Inline Direct-Drive
Spindle Cooling	Liquid Cooled
Tool Capacity	30+1 SMTC
Tool To Tool	2.80 s
Chip To Chip	3.60 s
Max Tool Diameter	2.5 in
Max Tool Weight	12.0 lb
Table Size	3,048 x 711 mm (120 x 28 in)
Table Load Max	1,814 kg (4,000 lb)
T Slots	5 slots, 125 mm (4.92 in) center distance
Max Cutting Feedrate	9.1 m/min (360 ipm)
Rapid Traverse X	9.1 m/min (360 ipm)
Rapid Traverse Y	15.2 m/min (600 ipm)
Rapid Traverse Z	15.2 m/min (600 ipm)
Max Thrust X	3400 lbf
Max Thrust Y	3400 lbf
Max Thrust Z	5600 lbf
Machine Weight	13,654 kg (30,100 lb)
CNC Control	Haas Next Generation Control (NGC)
Coolant Capacity	95 gal
Air Required	4 scfm @ 100 psi
Electrical Low	220 VAC 3-phase, 70 A
Electrical High	440 VAC 3-phase, 35 A
Travels	S.A.E
X Axis	120.00 in
Y Axis	32.00 in
Z Axis	30.00 in
Spindle Nose To Table	4.0 in
Spindle	S.A.E
Max Rating	30.0 hp
Max Speed	8100 rpm
Max Torque	90.0 ft-lbf @ 2000 rpm
Max Torque W Opt Gearbox	250 ft-lbf @ 450 rpm
Drive System	Inline Direct-Drive
Taper	CT40 \| BT40 \| HSK-A63
Bearing Lubrication	Air / Oil Injection
Cooling	Liquid Cooled
Table	S.A.E
Length	120.0 in
Width	28.0 in
T Slot Width	0.626 in to 0.630 in
T Slot Center Distance	4.92 in
Number Of Std T Slots	5
Max Weight On Table	4000 lb
Feedrates	S.A.E
Max Cutting	360 ipm
Rapids On X	360 ipm
Rapids On Y	600 ipm
Rapids On Z	600 ipm
Axis Motors	S.A.E
Tool Changer	S.A.E
Type	SMTC
Capacity	30+1
Max Tool Diameter Large	5.0 in
Max Tool Diameter Extra Large	6.0 in
Max Tool Length	16.00 in
General	S.A.E
Air Requirements	S.A.E
Inline Air Hose	3/8 in
Coupler	3/8 in
Air Pressure Min	80 psi
Electrical Specification	S.A.E
Input Ac Voltage Low	220 VAC
Full Load Amps Low	70 A
Input Ac Voltage High	440 VAC
Full Load Amps High	35 A
Dimensions Shipping	S.A.E
Domestic Pallet	288.0 in x 102.0 in x 128.5 in
Export Crate	288.0 in x 105.0 in x 130.5 in
Machine Weight	30100 lb
Domestic Pallet W Ec Option	288 in x 102 in x 135 in
Export Crate W Ec Option	288 in x 105 in x 139 in
Weight W Ec Option	30100 lb
Domestic Pallet W 501 Smtc	288 in x 102 in x 133 in
Export Crate W 501 Smtc	288 in x 105 in x 136 in
Weight W 501 Smtc	30100 lb
Domestic Pallet W Ec Option 501 Smtc	288 in x 102 in x 143 in
Export Crate W Ec Option 501 Smtc	288 in x 105 in x 143 in
Weight W Ec Option 501 Smtc	30100 lb
Haas Rotary	HAAS MACHINE
Ha2ts	VF-10/40
Ha5c	VF-10/40
Ha5c T	VF-10/40
Ha5c2	VF-10/40
Ha5c2 T	VF-10/40
Ha5c3	VF-10/40
Ha5c3 T	VF-10/40
Ha5c4	VF-10/40
Ha5c4 T	VF-10/40
Ha5cs	VF-10/40
Hqda5	VF-10/40
Hrc160	VF-10/40
Hrc210	VF-10/40
Hrt160	VF-10/40
Hrt160 2	VF-10/40
Hrt160sp	VF-10/40
Hrt160ss	VF-10/40
Hrt200hs	VF-10/40
Hrt210	VF-10/40
Hrt210 2	VF-10/40
Hrt210ht	VF-10/40
Hrt210m	VF-10/40
Hrt210sp	VF-10/40
Hrt210ss	VF-10/40
Hrt210vm	VF-10/40
Hrt310	VF-10/40
Hrt310sp	VF-10/40
Hrt310ss	VF-10/40
Hrt450	VF-10/40
Hrta5	VF-10/40
Hrta6	VF-10/40
Lt260	VF-10/40
Lt350	VF-10/40
T5c	VF-10/40
T5c2	VF-10/40
T5c3	VF-10/40
T5c4	VF-10/40
Th240	VF-10/40
Th450	VF-10/40
Tr160	VF-10/40
Tr160 2	VF-10/40
Tr200y	VF-10/40
Tr210	VF-10/40
Tr310	VF-10/40
Trt100	VF-10/40
Trt160	VF-10/40
Trt210	VF-10/40
Trt310	VF-10/40
Trt70	VF-10/40

Specifications sourced from haascnc.com — verified 2026-03-28

Strengths & Limitations

Strengths

3,048 mm (120 in) of X-travel covers a full 10-foot span for long parts, extrusions, and multi-part fixtures in a single setup
Same price as the VF-9/40 while offering 36 inches more X-travel for shops that prioritize length over Y-width
13,654 kg (30,100 lb) machine weight provides solid rigidity across the full 120-inch travel range
SMTC standard with 30+1 tool capacity and upgraded features package at no extra cost
10-foot table supports multi-part inline fixturing that eliminates part repositioning
1,814 kg (4,000 lb) table load handles heavy fixtures and components across the full span

Limitations

X-axis rapid traverse drops to 9.1 m/min (360 ipm), roughly 40% slower than shorter VF/40 models, adding cycle time on long traverses
32 inches of Y-travel may feel tight for wide parts; the VF-11/40 adds 8 inches of Y but costs significantly more
8,100 RPM max spindle speed limits high-speed aluminum machining capability
30,100 lb shipping weight and 24-foot pallet length require careful rigging planning and adequate bay door clearance

Best For

Shops machining long structural parts, rails, extrusions, and beams up to 120 inches in a single setup Aerospace contractors working on wing ribs, stringers, and structural members that exceed 84 inches Multi-part inline production where fixturing multiple smaller parts across 10 feet eliminates handling time Energy sector manufacturers machining long turbine components, shafts, and housings Job shops that need long-bed capability without the cost of a horizontal boring mill

Frequently Asked Questions

01 Why are the X-axis rapids slower on the VF-10/40?

The longer 120-inch X-axis travel requires more time to accelerate and decelerate safely. Haas limits X rapids to 360 ipm (vs 600 ipm on shorter models) to maintain positioning accuracy and reduce mechanical stress across the extended travel. Y and Z rapids remain at 600 ipm.

02 How does the VF-10/40 compare to the VF-12/40?

The VF-12/40 adds another 30 inches of X-travel (150 vs 120 in) with the same 32-inch Y. It costs about $160K more at $348K starting. If your longest parts fit within 120 inches, the VF-10/40 saves significant money.

03 What floor space does the VF-10/40 need?

The machine ships on a 288 x 102-inch pallet (24 x 8.5 feet). Allow additional clearance for operator access, chip removal, and service. Plan for at least 30 x 14 feet of dedicated floor space.

04 Can the VF-10/40 maintain accuracy across the full 120-inch travel?

Haas specs positioning accuracy at plus/minus 0.005 mm (0.0002 in) and repeatability at plus/minus 0.0025 mm (0.0001 in) across all axes. For critical work at extreme travel positions, regular calibration and temperature-stable shop conditions are recommended.
