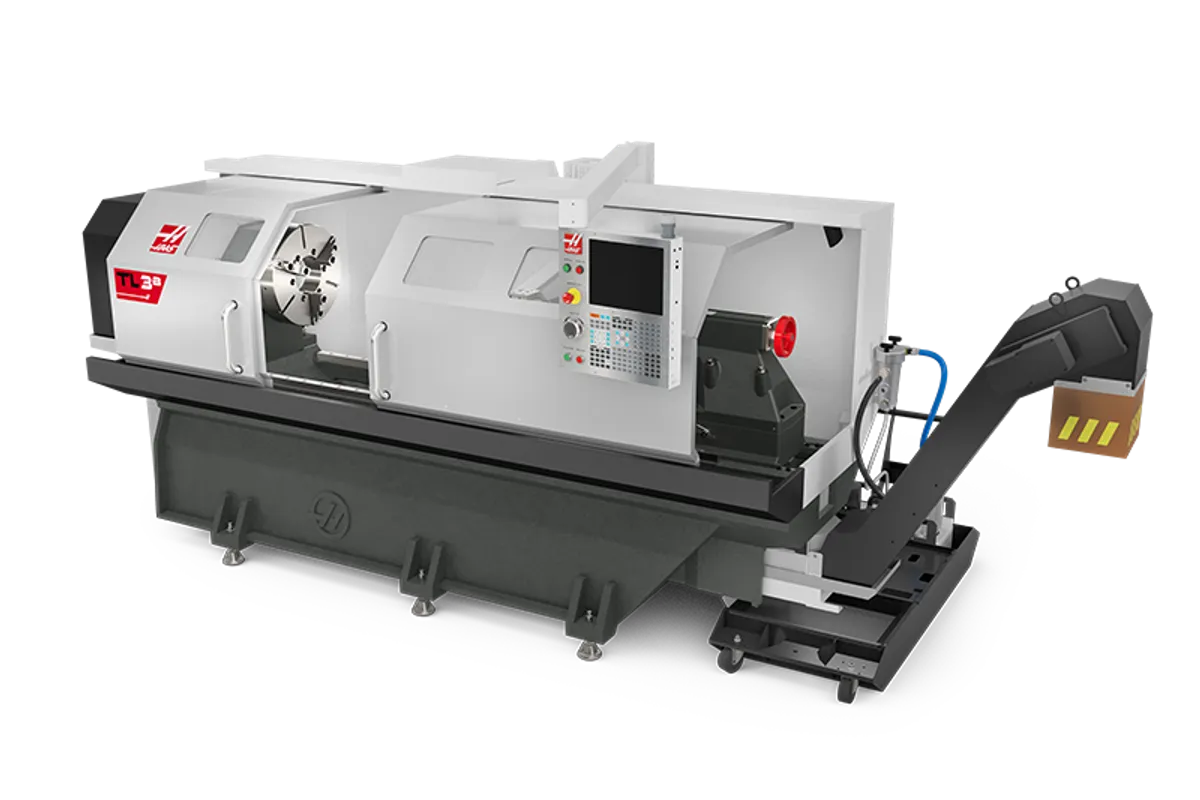

Haas TL-3B
Key Specifications
X Travel
Z Travel
Max Spindle
Rapid Traverse
Spindle Power
Max Turn Length
How much does the Haas TL-3B cost?
Manufacturer list price
As published by Haas Automation, verified 2026-10-02. Options, tooling, freight and installation are extra.
Overview
The Haas TL-3B is the big-bore version of the TL-3 toolroom lathe. Its spindle has a 7.08 in (179.8 mm) bore, an A2-11 nose at the front and the rear, and 7 in (178 mm) of bar capacity, on a bed with 63 in (1,600 mm) between centers.
The drive differs from the TL-3 as well as the bore. The TL-3 has a 30 hp (22.4 kW) spindle with 300 ft-lbf (407 N·m) at 500 rpm, 2,000 rpm and a 4.62 in (117.3 mm) bore. The TL-3B has 40 hp (29.8 kW) through a 2-speed gearbox, 1,400 ft-lbf (1,898 N·m) at 150 rpm and a 1,300 rpm limit. That is more than four times the torque, delivered at under a third of the speed, which is the right shape for large pipe and tube and the wrong one for small work.
A nose at both ends of the spindle means a chuck can be fitted at the rear as well as the front, so a long pipe passing through the bore is held at two points while its end is turned or threaded. The table lists a 20 in (508 mm) chuck as an option. Swing is 30 in (762 mm) over the front apron and 18 in (457 mm) over the cross slide.
Turning diameter is given three ways: 26 in as the headline figure, 30 in with a tool post and 21 in with the BOT turret. Turning length is 62 in (1,575 mm), or 61.5 in with the 8-station turret, which indexes in 1 s. X travel is 16 in (406 mm) and rapids are 450 ipm (11.4 m/min). The MT5 tailstock has a manual quill with 7 in of travel.
Coolant capacity is 45 gal (170 L). Air demand is 4 scfm at 100 psi (113.3 L/min at 6.9 bar), with supply pressure between 80 psi (5.5 bar) and 120 psi (8.3 bar). Power is 70 A at 220 VAC three-phase or 35 A at 440 VAC. Haas's starting price is US$79,995.
Full Specifications
| Parameter | Value |
|---|---|
| Swing Over Front Apron | 30 in (762 mm) |
| Swing Over Cross Slide | 18 in (457 mm) |
| Chuck Optional | 20 in (508 mm) |
| Max Swing | 30 in (762 mm) |
| Max Turning Diameter | 26 in |
| Max Turning Diameter with Bot Turret | 21 in |
| Max Turning Diameter with Tool Post | 30 in (762 mm) |
| Max Turning Length | 62 in (1,575 mm) |
| Max Turning Length with 8 Station Turret | 61.5 in |
| Bar Capacity | 7 in (178 mm) |
| Bar Capacity with Opt Workholding | 7 in |
| Distance Between Centers | 63 in (1,600 mm) |
| X-Axis Travel | 16 in (406 mm) |
| Z-Axis Travel | 63 in |
| Rapid Traverse Rate | 450 ipm (11.4 m/min) |
| Max Thrust X | 5,600 lbf (24,910 N) |
| Max Thrust Z | 5,100 lbf (22,686 N) |
| Spindle Nose | A2-11 Front & Rear |
| Spindle Drive | 2-Speed Gearbox |
| Spindle Motor Power | 40 hp (29.8 kW) |
| Max Spindle Speed | 1,300 rpm |
| Spindle Torque | 1,400 ft-lbf @ 150 rpm (1,898 N·m @ 150 rpm) |
| Spindle Bore | 7.08 in (179.8 mm) |
| Tailstock Taper | MT5 |
| Tailstock Manual Quill Travel | 7 in (178 mm) |
| Turret Stations | 8 BOT |
| Turret Index Time | 1 s |
| Turret Boring Bar Rear Clearance | 1.65 in (41.8 mm) |
| Turret Boring Bar Rear Clearance From Turret Face | 5.27 in (133.9 mm) |
| Coolant Capacity | 45 gal (170 L) |
| Air Required | 4 scfm @ 100 psi (113.3 L/min @ 6.9 bar) |
| Air Pressure Max | 120 psi (8.3 bar) |
| Inline Air Hose | 3/8 in |
| Air Coupler | 3/8 in |
| Air Pressure Min | 80 psi (5.5 bar) |
| Electrical Service (low voltage) | 220 VAC 3-phase, 70 A |
| Electrical Service (high voltage) | 440 VAC 3-phase, 35 A |
Specifications sourced from haascnc.com — verified 2026-10-02
Strengths & Limitations
Strengths
- 7.08 in (179.8 mm) spindle bore with 7 in (178 mm) of bar capacity
- A2-11 spindle nose front and rear, so long pipe can be chucked at both ends
- 1,400 ft-lbf (1,898 N·m) at 150 rpm from a 40 hp (29.8 kW) spindle with a 2-speed gearbox
- 63 in (1,600 mm) between centers and 62 in (1,575 mm) of turning length
- 18 in (457 mm) swing over the cross slide and 30 in (762 mm) over the front apron
Limitations
- Spindle speed is capped at 1,300 rpm, against 2,000 rpm on the TL-3
- Turning diameter is 21 in with the BOT turret, against 30 in (762 mm) with a tool post
- The 20 in (508 mm) chuck is an option, and a rear chuck would be a further item to specify
- Manual tailstock quill with 7 in (178 mm) of travel
Best For
Frequently Asked Questions
01
The spindle. The TL-3 has an A2-8 nose, a 4.62 in (117.3 mm) bore, 4 in (102 mm) of bar capacity, 30 hp (22.4 kW), 300 ft-lbf (407 N·m) at 500 rpm and 2,000 rpm. The TL-3B has an A2-11 nose front and rear, a 7.08 in (179.8 mm) bore, 7 in (178 mm) of bar capacity, 40 hp (29.8 kW), 1,400 ft-lbf (1,898 N·m) at 150 rpm and 1,300 rpm.
02
Bar capacity is 7 in (178 mm) and the spindle bore is 7.08 in (179.8 mm). The table lists a 20 in (508 mm) chuck as an option, and the spindle nose is A2-11 at the front and the rear, which allows workholding at both ends of the spindle for long stock.
03
The table gives 26 in as the maximum turning diameter, 30 in (762 mm) with a tool post and 21 in with the BOT turret. Swing is 30 in over the front apron and 18 in (457 mm) over the cross slide. Confirm with Haas which tooling setup the 26 in figure refers to.
04
Air consumption is 4 scfm at 100 psi (113.3 L/min at 6.9 bar), with a supply pressure of at least 80 psi (5.5 bar) and at most 120 psi (8.3 bar). Coolant capacity is 45 gal (170 L). Electrical supply is 220 VAC three-phase at 70 A or 440 VAC three-phase at 35 A.
05
The turret is an 8-station BOT type with a 1 s index time. Boring-bar rear clearance is 1.65 in (41.8 mm), or 5.27 in (133.9 mm) from the turret face, and turning length with the turret is 61.5 in. The tailstock has an MT5 taper and a manual quill with 7 in (178 mm) of travel.
Videos
1stmachineryauctions
MachinesUsed

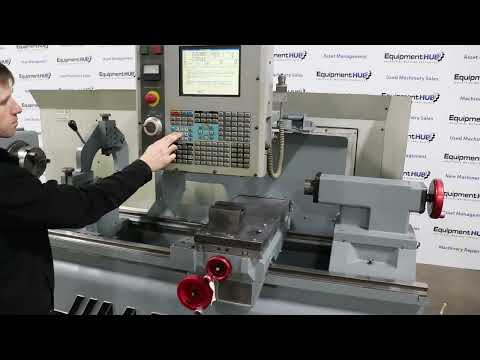

The Equipment Hub
