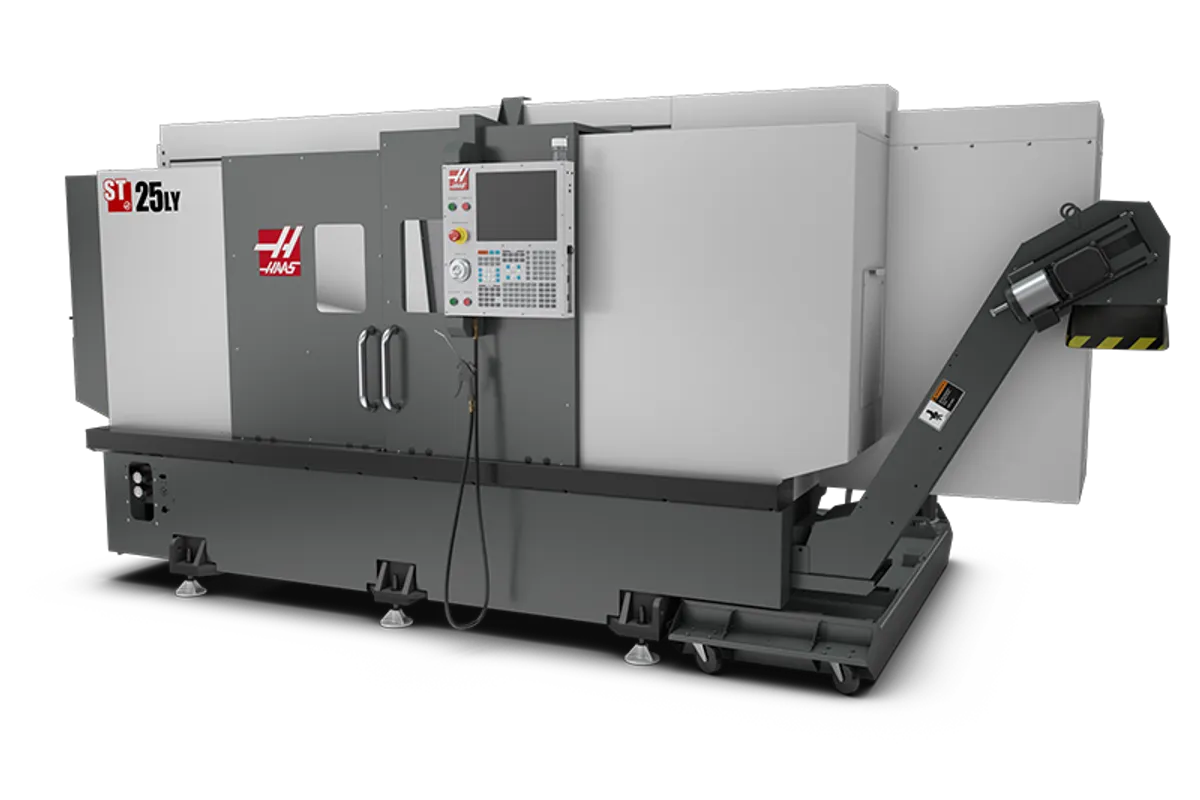

Haas ST-25LY
Image: haascnc.com, Haas Automation
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Power
Max Turn Length
How much does the Haas ST-25LY cost?
Manufacturer list price
As published by Haas Automation, verified 2026-10-02. Options, tooling, freight and installation are extra.
Overview
The Haas ST-25LY is a long-bed turn-mill lathe: 30 hp (22.4 kW) and a 10 in (254 mm) chuck at the headstock, 42.5 in (1,080 mm) of Z travel, ± 2 in (± 51 mm) of Y, and BMT65 live tools that run to 4,000 rpm.
Two speeds decide how it gets used. The main spindle peaks at 3,400 rpm and makes its 300 ft-lbf (407 N·m) at 500 rpm, a low-speed, high-torque characteristic suited to roughing 3 in (76 mm) bar and larger chucked stock. The live tools turn faster than the spindle does, yet 4,000 rpm is still slow for small end mills and drills. Plan milled features around cutter diameters that work at that speed, and allow cycle time for small cross holes.
Next to the ST-20LY the travels, the Y stroke, the 11.75 in (298 mm) turning diameter and even the 12,360 lb (5,606 kg) weight are the same. The ST-20LY has 20 hp (14.9 kW), 150 ft-lbf (203 N·m), 2.5 in (64 mm) of bar capacity and a 4,000 rpm spindle. Choose between the two on material and bar size, not on envelope.
For milling, the C axis both positions and interpolates. It positions to 0.01°, turns at up to 60 rpm on a 5 hp (3.7 kW) rating, and clamps with 250 ft-lbf (339 N·m) from a brake 13.9 in (353 mm) in diameter. Y thrust is 2,300 lbf (10,231 N), less than half the 5,100 lbf (22,686 N) of Z, and X and Y rapid at 472 ipm (12 m/min) where Z moves at 945 ipm (24 m/min).
No sub-spindle appears in the table. Supply is 70 A at 220 VAC three-phase or 35 A at 440 VAC, and Haas lists a starting price of US$171,995.
Full Specifications
| Parameter | Value |
|---|---|
| Chuck Size | 10 in (254 mm) |
| Max Swing | 21 in (533 mm) |
| Max Turning Diameter | 11.75 in (298 mm) |
| Max Turning Length | 42.5 in (1,080 mm) |
| Bar Capacity | 3 in (76 mm) |
| X-Axis Travel | 8.4 in (213 mm) |
| Y-Axis Travel | ± 2 in (± 51 mm) |
| Z-Axis Travel | 42.5 in (1,080 mm) |
| Rapid Traverse X | 472 ipm (12 m/min) |
| Rapid Traverse Y | 472 ipm (12 m/min) |
| Rapid Traverse Z | 945 ipm (24 m/min) |
| Max Thrust X | 4,100 lbf (18,238 N) |
| Max Thrust Y | 2,300 lbf (10,231 N) |
| Max Thrust Z | 5,100 lbf (22,686 N) |
| Spindle Nose | A2-6 |
| Spindle Motor Power | 30 hp (22.4 kW) |
| Max Spindle Speed | 3,400 rpm |
| Spindle Torque | 300 ft-lbf @ 500 rpm (407 N·m @ 500 rpm) |
| Spindle Bore | 3.5 in (88.9 mm) |
| C Axis Speed | 60 rpm |
| C Axis Max Rating | 5 hp (3.7 kW) |
| C Axis Positioning | 0.01 ° |
| C Axis Brake Diameter | 13.9 in (353 mm) |
| C Axis Brake Holding Torque | 250 ft-lbf (339 N·m) |
| C Axis Control Type | Interpolated Motion and Positioning |
| Turret Stations | 12 |
| Turret OD Vs ID Tools | Any Combination (will vary with turret) |
| Turret Boring Bar Rear Clearance | 4 in (102 mm) |
| Live Tool Speed | 4,000 rpm |
| Live Tooling | BMT65 |
| Coolant Capacity | 55 gal (208 L) |
| Air Required | 4 scfm @ 100 psi (113 L/min @ 6.9 bar) |
| Inline Air Hose | 3/8 in |
| Air Coupler | 3/8 in |
| Air Pressure Min | 80 psi (5.5 bar) |
| Electrical Service (low voltage) | 220 VAC 3-phase, 70 A |
| Electrical Service (high voltage) | 440 VAC 3-phase, 35 A |
| Shipping Domestic Pallet | 190 × 90 × 90 in (483 × 229 × 229 cm) |
| Shipping Export Pallet | 190 × 90 × 90 in (483 × 229 × 229 cm) |
| Machine Weight | 12,360 lb (5,606 kg) |
Specifications sourced from haascnc.com — verified 2026-10-02
Strengths & Limitations
Strengths
- 30 hp (22.4 kW) spindle with 300 ft-lbf (407 N·m) at 500 rpm, twice the torque of the ST-20LY
- Y axis of ± 2 in (± 51 mm) along 42.5 in (1,080 mm) of Z
- 3 in (76 mm) of bar capacity through the 3.5 in (88.9 mm) bore
- C-axis brake holds 250 ft-lbf (339 N·m) for milling and drilling with the part clamped
- BMT65 live tooling in a 12-station turret that takes any mix of OD and ID tools
Limitations
- Live tools are limited to 4,000 rpm, which is slow for small-diameter cutters
- The main spindle tops out at 3,400 rpm
- Maximum turning diameter is 11.75 in (298 mm) behind a 10 in (254 mm) chuck
- The table lists no sub-spindle, so the second side is a separate operation
- Y-axis thrust is 2,300 lbf (10,231 N), under half the Z figure
Best For
Frequently Asked Questions
01
Only at the spindle. The ST-25LY has a 10 in (254 mm) chuck, 3 in (76 mm) of bar capacity, 30 hp (22.4 kW), 300 ft-lbf (407 N·m) at 500 rpm and a 3,400 rpm maximum. The ST-20LY has an 8.3 in (210 mm) chuck, 2.5 in (64 mm) of bar capacity, 20 hp (14.9 kW), 150 ft-lbf (203 N·m) and 4,000 rpm. Travels, turning diameter and live-tool speed match.
02
The main spindle runs to 3,400 rpm, with peak torque of 300 ft-lbf (407 N·m) at 500 rpm. Live tools on the BMT65 turret run to 4,000 rpm. The C axis, used for positioning and for interpolated milling, turns at up to 60 rpm.
03
± 2 in (± 51 mm). That lets a live tool cut flats, slots and holes off the spindle centreline without rotating the part, which gives truer flat faces than C-axis interpolation alone. Y rapids are 472 ipm (12 m/min) and Y thrust is 2,300 lbf (10,231 N).
04
The spec table for this model has no sub-spindle rows. Plan on turning and milling one side of the part in the main chuck across 42.5 in (1,080 mm) of Z, and handling the second side as its own operation.
05
Either 220 VAC three-phase at 70 A or 440 VAC three-phase at 35 A. Compressed air: 4 scfm at 100 psi (113 L/min at 6.9 bar), with 80 psi (5.5 bar) as the minimum pressure and 3/8 in for both hose and coupler. The machine weighs 12,360 lb (5,606 kg).
