Goodway GVH-2500

Q: How much does the Goodway GVH-2500 cost?

The price estimate for the Goodway GVH-2500 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/goodway-gvh-2500#price; the request is passed to Goodway or an authorised dealer.

Specs verified 2026-10-04 · goodwaycnc.com Updated 2026-10-04

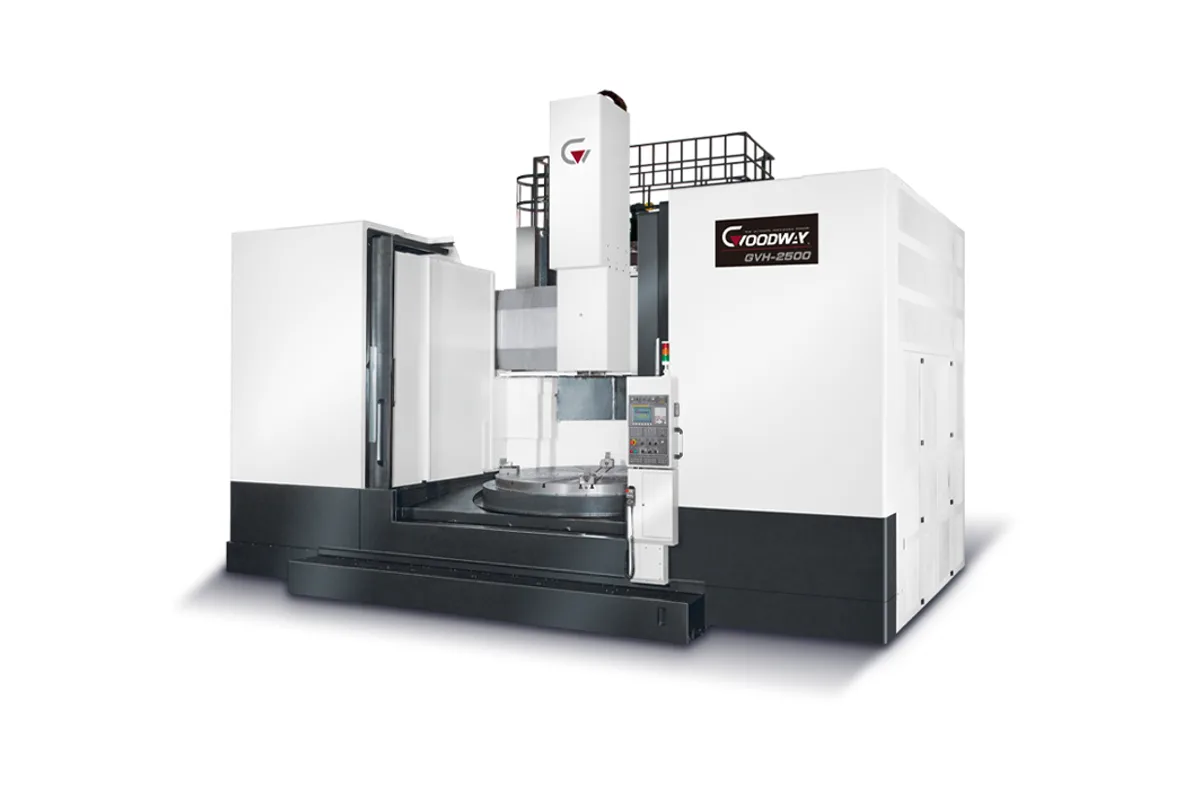

Goodway SUPER GV series super size vertical turning centers (GVH-2500)

Image: goodwaycnc.com, Goodway

Key Specifications

Spindle Taper

BT50

Tool Capacity

Spindle Power

60 kW (80.5 hp) (cont.)

table diameter

Ø2,500 mm (98.4 in)

max swing diameter

Ø3,000 mm (118.1 in)

max turning diameter

Ø2,800 mm (110.2 in)

How much does the Goodway GVH-2500 cost?

Price estimate

Uncertain

We do not have a price for the Goodway GVH-2500 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

With a Ø2,500 mm (98.4 in) table rated for 15,000 kg (33,069 lb), the Goodway GVH-2500 is the larger of the two one-piece-column machines in the SUPER GV series. It turns Ø2,800 mm (110.2 in) under a Ø3,000 mm (118.1 in) swing.

Most of the specification is shared with the GVH-2000, including the 60 kW (80.5 hp) continuous and 75 kW (100.6 hp) 30 min. motor. The differences are the ones that follow from the bigger table: 3,080 mm (121.3 in) of X travel, half as much again in load rating, and 74,140 Nm (54,686 lb-ft) of torque. Since the motor is the same, the extra torque must come from gearing, which implies a lower table speed range. Goodway's table gives no speeds for either model.

Turning height is 1,700 mm (66.9 in) in the standard version and 2,100 mm (82.7 in) in the tall one. The cross rail travels 1,200 mm (47.2 in) or 1,600 mm (63.0 in) on the W-axis and is clamped by a positioning mechanism that Goodway illustrates on the series page. Ram stroke in Z is 1,200 mm (47.2 in) or 1,500 mm (59.1 in).

A part that weighs fifteen tonnes is rarely moved twice by choice. For that reason the options matter more here than on a small lathe: the BT50 tooling spindle, rated 11 kW (14.8 hp) continuous and 15 kW (20.1 hp) for 30 min., the Cf-axis and the twin ram let milling, drilling and second-tool turning happen in the one clamping. Sixteen tools are stored. The CNC is the FANUC Oi-TF Plus.

Full Specifications

Parameter	Value
Table Diameter	Ø2,500 mm (98.4 in)
Max Swing Diameter	Ø3,000 mm (118.1 in)
Max Turning Diameter	Ø2,800 mm (110.2 in)
Max Turning Height	1,700 mm (66.9 in) / 2,100 mm (82.7 in)
Max Table Load	15,000 kg (33,069 lb)
Spindle Motor Power	60 kW (80.5 hp) (cont.)
Spindle Power 30 Min	75 kW (100.6 hp) (30 min.)
Spindle Torque	74,140 Nm (54,686 lb-ft)
Tooling Spindle Power	11 kW (14.8 hp) (cont.) (opt.)
Tooling Spindle Power 30 Min	15 kW (20.1 hp) (30 min.) (opt.)
Tooling Spindle Speed Range	1 ~ 2,400 rpm (opt.)
X Axis Travel	3,080 mm (121.3 in)
Z Axis Travel	1,200 mm (47.2 in) / 1,500 mm (59.1 in)
W Axis Travel	1,200 mm (47.2 in) / 1,600 mm (63.0 in)
Tool Capacity	16
Spindle Taper	BT50
CNC Control	FANUC Oi-TF Plus

Specifications sourced from goodwaycnc.com — verified 2026-10-04

Strengths & Limitations

Strengths

15,000 kg (33,069 lb) table load on a Ø2,500 mm (98.4 in) table
74,140 Nm (54,686 lb-ft) of maximum spindle torque
Ø2,800 mm (110.2 in) turning diameter with 3,080 mm (121.3 in) of X travel
Two height versions, up to 2,100 mm (82.7 in) of turning height
One-piece column and structure, as Goodway describes the GVH series

Limitations

Uses the same 60 kW (80.5 hp) continuous motor as the smaller GVH-2000
No table speed is given in the specification
The 16-tool magazine is small for long multi-operation cycles
Tooling spindle, C-axis and twin ram are options

Best For

Very heavy parts up to 15,000 kg (33,069 lb) Turbine casings, large valve bodies and rings up to Ø2,800 mm (110.2 in) Complete machining of heavy parts in one clamping with the optional tooling spindle

Frequently Asked Questions

01 What does the GVH-2500 add over the GVH-2000?

A larger table and more torque. The GVH-2500 has a Ø2,500 mm (98.4 in) table, turns Ø2,800 mm (110.2 in), carries 15,000 kg (33,069 lb) and delivers 74,140 Nm (54,686 lb-ft). The GVH-2000 has a Ø2,000 mm (78.7 in) table, carries 10,000 kg (22,046 lb) and delivers 59,700 Nm (44,035 lb-ft).

02 How tall a workpiece fits the GVH-2500?

Maximum turning height is 1,700 mm (66.9 in) or 2,100 mm (82.7 in), depending on the version. W-axis travel is 1,200 mm (47.2 in) or 1,600 mm (63.0 in) and Z-axis travel 1,200 mm (47.2 in) or 1,500 mm (59.1 in).

03 What motor drives the GVH-2500 table?

A workpiece spindle motor rated 60 kW (80.5 hp) continuous and 75 kW (100.6 hp) on the 30 min. rating, through a 2-speed gear box. Goodway states that the workpiece spindle runs on an ultra-rigid crossed roller bearing.

04 Which control and tool system does the GVH-2500 use?

The control is FANUC Oi-TF Plus. The tool magazine holds 16 tools with a BT50 taper, and Goodway mentions optional umbrella-type magazines in 16T and 24T sizes for the series.
