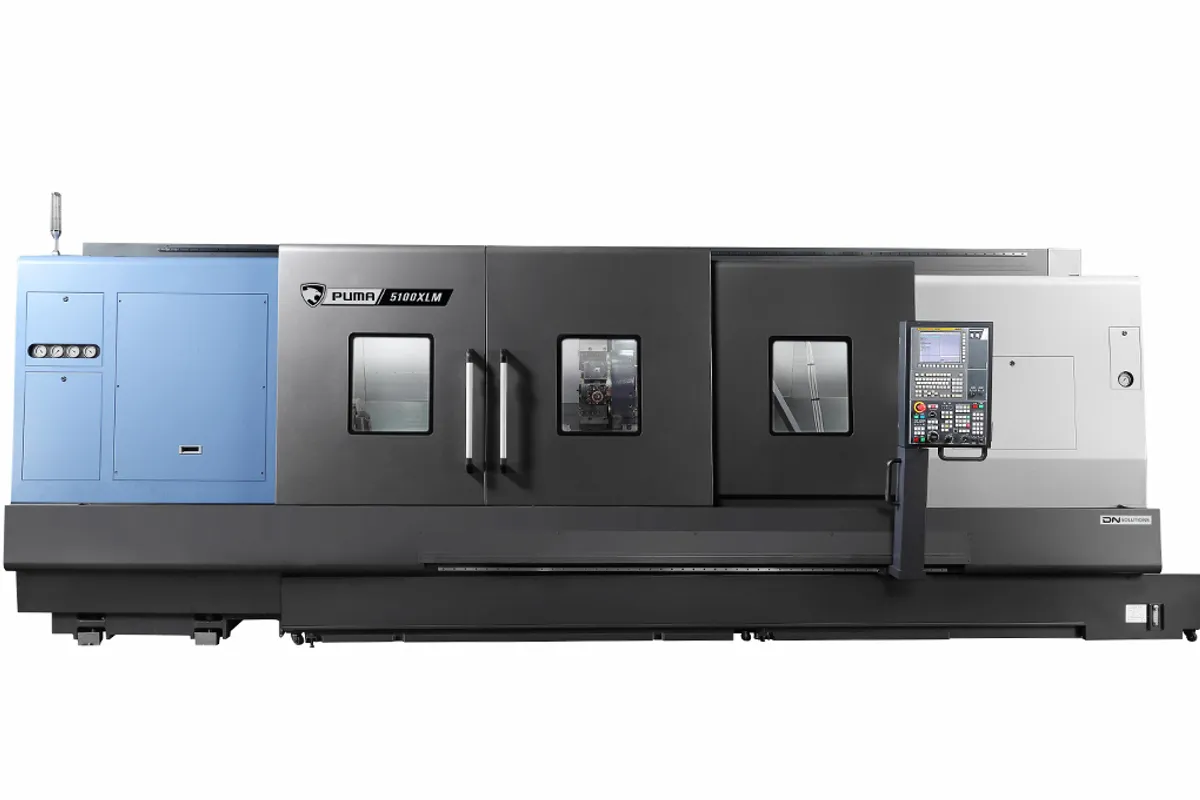

DN Solutions PUMA 5100 XLMB

$300,000 - $390,000 Updated 2026-03-19

Key Specifications

Spindle Power

45 kW (60 hp)

Max Turn Length

3028 mm

chuck size

21 inch

max turning diameter

650 mm

x axis travel

362 mm (14 in)

z axis travel

3,150 mm (124 in)

Overview

The DN Solutions PUMA 5100 XLMB is the ultimate combination in the PUMA turning lineup: 21-inch chuck, 26-inch swing, extra-long bed, and the most powerful spindle in the 5100 series. At 45 kW (60 hp) and 2,958 Nm (2,182 ft-lb) of torque, it's built for the heaviest, longest, largest-diameter turning work a horizontal lathe can handle.

Max turning length reaches 3,028 mm (119 in) with the 21-inch chuck installed, giving you nearly 10 feet of workable length at up to 650 mm (26 in) diameter. This is the machine for power generation turbine shafts, large marine propulsion components, mining crusher shafts, and oil country equipment that simply won't fit in anything smaller.

The spindle runs to 1,500 RPM max — the trade-off for maximum chuck size and torque. On a 500 mm diameter part, that's still over 2,300 SFM, well within productive cutting parameters for steel and iron. The 21-inch chuck provides the clamping authority needed for heavy, irregular workpieces where secure grip is a safety and quality requirement.

Z-axis travel is 3,150 mm (124 in) with 362 mm (14 in) on X. The 12-station turret with 4,000 RPM live tooling allows secondary operations on parts that would take a forklift to move to a mill. Box-way construction across the full bed length ensures consistent rigidity and accuracy regardless of where you're cutting.

At 13,200 kg (29,101 lb), this is the heaviest machine in the PUMA 5100 series. That mass translates directly to stability and vibration absorption during heavy cutting. The FANUC 0i-TF Plus control is standard, and most shops running this class of equipment program in G-code with parametric macros for repetitive long-part features. Specs sourced from DN Solutions published data.

Full Specifications

Parameter	Value
Chuck Size	21 inch
Max Turning Diameter	650 mm
Max Turning Length	3028 mm
X Axis Travel	362 mm (14 in)
Z Axis Travel	3,150 mm (124 in)
X Axis Rapid Traverse	16 m/min (630 ipm)
Z Axis Rapid Traverse	20 m/min (787 ipm)
Max Spindle Speed	1,500 RPM
Spindle Motor Power	45 kW (60 hp)
Spindle Torque	2,958 Nm (2,182 ft-lb)
Turret Stations	12-station turret
Rotary Tool Speed	4,000 RPM
Machine Weight	13,200 kg (29,101 lb)
CNC Control	FANUC 0i-TF Plus
Metric	IMPERIAL
Capacity	Chuck sizeMax. Turning DiameterMax. Turning Length
Travels	X-Axis Rapid TraverseZ-Axis Rapid TraverseX-Axis Travel DistanceZ-Axis Travel Distance
Main Spindle	Max. Spindle SpeedMax. Spindle PowerMax. Spindle Torque
Turret	No. of tool stationRotary Tool r/min
No Of Tool Station	Rotary Tool r/min
Dimensions	LengthHeightWidthWeight
Favorites	PUMA 5100XLMB
12 Ea	4000 RPM

Specifications sourced from dn-solutions.com — verified 2026-03-28

Strengths & Limitations

Strengths

Maximum capability in the 5100 series: 21" chuck, 26" swing, 119" turning length, and 60 hp spindle
2,958 Nm of torque handles the most aggressive roughing in tough materials on large-diameter stock
3,028 mm max turning length accommodates very long shafts and rollers in a single setup
13,200 kg machine mass provides outstanding vibration damping for heavy interrupted cuts
Live tooling eliminates secondary setups on massive parts that are impractical to re-fixture
Box-way construction maintains accuracy across the full extra-long bed length

Limitations

1,500 RPM spindle speed is the lowest in the 5100 series — not suitable for high-speed small-diameter work
13,200 kg is the heaviest PUMA 5100 variant, requiring the most substantial foundation and rigging
Largest footprint in the series demands dedicated floor space for the extra-long bed
Highest price in the 5100 lineup reflects the maximum spindle, chuck, and bed length configuration
21-inch chuck tooling investment is significant, and jaw sets are expensive

Best For

Power generation OEMs machining the largest turbine shafts, generator rotors, and hydro-power components Marine and shipbuilding shops producing large propeller shafts, rudder stocks, and stern tube components Mining equipment manufacturers turning crusher mainshafts, large conveyor rollers, and heavy axles Oil and gas companies producing large-bore drill collars, risers, and subsea equipment components Steel and metals industry shops machining calendar rolls, process rolls, and large-diameter mandrels Any heavy industry application requiring maximum turning diameter, length, and clamping capacity

Frequently Asked Questions

01 Is the PUMA 5100 XLMB the largest lathe DN Solutions makes?

No. The PUMA 700 and 800 series have larger swing capacity (900 mm / 35 in) with even bigger chucks (24" and 32"). The PUMA 1000 handles 1,000 mm diameter work. But the 5100 XLMB is the largest in the PUMA 5100 family and offers the best combination of swing, length, and live tooling in its class.

02 How does loading work on a machine this size?

Most shops use an overhead bridge crane to load workpieces into the chuck. Parts running on the XLMB typically weigh hundreds to thousands of kilograms. Some shops integrate a gantry robot for semi-automated loading of repetitive parts, but crane loading with manual chuck clamping is the standard approach.

03 Can I get a programmable tailstock on the XLMB?

Yes. A programmable hydraulic tailstock is a standard option on the PUMA 5100 XL series. It's essential for long shaft work between centers, providing consistent thrust pressure and eliminating manual adjustment between parts. The tailstock can be positioned along the full bed length.

04 What type of chip conveyor is recommended?

A hinged belt chip conveyor is standard for the heavy chips this machine produces. For cast iron work, a magnetic conveyor option may be available. The high material removal rates on this machine mean chip management is critical — a properly sized conveyor and chip hopper are essential for uninterrupted production.
