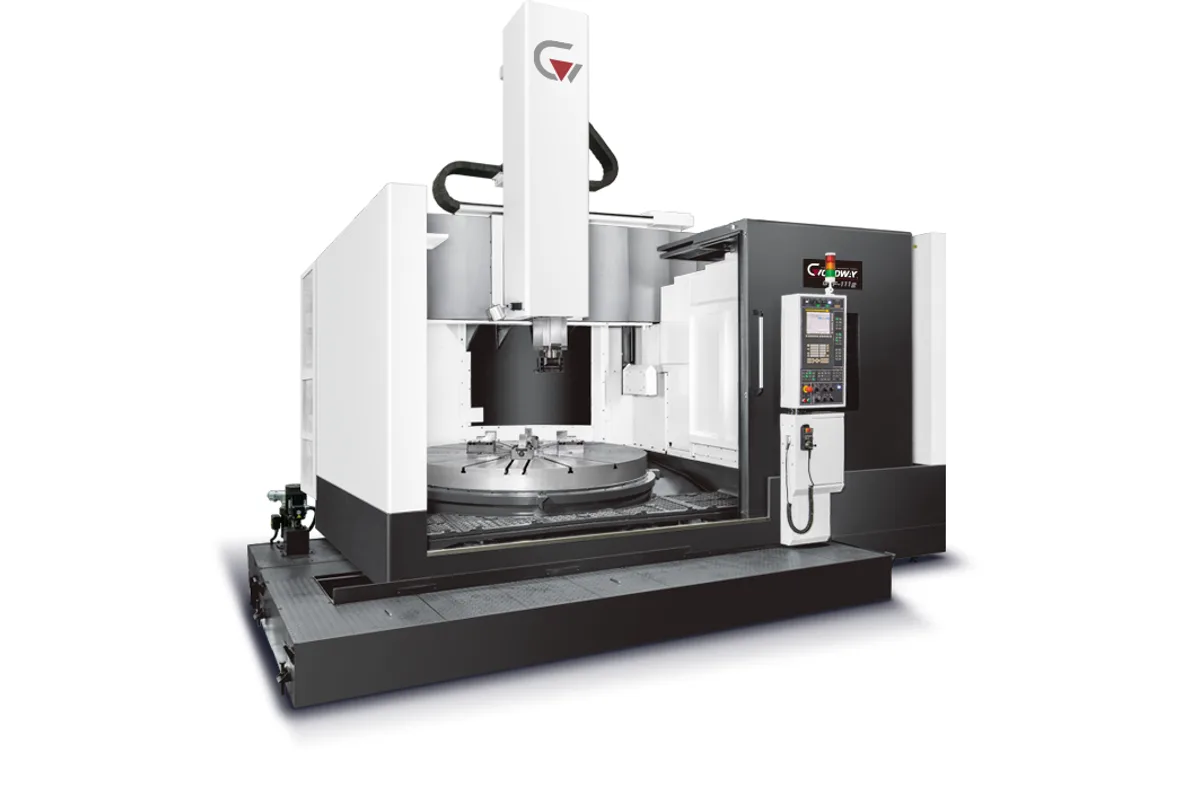

Goodway GVF series super rigid vertical turning centers (GVF-2023)

Image: goodwaycnc.com, Goodway

Key Specifications

Spindle Taper

BT50

Tool Capacity

Spindle Power

37 kW (49.6 hp) (cont.)

table diameter

2,000 mm (78.7 in)

max swing diameter

2,350 mm (92.5 in)

max turning diameter

2,300 mm (90.6 in)

How much does the Goodway GVF-2023 cost?

Price estimate

Uncertain

We do not have a price for the Goodway GVF-2023 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Goodway GVF-2023 turns 2,300 mm (90.6 in) on a 2,000 mm (78.7 in) table. It is the largest fixed-beam GVF, and it turns a wider part than the moving-rail GV-2000 of the same table size, which stops at Ø2,000 mm.

The gain comes from the structure. With the beam fixed to the columns, Goodway has set the columns wide: swing is 2,350 mm (92.5 in) and X travel 2,000 mm (78.7 in). What the layout cannot offer is height. Turning height is 900 mm (35.4 in), as on every GVF, so this is a machine for wide, low parts such as large flanges, slewing rings and tube sheets.

Table load is printed as two values, 5,000 kg (11,023 lb) and 8,000 kg (17,637 lb), in a single cell. The page does not say whether these are two table versions or a standard and an option, and a quotation should state which applies. The table drive provides 23,900 Nm (17,629 lb-ft) from a 37 kW (49.6 hp) continuous, 45 kW (60.3 hp) 30 min. motor.

A 16-tool BT50 magazine is fitted. When ordered with the M variation the ram holds a tooling spindle of 11 kW (14.8 hp) continuous and 15 kW (20.1 hp) for 30 min., and the table gains a servo-driven worm gear Cf-axis that Goodway says indexes to 0.001°. On a flange more than two metres across, drilling the bolt circle in the turning setup saves a crane lift and a second alignment. The control listed is the FANUC Oi-TF Plus.

Full Specifications

Parameter	Value
Table Diameter	2,000 mm (78.7 in)
Max Swing Diameter	2,350 mm (92.5 in)
Max Turning Diameter	2,300 mm (90.6 in)
Max Turning Height	900 mm (35.4 in)
Max Table Load	5,000 kg (11,023 lb) / 8,000 kg (17,637 lb)
Spindle Motor Power	37 kW (49.6 hp) (cont.)
Spindle Power 30 Min	45 kW (60.3 hp) (30 min.)
Spindle Torque	23,900 Nm (17,629 lb-ft)
Tooling Spindle Power	11 kW (14.8 hp) (cont.) (opt.)
Tooling Spindle Power 30 Min	15 kW (20.1 hp) (30 min.) (opt.)
Tooling Spindle Speed Range	1 ~ 2,400 rpm (opt.)
X Axis Travel	2,000 mm (78.7 in)
Z Axis Travel	900 mm (35.4 in)
Tool Capacity	16
Spindle Taper	BT50
CNC Control	FANUC Oi-TF Plus

Specifications sourced from goodwaycnc.com — verified 2026-10-04

Strengths & Limitations

Strengths

2,300 mm (90.6 in) turning diameter, the largest in the GVF and GV-1 lines
2,350 mm (92.5 in) of swing and 2,000 mm (78.7 in) of X travel
23,900 Nm (17,629 lb-ft) of table torque
Table load listed up to 8,000 kg (17,637 lb)
Optional Cf-axis indexing to 0.001° with a BT50 tooling spindle

Limitations

Turning height is only 900 mm (35.4 in)
The table prints 5,000 kg (11,023 lb) and 8,000 kg (17,637 lb) without explaining the difference
Motor power is 37 kW (49.6 hp) continuous, no more than on the smallest GVF
Milling and drilling need the optional M variation

Best For

Large flanges and slewing rings up to 2,300 mm (90.6 in) Wide, low parts for wind energy and shipbuilding Turning plus bolt-circle drilling in one setup with the M variation

Frequently Asked Questions

01 How large a diameter can the GVF-2023 turn?

2,300 mm (90.6 in), with a maximum swing of 2,350 mm (92.5 in). The table is 2,000 mm (78.7 in) in diameter and maximum turning height is 900 mm (35.4 in).

02 What table load does the GVF-2023 support?

Goodway prints 5,000 kg (11,023 lb) / 8,000 kg (17,637 lb) for this model. The page does not explain the two figures, so confirm with the maker which one applies to the machine being quoted.

03 How does the GVF-2023 differ from the GV-2000?

The GVF-2023 has a fixed beam, turns 2,300 mm (90.6 in) in diameter and 900 mm (35.4 in) high. The GV-2000 has a moving cross rail with 800 mm (31.5 in) of W travel, and turns Ø2,000 mm (78.7 in) and 1,280 mm (50.4 in) high.

04 What is the next size above the GVF-2023?

Goodway's SUPER GV series. The GVH-2000 has a Ø2,000 mm (78.7 in) table, turns Ø2,300 mm (90.6 in) and carries 10,000 kg (22,046 lb), with 59,700 Nm (44,035 lb-ft) of spindle torque and turning heights of 1,700 mm (66.9 in) or 2,100 mm (82.7 in).
