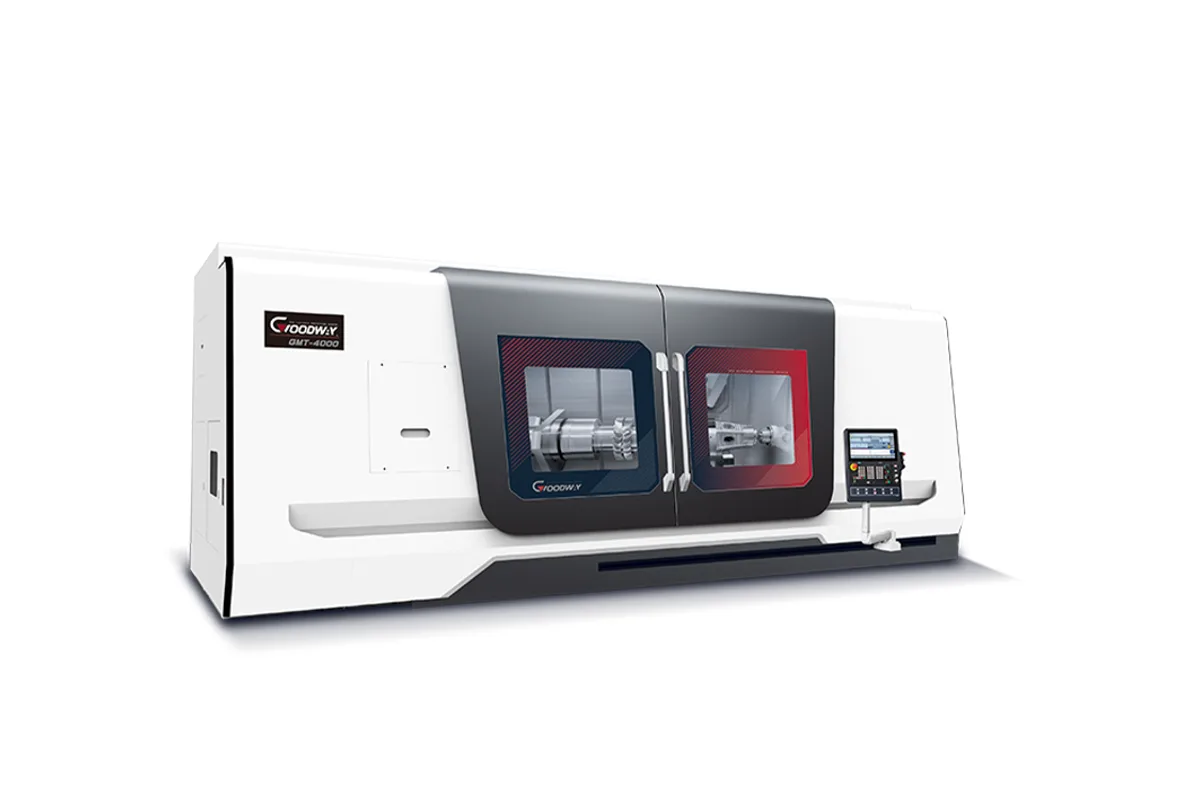

Goodway GMT-4000L3
Image: goodwaycnc.com, Goodway
Key Specifications
Max Spindle
Tool Capacity
Spindle Power
Max Turn Length
max swing diameter
max turning diameter
How much does the Goodway GMT-4000L3 cost?
Price estimate
We do not have a price for the Goodway GMT-4000L3 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Goodway GMT-4000L3 is the large B-axis multi-tasking machine in the range, sized for parts up to Ø820 mm (32.3 in) and 3,055 mm (120.3 in) long. Chucks run from 15 in to 24 in. It is a different class from the GMT-2000: an HSK-T100 or Capto C8 milling spindle, a geared turning spindle and 900 mm (35.4 in) of X travel.
Heavy milling is the point of the larger taper. The tool spindle is rated 34 kW (45.6 hp) continuous and 44 kW (59.0 hp) at 40% duty, runs to 10,000 rpm, and Goodway quotes 188 Nm of continuous torque at 1,725 rpm. Y travel is 500 mm (19.7 in), ±250 mm about center, enough to mill wide flats and deep pockets on a large shaft without repositioning. The B-axis covers 240°, and Goodway offers it with either a direct drive motor or a roller cam drive.
On the turning side the spindle reaches 3,320 rpm with a motor rated 28.3 kW (38.0 hp) continuous and 32.3 kW (43.3 hp) at 40%. Through its gearbox Goodway states 3,345 Nm of torque at low speed. The C-axis is a separate Cf type with a disc brake, quoted at 2,100 Nm continuous.
Z travel is 3,125 mm (123.0 in). An optional servo-driven self-centering steady rest has 2,280 mm (89.8 in) of travel and is positioned by the NC program. Goodway lists turning, milling, drilling, gear hobbing, power skiving and automatic workpiece measuring among the processes for the series. The S variation adds a second spindle of the same specification.
Full Specifications
| Parameter | Value |
|---|---|
| Max Swing Diameter | Ø820 mm (32.3 in) |
| Max Turning Diameter | Ø820 mm (32.3 in) (milling spindle) |
| Max Turning Length | 3,055 mm (120.3 in) |
| X Axis Travel | 900 mm (35.4 in) (milling spindle) |
| Y Axis Travel | 500 mm (19.7 in) (±250 mm (±9.8 in)) (milling spindle) |
| Z Axis Travel | 3,125 mm (123.0 in) |
| B Axis Range | 240° (+ 210° ~ -30°) (milling spindle) |
| Steady Rest Travel | 2,280 mm (89.8 in) |
| Chuck Size | 15" ~ 24" |
| Max Spindle Speed | 3,320 rpm |
| Spindle Motor Power | 28.3 kW (38.0 hp) (cont.) |
| Spindle Power 40 Pct | 32.3 kW (43.3 hp) (40%) |
| Milling Spindle Speed Max | 10,000 rpm |
| Milling Spindle Taper | HSK-T100 / Capto C8 |
| Milling Spindle Power | 34 kW (45.6 hp) (cont.) |
| Milling Spindle Power 40 Pct | 44 kW (59.0 hp) (40%) |
| Tool Capacity | 40 (opt. 80 / 120) |
Specifications sourced from goodwaycnc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- HSK-T100 or Capto C8 milling spindle rated 34 kW (45.6 hp) continuous, 10,000 rpm
- Y-axis travel of 500 mm (19.7 in) and X-axis travel of 900 mm (35.4 in)
- Geared turning spindle with 3,345 Nm at low speed, per Goodway
- Capacity of Ø820 mm (32.3 in) by 3,055 mm (120.3 in)
- Programmable steady rest with 2,280 mm (89.8 in) of travel as an option
Limitations
- Only the L3 bed length appears in Goodway's table
- The standard magazine holds 40 tools; 80 and 120 are options
- No lower turret is listed, so one tool cuts at a time
- The second spindle is the S variation, not part of the base machine
Best For
Frequently Asked Questions
01
Maximum swing and turning diameter are both Ø820 mm (32.3 in) and maximum turning length is 3,055 mm (120.3 in). Z-axis travel is 3,125 mm (123.0 in). Chuck sizes range from 15 in to 24 in.
02
34 kW (45.6 hp) continuous and 44 kW (59.0 hp) at 40% duty, with a 10,000 rpm maximum speed and an HSK-T100 or Capto C8 taper. Goodway states it provides a maximum torque of 188 Nm continuous at 1,725 rpm.
03
The GMT-2000 turns Ø660 mm (26.0 in), has a 12,000 rpm HSK-T63 or Capto C6 milling spindle rated 20.8 kW (27.9 hp) and a Y1 travel of ±150 mm (±5.9 in). The GMT-4000L3 turns Ø820 mm (32.3 in) and its Y-axis travels 500 mm (19.7 in), with the heavier tool spindle described above.
04
Goodway lists turning, milling, drilling, gear hobbing, power skiving and automatic workpiece measuring on a single machine, with 8 axes control and interpolation of the B, C, X, Y and Z axes for 5 axes simultaneous milling.
