Goodway GMT-2000S

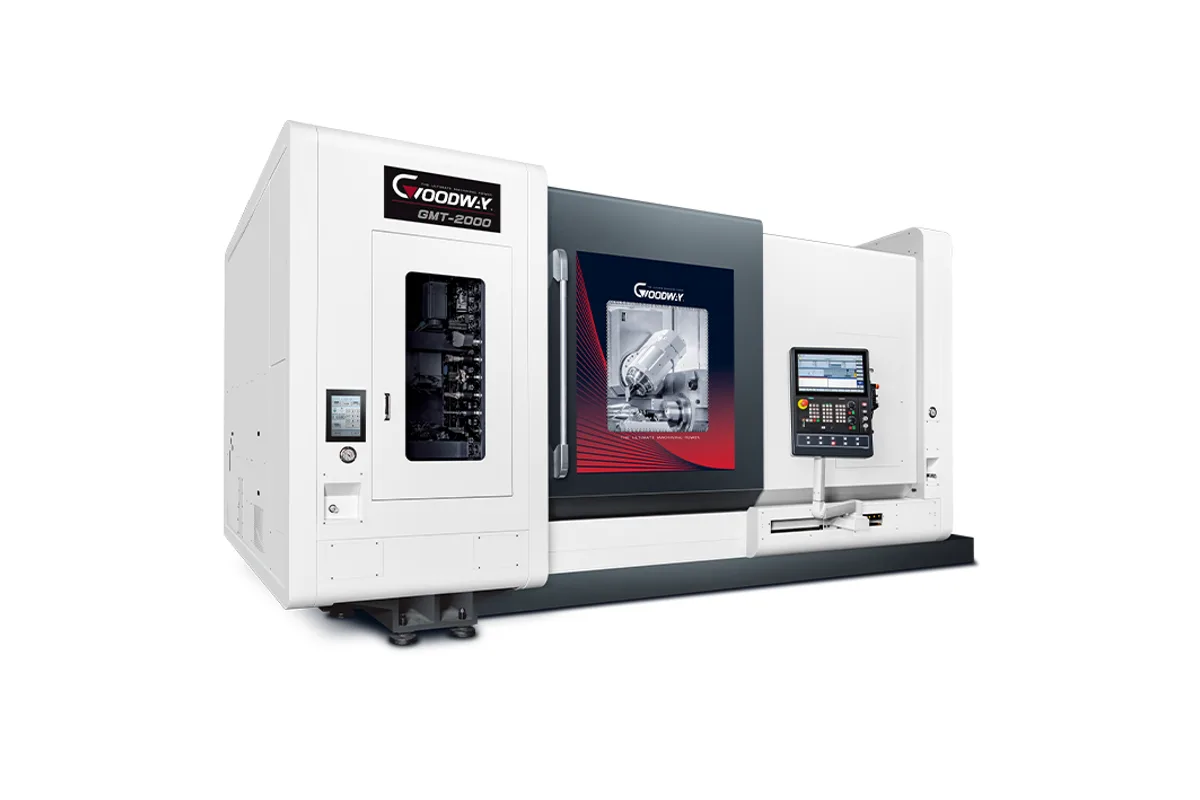

Image: goodwaycnc.com, Goodway
Key Specifications
Max Spindle
Tool Capacity
Max Turn Length
max swing diameter
max turning diameter
x1 axis travel
How much does the Goodway GMT-2000S cost?
Price estimate
We do not have a price for the Goodway GMT-2000S that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
S stands for spindle 2. The Goodway GMT-2000S is the GMT-2000 mill-turn with a second turning spindle where the base machine has a tailstock, so a part can be machined on the front, transferred, and machined on the back without an operator turning it round.
Goodway says spindle 2 adopts the same specification design as spindle 1, giving the same cutting ability on both sides of the workpiece. The table lists it in three versions: an 8 in chuck at 4,500 rpm or a 10 in chuck at 3,800 rpm in two of them. Spindle 1 is offered with 8 in, 10 in or 12 in chucks at 4,500, 3,800 and 3,200 rpm. So a machine ordered with the 12 in main spindle is paired with a 10 in second spindle.
Above the two spindles runs the B-axis milling head. It reaches 12,000 rpm, takes HSK-T63 or Capto C6 tooling and is rated 20.8 kW (27.9 hp) at S6-40%. Travels are 615 mm (24.2 in) in X1, ±150 mm (±5.9 in) in Y1 and 1,090 mm (42.9 in), 1,590 mm (62.6 in) or 2,590 mm (102.0 in) in Z1, according to bed length.
With one tool in the cut at a time, cycle time on this version depends on the tool changer. The 40-tool magazine, expandable to 80 or 120, feeds an arm-type changer. A parts catcher or parts conveyor is optional for unloading finished pieces from spindle 2. Where volume justifies a second cutting tool working at the same moment, the GMT-2000ST adds a lower turret.
Full Specifications
| Parameter | Value |
|---|---|
| Max Swing Diameter | Ø660 mm (26.0 in) |
| Max Turning Diameter | Ø660 mm (26.0 in) (milling spindle) |
| Max Turning Length | 1,020 mm (40.2 in) / 1,520 mm (59.8 in) (L1) / 2,520 mm (99.2 in) (L2) |
| X1 Axis Travel | 615 mm (24.2 in) (milling spindle) |
| Z1 Axis Travel | 1,090 mm (42.9 in) / 1,590 mm (62.6 in) (L1) / 2,590 mm (102.0 in) (L2) (milling spindle) |
| Y1 Axis Travel | ±150 mm (±5.9 in) (milling spindle) |
| B Axis Range | 240° (+ 210° ~ -30°) (milling spindle) |
| Chuck Size | A : 8" / B: 10" / C : 12" |
| Max Spindle Speed | A : 4,500 rpm / B : 3,800 rpm / C : 3,200 rpm |
| Spindle 2 Chuck Size | A : 8" / B: 10" / C : 10" |
| Spindle 2 Speed Max | A : 4,500 rpm / B : 3,800 rpm / C : 3,800 rpm |
| Milling Spindle Speed Max | 12,000 rpm |
| Milling Spindle Taper | HSK-T63 / Capto C6 |
| Milling Spindle Power | 20.8 kW (27.9 hp) (S6-40%) |
| Tool Capacity | 40 / 80 / 120 |
Specifications sourced from goodwaycnc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Second spindle to the same specification design as the first, for complete machining of both ends
- 12,000 rpm B-axis milling spindle with HSK-T63 or Capto C6 taper
- 9 axes control and 5 axes simultaneous machining across the series, per Goodway
- Three bed lengths with Z1 travel up to 2,590 mm (102.0 in)
Limitations
- No tailstock: the table shows a dash where the GMT-2000 lists an MT#5 live center
- Only one tool cuts at a time; the lower turret belongs to the GMT-2000ST
- Spindle 2 is limited to a 10 in chuck even when spindle 1 has 12 in
- Parts catcher and parts conveyor are options
Best For
Frequently Asked Questions
01
Spindle 2. Goodway's variation list shows S as the version with a second spindle. It takes the place of the tailstock of the base GMT-2000, and Goodway states it adopts the same specification design as spindle 1.
02
Spindle 1 comes with an 8 in, 10 in or 12 in chuck at 4,500 rpm, 3,800 rpm or 3,200 rpm. Spindle 2 is listed with an 8 in chuck at 4,500 rpm or a 10 in chuck at 3,800 rpm; the 10 in version is paired with both the 10 in and the 12 in main spindle.
03
Maximum turning length is 1,020 mm (40.2 in), 1,520 mm (59.8 in) on the L1 bed or 2,520 mm (99.2 in) on the L2 bed. Maximum turning diameter with the milling spindle is Ø660 mm (26.0 in).
04
Goodway lists an optional parts catcher or parts conveyor system for unloading, and mentions its G.LINC smart operating system and various automation systems as options for the series.
