Fidia VSE 1468

Q: How much does the Fidia VSE 1468 cost?

The price estimate for the Fidia VSE 1468 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/fidia-vse-1468#price; the request is passed to Fidia or an authorised dealer.

Specs verified 2026-10-05 · fidia.it Updated 2026-10-05

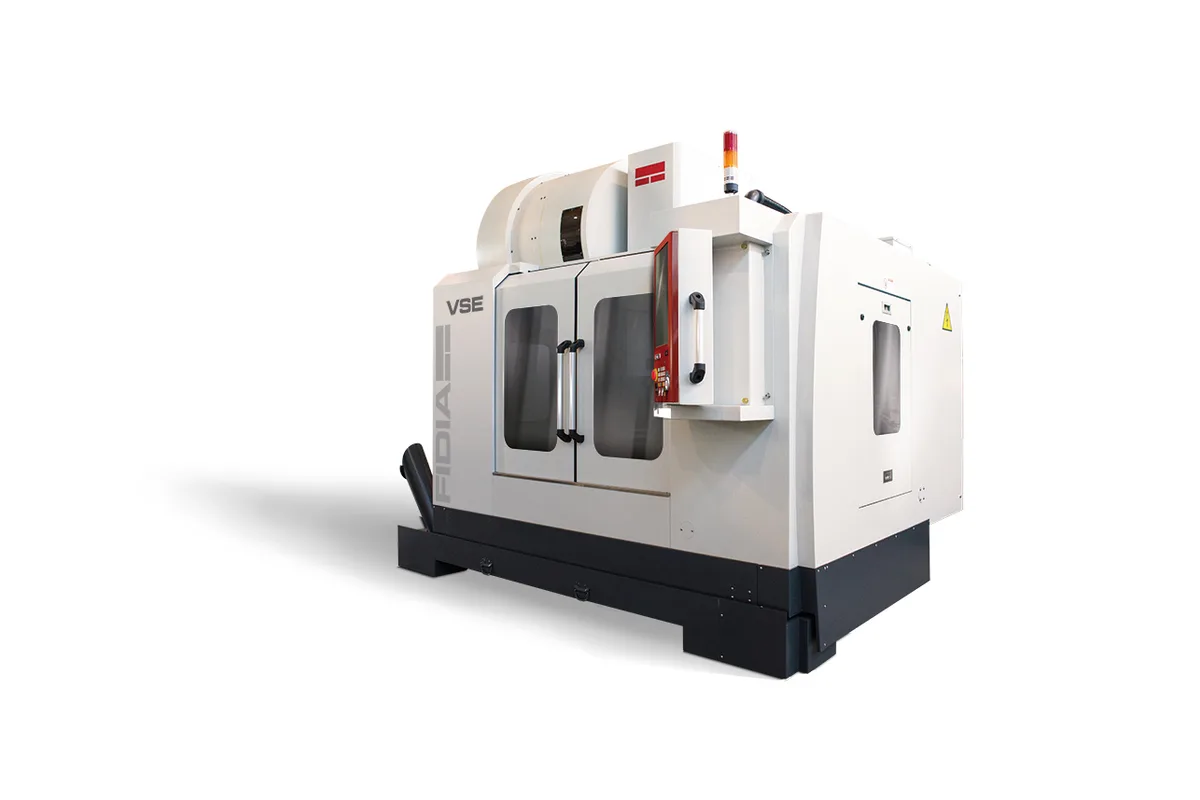

Fidia VSE series high-speed vertical machining centre

Image: fidia.it, Fidia

Key Specifications

Max Spindle

15,000 rpm (18,000/24,000/30,000 optional)

Spindle Taper

ISO 40 (or BT#40)

Tool Capacity

24 positions (swing arm automatic tool changer)

Table Size

1,560 x 620 mm (61.4 x 24.4 in)

Accuracy

VDI 3441: P 0.012 mm

Repeatability

VDI 3441: PS 0.008 mm

How much does the Fidia VSE 1468 cost?

Price estimate

Uncertain

We do not have a price for the Fidia VSE 1468 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Fidia VSE 1468 is the larger of the two VSE high-speed vertical machining centres: 1,350 mm (53.1 in) of X, 620 mm (24.4 in) of Y and 810 mm (31.8 in) of Z, over a 1,560 x 620 mm (61.4 x 24.4 in) table rated for 1,200 kg (2,645.5 lbs).

The tall Z is its distinguishing figure. On the VSE 1066 the 810 mm (31.8 in) stroke is an option; here it is standard, with the spindle-to-table distance running from 80 mm ~ 890 mm (3.1 ~ 35 in). That suits deep cavities and tall die sets, at the cost of a slower Z: axis feed rates are 30/30/24 m/min.

At 13,000 kg (28,660 lbs) it weighs far more than the VSE 1066, which is listed at 7,000 kg (15,432.3 lbs). Fidia describes a meehanite iron casting structure with an oversized box-type column and four-row roller guideways on all three axes.

Spindle and tooling match the smaller machine: direct coupling, 15,000 rpm, ISO 40 (or BT#40), 20/53 kW and 96/250 Nm (S1/S6 40%), with 18,000, 24,000 and 30,000 rpm electrospindles optional. The 24-position swing arm changer handles tools up to 125/300 mm - 15 kg. Power required is 25 kVA and floor space is about 5,500 x 2,700 x 3,200 mm (216.5 x 106.2 x 125.9 in).

Full Specifications

Parameter	Value
Table Size	1,560 x 620 mm (61.4 x 24.4 in)
Max Table Load	1,200 kg (2,645.5 lbs)
X Axis Travel	1,350 mm (53.1 in)
Y Axis Travel	620 mm (24.4 in)
Z Axis Travel	810 mm (31.8 in)
Axis Feed Rate Xyz	30/30/24 m/min
Distance Spindle to Column	645 mm (25.3 in)
Distance Spindle Nose to Table	80 mm ~ 890 mm (3.1 ~ 35 in)
Floor to Table Top	900 mm (35.4 in)
Spindle Motor	Direct coupling, 20/53 kW, 96/250 Nm (S1/S6 40%)
Spindle Taper	ISO 40 (or BT#40)
Max Spindle Speed	15,000 rpm (18,000/24,000/30,000 optional)
Tool Capacity	24 positions (swing arm automatic tool changer)
Tool Change Time	3/10 sec (tool to tool/chip to chip)
Max Tool Size	125/300 mm - 15 kg (diameter/length - weight)
Ballscrews	40 mm x 12 mm / 40 mm x 12 mm / 50 mm x 12 mm (diameter x pitch, X/Y/Z)
Ballscrew Precision Class	C3 - mm/300 mm : 0.008
Linear Roller Guide Width	35 mm / 35 mm / 45 mm (X/Y/Z)
Positioning Accuracy	VDI 3441: P 0.012 mm
Repeatability	VDI 3441: PS 0.008 mm
Coolant Tank Capacity	250 liters / 20 liters/min
Power Requirement	25 kVA
Machine Dimensions	5,500 x 2,700 x 3,200 mm (216.5 x 106.2 x 125.9 in), L x W x H approx.
Machine Weight	13,000 kg (28,660 lbs)

Specifications sourced from fidia.it — verified 2026-10-05

Strengths & Limitations

Strengths

810 mm (31.8 in) of Z travel as standard
1,560 x 620 mm (61.4 x 24.4 in) table carrying 1,200 kg (2,645.5 lbs)
13,000 kg (28,660 lbs) of machine weight behind a 3-axis C-frame
Same 15,000 rpm direct-coupled spindle with 20/53 kW as the VSE 1066

Limitations

Z feed rate is 24 m/min against 30 m/min in X and Y
Y travel of 620 mm (24.4 in) is barely more than the 610 mm (24 in) of the VSE 1066
Needs 25 kVA and about 5,500 x 2,700 x 3,200 mm (216.5 x 106.2 x 125.9 in) of floor space

Best For

Tall die sets and deep cavities needing 810 mm (31.8 in) of Z Long, narrow moulds up to 1,350 mm (53.1 in) Workpieces up to 1,200 kg (2,645.5 lbs)

Frequently Asked Questions

01 How does the Fidia VSE 1468 differ from the VSE 1066?

It is longer, taller and heavier. The VSE 1066 has 1,020 mm (40.1 in) of X and an 850 kg (1,873.9 lbs) table load, against 1,350 mm (53.1 in) and 1,200 kg (2,645.5 lbs) here. Z travel of 810 mm (31.8 in) is standard on this model, and the spindle is the same.

02 What is the Z clearance of the VSE 1468?

Z travel is 810 mm (31.8 in) and the spindle to table top distance is 80 mm ~ 890 mm (3.1 ~ 35 in). Fidia notes that this distance may change according to the spindle type, so confirm it for the spindle you choose.

03 Which tools can the VSE 1468 changer handle?

The swing arm automatic tool changer has 24 positions and takes tools up to 125/300 mm - 15 kg (diameter/length - weight). Tool change is 3/10 sec tool to tool/chip to chip. A swing arm changer with 32/40 positions is listed among the main options.

04 What does the VSE 1468 weigh?

Machine net weight is 13,000 kg (28,660 lbs). Floor space is about 5,500 x 2,700 x 3,200 mm (216.5 x 106.2 x 125.9 in), L x W x H, and the floor to table top height is 900 mm (35.4 in).
