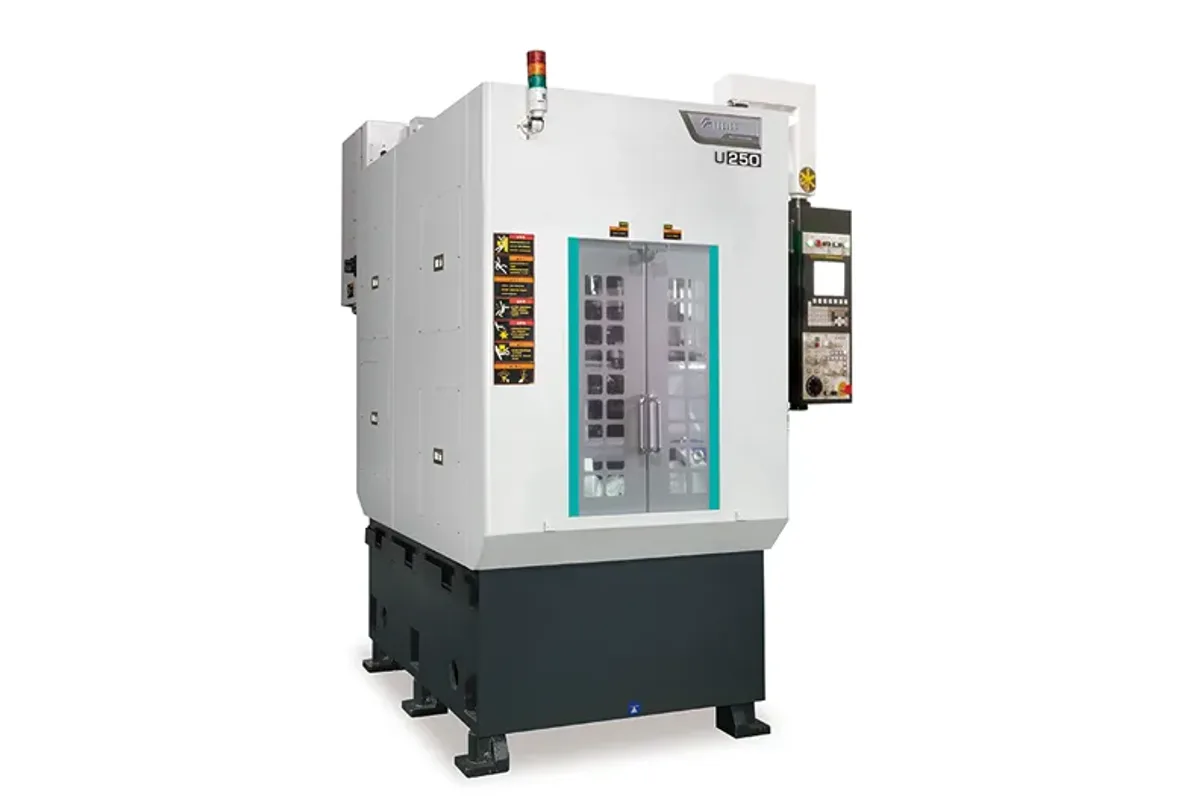

Feeler U-250
Image: feeler.com, Feeler
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
max table load
x axis travel
How much does the Feeler U-250 cost?
Price estimate
We do not have a price for the Feeler U-250 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Feeler U-250 is a compact 5-axis machining center for small parts, with a φ250 mm tilting rotary table and a 7/24 No.30 spindle that runs to 10,000 rpm. Feeler's table marks the spindle DDS. Linear travels are 350 mm (13.8 in) in X, 300 mm (11.8 in) in Y and 250 mm (9.8 in) in Z.
The layout keeps all three linear axes in the column and puts both rotary axes under the part. Feeler describes it as a stacked three-axis column with an A/C-axis table, and says the compact design follows the Abbe principle to minimize load-induced errors. Because the table never travels in X or Y, its mass does not have to be accelerated on every move, and the part stays in one place in front of the operator, which the maker links to shorter loading and unloading time.
The tilt range is listed as +120~-120° and the C axis as 0~360°. A tilt that passes well beyond horizontal in both directions lets the tool reach undercut features and the back face of a part without a second clamping. Table load is 100 kg (220 lb), fixture included.
Axes rapid at 36 m/min (1,417 ipm) and the magazine holds 26 tools. With a 30-taper spindle and this envelope, the U-250 is a machine for medical components, small impellers, dental and watch-scale parts and electrode work, not for heavy stock removal. Feeler names the automotive, aerospace, medical and precision mold industries for the U series. No spindle power or rotary-axis speed is published.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | φ250 mm (φ9.8 in) |
| Max Table Load | 100 kg (220 lb) |
| X Axis Travel | 350 mm (13.8 in) |
| Y Axis Travel | 300 mm (11.8 in) |
| Z Axis Travel | 250 mm (9.8 in) |
| A B Axis Range | +120~-120° |
| C Axis Range | 0~360° |
| Max Spindle Speed | 10,000 rpm (DDS) |
| Spindle Taper | 7/24 Taper No.30 |
| Rapid Traverse X | 36 m/min (1,417 ipm) |
| Rapid Traverse Y | 36 m/min (1,417 ipm) |
| Rapid Traverse Z | 36 m/min (1,417 ipm) |
| Tool Capacity | 26 |
Specifications sourced from feeler.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Tilt range of +120~-120° with a full 0~360° C axis
- All linear axes in a stacked column, so the φ250 mm table only rotates and tilts
- 36 m/min (1,417 ipm) rapids on X, Y and Z
- 26-tool magazine on a compact 5-axis machine
- 10,000 rpm spindle marked DDS in Feeler's table
Limitations
- Table load is 100 kg (220 lb) including the fixture
- Travels of 350 x 300 x 250 mm restrict it to small parts
- No.30 taper limits cutter size and roughing capacity
- Rotary axis speeds, clamping torque and spindle power are not published
Best For
Frequently Asked Questions
01
The table is φ250 mm and carries 100 kg (220 lb). Linear travels are 350 x 300 x 250 mm (13.8 x 11.8 x 9.8 in). The usable part size also depends on swing clearance when the table tilts, which the page does not give.
02
Feeler's table lists the A(B) axis rotation angle as +120~-120° and the C axis as 0~360°. The series text describes the U-250 as having an A/C-axis table.
03
A 7/24 Taper No.30 spindle at 10,000 rpm, marked DDS in the table. The page does not publish power, torque or a higher-speed option for this model.
04
Scale and taper. The U-600P has a φ600 mm table rated 350 kg, travels of 465 x 620 x 400 mm and a 7/24 Taper No.40 spindle, with a magazine of 24-60 tools. The U-250 is the small-part machine with a No.30 spindle and 26 tools.
