Messer Cutting Systems CNC Plasma Cutting

Messer TMC4500 DB

Specs verified 2026-10-05 · us.messer-cutting.com Updated 2026-10-05

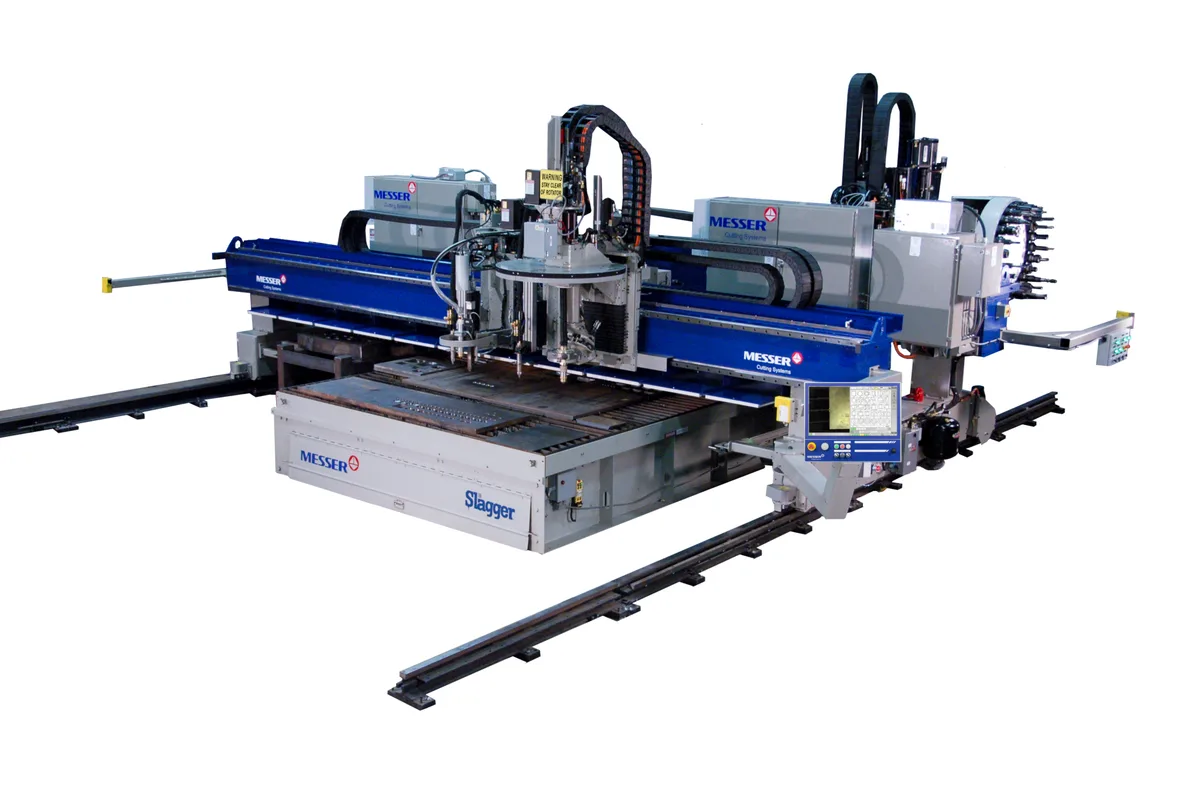

Image: us.messer-cutting.com, Messer Cutting Systems

Key Specifications

Tool Capacity

24 (optional rotary tool changer)

Accuracy

+/- 0.015 in (0.38 mm) in 72 in (1,829 mm) travel, measured with a laser interferometer

Repeatability

0.010 in (0.25 mm)

cutting width

12 ft to 28 ft (3.7 m to 8.5 m)

cutting length

Up to 200 ft (61.0 m)

material thickness

26 ga. up to 12 in (305 mm) thick plate

How much does the Messer TMC4500 DB cost?

Price estimate

Uncertain

We do not have a price for the Messer TMC4500 DB that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Messer TMC4500 DB is the heaviest gantry in the maker's US range, a dual box-beam machine for plate up to 12 in (305 mm) thick. Cutting widths run from 12 ft to 28 ft (3.7 m to 8.5 m) and cutting lengths up to 200 ft (61.0 m). DB stands for the two process beams, which Messer says give the bending and torsional strength for any tool combination.

Thickness and tooling are what set it apart. The MPC2000 and the MPC2000 MC stop at 8 in (203 mm) of plate; this one goes to 12 in (305 mm), and its optional drill is the biggest in the range, with a CAT 50 spindle, a maximum drill diameter of 4 in (102 mm), tapping to 1 1/2 in (38 mm) and a tool changer that holds 24 tools. Oxyfuel bevel units cover angles from 15° to 60° and plasma units +45° to -45°, producing K, V, X, Y and I bevels.

Accuracy is stated a little wider than on the lighter machines, as suits the load: +/- 0.015 in (0.38 mm) in 72 in (1,829 mm) of travel with 0.010 in (0.25 mm) repeatability, measured with a laser interferometer. Positioning speed is up to 1,400 ipm (35.6 m/min). Dual 6 hp (4.5 kW) AC digital drives move the gantry on 115 lb/yd machined crane rail with a 1.25 in (32 mm) wide rack, and the lifters run at 880 ipm (22.4 m/min) for plasma and 300 ipm (7.6 m/min) for oxyfuel.

Round work is possible too. The optional rotary system cuts and bevels pipe and tube from 2 in to 24 in (51 mm to 610 mm) in diameter, up to 40 ft (12.2 m) long. The operator can ride the machine on an optional platform, and rotary rail cleaners with rack air purge are offered for dirty environments. The control is the Global ControlPlus with a 24 in touch screen.

Full Specifications

Parameter	Value
Cutting Width	12 ft to 28 ft (3.7 m to 8.5 m)
Cutting Length	Up to 200 ft (61.0 m)
Material Thickness	26 ga. up to 12 in (305 mm) thick plate
Materials	Mild steel, stainless steel and aluminum
Positioning Accuracy	+/- 0.015 in (0.38 mm) in 72 in (1,829 mm) travel, measured with a laser interferometer
Repeatability	0.010 in (0.25 mm)
Positioning Speed	Up to 1,400 ipm (35.6 m/min)
Drives	Dual 6 hp (4.5 kW) AC digital drives, X and Y axis
X Axis Rail	115 lb/yd machined crane rail; 1.25 in (32 mm) wide rack
Y Axis Rack	1.0 in (25 mm) wide rack, linear ways
Lifter Speed	880 ipm (22.4 m/min) plasma; 300 ipm (7.6 m/min) oxyfuel
Plasma Current	Up to 800 amps (optional precision plasma)
Bevel Angle	15° to 60° for oxyfuel; +45° to -45° for plasma (optional bevel units)
Drilling Capacity	Up to 4 in (102 mm) diameter; tapping up to 1 1/2 in (38 mm) diameter (optional)
Drill Spindle Taper	CAT 50 (optional drill)
Tool Capacity	24 (optional rotary tool changer)
Pipe and Tube Cutting	2 in to 24 in (51 mm to 610 mm) diameter, length up to 40 ft (12.2 m) (optional)
CNC Control	Global ControlPlus, Windows based, 24 in touch screen
Standards	Designed and manufactured in the USA to machine tool and ISO 230-2 standards; UL/CUL

Specifications sourced from us.messer-cutting.com — verified 2026-10-05

Strengths & Limitations

Strengths

Cuts plate up to 12 in (305 mm) thick
Optional CAT 50 drill with a maximum drill diameter of 4 in (102 mm) and a 24 tool changer
Dual box-beam gantry for multiple plasma and oxyfuel torches
Oxyfuel bevels from 15° to 60° and plasma bevels from +45° to -45°
Optional pipe and tube cutting from 2 in to 24 in (51 mm to 610 mm) diameter

Limitations

Accuracy of +/- 0.015 in (0.38 mm) is wider than the +/- 0.010 in (0.25 mm) of the MPC2000
Narrowest cutting width is 12 ft
Drill, tool changer, bevel units and pipe cutting are all options
Positioning speed of 1,400 ipm (35.6 m/min) is below the 1,700 ipm (43.2 m/min) of the Titan III

Best For

Shipyards, service centers and heavy OEM plate work Oxyfuel cutting of plate up to 12 in Large drilled holes, up to 4 in diameter, in cut plate parts K, V, X, Y and I weld-preparation bevels on thick plate Pipe and tube up to 24 in diameter alongside plate

Frequently Asked Questions

01 How thick can the TMC4500 DB cut?

It cuts material from 26 ga. up to 12 in (305 mm) thick plate, in mild steel, stainless steel and aluminum. The thick end of that range is oxyfuel work. Precision plasma up to 800 amps is an option.

02 What does DB mean on the TMC4500 DB?

Dual beam. Messer describes the machine as a heavy-duty dual box-beam gantry, designed with finite element analysis so that it can cut with multiple plasma and oxyfuel torches. The Y-axis carriages run on a linear way system with wide spacing.

03 How large a hole can it drill?

With the optional drill, up to 4 in (102 mm) in diameter, and it taps up to 1 1/2 in (38 mm). The drill has a CAT 50 spindle and a 24 position rotary tool changer. That is the largest drilling capacity among Messer's US gantries; the MPC2000 MC drills to 2.5 in (64 mm).

04 What bevels can the TMC4500 DB cut?

K, V, X, Y and I bevels. Bevel angles range from 15° to 60° for oxyfuel and from +45° to -45° for plasma. Oxyfuel bevel units come as single position, triple position, contour and DAF/L, and plasma units include the Infinity and Deltae rotators.

05 Can it cut pipe?

Yes, with the optional rotary pipe and tube cutting system. It makes plasma bevel and vertical cuts on pipe and tube from 2 in to 24 in (51 mm to 610 mm) in diameter, with a maximum length of 40 ft (12.2 m).
