DMG Mori DMF 600|11 FD

Est. $1,500,000 - $2,200,000 Specs verified 2026-10-02 · dmgmori.com Updated 2026-10-02

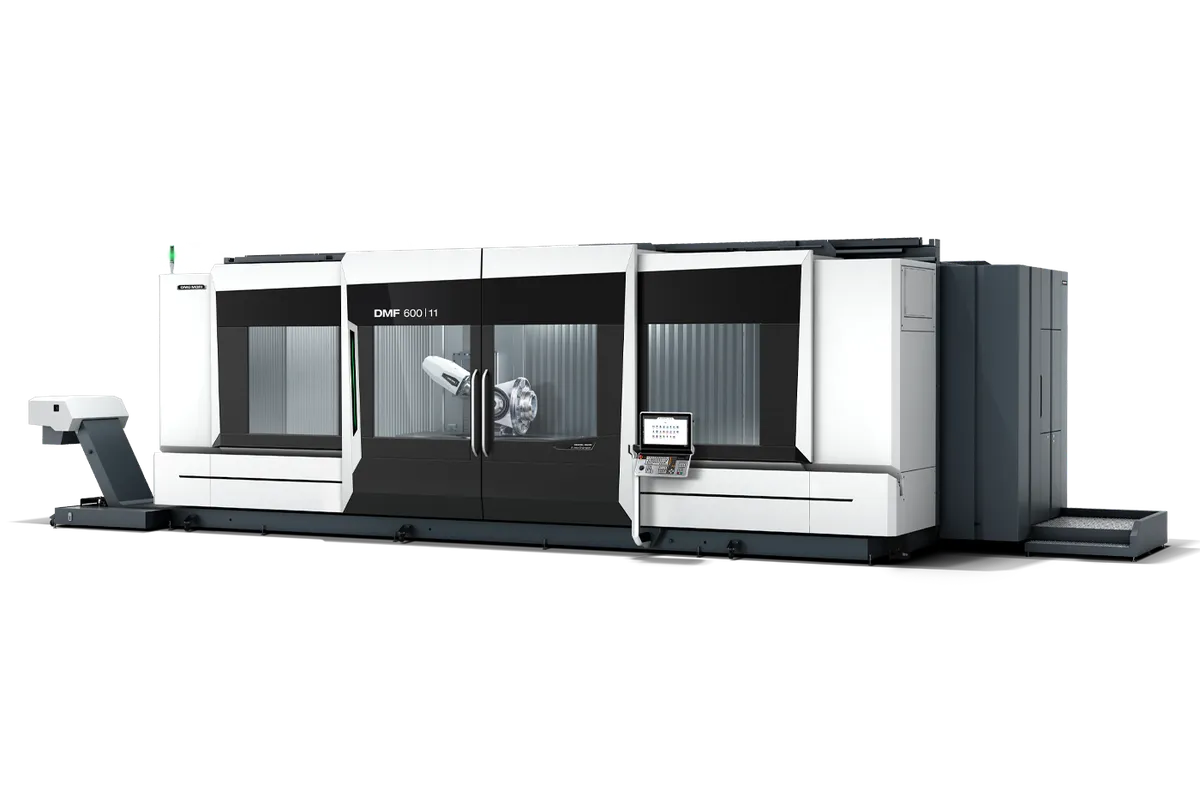

Image: dmgmori.com, DMG Mori

Key Specifications

X Travel

6,000 mm (236.2 in)

Y Travel

1,100 mm (43.3 in)

Z Travel

1,050 mm (41.3 in)

Max Spindle

up to 24,000 rpm (speedMASTER, ISO 40); up to 16,000 rpm (powerMASTER, ISO 50)

Tool Capacity

maximum capacity of 300 tools

Max Workpiece ⌀

1,400 mm (55.1 in)

How much does the DMG Mori DMF 600|11 FD cost?

Estimated price range

Est.$1,500,000 - $2,200,000

Our best estimate for a 5-axis machining center in this class — not a quote from DMG Mori. Configuration moves it a long way.

Overview

The DMG MORI DMF 600|11 FD has the largest working area of the DMF line: 6 m of X travel, stated as 6,000 mm (236.2 in), with 1,100 mm (43.3 in) of Y, 1,050 mm (41.3 in) of Z and a table load of 12,000 kg (26,455.5 lb). In 4-axis machining with the B-axis it takes workpieces up to 7,200 × 1,100 × 1,100 mm (283.5 × 43.3 × 43.3 in).

The machine has three distinct modes, and their limits differ sharply. As one long working area it carries the full 12,000 kg. With the optional partition wall it becomes 2 independent working areas of 3,600 × 1,100 × 1,100 mm each, and DMG MORI lists automation interfaces with and without partition walls, including alternating loading in pendular mode by a robot or AMR. With the optional integrated NC table it machines in 5 axes, but only parts up to Ø 1,400 × 1,050 mm and 2,000 kg. A buyer who needs 5-axis work on heavy parts should note that the rotary limit is one sixth of the table load.

Two spindle lines are offered. The speedMASTER (ISO 40) goes up to 24,000 rpm or 200 Nm, and the powerMASTER (ISO 50) up to 16,000 rpm or 430 Nm. Process integration is listed as Mill-Turn, gearSKIVING, grinding, fine boring and deep hole drilling. Tools are changed outside the working area from a magazine with a maximum capacity of 300 tools, which fits the long, varied tool lists of such processes.

Axis speed depends on the version: 42 m/min in the basic version and up to 80 m/min in the linear version. The Y and Z axes use directly cooled, ground ball screws. The bed is a single piece of gray cast iron with 3 linear guides in X. Next in line below, the DMF 400|11 FD has the same Y and Z with 4,000 mm (157.5 in) of X.

Full Specifications

Parameter	Value
Max Workpiece Length	7,200 mm (283.5 in)
Max Workpiece Width	1,100 mm (43.3 in)
Max Workpiece Diameter	1,400 mm (55.1 in)
Max Workpiece Height	1,100 mm (43.3 in)
Max Workpiece Weight	12,000 kg (26,455.5 lb)
X-Axis Travel	6,000 mm (236.2 in)
Y-Axis Travel	1,100 mm (43.3 in)
Z-Axis Travel	1,050 mm (41.3 in)
Tool Capacity	maximum capacity of 300 tools
Max Spindle Speed	up to 24,000 rpm (speedMASTER, ISO 40); up to 16,000 rpm (powerMASTER, ISO 50)
Spindle Torque	up to 200 Nm (speedMASTER, ISO 40); up to 430 Nm (powerMASTER, ISO 50)
Axis Speed	42 m/min (basic version); up to 80 m/min (linear version)
NC Table Max Workpiece	Ø 1,400 x 1,050 mm and 2,000 kg (5-axis machining with integrated NC table, optional)
Partition Wall Working Areas	2 independent working areas of 3,600 x 1,100 x 1,100 mm (partition wall, optional)

Specifications sourced from dmgmori.com — verified 2026-10-02

Strengths & Limitations

Strengths

6,000 mm (236.2 in) of X travel and a 12,000 kg (26,455.5 lb) table load for workpieces up to 7,200 × 1,100 × 1,100 mm
Optional partition wall creates 2 independent working areas of 3,600 × 1,100 × 1,100 mm
speedMASTER (ISO 40) spindles up to 24,000 rpm or 200 Nm, powerMASTER (ISO 50) spindles up to 16,000 rpm or 430 Nm
Tool magazine with a maximum capacity of 300 tools, changed outside the working area
Up to 80 m/min in the linear version, 42 m/min in the basic version
Listed process integration covers Mill-Turn, gearSKIVING, grinding, fine boring and deep hole drilling

Limitations

5-axis machining needs the optional integrated NC table and is limited to parts of Ø 1,400 × 1,050 mm and 2,000 kg
The basic version reaches 42 m/min; up to 80 m/min is reserved for the linear version
Y travel of 1,100 mm (43.3 in) and Z travel of 1,050 mm (41.3 in) are no larger than on the DMF 400|11 FD
The partition wall that gives two working areas is an option, and the Highlights name automation interfaces, not an included automation system

Best For

Long workpieces up to 7,200 mm (283.5 in) and 12,000 kg (26,455.5 lb) in 4-axis machining with the B-axis Pendular machining in 2 working areas of 3,600 × 1,100 × 1,100 mm with the optional partition wall Robot or AMR loading through the listed automation interfaces Parts that combine milling with turning, grinding, gear skiving or deep hole drilling 5-axis work on parts up to Ø 1,400 × 1,050 mm and 2,000 kg on the optional NC table

Frequently Asked Questions

01 How large and heavy a workpiece can the DMF 600|11 FD take?

In 4-axis machining with the B-axis, up to 7,200 × 1,100 × 1,100 mm and 12,000 kg (26,455.5 lb). In 5-axis machining with the optional integrated NC table the limit is Ø 1,400 × 1,050 mm and 2,000 kg. X travel is 6,000 mm (236.2 in), Y 1,100 mm (43.3 in) and Z 1,050 mm (41.3 in).

02 What does the partition wall do on the DMF 600|11 FD?

It is an option that divides the machine into 2 independent working areas of 3,600 × 1,100 × 1,100 mm. One area can be loaded while the other is machining. DMG MORI lists automation interfaces with and without partition walls, also for alternating loading in pendular machining mode, for example by a robot or AMR.

03 Which spindles are available for the DMF 600|11 FD?

Two lines. speedMASTER spindles with ISO 40 go up to 24,000 rpm or 200 Nm. powerMASTER spindles with ISO 50 go up to 16,000 rpm or 430 Nm. In both cases the top speed and the top torque are the ends of a range, so the quoted spindle should be checked for its own speed, torque and power.

04 How fast are the axes of the DMF 600|11 FD?

DMG MORI states 42 m/min for the basic version and up to 80 m/min for the linear version. On 6,000 mm of X travel the difference shows up in every positioning move from one end of a part to the other, so the version matters for cycle time on long components.

05 How many tools can the DMF 600|11 FD hold?

The maximum capacity is 300 tools. The tool change is described as collision-free and takes place outside the working area, so it does not depend on what is clamped on the table or on whether a partition wall is fitted.

06 How does the DMF 600|11 FD compare with the DMF 400|11 FD?

The DMF 400|11 FD has 4,000 mm (157.5 in) of X travel and the DMF 600|11 FD has 6,000 mm (236.2 in), which is 50% more. Y and Z are the same on both at 1,100 mm (43.3 in) and 1,050 mm (41.3 in).
