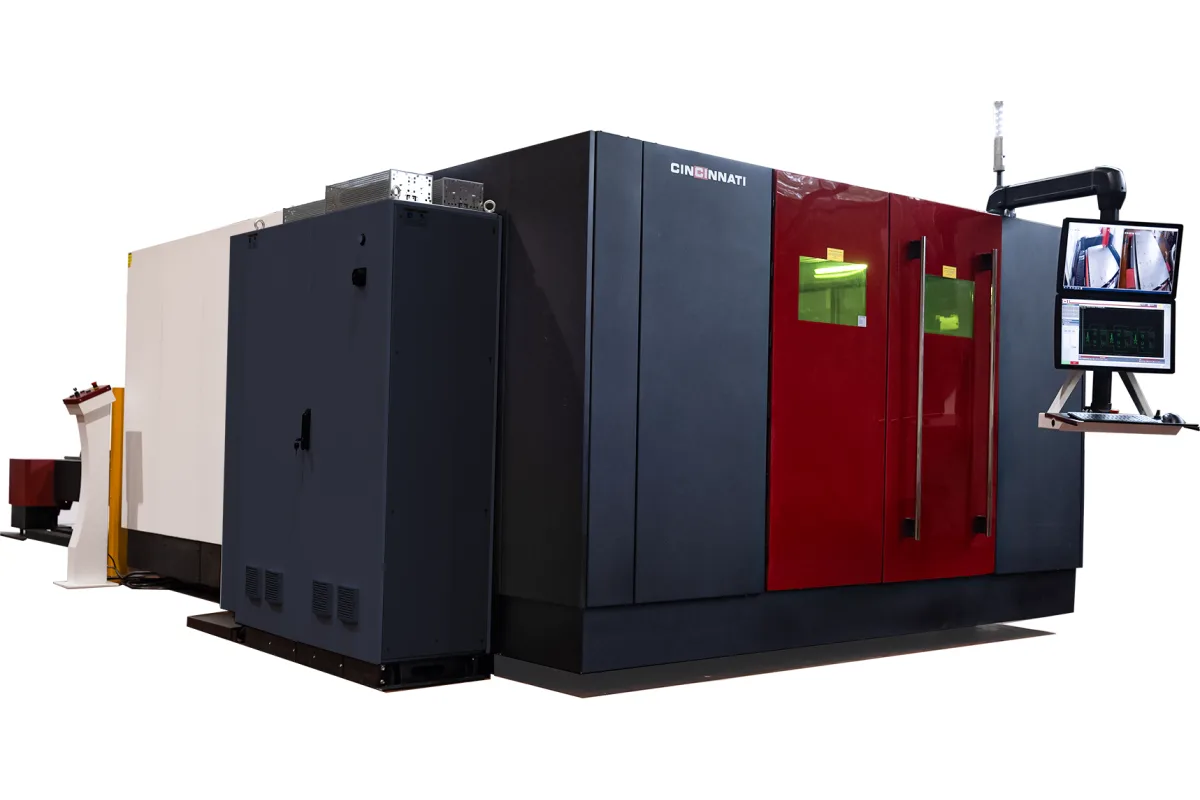

Cincinnati CI Fiber 4020
Image: wwwassets.e-ci.com, Cincinnati Incorporated
Key Specifications
Table Size
Accuracy
Repeatability
laser power
rapid travel speed
control
How much does the Cincinnati CI Fiber 4020 cost?
Price estimate
We do not have a price for the Cincinnati CI Fiber 4020 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Cincinnati's CI Fiber 4020 takes the rack-and-pinion CI Fiber laser up to a 4.0 m x 2.0 m table, which the maker also gives as 13 ft. x 6.5 ft. Rapid travel speed on this size is 6,639 ipm (168,631 mm/min). The power source is a choice of 5 kW, 8 kW, 10 kW, 12 kW, 15 kW, 16 kW or 20 kW.
It sits between two different machines. Below it, the CI Fiber 3015 is quicker at 8,250 ipm (209,550 mm/min) and lower at 82 in (2,075 mm). Above it, the CI Fiber 6020 keeps the same 150 in (3,800 mm) width and 94 in (2,380 mm) height but slows to 4,921 ipm (124,993 mm/min) and stretches to 598 in (15,200 mm) overall. The 4020 is the largest table that still appears, with the 3015, in the catalogue's list of sizes supported by the MARCH 400 automation system; longer tables are automated by special request.
For layout, allow 262 in (6,650 mm) for the enclosure and 435 in (11,050 mm) overall with the hydraulic dual pallet changer. The pallet height is 39 in (980 mm).
Positioning accuracy is ±0.002 in (±0.0508 mm) and repeatability 0.001 in (0.0254 mm). The control is a Windows dual touchscreen with standard nesting at the control. Cincinnati lists HP air, N2 generation and mixed gas systems as available for assist gas, which matters more as power rises: the gas supply should be settled together with the kilowatt rating.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 4020 (4.0 m x 2.0 m) |
| Laser Power | 5 kW, 8 kW, 10 kW, 12 kW, 15 kW, 16 kW and 20 kW |
| Rapid Travel Speed | 6,639 ipm (168,631 mm/min) |
| Positioning Accuracy | ±0.002 in (±0.0508 mm) |
| Repeatability | 0.001 in (0.0254 mm) |
| CNC Control | Windows Dual Touchscreen, Standard Nesting at the control |
| Motion System | Rack and Pinion Drive |
| Gas Assist | HP Air, N2 Generation, & Mixed Gas Systems Available |
| Width A | 150 in (3,800 mm) |
| Height B | 94 in (2,380 mm) |
| Enclosure Length C | 262 in (6,650 mm) |
| Overall Length D | 435 in (11,050 mm) |
| Pallet Height E | 39 in (980 mm) |
Specifications sourced from wwwassets.e-ci.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 4.0 m x 2.0 m (13 ft. x 6.5 ft.) table with a 6,639 ipm (168,631 mm/min) rapid travel speed
- Offered up to 20 kW, above the 16 kW ceiling of the CI FiberMax 4020
- Largest CI Fiber size the catalogue lists as supported by MARCH 400 automation
- Same 150 in (3,800 mm) width as the CI Fiber 6020 in a machine 435 in (11,050 mm) long overall
Limitations
- Rapid travel drops from the 8,250 ipm (209,550 mm/min) of the CI Fiber 3015
- At 94 in (2,380 mm) it is taller than the 82 in (2,075 mm) CI Fiber 3015
- ±0.002 in (±0.0508 mm) positioning accuracy, twice the figure given for the CI FiberMax 4020
- No working-area travels or sheet weight are published for the CI Fiber range
Best For
Frequently Asked Questions
01
The table size is 4020 (4.0 m x 2.0 m), which Cincinnati's product page also describes as 13 ft. x 6.5 ft. and as the choice for larger sheets and components. The catalogue does not list axis travels or a maximum sheet weight for this model, so confirm both for heavy plate.
02
Yes. Cincinnati lists the machine as March 400 Laser Automation System compatible, and the catalogue's MARCH 400 page says that system supports 3015 and 4020 laser systems. For the 6020 and 6525 sizes it says automation is by special request.
03
Both take 4.0 m x 2.0 m sheet. The CI Fiber 4020 has a rack and pinion drive, 6,639 ipm (168,631 mm/min) rapid travel and ±0.002 in (±0.0508 mm) positioning accuracy, with power sources to 20 kW. The CI FiberMax 4020 is a linear-drive machine listed at 12,020 ipm (305,308 mm/min) and ±0.001 in (±0.0254 mm), with power to 16 kW.
04
Width is 150 in (3,800 mm), height 94 in (2,380 mm), enclosure length 262 in (6,650 mm) and overall length 435 in (11,050 mm) including the pallet changer. The pallets are 39 in (980 mm) from the floor.
