Danobat WT-92

Q: How much does the Danobat WT-92 cost?

The price estimate for the Danobat WT-92 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/danobat-wt-92#price; the request is passed to Danobat or an authorised dealer.

Specs verified 2026-10-05 · danobat.com Updated 2026-10-05

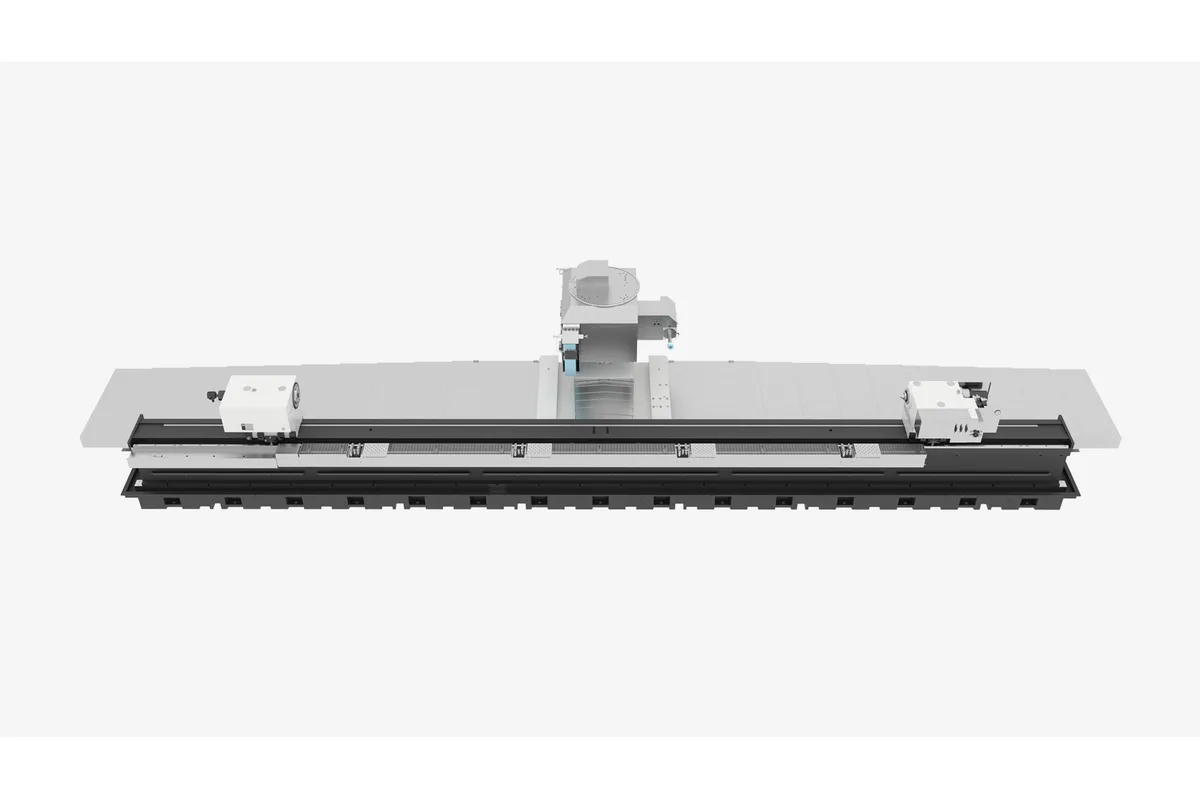

Danobat WT series cross-slide cylindrical grinding machine, shown without enclosure

Image: danobat.com, Danobat

Key Specifications

max grinding length

3,000 / 4,000 / 5,000 / 6,000 / 7,000 / 8,000 mm (118 / 157 / 196 / 236 / 275 / 315 in)

max grinding diameter

Ø840 / 1,040 mm (Ø33.1 / 41 in)

max weight between centers

5,000 kg (11,023 lb)

max grinding wheel diameter

Ø760 / 915 / 1,060 / 1,250* mm (Ø30 / 36 / 40 / 50* in) (*not available with B-axis)

wheelhead power

30 / 45 / 60 kW (40.2 / 60.3 / 80.4 hp)

max wheel peripheral speed

60 / 120 m/s (11,811 / 23,622 sfpm)

How much does the Danobat WT-92 cost?

Price estimate

Uncertain

We do not have a price for the Danobat WT-92 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Six bed lengths are listed for the Danobat WT-92, from 3,000 mm (118 in) to 8,000 mm (315 in) of grinding length in steps of a metre. No other machine in Danobat's cylindrical range covers as wide a span under one model name. Throughout, the weight between centers is 5,000 kg (11,023 lb) and the ground diameter Ø840 or Ø1,040 mm (Ø33.1 or Ø41 in).

The WT-92 is the middle of the three WT cross-slide grinders. In diameter and weight it equals the HG-92. Past 5,000 mm (196 in) of length, though, it is the only 5,000 kg option, because the HG-92 ends there.

Wheel choice is the widest in the series: Ø760, Ø915, Ø1,060 or Ø1,250 mm. As elsewhere the largest is marked not available with the B-axis, so a machine ordered for the Ø1,250 mm wheel is a straight or angular plunge machine, and one ordered with a swivelling head works with the smaller wheels. Wheelhead power is 30, 45 or 60 kW (40.2, 60.3 or 80.4 hp). The peripheral speed row reads 60 / 120 m/s (11,811 / 23,622 sfpm).

Measuring matters on a part that takes hours to load and align. The MDM multi-diameter gauge is listed with ranges of 400, 600 or 800 mm (15.7, 23.6 or 31.5 in), and Danobat states dimensional tolerances guaranteed from the first part at IT3 up to diameter 80 mm and IT2 beyond. Hydrostatic V and flat slideways carry both the X and Z axes. The swivelling B axis, where fitted, is driven by a torque motor with mechanical locking and repeats to ±1 µm on a 650 mm (25.6 in) radius.

Full Specifications

Parameter	Value
Max Grinding Length	3,000 / 4,000 / 5,000 / 6,000 / 7,000 / 8,000 mm (118 / 157 / 196 / 236 / 275 / 315 in)
Max Grinding Diameter	Ø840 / 1,040 mm (Ø33.1 / 41 in)
Max Weight Between Centers	5,000 kg (11,023 lb)
Max Grinding Wheel Diameter	Ø760 / 915 / 1,060 / 1,250* mm (Ø30 / 36 / 40 / 50* in) (*not available with B-axis)
Wheelhead Power	30 / 45 / 60 kW (40.2 / 60.3 / 80.4 hp)
Max Wheel Peripheral Speed	60 / 120 m/s (11,811 / 23,622 sfpm)
Mdm Measuring Range	400 / 600 / 800 mm (15.7 / 23.6 / 31.5 in)
B Axis Repeatability	±1 µm on 650 mm (25.6 in) radius

Specifications sourced from danobat.com — verified 2026-10-05

Strengths & Limitations

Strengths

Grinding lengths from 3,000 to 8,000 mm (118 to 315 in) in six steps
5,000 kg (11,023 lb) between centers at every length
Wheels up to Ø1,250 mm, the largest diameter listed for a 5,000 kg machine
MDM measuring range up to 800 mm (31.5 in)
Hydrostatic slideways on X and Z, with an oil layer that Danobat says keeps stiffness constant

Limitations

The Ø1,250 mm wheel excludes the swivelling B-axis
Ground diameter stops at Ø1,040 mm (Ø41 in); the WT-100 is needed for anything larger
Wheelhead power is no higher than on the WT-72, at 30, 45 or 60 kW (40.2, 60.3 or 80.4 hp)
At 7,000 or 8,000 mm (275 or 315 in) the 5,000 kg (11,023 lb) limit restricts solid shafts to modest diameters

Best For

Long rolls for printing and packaging up to Ø1,040 mm (Ø41 in) Extrusion screws and long gearbox shafts up to 8,000 mm (315 in) Railway axles and electric motor shafts ground with in-process gauging Roll shops that want one model family across several bed lengths

Frequently Asked Questions

01 Which grinding lengths can the WT-92 be ordered in?

3,000, 4,000, 5,000, 6,000, 7,000 or 8,000 mm (118, 157, 196, 236, 275 or 315 in). The WT-72 covers the first four of these and the WT-100 the last five, so the WT-92 is the only model listing all six.

02 How much weight does the WT-92 take between centers?

5,000 kg (11,023 lb), a single figure for all versions. The WT-72 is rated 1,500 or 2,500 kg (3,307 or 5,511 lb) and the WT-100 is rated 8,000 kg (17,636 lb).

03 When would I pick the WT-92 over the HG-92?

When the part is longer than 5,000 mm (196 in), or when floor length is short. The HG-92 has the same Ø840 or Ø1,040 mm (Ø33.1 or Ø41 in) diameters and the same 5,000 kg (11,023 lb) rating. The WT-92 adds lengths to 8,000 mm (315 in), a Ø1,250 mm wheel and hydrostatic ways on both axes in a cross-slide layout.

04 What limits apply to the largest wheel on the WT-92?

The table marks the Ø1,250 mm wheel as not available with the B-axis. With a swivelling B axis the choices are Ø760, Ø915 or Ø1,060 mm. Wheel head configurations are described as straight (S), angular (A) or a full swivelling B axis that can hold several configurations.
