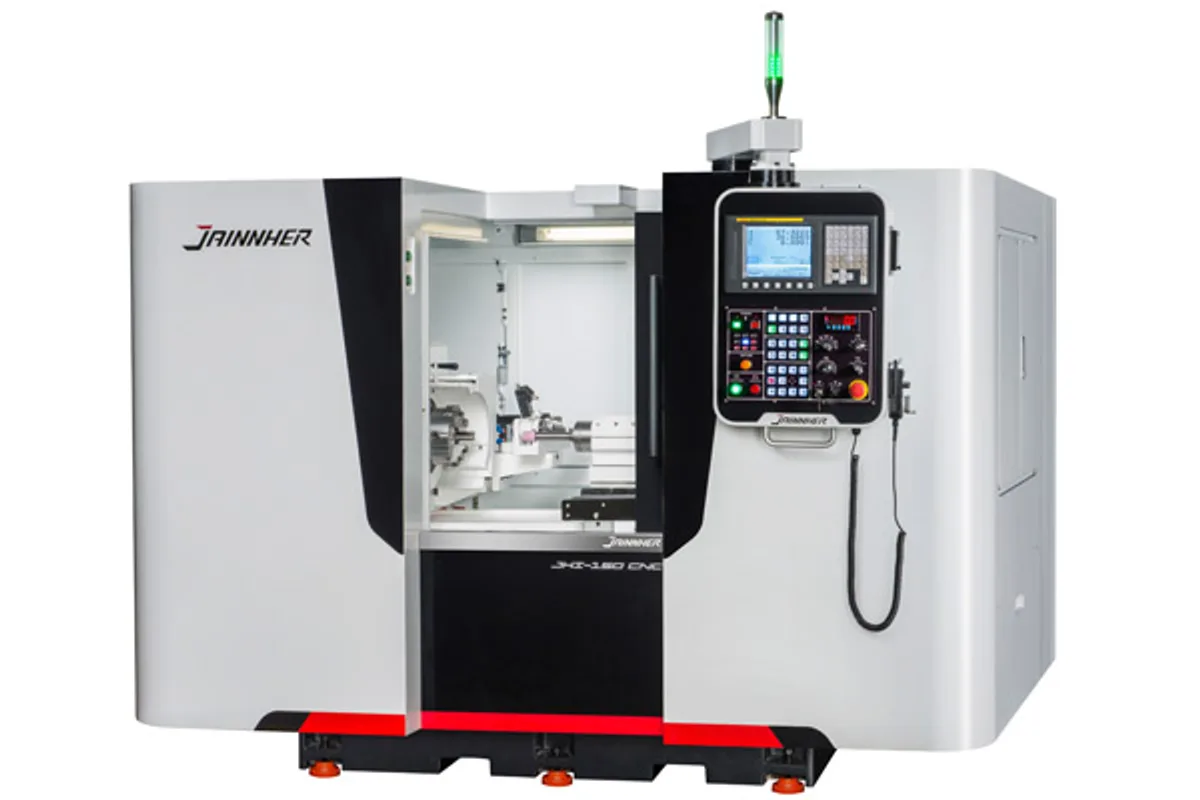

Jainnher JHI-150CNC
Image: jainnher.com, Jainnher
Key Specifications
Spindle Power
id grinding range
max grinding depth
max holding length
swing over bed
swing in chuck guard
How much does the Jainnher JHI-150CNC cost?
Price estimate
We do not have a price for the Jainnher JHI-150CNC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Jainnher JHI-150CNC is a compact CNC internal grinding machine for bores from 6 to 150 mm (0.2 to 5.9 in) in diameter and up to 150 mm (5.9 in) deep. Parts up to 200 mm (7.9 in) long are held in a chuck on an A2-5 spindle nose, inside a chuck guard that clears 280 mm (11.0 in).
Both feed axes are servo driven through ball screws on roller linear guideways. The wheel head's X axis has 100 mm (3.9 in) of stroke and the table's Z axis 450 mm (17.7 in), each with an 8 m/min (315 ipm) rapid and a 0.001 mm setting unit. Jainnher says the arrangement suits blind hole, end face and taper grinding in an automatic cycle. For tapers the work head swivels; the specification table gives ±8°.
The work head is also servo driven, at 10 to 1,000 rpm. Jainnher's point is that the spindle can be positioned, which makes releasing the workpiece easier, and that torque holds at low speed. The wheel spindle is belt driven from a 3 HP (2.2 kW) motor whose own weight sets the belt tension.
Control is a FANUC (Oi-Mate TC) with an 8.4 in colour LCD and a macro-program interface, so a cycle of coarse grinding, dressing, fine grinding and spark-out is filled in rather than written. An end face grinding device is optional and lets the bore and the face be finished in one clamping. The machine is sold with a full or a semi splash guard. The full-guard version weighs 2,900 kg (6,393 lb), the semi-guard version 2,500 kg (5,511 lb).
Full Specifications
| Parameter | Value |
|---|---|
| ID Grinding Range | 6 to 150 mm (0.2 to 5.9 in) |
| Max Grinding Depth | 150 mm (5.9 in) |
| Max Holding Length | 200 mm (7.9 in) |
| Swing Over Bed | 500 mm (19.7 in) |
| Swing in Chuck Guard | 280 mm (11.0 in) |
| X Axis Rapid Traverse | 8 m/min (315 ipm) |
| X Axis Travel | 100 mm (3.9 in) |
| X Axis Min Setting Unit | 0.001 mm |
| Z Axis Rapid Traverse | 8 m/min (315 ipm) |
| Z Axis Travel | 450 mm (17.7 in) |
| Z Axis Min Setting Unit | 0.001 mm |
| Work Spindle Speed | 10 to 1,000 rpm |
| Work Spindle Nose | Standard A2-5 / Optional cylindrical type |
| Work Head Swivel Angle | ±8° |
| Spindle Motor Power | 3 HP (2.2 kW), 2P |
| Work Head Motor | 1.5 kW (2.0 hp) |
| X Axis Motor | 0.75 kW (1.0 hp) |
| Z Axis Motor | 1.2 kW (1.6 hp) |
| Hydraulic Motor | 1/4 HP (0.18 kW) |
| Hydraulic Chuck Motor | 1 HP (0.75 kW) |
| Coolant Motor | 1/4 HP (0.18 kW) |
| Machine Dimensions Full Splash Guard | 3,600 x 3,200 x 2,300 mm (141.7 x 126.0 x 90.6 in) (L x W x H) |
| Machine Dimensions Semi Splash Guard | 3,240 x 2,160 x 2,300 mm (127.6 x 85.0 x 90.6 in) (L x W x H) |
| Machine Weight Full Splash Guard | 2,900 kg (6,393 lb) |
| Machine Weight Semi Splash Guard | 2,500 kg (5,511 lb) |
| Gross Weight Full Splash Guard | 3,750 kg (8,267 lb) |
| Gross Weight Semi Splash Guard | 2,700 kg (5,952 lb) |
Specifications sourced from jainnher.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Covers bores from 6 to 150 mm (0.2 to 5.9 in) with a 0.001 mm setting unit on X and Z
- 8 m/min (315 ipm) rapids on both axes, on roller linear guideways with servo drives
- Servo-driven work head, 10 to 1,000 rpm, with spindle positioning for workpiece release
- FANUC (Oi-Mate TC) control with an 8.4 in display and macro grinding programs
- Choice of full or semi splash guard, at 2,900 kg (6,393 lb) or 2,500 kg (5,511 lb)
Limitations
- Grinding depth is limited to 150 mm (5.9 in) and holding length to 200 mm (7.9 in)
- The standard wheel spindle motor is 3 HP (2.2 kW); the JHI-150BCNC has a 7.5 kW / 10 HP built-in spindle
- No B axis: tapers rely on swivelling the work head within ±8°
- End face grinding device, hydraulic 3-jaw chuck and paper filter are optional accessories
Best For
Frequently Asked Questions
01
Inside diameters from 6 to 150 mm (0.2 to 5.9 in), to a maximum depth of 150 mm (5.9 in). The maximum holding length is 200 mm (7.9 in), the swing over the bed is 500 mm (19.7 in) and the swing inside the chuck guard is 280 mm (11.0 in).
02
Jainnher names a FANUC (Oi-Mate TC) control with an 8.4 in colour LCD screen. It runs macro programs, which the maker says cut preparation time. The control system also has a self-diagnostic function with a warning lamp, and the electrical cabinet is described as dust-proof and water-proof.
03
Yes, by swivelling the work head. The specification table lists a swivel angle of ±8°, while the feature text on the same page says the head can be swivelled +8°. Ask Jainnher which applies before planning a job that needs the negative direction. For a programmable angle, the JHI-150BCNC adds a rotary table B axis with ±15°.
04
Size and weight. With the full splash guard the machine measures 3,600 x 3,200 x 2,300 mm (141.7 x 126.0 x 90.6 in) and weighs 2,900 kg (6,393 lb). With the semi splash guard it measures 3,240 x 2,160 x 2,300 mm (127.6 x 85.0 x 90.6 in) and weighs 2,500 kg (5,511 lb).
