Palmary OCD-4260CAM

Q: How much does the Palmary OCD-4260CAM cost?

The price estimate for the Palmary OCD-4260CAM is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/palmary-ocd-4260cam#price; the request is passed to Palmary or an authorised dealer.

Specs verified 2026-10-05 · palmary.com Updated 2026-10-05

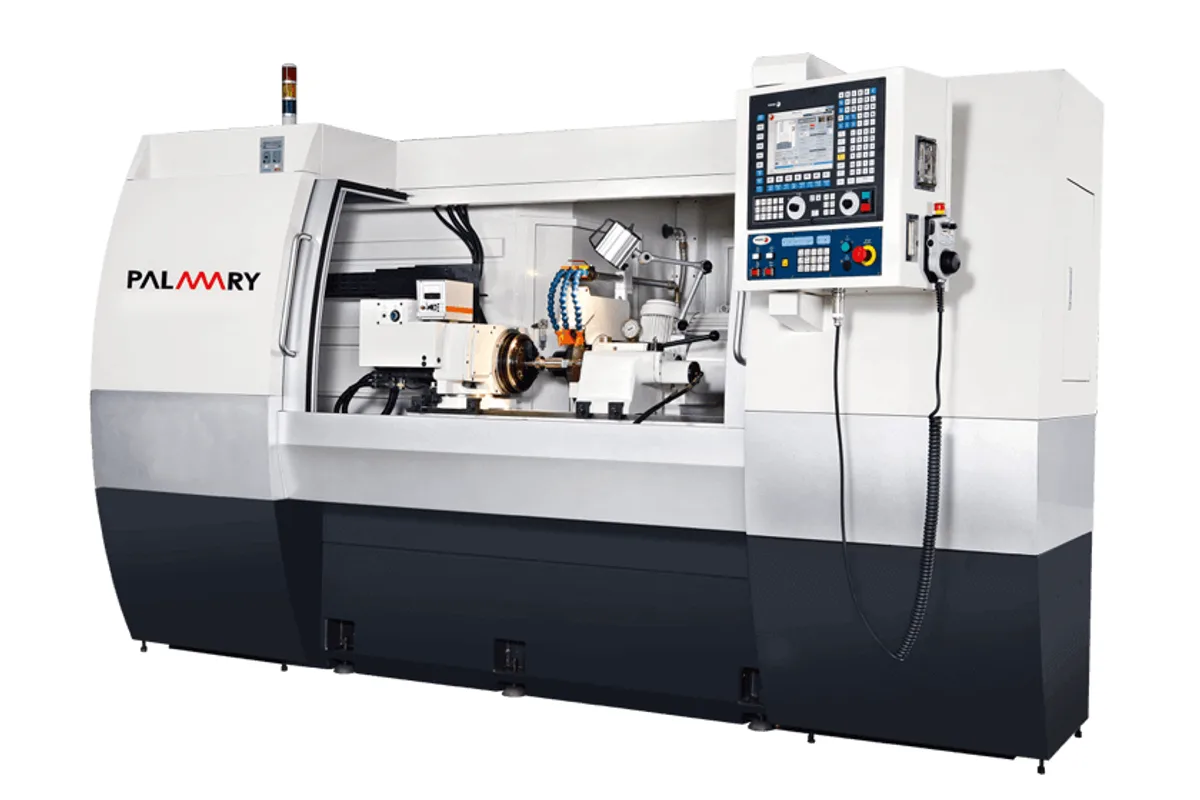

Palmary OCD-4260CAM CNC cam cylindrical grinder

Image: palmary.com, Palmary

Key Specifications

swing over table

Ø420 mm (16.5 in)

distance between centers

600 mm (23.6 in)

max grinding diameter

Ø400 mm (15.7 in)

max load between centers

150 kg (331 lb)

wheel size

Ø355 x 50 x Ø127 mm (14.0 x 2.0 x 5.0 in)

wheel peripheral speed

33 m/s (6,496 ft/min)

How much does the Palmary OCD-4260CAM cost?

Price estimate

Uncertain

We do not have a price for the Palmary OCD-4260CAM that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Palmary OCD-4260CAM is the only large-swing model among Palmary's CNC cam cylindrical grinders: Ø420 mm (16.5 in) over the table, Ø400 mm (15.7 in) of grinding diameter and 600 mm (23.6 in) between centers.

The extra swing is for parts whose non-round feature sits on a big body or far from the axis: large eccentrics, crank-type parts with a long throw, big polygon couplings and forming rolls with a lobed section. For plain cam lobes of ordinary size the OCD-3260CAM, with Ø320 mm (12.6 in) of swing, does the same job in a 4,250 kg (9,369 lb) machine. This one weighs 5,300 kg (11,684 lb).

The cam mechanism is shared with the smaller models. Palmary describes the main structure of its CNC cylindrical grinder combined with C-axis angle control from a built-in spindle motor, and an infeed axis driven by a linear motor with a linear guideway and closed loop scale. The work spindle is 5.2 kW (7.0 hp), 10 to 500 rpm. X travels 257 mm (10.1 in), Z 826 mm (32.5 in), both at 4 m/min (157 ipm).

Note the wheelhead stroke against the swing. With 257 mm of X travel and a Ø355 mm wheel, check that the range between your largest and smallest ground radius, plus dressing, fits in one setting. Load between centers is 150 kg (331 lb). Table swivel is 0° to 10°. The controller is by NUM.

Full Specifications

Parameter	Value
Swing Over Table	Ø420 mm (16.5 in)
Distance Between Centers	600 mm (23.6 in)
Max Grinding Diameter	Ø400 mm (15.7 in)
Max Load Between Centers	150 kg (331 lb)
Wheel Size	Ø355 x 50 x Ø127 mm (14.0 x 2.0 x 5.0 in)
Wheel Peripheral Speed	33 m/s (6,496 ft/min)
X Axis Rapid Traverse	4 m/min (157 ipm)
X Axis Travel	257 mm (10.1 in)
X Axis Min Setting Unit	0.001 (0.0001) mm
Z Axis Rapid Traverse	4 m/min (157 ipm)
Z Axis Travel	826 mm (32.5 in)
Z Axis Min Input Increment	0.001 (0.0001) mm
Table Swivel Angle	0°~10°
Workhead Swivel Angle	-30°~+90°
Workhead Center Taper	M.T. No. 4
Work Spindle Speed	10-500 rpm
Max Load of Work Spindle	35 kg (77 lb) (max. length: 150 mm)
Tailstock Center Taper	M.T. No. 4
Tailstock Stroke	25 mm (1.0 in)
Tailstock Fine Adjustment Range	±0.03 mm (±0.0012 in)
Wheel Spindle Motor	3.7 kW (5.0 hp) (4P)
Workhead Motor	5.2 kW (7.0 hp) (AC Servo Motor)
Wheelhead Feed Motor	3.6 kW (4.8 hp) (AC Servo Motor)
Table Feed Motor	3.6 kW (4.8 hp) (AC Servo Motor)
Hydrostatic Pump Motor	0.75 kW (1.0 hp) (6P)
Wheel Spindle Lubrication Pump Motor	0.18 kW (0.2 hp) (2P)
Coolant Pump Motor	0.18 kW (0.2 hp) (4P)
Ballscrew Lubrication	Auto lubricator (LUBE)
Wheel Spindle Lubrication Tank	12 L (3.2 gal)
Lubrication Tank	60 L (15.9 gal)
Ballscrew Lubrication Tank	0.7 L (0.2 gal)
Coolant Tank	100 L (26.4 gal)
Machine Weight	5,300 kg (11,684 lb)
CNC Control	NUM controller

Specifications sourced from palmary.com — verified 2026-10-05

Strengths & Limitations

Strengths

Ø420 mm (16.5 in) swing and Ø400 mm (15.7 in) grinding diameter on a cam grinder
C-axis angle control by a built-in spindle motor, 5.2 kW (7.0 hp)
Linear motor infeed with linear guideway and closed loop scale
826 mm (32.5 in) table stroke on a 600 mm (23.6 in) center distance

Limitations

Only one length is offered at this swing
X stroke of 257 mm (10.1 in) is the same as on the smaller-swing CAM models
150 kg (331 lb) between centers limits large-bodied parts
4 m/min (157 ipm) rapid advance

Best For

Large eccentrics and long-throw crank-type parts Polygon and lobed profiles on bodies up to Ø400 mm (15.7 in) Non-round sections on large-diameter rolls and sleeves One-off and small-batch profile work

Frequently Asked Questions

01 What size of part does the Palmary OCD-4260CAM take?

Up to Ø400 mm (15.7 in) in ground diameter under a Ø420 mm (16.5 in) swing, 600 mm (23.6 in) between centers and 150 kg (331 lb). The work spindle alone carries 35 kg (77 lb) including the holder at up to 150 mm of length.

02 How does the OCD-4260CAM differ from the OCD-3260CAM?

Swing and weight. The OCD-3260CAM swings Ø320 mm (12.6 in), grinds to Ø300 mm (11.8 in), swivels its table 0° to 12° and weighs 4,250 kg (9,369 lb). The OCD-4260CAM swings Ø420 mm (16.5 in), grinds to Ø400 mm (15.7 in), swivels 0° to 10° and weighs 5,300 kg (11,684 lb).

03 What drives the axes of the OCD-4260CAM?

The wheelhead and table feeds are listed as 3.6 kW (4.8 hp) AC servo motors and the workhead as a 5.2 kW (7.0 hp) AC servo motor. Palmary describes the infeed axis as linear-motor driven on a linear guideway, with a closed loop linear scale.

04 What accessories come with the OCD-4260CAM?

A NUM controller, fully enclosed splash guard, grinding wheel and flange, flange extractor, grinding wheel inverter, fixed-type diamond tool holder, micro adjustment tailstock, linear scale for the X and C axes, carbide tipped work centers and the hydraulic and coolant tanks with pumps.
