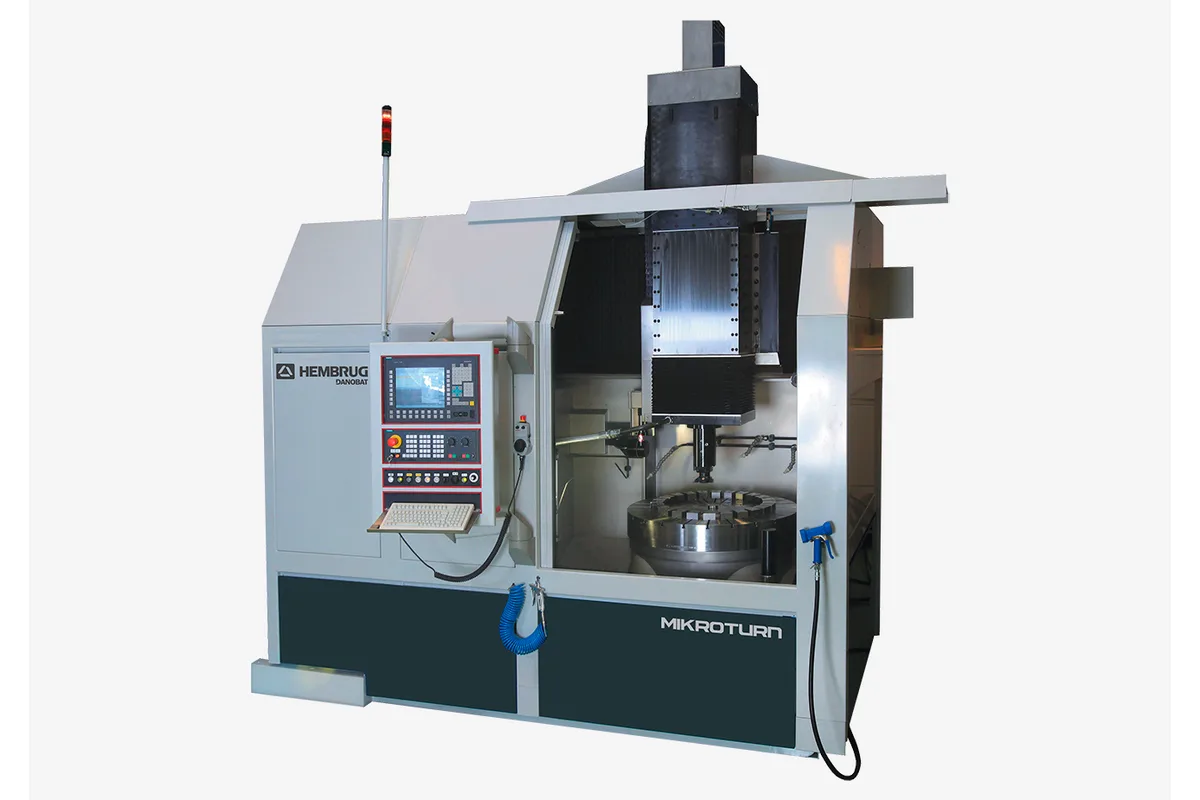

Danobat Mikroturn Vertical 1000V2
Image: danobat.com, Danobat
Key Specifications
Max Spindle
Accuracy
Repeatability
max turning diameter
max turning height
control
How much does the Danobat Mikroturn Vertical 1000V2 cost?
Price estimate
We do not have a price for the Danobat Mikroturn Vertical 1000V2 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
A one-metre table and a single-process layout define the Danobat Mikroturn Vertical 1000V2. This vertical hard turning lathe takes parts up to 1,000 mm (39.37 in) in diameter and 350 mm (13.8 in) high, and it is the model the page's V2 statement fits exactly: parts up to 1000 mm in diameter and 2000 kg in weight.
Spindle speed is 200 rpm. At the rim of a full-size ring that is ample; hardened steel is cut at modest surface speeds and a one-metre circumference reaches them quickly. Towards the centre it is not, so small bores in large parts will cut slowly. The Mikroturn Vertical 800V2 is listed at 1,200 rpm for anyone whose parts are smaller.
The table rotates in a hydrostatic spindle whose run-out error Danobat guarantees at ≤ 0.1 µm. Under a 2000 kg load that matters more than on a small lathe, because rolling bearings of this size carry their own error into the part. The oil film also damps the interrupted cuts that hardened rings with holes or slots produce. Guideways are hydrostatic with 1 µm positioning and 0.2 µm repeatability, and the base and spindle housing are natural granite.
Its closest sibling is the Mikroturn Vertical 1000V4, which has the same diameter, height and speed. The V4 turns OD and ID simultaneously for cycle time savings of up to 40%. The 1000V2 does one after the other and asks for 36 m² (387.5 sqft) of floor, a single square metre less. So the choice between them is about cycle time and tooling, not about space or part size. An automatic tool changer, a part probe and tool life monitoring are listed as options.
Full Specifications
| Parameter | Value |
|---|---|
| Max Turning Diameter | 1,000 mm (39.37 in) |
| Max Turning Height | 350 mm (13.8 in) |
| Max Spindle Speed | 200 rpm |
| CNC Control | Siemens Sinumerik One |
| Floor Space | 36 m² (387.5 sqft) |
| Main Spindle Runout | ≤ 0.1 µm (hydrostatic main spindle, guaranteed) |
| Positioning Accuracy | 1 µm (hydrostatic guideways, controlled by linear scales) |
| Repeatability | 0.2 µm (hydrostatic guideways, controlled by linear scales) |
| Control Resolution | 0.01 µm |
| Workpiece Dimensional Tolerance | ≤ 2 µm |
| Workpiece Roundness | ≤ 0.5 µm |
| Surface Finish | 0.1 – 0.4 µm Ra |
Specifications sourced from danobat.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 1,000 mm (39.37 in) turning diameter with a 350 mm (13.8 in) turning height
- Danobat states the V2 covers parts up to 2000 kg in weight
- Hydrostatic table spindle with a guaranteed run-out error of ≤ 0.1 µm
- Roundness of ≤ 0.5 µm and dimensional tolerances of ≤ 2 µm quoted on the workpiece
- Automatic tool changer and tool life monitoring available
Limitations
- Spindle speed is 200 rpm, which limits cutting speed on small diameters
- OD and ID are turned in sequence; simultaneous machining needs the Mikroturn Vertical 1000V4
- Requires 36 m² (387.5 sqft), half as much again as the Mikroturn Vertical 800V2
- No spindle power, torque or axis travel is published
Best For
Frequently Asked Questions
01
Maximum turning diameter 1,000 mm (39.37 in), maximum turning height 350 mm (13.8 in), spindle speed 200 rpm, floor space 36 m² (387.5 sqft). For the V2 type Danobat states parts up to 1000 mm in diameter and 2000 kg in weight.
02
The Mikroturn Vertical 1000V4 shares the 1,000 mm (39.37 in) diameter, 350 mm (13.8 in) height and 200 rpm, and takes 37 m² (398 sqft). Its advantage is that it machines OD and ID simultaneously, which Danobat says saves up to 40% of cycle time. If volumes are low and rings vary, the simpler 1000V2 does the same work in sequence.
03
On the diameters this machine is made for, yes: cutting speed rises with diameter, so a large ring reaches hard-turning speeds at low revolutions. On a small bore in the middle of the table it becomes a limit. That is the case in which the 1,200 rpm of the Mikroturn Vertical 800V2 is worth a look.
04
Danobat lists a magnetic chuck for workholding and an automatic tool changer. Measuring options are a part probe, tool measurement and tool life monitoring. Changeover and set-up are said to take under 30 minutes in many cases.
