Citizen Miyano LZ-01RY

Est. $80,000 - $115,000 Possible older model Updated 2026-10-03

This model was not found in Citizen Machinery's current lineup when we checked on 2026-10-03 (lineup page). It may be a superseded or older model; the specifications below are as we last recorded them.

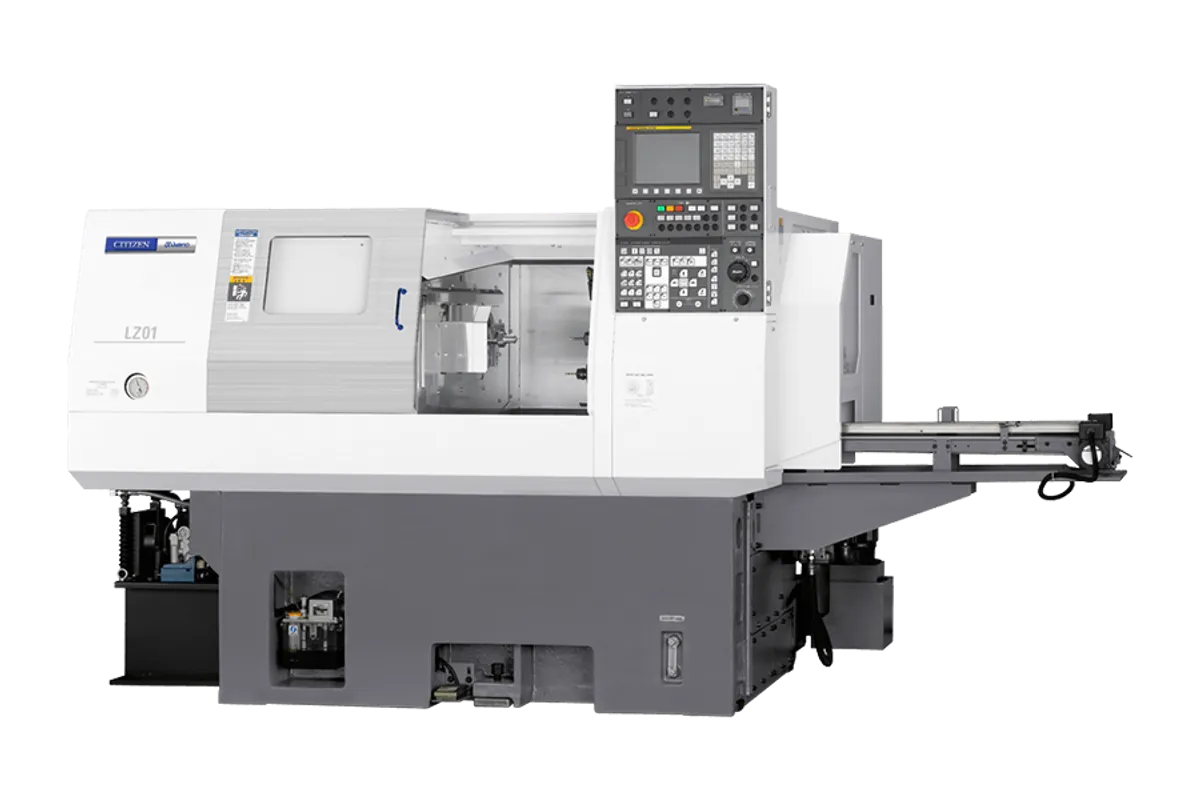

Image: cmj.citizen.co.jp, Citizen Machinery

Key Specifications

Max Turn Length

80 mm (3.15 in)

max turning diameter

70 mm (2.76 in)

main spindle speed

6,000 RPM

spindle motor

7.5 / 5.5 kW (10 / 7.5 HP)

number of axes

3 (X, Z, Y)

turret positions

How much does the Citizen Miyano LZ-01RY cost?

Estimated price range

Est.$80,000 - $115,000

Our best estimate for a cnc lathes / turning center in this class — not a quote from Citizen Machinery. Configuration moves it a long way.

Overview

The Citizen Miyano LZ-01RY is the Y-axis version of the LZ-01: a three-axis (X, Z, Y) fixed-headstock lathe with ±35 mm of Y stroke, built for small chucked parts up to 70 mm in diameter and 80 mm long. It is not in Citizen's current lineup under that name, and its table is the LZ-01R2 column of the LZ-01R series page.

Y is the reason to pick this model over the two-axis Miyano LZ-01, which is listed with X and Z only. With up to 6 revolving tools on the 12-station turret, the Y stroke lets a milling cutter or drill work off the spindle centreline: flats and slots that are not on a diameter, bolt-hole patterns away from the axis, and cross holes that do not pass through the centre. At ±35 mm either side of centre, the stroke spans the whole face of a 70 mm part.

The rest of the specification matches the LZ-01 table. The spindle runs 60 - 6,000 rpm on 7.5/5.5 kW and carries a 6-inch hydraulic power chuck, or a collet chuck for work up to 50 mm. Machining length is limited to 80 mm, and the maximum work weight is 0.7 kg × 2. Strokes of 245 mm in X and 240 mm in Z are given for the main spindle slide. Turning tools are 20 mm square and boring holders fit 25 mm diameter holes.

It occupies 2,100×1,555 mm of floor, is 1,680 mm high and weighs approx. 4,000 kg, with a Mitsubishi M80 control.

Full Specifications

Parameter	Value
Max Turning Diameter	70 mm (2.76 in)
Max Turning Length	80 mm (3.15 in)
Main Spindle Speed	6,000 RPM
Spindle Motor	7.5 / 5.5 kW (10 / 7.5 HP)
Number of Axes	3 (X, Z, Y)
Turret Positions	12
Chuck Size	6-inch hydraulic
Rapid Traverse X	15 m/min
Rapid Traverse Z	20 m/min
CNC Control	Mitsubishi M80 (Citizen Miyano)
Max Revolving Tools	6
Floor Space	2,100×1,555mm
Y Axis Stroke	+/- 35 mm
Items	LZ-01R2
Power Chuck Size	6" hydraulic drive
Maximum Turning Diameter Power Chuck	70mm Dia.
Maximum Diameter of Collet Chuck	50mm Dia.
Maximum Machining Length	80mm
Main Spindle Speed Range	60 - 6,000min-1
Main Spindle Motor	7.5/5.5kW
Z Axis	240mm
Type of Turret	12St.Turret
Shank Height of Square Turning Tool	20mm Sq.
Tool Hole Diameter	25mm Dia.
Maximum Number of Revolving Tools	6
Maximum Work Size	70mm Dia.×80mm Dia.
Maximum Work Weight	0.7kg×2
Machine Height	1,680mm
Main Spindle Slide Travel X Axis	245mm
Main Spindle Slide Travel Z Axis	240mm
Machine Weight Approx	4,000kg
Slide Stroke Y Axis	±35mm

Specifications compiled from manufacturer literature and industry references. Not independently verified against a published spec sheet — confirm with the manufacturer or an authorised dealer before making a purchasing decision.

Strengths & Limitations

Strengths

±35 mm Y-axis stroke for off-centre milling and drilling
Up to 6 revolving tools on a 12-station turret
60 - 6,000 rpm spindle on 7.5/5.5 kW with a 6-inch hydraulic power chuck
Collet chuck capacity up to 50 mm for bar-sized slugs
Main spindle slide strokes of 245 mm in X and 240 mm in Z

Limitations

80 mm maximum machining length restricts it to short parts
Revolving tools are limited to 6 of the 12 turret stations
Maximum work weight is 0.7 kg × 2
Not in Citizen's current lineup under this name, so the machine on offer may differ from the LZ-01R2 figures

Best For

Small parts with off-centre holes or milled flats Chucked work up to 70 mm diameter and 80 mm long Bolt-hole patterns and slots on small flanges Done-in-one small parts that would otherwise go to a mill

Frequently Asked Questions

01 What is the difference between the LZ-01RY and the LZ-01?

The Y axis. The Miyano LZ-01RY is a three-axis machine (X, Z, Y) with ±35 mm of Y stroke. The Miyano LZ-01 is listed with X and Z only. Turning diameter, 70 mm, and machining length, 80 mm, are the same on both.

02 How much Y travel does the LZ-01RY have?

The Y stroke is ±35 mm. Combined with up to 6 revolving tools on the turret, it allows milling and drilling away from the spindle centreline across the face of a part up to 70 mm in diameter.

03 What workholding does the LZ-01RY use?

A 6-inch hydraulic power chuck for parts up to 70 mm in diameter, or a collet chuck for up to 50 mm. The spindle runs 60 - 6,000 rpm on a 7.5/5.5 kW motor.

04 Is the LZ-01RY a current Citizen model?

Not under that name. The table on this page is the LZ-01R2 column of Citizen's LZ-01R series page. Check the nameplate and the axis configuration of a used machine before relying on these figures.
