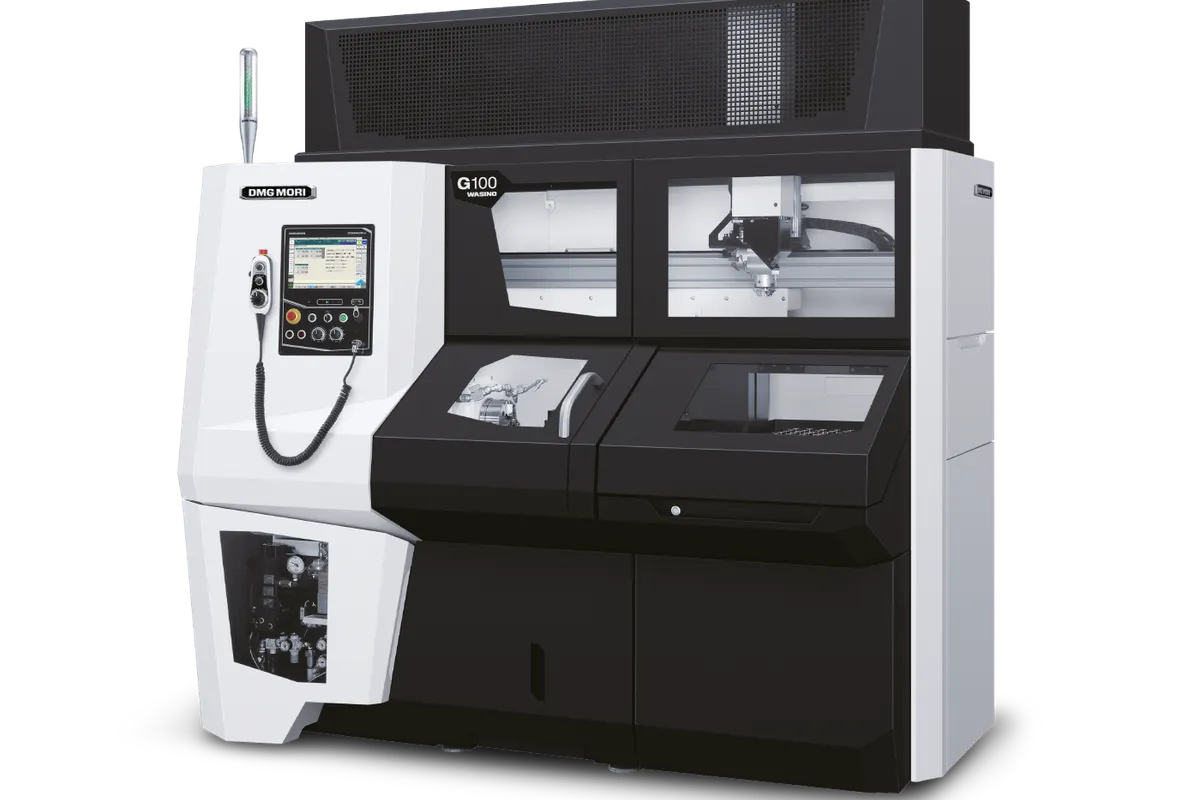

DMG Mori Wasino G 100M|480

$250,000 - $380,000 Updated 2026-03-19

Key Specifications

Max Workpiece ⌀

285 mm (11.2 in)

max workpiece length

280 mm (11 in)

max bar diameter

38 mm (1.5 in)

x axis travel

480 mm (18.9 in)

z axis travel

285 mm (11.2 in)

thermal displacement cold start

0.05 µin (diameter)

Overview

The DMG Mori Wasino G 100M|480 is a super-high-precision flat tooling CNC turning center with milling capability, handling workpieces up to 285 mm (11.2 in) diameter and 280 mm (11 in) length. The M designation adds driven tool milling, drilling, and tapping to the precision turning platform, enabling more complete part machining in a single setup.

The machine shares the 480 mm (18.9 in) X-axis travel and 285 mm (11.2 in) Z-axis travel of the standard G 100|480, with bar capacity of 38 mm (1.5 in). The key differentiator is the integrated milling capability that allows off-center features to be machined on the same platform that delivers sub-micron turning precision.

Wasino's precision platform delivers cold-start thermal displacement of 0.05 microinches on diameter with circularity of 0.01 microinches. The symmetrical bed structure, induction-hardened horizontal slideways integrated into the cast iron bed, and flat tooling architecture all contribute to these precision numbers. The rigid bed with low center of gravity provides superior damping.

Adding milling capability to this ultra-precision turning platform is significant. Parts that previously required two setups, one for precision turning and another for milling features, can now be completed on a single machine. This eliminates re-chucking errors and reduces work-in-process inventory. The trade-off is that the milling capability adds complexity and cost.

The G 100M|480 targets production applications where both sub-micron turning accuracy and milling features are required on the same part. Hydraulic valve bodies with cross-drilled ports, medical implant components with milled flats, and optical housings with precision bores and mounting features are natural applications. The Fanuc control handles both turning and milling programming. Specs sourced from DMG Mori published data.

Full Specifications

Parameter	Value
Max Workpiece Diameter	285 mm (11.2 in)
Max Workpiece Length	280 mm (11 in)
Max Bar Diameter	38 mm (1.5 in)
X Axis Travel	480 mm (18.9 in)
Z Axis Travel	285 mm (11.2 in)
Thermal Displacement Cold Start	0.05 µin (diameter)
Circularity	0.01 µin
Milling Capability	Yes (M designation)
Bed Design	Symmetrical flat tooling
Slideway Type	Induction-hardened horizontal, integrated in bed
Bed Material	Cast iron with superior damping
Center Of Gravity	Low
CNC Control	Fanuc
Machine Type	Flat tooling turning center with milling
285 Mm	11.2 in.
280 Mm	11 in.
38 Mm	1.5 in.
480 Mm	18.9 in.
Customer Benefits	Functionality - Selection of the cycle by pressing the associated key on the operating panel

Specifications sourced from us.dmgmori.com — verified 2026-03-28

Strengths & Limitations

Strengths

Milling capability on a sub-micron precision turning platform eliminates re-chucking errors from secondary setups
Sub-micron precision with 0.05 µin thermal displacement and 0.01 µin circularity maintained even with milling option
480 mm X-axis travel provides extended range for complex profiles and multi-tool flat tooling configurations
Induction-hardened horizontal slideways deliver both turning precision and milling rigidity on the same platform
Complete part machining capability reduces work-in-process inventory and total production lead time
Low center of gravity and cast iron construction provide vibration damping for both turning and milling operations

Limitations

Milling option adds significant cost premium over the standard G 100|480 turning-only model
Milling performance will not match a dedicated machining center for heavy material removal
Programming complexity increases with combined turning and milling operations in the same setup
Flat tooling with milling stations further reduces the number of available turning tool positions

Best For

Hydraulic valve body production requiring precision bores with cross-drilled ports in a single setup Medical implant manufacturers producing components with precision turned surfaces and milled flats or slots Optical housing production needing precision bores, mounting features, and milled interfaces on the same part Aerospace fitting and connector production where sub-micron turning accuracy and milling features coexist Any production application where eliminating re-chucking between turning and milling improves quality and throughput

Frequently Asked Questions

01 What does the M designation add to the G 100|480?

The M adds milling capability, including driven tool stations for drilling, milling, and tapping off-center features. This enables parts with both precision turned surfaces and milled features to be completed in one setup, eliminating the re-chucking errors that degrade accuracy.

02 Does adding milling affect turning precision?

The sub-micron precision specifications (0.05 µin thermal displacement, 0.01 µin circularity) are maintained on the M variant. The milling option adds capability without compromising the core turning precision of the platform.

03 How heavy can I mill on the G 100M|480?

The milling capability is designed for precision milling operations compatible with the flat tooling platform, not heavy material removal. Think cross-drilled holes, milled flats, keyways, and light profiling. For aggressive hogging, use a dedicated machining center.

04 Is the G 100M|480 worth the premium over the G 100|480?

If your parts require both precision turning and milling features, yes. The ability to eliminate a secondary milling setup saves re-chucking errors, reduces WIP, and shortens lead time. If your parts are turning-only, the standard G 100|480 at a lower price is the right choice.
