Citizen Miyano ABX-64THY2
This model was not found in Citizen Machinery's current lineup when we checked on 2026-10-02 (lineup page). It may be a superseded or older model; the specifications below are as we last recorded them.
Image: citizenmachinery.co.uk, Citizen Machinery
Key Specifications
Max Spindle
Tool Capacity
Spindle Power
max bar capacity
max work length
sub spindle speed
How much does the Citizen Miyano ABX-64THY2 cost?
Estimated price range
Our best estimate for a cnc lathes / turning center in this class — not a quote from Citizen Machinery. Configuration moves it a long way.
Overview
The Citizen Miyano ABX-64THY2 is a three-turret, twin-spindle CNC turning centre for bar up to 64 mm (2.52 in), with a tool capacity of 36. Its main spindle runs to 4,000 rpm on 15/11 kW through a 65.5 mm (2.58 in) bore, and the opposed sub-spindle runs to 5,000 rpm on 7.5/5.5 kW. Citizen no longer lists it in the current lineup.
The third turret is what separates it from the Miyano ABX-64SYY2, which has two turrets and 24 tools on the same spindles. With three turrets, two tools can cut on the main spindle while the third works on the sub-spindle, or the extra stations simply hold the tools a complex part needs without a change-over between jobs. The cost is mass and Z speed: this machine weighs 11,350 kg (25,022 lb) and has a 20 m/min Z rapid, where the Miyano ABX-64SYY2 weighs 10,900 kg (24,030 lb) and moves Z at 30 m/min. Both share the 3,290 × 2,204 mm (130 × 86.8 in) footprint.
All 36 positions can take revolving tools, which run to 6,000 rpm with 40 Nm maximum on an AC 4.5 kW motor. X and Y rapids are 16 m/min and 12 m/min, and each turret indexes in 0.25 sec per position. Turning tools have 20 mm square shanks; boring holders fit 25 mm or 40 mm holes.
The FANUC 31i-B control stores 128 KB, or 250 programs. On site, the machine needs a 49 kVA, 150 A supply and a 400 L coolant tank, plus 10 L of hydraulic oil and 4 L of lubricant. The maximum machining length is 118 mm (4.65 in), so this is a machine for short, densely featured parts cut from large bar, not for shafts.
Full Specifications
| Parameter | Value |
|---|---|
| Max Bar Capacity | 64 mm (2.52 in) |
| Max Work Length | 118 mm (4.65 in) |
| Sub Spindle Speed | 5,000 rpm |
| Sub Spindle Power | AC 7.5 / 5.5 kW |
| Number of Turrets | 3 |
| Turret Stations | 3 |
| Max Live Tools | 36 |
| Live Tool Speed | 6,000 rpm |
| Live Tool Torque | 40 Nm max |
| Rapid Traverse X | 16 m/min |
| Rapid Traverse Z | 20 m/min |
| Rapid Traverse Y | 12 m/min |
| Machine Weight | 11,350 kg (25,022 lb) |
| CNC Control | FANUC 31i-B |
| NC Storage | 128 KB / 250 programs |
| Max Work Length Sp1 | 125 mm |
| Max Work Length Sp2 | 125 mm |
| Max Bar Diameter Sp1 | 51 mm |
| Max Bar Diameter Sp2 | 51 mm |
| Max Power Chuck Diameter Sp1 | 165 mm |
| Max Power Chuck Diameter Sp2 | 165 mm |
| Inner Dia of Draw Tube Sp1 | 52 mm |
| Inner Dia of Draw Tube Sp2 | â 52 mm |
| Chucking System Sp1 Sp2 | Hydraulic cylinder |
| Collet Chuck Type Sp1 | H-S22/177E |
| Collet Chuck Type Sp2 | H-S22 / DIN177E |
| Tool Shank Size | 20 mm Sq. |
| ID Tool Hole Size | 25 mm / 40 mm Dia. |
| Index Time | 0.25 SEC / 1 POS |
| Revolving Tools Max | 36 |
| Drilling Tapping Capacity | Max â 20 / Max M14x2 |
| Hd1 Hd2 | 16 / 20 / 12 |
| Hd3 | 16 / 20 / 12 |
| Sp2 Zs | 30 m / min |
| Spindle Motor Sp1 | AC 15 / 11 kW |
| Spindle Motor Sp2 | AC 7.5 / 5.5 kW |
| Revolving Tool Motor | AC 4.5 kW |
| Coolant Tank Capacity | 400 L |
| Hydraulic Lube Tank | 10 L / 4 L |
| Power Capacity Fuse | 49 KVA / 150A |
| Max Machining Length | 118 mm (4.65 in) |
| Bar Capacity | 64 mm (2.52 in) |
| Max Spindle Speed | 4,000 rpm |
| Spindle Bore | 65.5 mm (2.58 in) |
| Tool Capacity | 36 |
| Spindle Motor Power | AC 15 / 11 kW |
| Live Tool Power | AC 4.5 kW |
| Coolant Capacity | 400 L |
| Floor Space Required | 3,290 × 2,204 mm (130 × 86.8 in) |
| Power Consumption | 49 KVA / 150A |
Specifications sourced from marucit.com — verified 2026-09-24
Strengths & Limitations
Strengths
- Three turrets and a tool capacity of 36, all of which can be revolving tools
- 64 mm (2.52 in) bar through a 65.5 mm (2.58 in) main spindle bore, with 15/11 kW on the main spindle
- Sub-spindle at 5,000 rpm on 7.5/5.5 kW for back-side work in the same cycle
- Revolving tools rated at 6,000 rpm and 40 Nm maximum on an AC 4.5 kW motor
- FANUC 31i-B control with 128 KB of storage, or 250 programs
Limitations
- Z rapid is 20 m/min, slower than the 30 m/min of the two-turret Miyano ABX-64SYY2
- Weighs 11,350 kg (25,022 lb), so the foundation and rigging need planning
- Main spindle speed stops at 4,000 rpm
- Maximum machining length of 118 mm (4.65 in) rules out longer shafts
- Needs a 49 kVA, 150 A electrical supply
Best For
Frequently Asked Questions
01
Tool capacity and overlap. The Miyano ABX-64THY2 holds 36 tools on three turrets; the Miyano ABX-64SYY2 holds 24 on two. A third turret lets one tool work on the sub-spindle while two cut on the main spindle, if the program is balanced for it.
02
Both are three-turret machines with 36 tools. The Miyano ABX-51THY2 takes 51 mm (2.01 in) bar through a 52 mm (2.05 in) bore with a 5,000 rpm main spindle. The Miyano ABX-64THY2 takes 64 mm (2.52 in) bar through a 65.5 mm (2.58 in) bore at 4,000 rpm.
03
The power capacity is listed as 49 kVA with a 150 A fuse. The coolant tank holds 400 L, and the hydraulic and lubrication tanks hold 10 L and 4 L, so allow for those fills at installation.
04
11,350 kg (25,022 lb), on a footprint of 3,290 × 2,204 mm (130 × 86.8 in). Check the floor rating and the access route for a load of that size before the machine is delivered.
05
No. Citizen does not list it in the current lineup, so most machines on offer are used. Check the turret tooling, the control (listed as FANUC 31i-B) and the program memory on the machine itself.

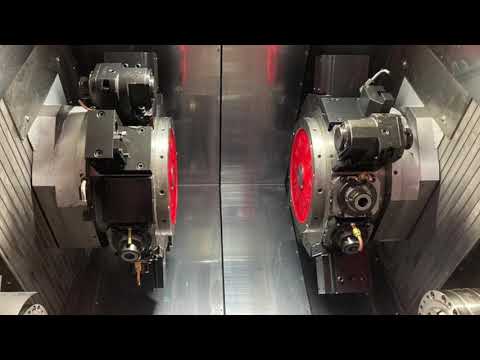

Videos
