Citizen Miyano ABX-80SYY
This model was not found in Citizen Machinery's current lineup when we checked on 2026-10-03 (lineup page). It may be a superseded or older model; the specifications below are as we last recorded them.

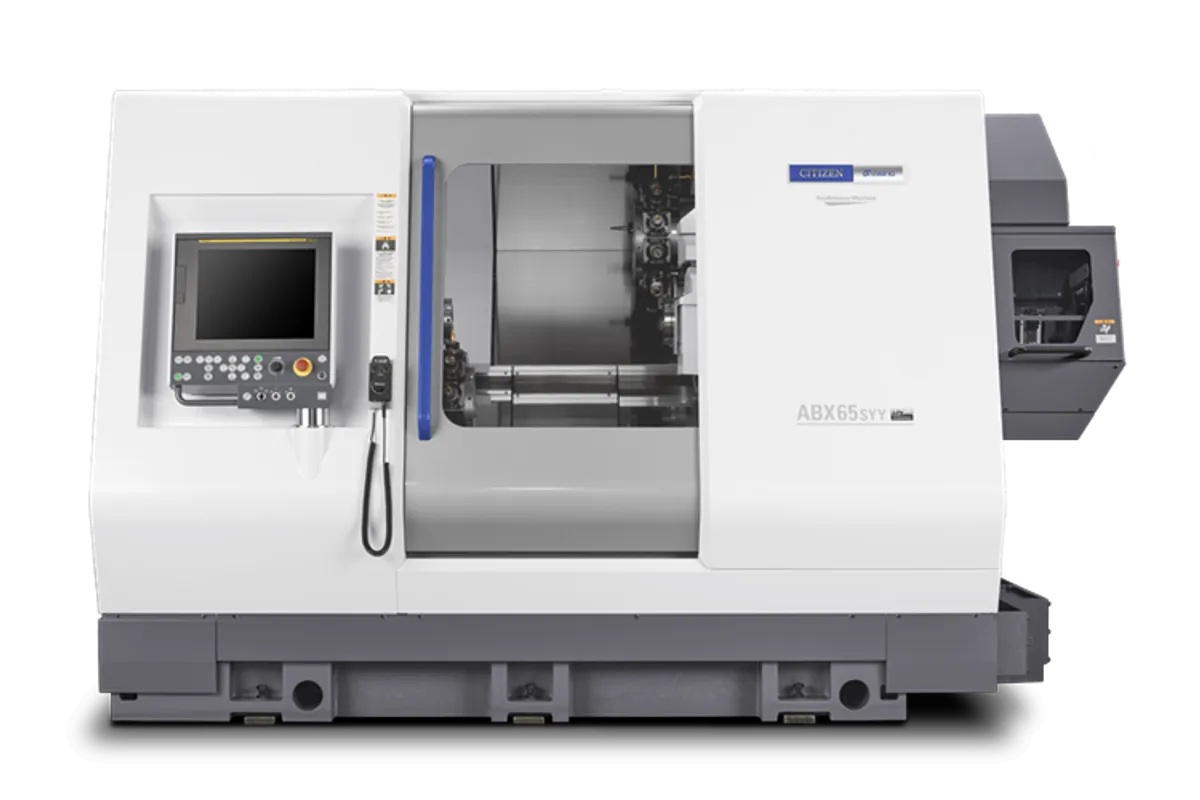

Image: cmj.citizen.co.jp, Citizen Machinery
Key Specifications
Rapid Traverse
Max Turn Length
max bar capacity
max turning diameter
main spindle speed
sub spindle speed
How much does the Citizen Miyano ABX-80SYY cost?
Estimated price range
Our best estimate for a cnc lathes / turning center in this class — not a quote from Citizen Machinery. Configuration moves it a long way.
Overview
The Miyano ABX-80SYY is listed for chuck work up to 350 mm (13.78 in) in diameter, the largest of the two-turret ABX models here, and pairs two spindles with two Y-axis turrets of 12 stations each under a Mitsubishi M80W dual-path control. It is not part of Citizen's current lineup, which makes it mainly a second-hand purchase.
Against the Miyano ABX-65SYY, which has the same 12+12 turret layout and the same 10,900kg weight, the ABX-80SYY is listed for 350 mm (13.78 in) of chuck work against 300 mm (11.81 in). Against the Miyano ABX-80THY it gives up the third turret, 24 stations instead of 36, and weighs 10,900kg rather than 11,300kg. If a part family needs Y-axis work at both ends but not three tools cutting at once, the two-turret machine is the simpler choice.
Both turrets move 190mm in X with an 80 (±40) mm Y stroke; Z1 travels 550mm and Z2 721mm. Every station can carry a revolving tool, driven 60 - 6,000min-1 by an AC Servo 4.5kW motor. Turning tools are 20mm Sq., with ø25 mm mounting holes and drill shanks of 40mm, 20mm or 25mm Dia.
The spindle faces sit 1031 mm apart and the Zs axis has 756mm of stroke at a 30m/min rapid, while Y1 and Y2 rapid at 12m/min. The noses are A2-8 and A2-6, each with a 6" hydraulic chuck, and collets are of the stationary type. The machine stands 2,222mm high.
Full Specifications
| Parameter | Value |
|---|---|
| Max Bar Capacity | 80 mm (3.15 in) |
| Max Turning Diameter | 350 mm (13.78 in) chuck work |
| Max Turning Length | 250 mm (9.84 in) |
| Main Spindle Speed | 3,500 RPM |
| Sub Spindle Speed | 3,500 RPM |
| Live Tool Speed | 6,000 RPM |
| Spindle Motor | 18.5 kW (25 hp) |
| Number of Axes | 10 (X1, Z1, Y1, C1, X2, Z2, Y2, C2 + turret indexing) |
| Turret Positions | 24 (12 upper + 12 lower, both with live tooling) |
| Rapid Traverse X | 20 m/min |
| Rapid Traverse Z | 24 m/min |
| Machine Weight | 10,900kg |
| CNC Control | Mitsubishi M80W dual-path (Citizen Miyano) |
| Items | ABX-65SYY3 |
| Distance Between Spindle End Faces | 1031 mm |
| Sp2 | 5,000 min-1 |
| Type of Tool Post | 12st |
| Dimensions of Tools Used | □20 mm |
| Dimensions of Tool Mounting Holes | ø25 mm |
| Slide Stroke | X1, X2 axis |
| Z1 Axis | 550mm |
| Z2 Axis | 721mm |
| Y1y2 Axis | 80（±40）mm |
| Zs Axis | 30m/min |
| Rapid Traverse Rate | X1, X2 axis |
| Z1 Z2 Axis | 30/20m/min |
| Y1 Y2 Axis | 12m/min |
| Revolving Tool Capacity | Max.12/12 |
| Machine Height | 2,222mm |
| Required Floor Space | 3,260×2,200 mm |
| Maximum Machining Diameter of Bar Work Sp1 Sp2 | 64/51mm Dia. |
| Collet Chuck Sp1 Sp2 | Stationary |
| Power Chuck Sp1 Sp2 | 6"/6" hydraulic drive |
| Standard Turning Length | 125mm |
| Spindle Nose Sp1 Sp2 | A2-8/A2-6 |
| Spindle Motor Sp1 | 15/11kW |
| Spindle Motor Sp2 | 7.5/5.5kW |
| Spindle Speed Range Sp1 | 40 - 4,000min-1 |
| Spindle Speed Range Sp2 | 50 - 5,000min-1 |
| Type of Turret | 12St.Turret |
| Shank Height of Square Turning Tool | 20mm Sq. |
| Diameter of Drill Shank | 40mm Dia. , 20mm Dia. , 25mm Dia. |
| Slide Stroke X1 X2 Axis | 190mm |
| Slide Stroke Z1 Z2 Axis | 550mm/721mm |
| Slide Stroke Y1 Y2 Axis | ±40mm |
| Slide Stroke Zs Axis | 756mm |
| Rapid Traverse Rate X1 X2 Axis | 16m/min |
| Rapid Traverse Rate Z1 Z2 Axis | 30/20m/min |
| Rapid Traverse Rate Y1 Y2 Axis | 12m/min |
| Rapid Traverse Rate Zs Axis | 30m/min |
| Maximum Number of Revolving Tools | 24 |
| Rotation Speed of Revolving Tools | 60 - 6,000min-1 |
| Rivolving Tool Motor | AC Servo 4.5kW |
| Floor Space | 3,290×2,204mm |
| Max Machining Diameter | 80 mm (3.15 in) |
| Main Spindle Power | 18.5 / 15 kW (25 / 20 HP) |
| Sub Spindle Power | 18.5 / 15 kW (25 / 20 HP) |
| Chuck Size | 6-inch power chuck |
| Number of Turrets | 2 |
| Turret Stations | 12 per turret (24 total) |
| Max Driven Tools | 12 per turret (24 total) |
| Y Axis Stroke | 80 mm (+/- 40 mm) |
| X Axis Travel | 190 mm (7.48 in) |
| Z1 Axis Travel | 550 mm (21.65 in) |
| Z2 Axis Travel | 721 mm (28.39 in) |
| Rapid Traverse Y | 12 m/min |
Specifications compiled from manufacturer literature and industry references. Not independently verified against a published spec sheet — confirm with the manufacturer or an authorised dealer before making a purchasing decision.
Strengths & Limitations
Strengths
- Chuck work listed to 350 mm (13.78 in) in diameter, against 300 mm (11.81 in) on the Miyano ABX-65SYY
- Y axis on both 12-station turrets with an 80 (±40) mm stroke
- Up to 24 revolving tools at 60 - 6,000min-1
- Mitsubishi M80W dual-path control
- 721mm of Z2 travel and a 756mm Zs stroke
Limitations
- No third turret: 24 stations against 36 on the Miyano ABX-80THY
- 10,900kg and 2,222mm high, so the site needs a suitable floor and crane access
- The AC Servo 4.5kW revolving-tool motor is modest for milling on parts of 350 mm (13.78 in) diameter
Best For
Frequently Asked Questions
01
Both are listed for chuck work to 350 mm (13.78 in) in diameter. The Miyano ABX-80THY has three 12-station turrets, 36 in all, weighs 11,300kg and is listed with a 30 m/min Z rapid. The ABX-80SYY has two turrets, 24 stations, weighs 10,900kg and uses a Mitsubishi M80W dual-path control.
02
The Miyano ABX-65SYY is listed for chuck work to 300 mm (11.81 in) in diameter, against 350 mm (13.78 in) on the ABX-80SYY. Both have two 12-station turrets, a Mitsubishi M80W dual-path control and a weight of 10,900kg.
03
Square turning tools of 20mm Sq. and tools in ø25 mm mounting holes, with drill shanks of 40mm, 20mm or 25mm Dia. Each turret takes up to 12 revolving tools, driven 60 - 6,000min-1 by an AC Servo 4.5kW motor.
04
The main spindle has an A2-8 nose and the second an A2-6, each with a 6" hydraulic chuck; collet chucks are the stationary type. The spindle end faces are 1031 mm apart and the Zs axis has a 756mm stroke.
