CHMER RX1063S

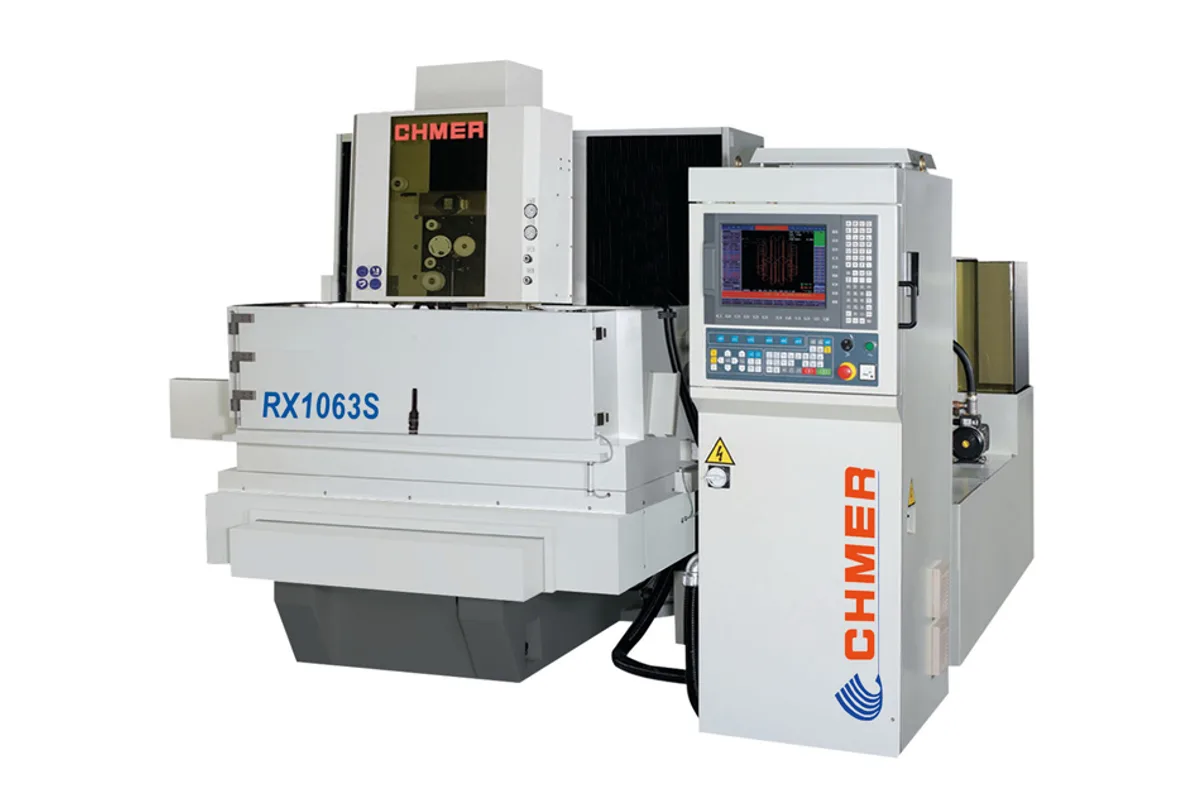

Image: dlf9q0zq4dwf6.cloudfront.net, CHMER
Key Specifications
x axis travel
y axis travel
z axis travel
uv axis travel
max workpiece size
max workpiece weight
How much does the CHMER RX1063S cost?
Price estimate
We do not have a price for the CHMER RX1063S that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The CHMER RX1063S is the large-tank version of the metre-class RX wire EDM. It has 1,000 x 600 mm (39.4 x 23.6 in) of X and Y travel, 300 mm (11.8 in) of Z, and a 2,000 L (528 gal) tank, the biggest water volume among the RX models on this site.
CHMER's catalogue prints the model as one column with its sibling, RX1063F/S, and gives paired figures. The second of each pair belongs to this machine: 1,500 kg (3,307 lb) of workpiece weight, outside dimensions of 4,000 x 4,000 x 2,200 mm (157.5 x 157.5 x 86.6 in) and a net weight of 7,100 kg (15,653 lb) including power and coolant system. The RX1063F carries 3,000 kg (6,614 lb) in a 2,700 x 3,000 mm footprint with a 650 L (172 gal) tank.
The pattern is the same as with the RX853S: the S machine trades load and floor space for a large tank. CHMER's remark for the series applies, that in submerged condition the recommended maximum workpiece height is the Z stroke minus 45mm.
Maximum workpiece size is 1,430 x 900 x 295 mm (56.3 x 35.4 x 11.6 in). Taper is rated ±21°/140 with the wide-angled nozzle, on 150 x 150 mm (5.9 x 5.9 in) U and V axes. AC servo motors drive the axes, and XY feed is limited to 800 mm/min (31.5 ipm). This model's web page has no table; the figures come from CHMER's PDF catalogue.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,000 mm (39.4 in) |
| Y Axis Travel | 600 mm (23.6 in) |
| Z Axis Travel | 300 mm (11.8 in) |
| Uv Axis Travel | 150 x 150 mm (5.9 x 5.9 in) |
| Max Workpiece Size | 1,430 x 900 x 295 mm (56.3 x 35.4 x 11.6 in) (W x D x H) |
| Max Workpiece Weight | 1,500 kg (3,307 lb) |
| Xy Feed Rate | Max. 800 mm/min (31.5 ipm) |
| Axis Drive System | AC Servo Motor |
| Wire Diameter | 0.15-0.3 mm (0.006-0.012 in); standard 0.25 mm (0.010 in) |
| Wire Feed Rate Max | 300 mm/sec (11.8 in/sec) |
| Wire Tension | 300-2,500 gf |
| Taper Angle | ±21°/140 (wide-angled nozzle, DA+DB=15mm) |
| Machine Dimensions | 4,000 x 4,000 x 2,200 mm (157.5 x 157.5 x 86.6 in) (W x D x H) |
| Machine Weight | 7,100 kg (15,653 lb) (including power and coolant system) |
| Tank Capacity | 2,000 L (528 gal) |
Specifications sourced from dlf9q0zq4dwf6.cloudfront.net — verified 2026-10-05
Strengths & Limitations
Strengths
- 2,000 L (528 gal) tank on a 1,000 x 600 mm (39.4 x 23.6 in) travel machine
- Workpieces up to 1,430 x 900 x 295 mm (56.3 x 35.4 x 11.6 in)
- ±21°/140 taper rating with 150 x 150 mm (5.9 x 5.9 in) of U and V travel
- Wire range of 0.15-0.3 mm (0.006-0.012 in) at 300-2,500 gf
Limitations
- Workpiece weight of 1,500 kg (3,307 lb) is half the 3,000 kg (6,614 lb) of the RX1063F
- 4,000 x 4,000 mm (157.5 x 157.5 in) of floor space
- XY feed rate of 800 mm/min (31.5 ipm) across a metre of travel
- 7,100 kg (15,653 lb) net weight before 2,000 L of water
Best For
Frequently Asked Questions
01
CHMER lists them in one column with paired values. The RX1063S has a 2,000 L (528 gal) tank, a 1,500 kg (3,307 lb) workpiece limit and a 4,000 x 4,000 x 2,200 mm outline. The RX1063F has a 650 L (172 gal) tank, a 3,000 kg (6,614 lb) limit and a 2,700 x 3,000 x 2,200 mm outline.
02
X and Y axis travel is 1,000 x 600 mm (39.4 x 23.6 in). U, V and Z travel is 150 x 150 x 300 mm. The maximum size of the working piece is 1,430 x 900 x 295 mm (56.3 x 35.4 x 11.6 in).
03
Net weight is 7,100 kg (15,653 lb), a figure CHMER gives as including the power and coolant system. The tank holds 2,000 L (528 gal), and the table can carry a workpiece of up to 1,500 kg (3,307 lb).
04
CHMER's remark is that in submerged condition the maximum height of workpiece recommended is the Z stroke minus 45mm. Z travel is 300 mm (11.8 in) and the maximum workpiece height in the table is 295 mm.
