Mitsubishi Electric MG24

Specs verified 2026-10-03 · mcmachinery.com Updated 2026-10-03

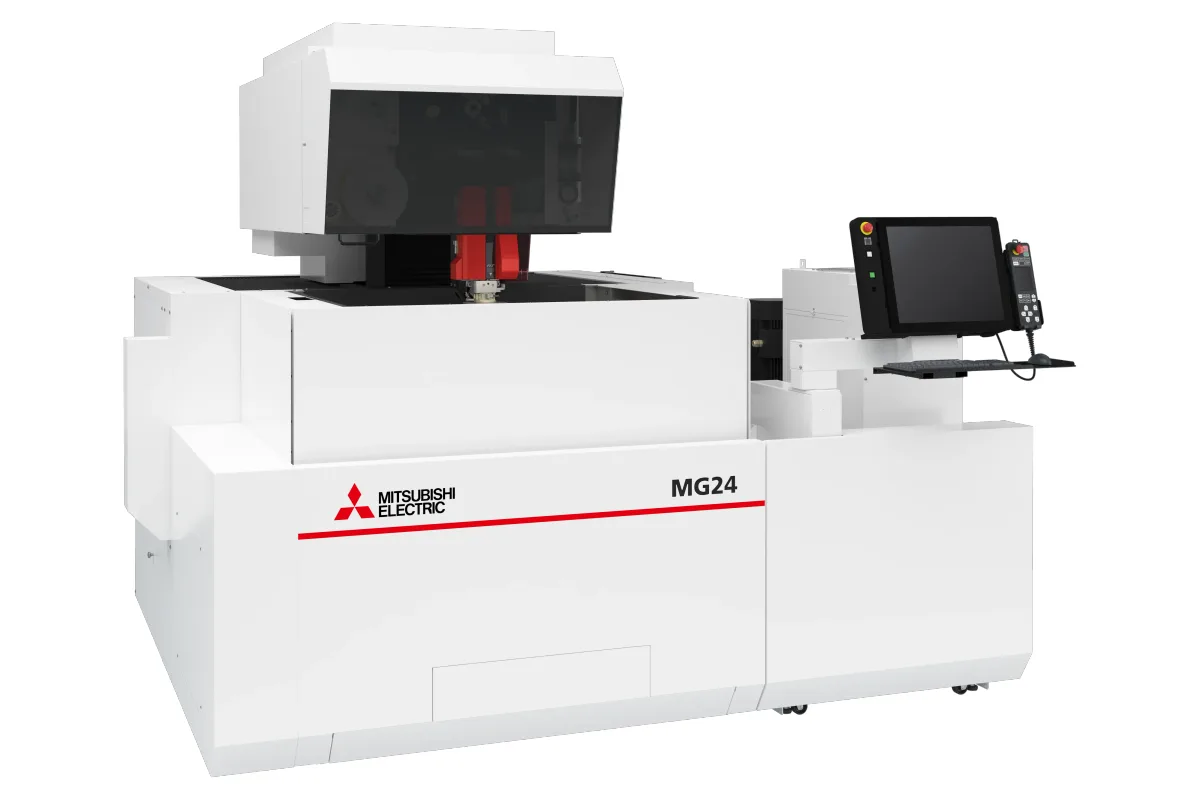

Image: mcmachinery.com, Mitsubishi Electric

Key Specifications

Table Size

33 x 25.2 in (838 x 640 mm), 3-sided

x axis travel

23.6 in (599 mm)

y axis travel

15.7 in (399 mm)

z axis travel

12.2 in (310 mm)

uv axis travel

±2.95 x ±2.95 in (±75 x ±75 mm)

max taper angle

15° at 10.25 in (260 mm) thickness

How much does the Mitsubishi Electric MG24 cost?

Price estimate

Uncertain

We do not have a price for the Mitsubishi Electric MG24 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Mitsubishi Electric MG24 is the larger frame of the MG wire EDM pair, with 23.6 in (599 mm) of X travel, 15.7 in (399 mm) of Y and 12.2 in (310 mm) of Z. Workpiece weight is rated at 3,307 lb (1,500 kg), three times the 1,100 lb (499 kg) of the MG12.

Capacity is the reason to choose it. The 3-sided table measures 33 x 25.2 in (838 x 640 mm) and the largest workpiece 41.3 x 32.3 x 12 in (1,049 x 820 x 305 mm). U and V travel grows to ±2.95 x ±2.95 in (±75 x ±75 mm), so the 15° maximum taper holds up to 10.25 in (260 mm) of thickness.

Unlike the MG12, whose 5,940 lb (2,694 kg) weight includes the fluid system, the MG24 lists its fluid system as a separate item: 37.1 x 91.4 x 35 in (942 x 2,322 x 889 mm) and 770 lb (349 kg) dry. The machine is 105.8 x 119.3 x 84.6 in (2,687 x 3,030 x 2,149 mm) and 7,700 lb (3,493 kg), and the tank holds 227 gal. Check with the builder whether the installed dimensions already include the fluid unit, and allow for the weight of the water, which the table does not state.

Common to both sizes are the Mitsubishi Electric M800 control with a 19 in touch panel, linear shaft motor drives with glass scale feedback, a positioning guarantee of 10 years, wire tension of 200 - 2,550 g and a minimum start hole of 0.02 in (0.51 mm). Filtration is 3 microns with 4 paper filter elements, plus 1.4 cu ft of ion exchange resin.

Full Specifications

Parameter	Value
X Axis Travel	23.6 in (599 mm)
Y Axis Travel	15.7 in (399 mm)
Z Axis Travel	12.2 in (310 mm)
Uv Axis Travel	±2.95 x ±2.95 in (±75 x ±75 mm)
Max Taper Angle	15° at 10.25 in (260 mm) thickness
Max Workpiece Dimensions	41.3 x 32.3 x 12 in (1,049 x 820 x 305 mm), W x D x H
Max Workpiece Weight	3,307 lb (1,500 kg)
Table Size	33 x 25.2 in (838 x 640 mm), 3-sided
Wire Tension	200 - 2,550 g
Min Start Hole Diameter	0.02 in (0.51 mm)
CNC Control	Mitsubishi Electric M800, 19 in touch panel
Drive System	Linear shaft motor drive with glass scale feedback
Positioning Guarantee	10 years
Machine Dimensions	105.8 x 119.3 x 84.6 in (2,687 x 3,030 x 2,149 mm), W x D x H
Machine Weight	7,700 lb (3,493 kg)
Tank Capacity	227 gal
Fluid System Dimensions	37.1 x 91.4 x 35 in (942 x 2,322 x 889 mm)
Fluid System Dry Weight	770 lb (349 kg)
Filtration	3 microns, 4 paper filter elements
Ion Exchange Resin	1.4 cu ft

Specifications sourced from mcmachinery.com — verified 2026-10-03

Strengths & Limitations

Strengths

Workpiece capacity of 3,307 lb (1,500 kg)
15° taper maintained to 10.25 in (260 mm) thickness, with ±2.95 in (±75 mm) of U and V travel
Workpieces up to 41.3 x 32.3 x 12 in (1,049 x 820 x 305 mm)
Linear shaft motor drive with glass scale feedback and a 10 years positioning guarantee
227 gal tank with 3 microns filtration

Limitations

Installed size of 105.8 x 119.3 x 84.6 in (2,687 x 3,030 x 2,149 mm), with a fluid system listed separately at 37.1 x 91.4 x 35 in (942 x 2,322 x 889 mm)
Maximum taper stays at 15°, the same angle the MG12 offers
No cutting speed, surface finish or wire diameter range appears in the table

Best For

Large die plates and mold inserts up to 3,307 lb (1,500 kg) Tall parts up to 12 in (305 mm) high Tapered work to 15° in sections up to 10.25 in (260 mm) thick Cut areas up to 23.6 x 15.7 in (599 x 399 mm) in one setup

Frequently Asked Questions

01 How does the MG24 differ from the MG12?

The MG24 has a 33 x 25.2 in (838 x 640 mm) table, travels of 23.6 x 15.7 x 12.2 in (599 x 399 x 310 mm), a 3,307 lb (1,500 kg) workpiece limit and a weight of 7,700 lb (3,493 kg). The MG12 has a 25.2 x 21.3 in (640 x 541 mm) table and weighs 5,940 lb (2,694 kg) including the fluid system. Both use the Mitsubishi Electric M800 control with a 19 in touch panel.

02 What is the largest workpiece the MG24 accepts?

41.3 x 32.3 x 12 in (1,049 x 820 x 305 mm) in width, depth and height, weighing up to 3,307 lb (1,500 kg). That is larger than the 23.6 x 15.7 in (599 x 399 mm) X-Y travel, so a full-size plate is cut in zones and repositioned between them.

03 What taper angle does the MG24 cut?

The maximum taper angle is 15° at 10.25 in (260 mm) thickness, produced by ±2.95 x ±2.95 in (±75 x ±75 mm) of U and V travel. The table quotes the angle at that thickness only.

04 What should be planned for when installing an MG24?

The machine measures 105.8 x 119.3 x 84.6 in (2,687 x 3,030 x 2,149 mm) and weighs 7,700 lb (3,493 kg). The fluid system is listed at 37.1 x 91.4 x 35 in (942 x 2,322 x 889 mm) and 770 lb (349 kg) dry, with a 227 gal tank capacity, so the filled weight is considerably higher than the dry figure.

05 How does the MG24 compare with the MV2400R?

The travels are effectively the same: the MV2400R has 23.6 in (600 mm) of X, 15.7 in (400 mm) of Y and 12.2 in (310 mm) of Z, with a 33.0 × 25.2 in (840 × 640 mm) table and a weight of 7,716 lb (3,500 kg). The MG24 is 7,700 lb (3,493 kg) on a 33 x 25.2 in (838 x 640 mm) table, so the choice turns on features, not on size.
