Oscar EDM EX 2210-2H
Image: oscaredm.com, Oscar EDM
Key Specifications
Table Size
x axis travel
y axis travel
z axis travel
max workpiece dimensions
dielectric fill height max
How much does the Oscar EDM EX 2210-2H cost?
Price estimate
We do not have a price for the Oscar EDM EX 2210-2H that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview

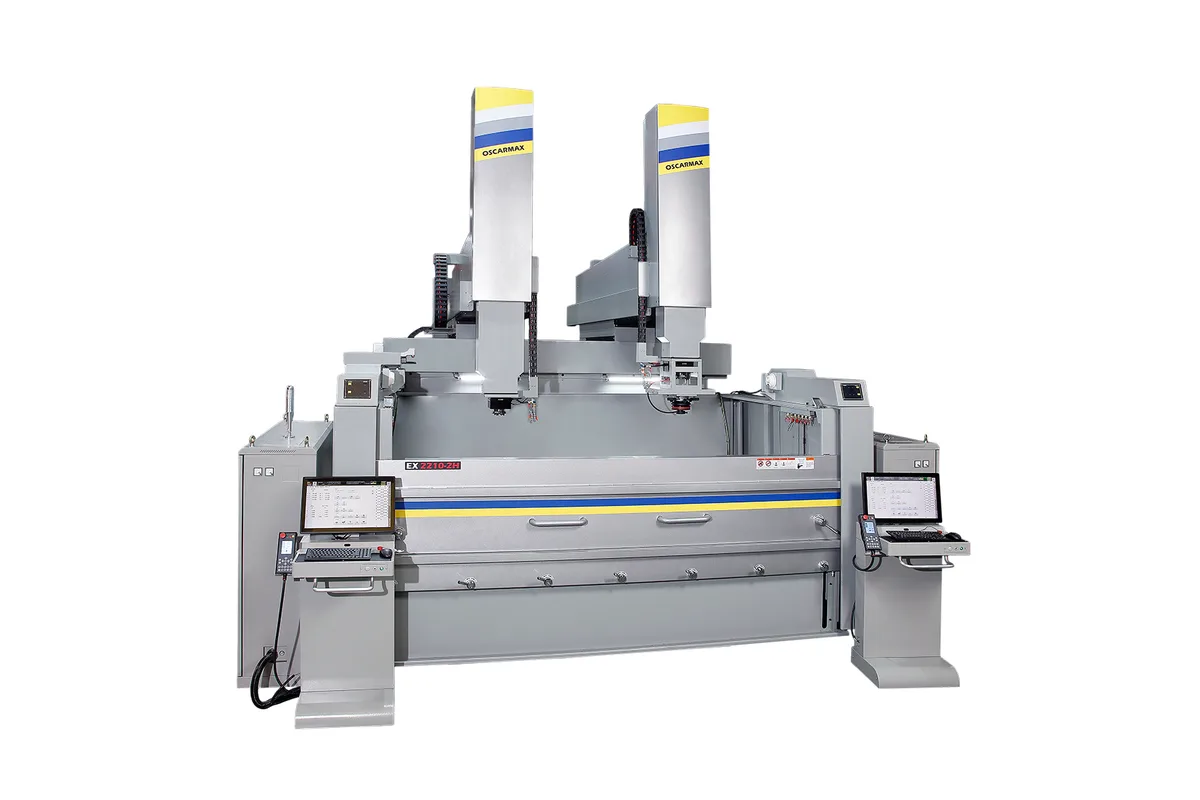

The Oscar EDM EX 2210-2H is a twin-head die-sinker EDM with a 2250 x 1100 mm (88.6 x 43.3 in) table, the longest of the EX machines listed alongside it. Both heads work over one table, which takes workpieces up to 2890 x 1590 mm (113.8 x 62.6 in) and 10,000 kg (22,046 lb).
Two heads are the reason to choose this layout. They allow two electrodes to be at work on one long block, or on two blocks set end to end, where a machine with one head would burn the positions one after the other. How far that helps depends on the X axis, and here the listing needs a question. X travel is given as 775/1550 mm (30.5/61.0 in). The second figure is twice the first, but the table does not explain how each relates to the two heads, so have Oscar EDM confirm the reach of each head against your longest part. Y travel is 1000 mm (39.4 in) and Z travel is 600 mm (23.6 in).
The same caution applies to the generator rows. Maximum working current is listed as 120 A, power consumption as 12 kVA, generator weight as 380 kg (838 lb) and electrode weight as 500 kg (1,102 lb), each as a single value with no note on whether it is per head. For supply sizing and for electrode design that distinction matters.
Vertically, the chuck-to-table distance is 575 - 1175 mm (22.6 - 46.3 in) and the dielectric fills to 585 mm (23.0 in). The machine is made for tall blocks: at the bottom of the stroke the chuck is still 575 mm above the table.
Fluid volume is the other large number. The tank holds 4,655 L and filters through 12 elements rated at 20 μm. The machine weighs 15,000 kg (33,069 lb). The control is Windows 10 on an industrial i3 (or above) 64-bit CPU, listed with up to 6 axes (XYZCUV) with a rotary table.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 775/1550 mm (30.5/61.0 in) |
| Y Axis Travel | 1000 mm (39.4 in) |
| Z Axis Travel | 600 mm (23.6 in) |
| Max Workpiece Dimensions | 2890 x 1590 mm (113.8 x 62.6 in) |
| Dielectric Fill Height Max | 585 mm (23.0 in) |
| Distance Chuck to Table | 575 - 1175 mm (22.6 - 46.3 in) |
| Max Workpiece Weight | 10,000 kg (22,046 lb) |
| Max Electrode Weight | 500 kg (1,102 lb) |
| Table Size | 2250 x 1100 mm (88.6 x 43.3 in) |
| Machine Weight | 15,000 kg (33,069 lb) |
| Max Working Current | 120 A |
| Power Consumption | 12 kVA |
| Generator Weight | 380 kg (838 lb) |
| Dielectric Tank Capacity | 4,655 L |
| Filter Rating | 20 μm |
| Filter Elements | 12 |
| CNC Control | Windows 10, industrial i3 (or above) 64-bit CPU |
| Axes | Up to 6 axes (XYZCUV) with rotary table |
| Heads | Twin head (2H) |
Specifications sourced from oscaredm.com — verified 2026-10-03
Strengths & Limitations
Strengths
- Twin head (2H) layout puts two electrodes to work over one 2250 x 1100 mm (88.6 x 43.3 in) table
- Accepts workpieces up to 2890 x 1590 mm (113.8 x 62.6 in) and 10,000 kg (22,046 lb)
- 1000 mm (39.4 in) of Y travel and 600 mm (23.6 in) of Z travel
- Electrode weight limit of 500 kg (1,102 lb) and 120 A maximum working current
- 12 filter elements rated at 20 μm serve the 4,655 L dielectric tank
Limitations
- X travel is listed as 775/1550 mm (30.5/61.0 in) without stating how the two figures relate to the two heads
- The 120 A, 12 kVA and 380 kg (838 lb) generator figures are single values; the listing does not say whether they are per head
- Chuck-to-table distance never drops below 575 mm (22.6 in), so low workpieces need risers
- 4,655 L of dielectric and 12 filter elements make fluid changes and filter service a substantial job
- A 15,000 kg (33,069 lb) machine carrying up to 10,000 kg (22,046 lb) of workpiece calls for foundation work
Best For
Frequently Asked Questions
01
Oscar EDM's listing gives the head arrangement as Twin head (2H): the machine has two heads over a single 2250 x 1100 mm (88.6 x 43.3 in) table. That lets two electrodes be used on one long workpiece or on two workpieces fixtured together on the table.
02
It is listed as 775/1550 mm (30.5/61.0 in). The listing does not explain the two figures, so do not assume which one applies to an individual head. Ask Oscar EDM for the X reach of each head and for the total coverage, and check them against the 2250 mm (88.6 in) table length and your part drawings. Y travel is 1000 mm (39.4 in) and Z travel is 600 mm (23.6 in).
03
The EX 1510 has a 1580 x 1100 mm (62.2 x 43.3 in) table, the same width on a shorter bed, and weighs 14,700 kg (32,407 lb). The EX 2210-2H table is 2250 x 1100 mm (88.6 x 43.3 in) and the machine weighs 15,000 kg (33,069 lb). Both list the same Windows 10 control on an industrial i3 (or above) 64-bit CPU.
04
The dielectric tank capacity is 4,655 L, cleaned through 12 filter elements rated at 20 μm. In the work area the fluid fills to a maximum of 585 mm (23.0 in). Plan storage and handling for that volume at commissioning, and stock filters in sets of twelve.
05
Maximum workpiece weight is 10,000 kg (22,046 lb) and maximum electrode weight is 500 kg (1,102 lb). The listing does not say whether the electrode figure is for each head, so confirm it before designing large electrodes. The machine itself weighs 15,000 kg (33,069 lb).
