Chevalier FBL-520 MC
Key Specifications
control
swing over bed
swing over cover
max turning diameter
max bar size
spindle nose
How much does the Chevalier FBL-520 MC cost?
Price estimate
We do not have a price for the Chevalier FBL-520 MC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Chevalier FBL-520 MC adds live tooling to the two-metre bed of Chevalier's largest slant-bed lathes. Z travel is 78.7 in (2,000 mm), maximum cutting diameter Ø34.6 in (880 mm), and the 12-tool turret carries driven tools for drilling and milling along the length of a shaft.
One figure a buyer would expect is not on this page. The maker prints a cutting length for the FBL-520 MC that is longer than the Z travel printed for the same model, which cannot be, so the row is left out. Tailstock travel is 78.7 in (2,000 mm), equal to Z, and the turning-only FBL-520 on the same bed lists a cutting length of 78.7 in (2,000 mm).
Keyways are the obvious use. A heavy shaft that has been turned between centers can have its keyseats, lifting holes and end drilling done before it leaves the machine, and at 41,800 lb (19,000 kg) the lathe is not short of mass for interrupted cuts. Milling is on the spindle centerline, since no Y axis is listed.
Be ready to ask questions, though. Driven tool speed, power and the tool system are not in the table, and neither is a spindle motor row; the page says only that the lathe features up to a 60HP spindle motor. The spindle nose is A2-15 and the speed 1,000 rpm. The swing is Ø39.4 in (1,000 mm) over the bed and Ø31.5 in (800 mm) over the cover, and the control is a Fanuc 0i-T.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | Fanuc 0i-T |
| Swing Over Bed | Ø39.4 in (1,000 mm) |
| Swing Over Cover | Ø31.5 in (800 mm) |
| Max Turning Diameter | Ø34.6 in (880 mm) |
| Max Bar Size | 2.5 in (S.A.E.); 60 mm (metric) |
| Spindle Nose | A2-15 |
| Spindle Speed | 1,000 rpm |
| X Axis Travel | 19.3 in (490 mm) |
| Z Axis Travel | 78.7 in (2,000 mm) |
| Turret Stations | 12 |
| OD Tool Size | 1 1/4 in x 1 1/4 in (S.A.E.); 32 x 32 mm (metric) |
| Tailstock Travel | 78.7 in (2,000 mm) |
| Tailstock Quill Diameter | 7.9 in (200 mm) |
| Tailstock Quill Taper | MT 6 |
| Tailstock Quill Drive | Hydraulic |
| Tailstock Positioning | Programmable |
| Machine Dimensions | 299.2 in x 117.2 in x 99.6 in (7,602 x 2,983 x 2,530 mm) |
| Machine Weight | 41,800 lb (19,000 kg) |
Specifications sourced from chevalierusa.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Driven tools over 78.7 in (2,000 mm) of Z travel
- Ø34.6 in (880 mm) cutting diameter
- 41,800 lb (19,000 kg) of machine for interrupted milling cuts
- Tailstock with an MT 6 quill and 78.7 in (2,000 mm) of travel
- A2-15 spindle nose for large chucks
Limitations
- The maker's cutting length row contradicts the Z travel and is not shown
- No tool system or driven tool rating is published
- No Y axis in the specification
- Spindle speed stops at 1,000 rpm
Best For
Frequently Asked Questions
01
The maker's table does not give a usable figure: the cutting length printed for this model exceeds its own Z-axis travel of 78.7 in (2,000 mm). The row is left out here. Tailstock travel is also 78.7 in (2,000 mm).
02
Maximum cutting diameter is Ø34.6 in (880 mm). Swing over bed is Ø39.4 in (1,000 mm) and swing over cover Ø31.5 in (800 mm). The FBL-520 without live tooling lists Ø37 in (940 mm).
03
The table lists 12 tools with a turning tool size of 1 1/4 in x 1 1/4 in on S.A.E. machines or 32 x 32 mm on metric ones. Chevalier says the MC model has the live tooling function. The interface type and the driven tool speed are not stated.
04
Floor space is 299.2 in x 117.2 in x 99.6 in (7,602 x 2,983 x 2,530 mm), and the net weight is 41,800 lb (19,000 kg). Both figures are the same as for the FBL-520.
More from Chevalier Machinery
Other CNC Lathes / Turning Centers

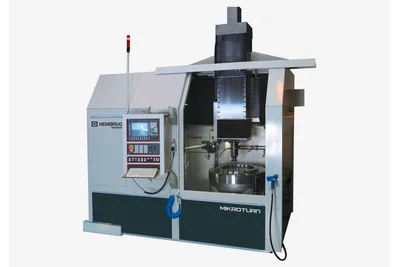

Danobat Mikroturn Vertical 1000V2
HNK NT-50/60

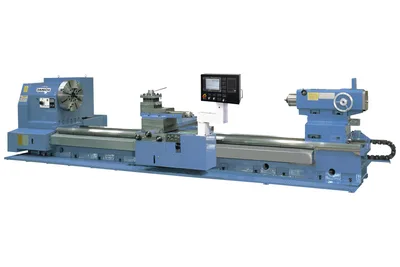

Dainichi DL120
Haas ST-35LY

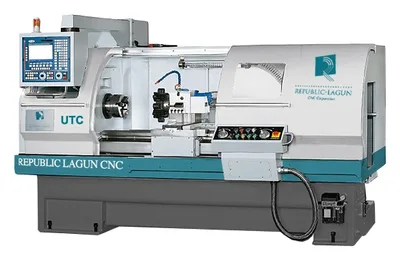

Republic Lagun UTC-1860
