Chevalier Machinery Vertical Machining Centers (VMC)

Chevalier QP2033-L

Q: How much does the Chevalier QP2033-L cost?

The price estimate for the Chevalier QP2033-L is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/chevalier-qp2033-l#price; the request is passed to Chevalier Machinery or an authorised dealer.

Specs verified 2026-10-05 · chevalierusa.com Updated 2026-10-05

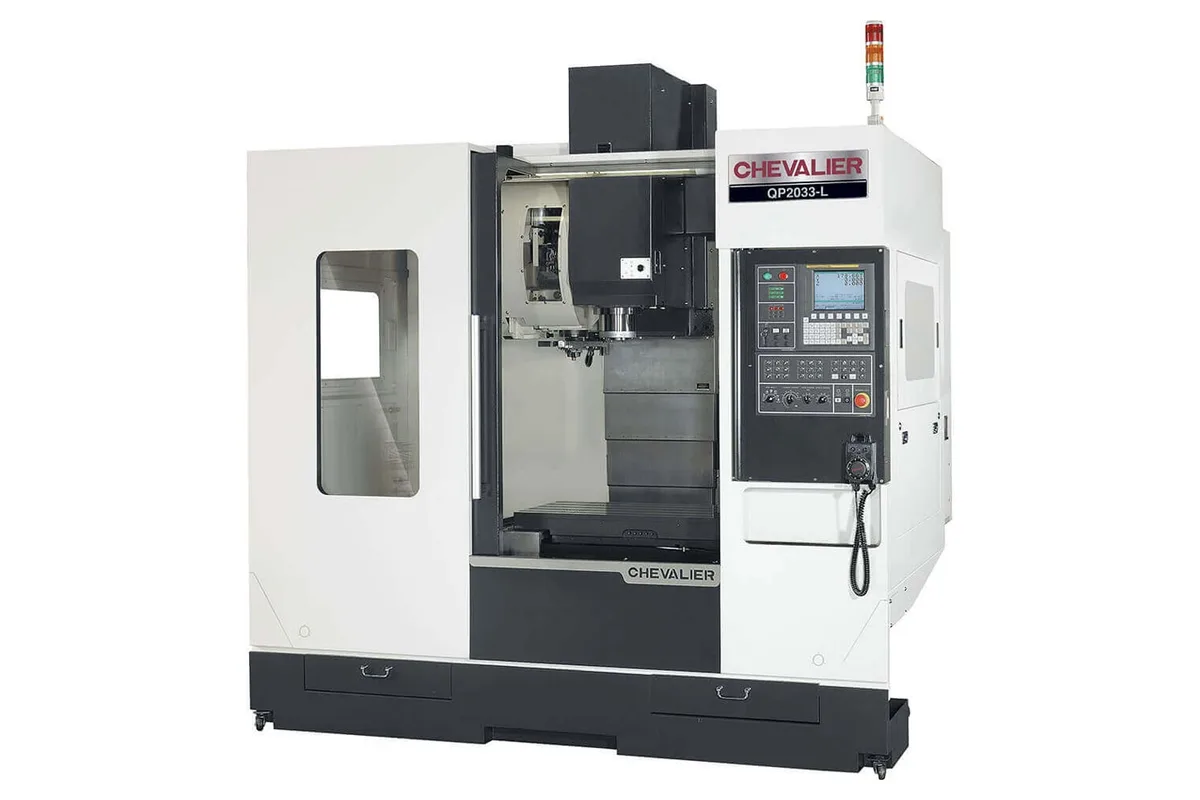

Chevalier QP2033-L high-speed vertical machining center

Image: chevalierusa.com, Chevalier Machinery

Key Specifications

Spindle Taper

#40 Big Plus

Tool Capacity

24+1 arm type

Table Size

39.4 in x 20.1 in (1,000 x 510 mm)

control

Fanuc 0i-M

max table load

1,100 lb (500 kg)

x axis travel

33.5 in (850 mm)

How much does the Chevalier QP2033-L cost?

Price estimate

Uncertain

We do not have a price for the Chevalier QP2033-L that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Chevalier QP2033-L is the 33.5 in (850 mm) model of the QP high-speed vertical machining centers, with 20.9 in (530 mm) of Y and 20.1 in (510 mm) of Z. It occupies the same envelope as the EM2033L from Chevalier's cost-saving line, and the difference between the two is in the spindle and the tool changer.

On the QP, direct drive runs from 120 to 12,000 rpm and belt drive from 100 to 10,000 rpm. Spindle diameter is 2.8 in (70 mm), where the EM2033L lists 2.4 in (60 mm), and a larger spindle cartridge generally means larger bearings and a stiffer nose. The 24+1 arm type changer swaps tools in 2 sec tool-to-tool. The EM2033L takes 3 sec.

Chevalier's feature list for the series adds high pressure coolant, which it describes as taking chips and heat out of deep-hole machining and improving tool life and part accuracy. Linear ways are used on all axes, and the maker quotes the fastest linear movement in the series as up to 1,891 ipm. The rapid traverse row for this particular model is not printed cleanly in the maker's table, so no per-axis figure is given here.

The table is 39.4 in x 20.1 in (1,000 x 510 mm) with a 1,100 lb (500 kg) limit, and the spindle nose travels from 5.9 in to 26 in (150 to 660 mm) above it. Weight is 12,700 lb (5,800 kg). The enclosure is taller than the EM's at 116.7 in, on a 95.7 in x 118.9 in footprint. Control is a Fanuc 0i-M.

Full Specifications

Parameter	Value
CNC Control	Fanuc 0i-M
Table Size	39.4 in x 20.1 in (1,000 x 510 mm)
Max Table Load	1,100 lb (500 kg)
X Axis Travel	33.5 in (850 mm)
Y Axis Travel	20.9 in (530 mm)
Z Axis Travel	20.1 in (510 mm)
Distance Spindle Nose to Table	5.9 in to 26 in (150 to 660 mm)
Distance Spindle Center to Column	23.0 in (585 mm)
Spindle Taper	#40 Big Plus
Spindle Speed	Belt drive: 100 to 10,000 rpm / Direct drive: 120 to 12,000 rpm
Spindle Diameter	2.8 in (70 mm)
Cutting Feed Rate	39.3 to 393 ipm (1 to 10 m/min)
Tool Capacity	24+1 arm type
Tool Shank	BT40 (Opt. CT40 or DIN40)
Tool Change Time	2 sec
Pull Stud	P40T-1
Max Tool Diameter (full magazine)	3.1 in (Ø80 mm)
Max Tool Length	11.8 in (300 mm)
Max Tool Weight	15.4 lb (7 kg)
Machine Dimensions	95.7 in x 118.9 in x 116.7 in (2,430 x 3,020 x 2,963 mm)
Machine Weight	12,700 lb (5,800 kg)

Specifications sourced from chevalierusa.com — verified 2026-10-05

Strengths & Limitations

Strengths

Direct drive spindle option of 120 to 12,000 rpm on a #40 Big Plus taper
2.8 in (70 mm) spindle diameter
2 sec tool-to-tool change with a 24+1 arm type magazine
High pressure coolant listed by the maker for deep-hole machining
33.5 in (850 mm) by 20.9 in (530 mm) by 20.1 in (510 mm) travels with a 1,100 lb (500 kg) table

Limitations

Enclosure height of 116.7 in (2,963 mm) needs checking against door and ceiling clearances
The maker's table gives no clean rapid traverse figure for this model
No spindle power or torque is published
Only the QP1620-L in the series offers the 15,000 rpm direct drive

Best For

Mould and die components that benefit from 12,000 rpm Deep-hole drilling with high pressure coolant Production milling with frequent tool changes Job shops wanting a faster spindle than the EM line offers

Frequently Asked Questions

01 What is the difference between the QP2033-L and the EM2033L?

Travels, table size, table load and weight are the same. The QP2033-L lists a 120 to 12,000 rpm direct drive, a 2.8 in (70 mm) spindle diameter and a 2 sec tool change. The EM2033L lists 10,000 rpm, a 2.4 in (60 mm) spindle diameter and a 3 sec tool change.

02 What spindle speeds does the QP2033-L offer?

Two drives are listed. Belt drive covers 100 to 10,000 rpm and direct drive covers 120 to 12,000 rpm. The spindle taper is #40 Big Plus and the tool shank BT40, with CT40 or DIN40 optional.

03 What are the table size and load?

The table is 39.4 in x 20.1 in (1,000 x 510 mm) and carries 1,100 lb (500 kg). The distance from spindle center to column is 23.0 in (585 mm), which sets how deep a part can sit on the table in Y.

04 What are the tool limits of the magazine?

The 24+1 arm type magazine takes tools up to 3.1 in (Ø80 mm) in diameter with adjacent tools, 11.8 in (300 mm) long and 15.4 lb (7 kg). Tool change time is 2 sec tool-to-tool.
