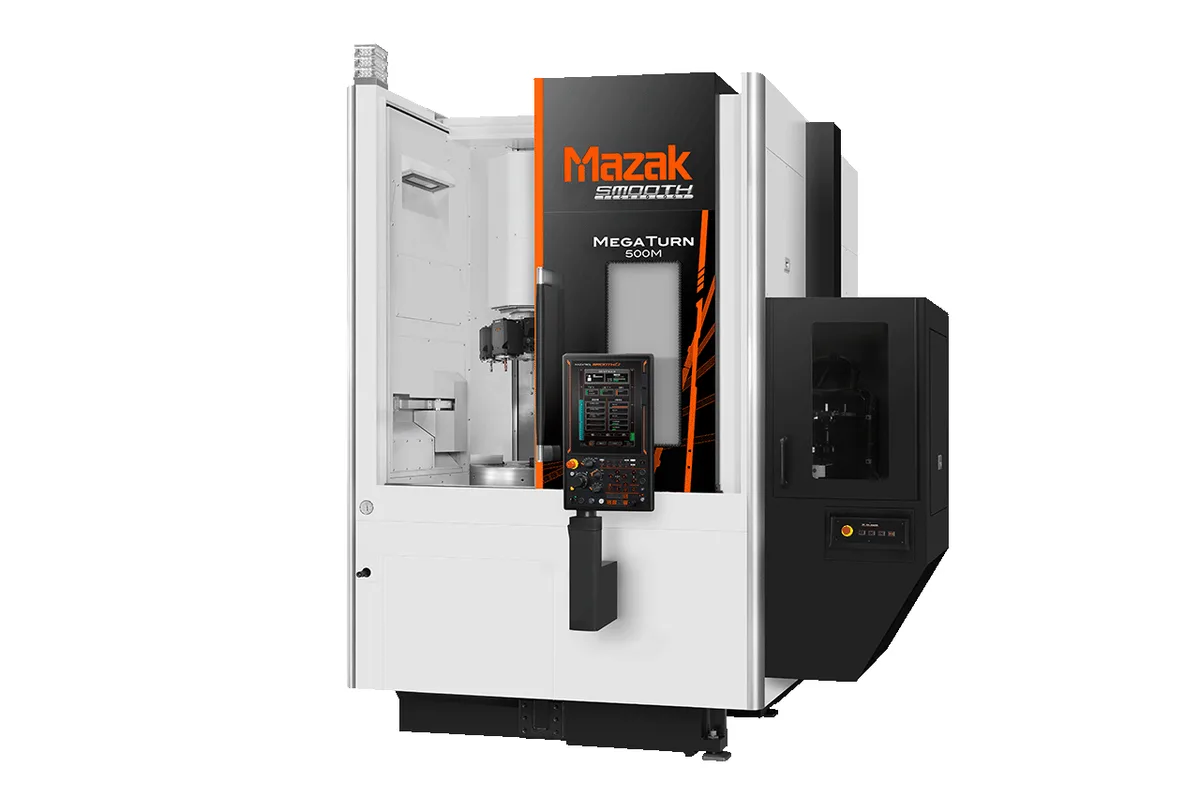

Mazak MEGA TURN 500M
Image: mazak.com, Yamazaki Mazak
Key Specifications
X Travel
Z Travel
Max Spindle
Tool Capacity
Spindle Power
max turning diameter
How much does the Mazak MEGA TURN 500M cost?
Estimated price range
Our best estimate for a cnc lathes / turning center in this class — not a quote from Yamazaki Mazak. Configuration moves it a long way.
Overview
The Mazak MEGA TURN 500M is the Ø20 in (508 mm) MEGA TURN with driven tools: Mazak's model list gives its configuration as Milling, and the table adds a rotary-tool spindle that runs to 4,000 rpm alongside the 3,000 rpm turning spindle. Nothing about the envelope changes from the MEGA TURN 500. X travel is still 14 in (356 mm), Z travel 20 in (508 mm), table load 1,102 lb (500 kg), and even the machine weight is the same 20,392 lb (9,250 kg).
The rotary-tool motor is small beside the main one. It is rated 5.5 kW (7 HP) continuous and 7.5 kW (10 HP) at a 10%ED rating, with a maximum torque of 70 ft-lb (95 Nm) on that same 10%ED basis. The turning spindle is rated 22 kW (30 HP) continuous, 26 kW (35 HP) (40% ED) and 596 ft-lb (808 Nm) (15%ED). Stock removal therefore belongs to turning, and the driven tools are there to drill and mill the features that would otherwise send the part to a second machine. That is the argument Mazak makes for milling in the series: turning and milling of large cylindrical parts combined on one machine.
Two things are worth settling with Mazak before ordering. The table gives 12 tools for the turret, a 1 in (25 mm) tool shank height and Ø2 in (51 mm) boring bars, but it does not say how many of the 12 positions drive a rotary tool. It also has no Y-axis row, and the configuration on the model list is Milling alone, so features away from the centreline need checking against how the machine positions the work.
Mazak quotes a 73 in (1,854 mm) × 94 in (2,388 mm) footprint with MAZATROL SmoothEz, under a height of 118 in (2,997 mm). Rapids are 1,181 ipm (30 m/min) in X and Z, and mirror-image versions are available for this size.
Full Specifications
| Parameter | Value |
|---|---|
| Max Turning Diameter | Ø20 in (508 mm) |
| Max Table Load | 1,102 lb (500 kg) |
| Max Spindle Speed | 3,000 rpm |
| Spindle Torque Intermittent | 596 ft-lb (808 Nm) (15% ED) |
| Spindle Power Intermittent | 26 kW (35 HP) (40% ED) |
| Spindle Motor Power | 22 kW (30 HP) continuous |
| Tool Capacity | 12 tools |
| Turret Tool Shank Height | 1 in (25 mm) |
| Turret Boring Bar Shank Diameter | Ø2 in (51 mm) |
| Milling Spindle Speed | 4,000 rpm |
| Rotary Tool Spindle Max Torque 10 Pct Ed | 70 ft-lb (95 Nm) (10% ED) |
| Rotary Tool Spindle Spindle Motor 10 Pct Ed | 7.5 kW (10 HP) (10% ED) |
| Milling Spindle Power | 5.5 kW (7 HP) continuous |
| X-Axis Travel | 14 in (356 mm) |
| Z-Axis Travel | 20 in (508 mm) |
| Rapid Traverse X | 1,181 ipm (30 m/min) |
| Rapid Traverse Z | 1,181 ipm (30 m/min) |
| Floor Space Required | 73 in (1,854 mm) × 94 in (2,388 mm) (W × L, MAZATROL SmoothEz) |
| Machine Height | 118 in (2,997 mm) |
| Machine Weight | 20,392 lb (9,250 kg) |
Specifications sourced from mazak.com — verified 2026-10-02
Strengths & Limitations
Strengths
- Rotary-tool spindle running to 4,000 rpm, rated 5.5 kW (7 HP) continuous and 7.5 kW (10 HP) (10%ED)
- Keeps the Ø20 in (508 mm) capacity, the travels and the 20,392 lb (9,250 kg) weight of the MEGA TURN 500, so milling costs no envelope
- Turning spindle to 3,000 rpm with 22 kW (30 HP) continuous and 26 kW (35 HP) (40% ED)
- Turning and milling in one clamping, which Mazak presents as the way to shorten production of large cylindrical parts
- Mirror-image versions are available for pairing two machines under one operator
Limitations
- Rotary-tool torque is 70 ft-lb (95 Nm) on a 10%ED rating, which restricts milling to light cuts and small cutters
- The table has no Y-axis row, and Mazak's configuration for the model is Milling only
- Table load is 1,102 lb (500 kg); the MEGA TURN 600M carries 1,543 lb (700 kg)
- The table does not state how many of the 12 turret positions accept driven tools
Best For
Frequently Asked Questions
01
A rotary-tool spindle. Mazak's model list gives the configuration as Milling, and the table adds four rows for it: 4,000 rpm, 5.5 kW (7 HP) continuous, 7.5 kW (10 HP) at 10%ED and a maximum torque of 70 ft-lb (95 Nm) at 10%ED. Turning diameter, travels, table load and machine weight are the same as on the MEGA TURN 500.
02
Much weaker, by design. The rotary-tool spindle peaks at 70 ft-lb (95 Nm) and 7.5 kW (10 HP), both at 10%ED, with 5.5 kW (7 HP) continuous. The turning spindle gives 596 ft-lb (808 Nm) at 15%ED and 22 kW (30 HP) continuous. Use the driven tools for drilling and light milling and leave stock removal to the turning tools.
03
The table lists X travel of 14 in (356 mm) and Z travel of 20 in (508 mm) and no Y-axis row, and Mazak's model list describes the configuration as Milling only. If a part has features away from the centreline, ask Mazak how the machine positions the workpiece for them before committing the job.
04
Mazak's model list shows the MEGA TURN 500M and the MEGA TURN 500MS together under one configuration, Milling. The figures on this page are those of the MEGA TURN 500M table. Ask Mazak how the MS version differs before assuming any of them carry over.
05
The MEGA TURN 600M turns Ø24 in (610 mm), carries 1,543 lb (700 kg), is limited to 2,200 rpm and weighs 21,605 lb (9,800 kg). This model turns Ø20 in (508 mm), carries 1,102 lb (500 kg), runs to 3,000 rpm and weighs 20,392 lb (9,250 kg). X and Z travels, rapids and the 22 kW (30 HP) continuous spindle rating are the same on both.
