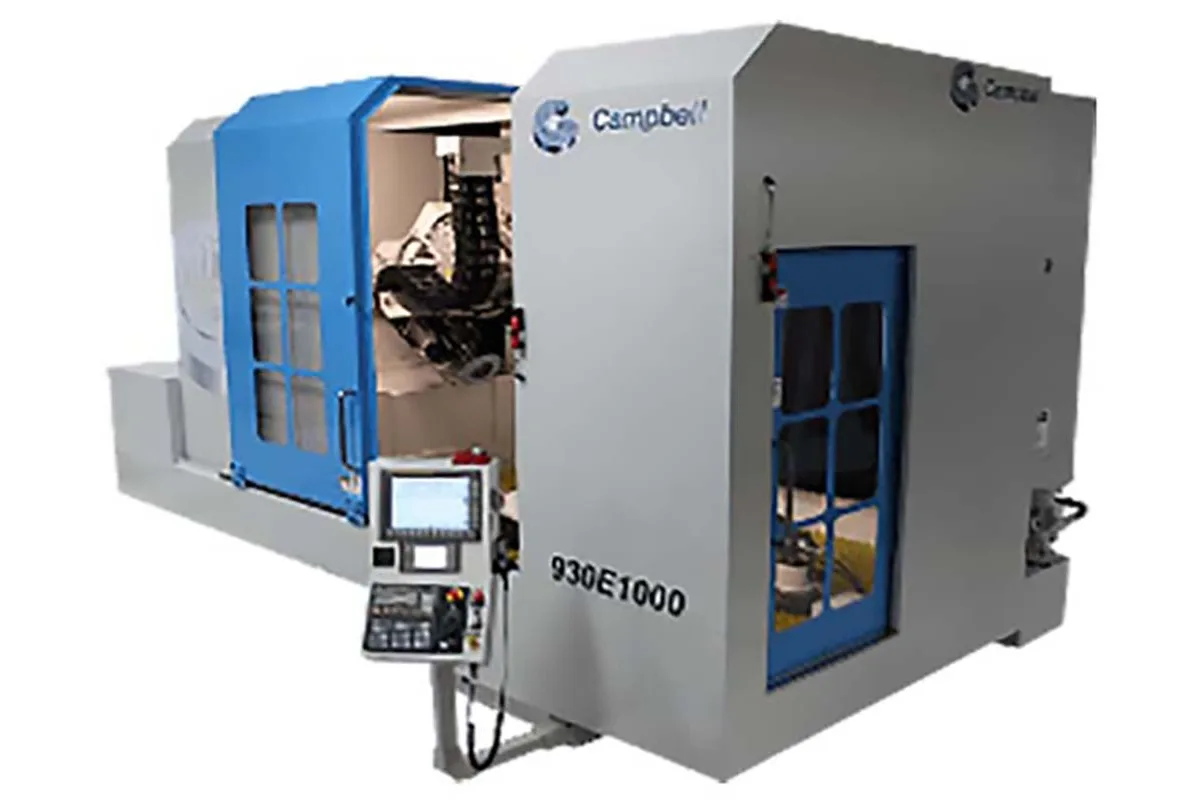

Campbell Grinder 930E1000
Image: campbellgrinder.com, Campbell Grinder
Key Specifications
Table Size
Spindle Power
max part height
axes
control
x axis accuracy
How much does the Campbell Grinder 930E1000 cost?
Price estimate
We do not have a price for the Campbell Grinder 930E1000 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Campbell Grinder 930E1000 tops the 930 series: a 5-axis CNC vertical creep feed grinder with a 1,000 mm (39.4 in) table and a spindle listed at up to 100 HP (74.6 kW). Part height is 750 mm (29.5 in).
Power is what separates it from the rest of the range. The three smaller models, from the 930E250 to the 930E750, are listed with up to 60 HP (44.7 kW). Creep feed removal rate is tied to the power available at the wheel, and a wide form on a large part needs more of it, along with the coolant flow and dressing to match.
The table grows to 1,000 mm, but part height stays at 750 mm. The machine therefore suits large-diameter work of moderate height, such as big shroud segments and wide panels. A high-speed C-axis rotary table is available where the part is to be ground while it rotates.
Otherwise it is built like its smaller siblings: a traveling column on linear motors, a large box section frame, through-the-table hydraulics and a full enclosure. X, Y and Z are accurate to 5 microns (0.0002 in), B and C to 10 arc seconds, and the Fanuc 31i contours with up to 5 axes simultaneously.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 1,000 mm (39.4 in) |
| Max Part Height | 750 mm (29.5 in) |
| Spindle Motor Power | up to 100 HP (74.6 kW) |
| Axes | X, Y, Z, B, C |
| CNC Control | Fanuc 31i; up to 5 axis simultaneous contouring |
| X Axis Accuracy | 5 microns (0.0002 in) |
| Y Axis Accuracy | 5 microns (0.0002 in) |
| Z Axis Accuracy | 5 microns (0.0002 in) |
| C Axis Accuracy | 10 arc seconds (table spindle) |
| B Axis Accuracy | 10 arc seconds (spindle swivel) |
Specifications sourced from campbellgrinder.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Spindle listed at up to 100 HP (74.6 kW), the highest in the series
- Table of 1,000 mm (39.4 in)
- Up to 5 axis simultaneous contouring on a Fanuc 31i
- Linear motors and a large box section frame
Limitations
- Part height is 750 mm (29.5 in), no more than on the 930E750
- A spindle of this power needs matching coolant, filtration and electrical supply, none of which the catalogue specifies
- The catalogue gives no machine dimensions or weight for the 930 series
Best For
Frequently Asked Questions
01
In table size and power. The 930E1000 has a 1,000 mm (39.4 in) table and a spindle of up to 100 HP (74.6 kW); the 930E750 has a 750 mm (29.5 in) table and up to 60 HP (44.7 kW). Part height is 750 mm (29.5 in) on both.
02
The table is 1,000 mm (39.4 in) and the part height 750 mm (29.5 in). Campbell describes the series as fully customizable, so fixture and swing clearances should be confirmed against a layout for your part.
03
The table lists up to 100 HP (74.6 kW) for this model, against up to 60 HP (44.7 kW) for the 930E250, 930E500 and 930E750. The spindle is a direct drive, liquid cooled motorized grinding spindle, and various RPM options are offered.
04
A Fanuc 31i with up to 5 axis simultaneous contouring. The axes are X, Y, Z, B and C. The linear axes are specified at 5 microns (0.0002 in), and the C axis table spindle and B axis spindle swivel at 10 arc seconds each.
