Bourn & Koch Blanchard 72HAD-120

Q: How much does the Bourn & Koch Blanchard 72HAD-120 cost?

The price estimate for the Bourn & Koch Blanchard 72HAD-120 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/bourn-koch-blanchard-72had-120#price; the request is passed to Bourn & Koch or an authorised dealer.

Specs verified 2026-10-04 · bourn-koch.com Updated 2026-10-04

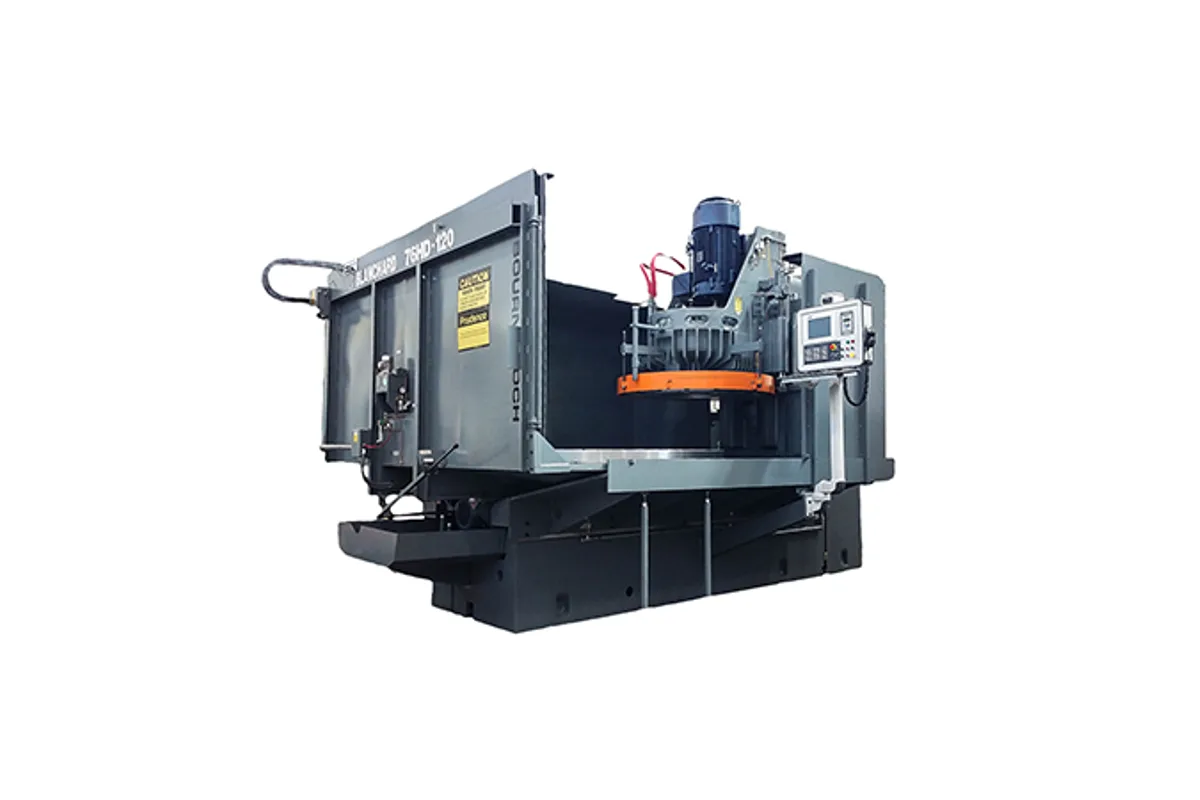

Bourn & Koch Blanchard 72HAD-120 rotary surface grinder

Image: bourn-koch.com, Bourn & Koch

Key Specifications

grinding wheel diameter

72 in (1,829 mm)

magnetic chuck diameter

120 in (3,048 mm)

max weight capacity

30,000 lb (13,608 kg)

max swing

144 in (3,658 mm)

optional max swing

164 in (4,166 mm)

standard grinding horsepower

200 hp (149.1 kW)

How much does the Bourn & Koch Blanchard 72HAD-120 cost?

Price estimate

Uncertain

We do not have a price for the Bourn & Koch Blanchard 72HAD-120 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Bourn & Koch Blanchard 72HAD-120 is the largest rotary surface grinder in the line: a 120 in (3,048 mm) single piece steel magnetic chuck under a 72 in (1,829 mm) grinding wheel, with 144 in (3,658 mm) of maximum swing as standard and 164 in (4,166 mm) as an option.

A wheel that wide is what lets the machine cover such large work. Bourn & Koch fits a CDTXL Bonus Grind segmented Cortland chuck and states that it can grind to the center of a 144” diameter part. Standard grinding horsepower is 200 hp (149.1 kW).

More size does not mean more load. The Blanchard 54HAD-100 is rated 150 hp (111.9 kW) on a 100 in (2,540 mm) chuck, yet both machines carry the same 30,000 lb (13,608 kg). The extra chuck area is for wider parts, or more of them per load, not heavier ones. Net weight is approximately 110,000 lb (49,896 kg), so the building and the foundation have to be settled before the order.

Only the spindle head is servo driven. The drive system is listed as Servo (Z) / Hydraulic (X), with encoder feedback on Z; the fine feed rate is 0.0001 to 0.010 ipm (0.0025 to 0.254 mm/min) and the coarse feed rate 0.001 to 0.100 ipm (0.025 to 2.54 mm/min). The chuck turns at 2.6 - 10.2 rpm. Vertical range is 33 in (838 mm), or 48 in (1,219 mm) or 60 in (1,524 mm) to order.

The base is a heavy duty steel weldment, the column a steel weldment with polymer concrete, and the table body and spindle head are cast iron. A Fanuc CNC control with the Blanchard Grinding HMI is standard, though the page does not give the control model. External coolant systems, custom workholding and increased grinding spindle horsepower are optional.

Full Specifications

Parameter	Value
Grinding Wheel Diameter	72 in (1,829 mm)
Magnetic Chuck Diameter	120 in (3,048 mm)
Max Weight Capacity	30,000 lb (13,608 kg)
Max Swing	144 in (3,658 mm)
Optional Max Swing	164 in (4,166 mm)
Standard Grinding Horsepower	200 hp (149.1 kW)
Vertical Range	33 in (838 mm)
Optional Vertical Range	48 in (1,219 mm) or 60 in (1,524 mm)
Drive System	Servo (Z) / Hydraulic (X)
Coarse Feed Rate	0.001 to 0.100 ipm (0.025 to 2.54 mm/min)
Fine Feed Rate	0.0001 to 0.010 ipm (0.0025 to 0.254 mm/min)
Chuck Rotation Speeds	2.6 - 10.2 rpm
Machine Weight	approx. 110,000 lb (49,896 kg)
CNC Control	Fanuc CNC Control (standard)

Specifications sourced from bourn-koch.com — verified 2026-10-04

Strengths & Limitations

Strengths

Largest capacity in the line: 144 in (3,658 mm) maximum swing, with 164 in (4,166 mm) optional
200 hp (149.1 kW) standard grinding horsepower on a 72 in (1,829 mm) wheel
120 in (3,048 mm) single piece steel magnetic chuck
CDTXL Bonus Grind segmented chuck that the maker says can grind to the center of a 144” diameter part
Fine feed rate of 0.0001 to 0.010 ipm (0.0025 to 0.254 mm/min) on a servo Z-axis with encoder feedback

Limitations

Weight capacity is 30,000 lb (13,608 kg), no higher than on the Blanchard 54HAD-100
The carriage (X) drive is hydraulic; only Z is servo
Net weight of approximately 110,000 lb (49,896 kg) dictates the foundation and the building
The control is listed only as Fanuc CNC Control, without a model designation
Chuck speed tops out at 10.2 rpm

Best For

The widest flat parts: 144 in (3,658 mm) swing, or 164 in (4,166 mm) with the option Large rings and plates within 30,000 lb (13,608 kg) Several large parts per load on a 120 in (3,048 mm) chuck Heavy stock removal at 200 hp (149.1 kW)

Frequently Asked Questions

01 What is the maximum part size on the Blanchard 72HAD-120?

Maximum swing is 144 in (3,658 mm), and an optional maximum swing of 164 in (4,166 mm) is listed. The magnetic chuck is 120 in (3,048 mm) in diameter, weight capacity is 30,000 lb (13,608 kg), and vertical range is 33 in (838 mm) with 48 in (1,219 mm) or 60 in (1,524 mm) optional.

02 How much horsepower does the Blanchard 72HAD-120 have?

200 hp (149.1 kW) is the standard grinding horsepower, and increased grinding spindle horsepower is offered as optional equipment. The grinding wheel is 72 in (1,829 mm) in diameter.

03 Does this model carry more weight than the Blanchard 54HAD-100?

No. It is larger and more powerful, but the load rating is the same. The Blanchard 54HAD-100 has a 100 in (2,540 mm) chuck, 126 in (3,200 mm) of swing and 150 hp (111.9 kW); both machines are rated for 30,000 lb (13,608 kg) and share the 2.6 - 10.2 rpm chuck speeds and the 33 in (838 mm) vertical range.

04 How are the axes driven on the Blanchard 72HAD-120?

The drive system is listed as Servo (Z) / Hydraulic (X). The Z-Axis is powered by a servo motor with encoder feedback for accurate positioning, with a coarse feed rate of 0.001 to 0.100 ipm (0.025 to 2.54 mm/min) and a fine feed rate of 0.0001 to 0.010 ipm (0.0025 to 0.254 mm/min).
