Bourn & Koch Blanchard 22AD-42

Q: How much does the Bourn & Koch Blanchard 22AD-42 cost?

The price estimate for the Bourn & Koch Blanchard 22AD-42 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/bourn-koch-blanchard-22ad-42#price; the request is passed to Bourn & Koch or an authorised dealer.

Specs verified 2026-10-04 · bourn-koch.com Updated 2026-10-04

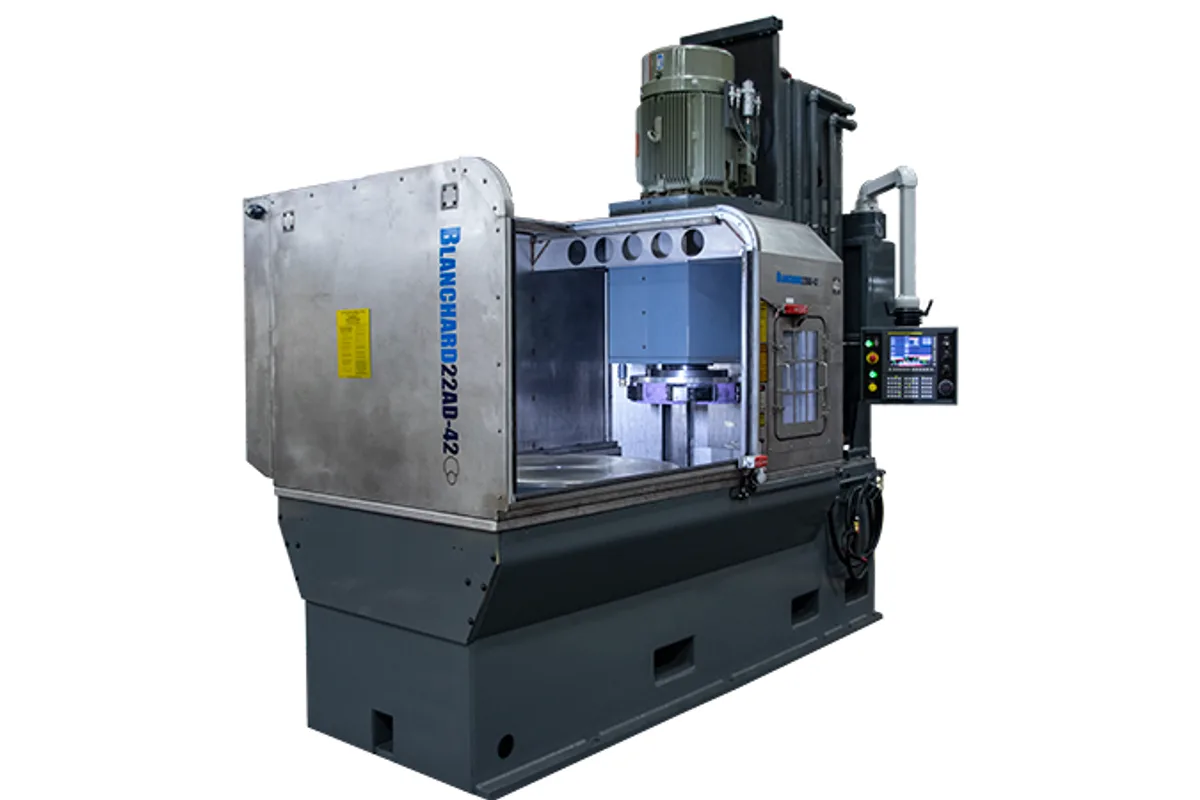

Bourn & Koch Blanchard 22AD-42 rotary surface grinder

Image: bourn-koch.com, Bourn & Koch

Key Specifications

grinding wheel diameter

22 in (559 mm)

magnetic chuck diameter

42 in (1,067 mm)

max weight capacity

3,000 lb (1,361 kg)

max swing

48 in (1,219 mm)

standard grinding horsepower

50 hp (37.3 kW)

vertical range

24 in (610 mm)

How much does the Bourn & Koch Blanchard 22AD-42 cost?

Price estimate

Uncertain

We do not have a price for the Bourn & Koch Blanchard 22AD-42 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Bourn & Koch Blanchard 22AD-42 is a vertical-spindle rotary surface grinder with a 42 in (1,067 mm) magnetic chuck, a 22 in (559 mm) grinding wheel and 48 in (1,219 mm) of maximum swing. Bourn & Koch redesigned and re-engineered this model in 2018, and the result differs from the larger machines in the line: direct drive on both the chuck and the grinding spindle, hardened and ground linear rails, and a full stainless steel enclosure.

Standard grinding horsepower is 50 hp (37.3 kW) at a grinding spindle speed of 720 rpm. The maker states that the direct drive grinding spindle provides up to 100HP, and increased grinding spindle horsepower is on the option list. The chuck turns at 6-24 rpm, infinitely variable, and carries up to 3,000 lb (1,361 kg).

Two servo controlled axes do the positioning, the carriage on X and the spindle head on Z, each with encoder feedback. The feed rate runs from 0.0001 to 0.010 ipm (0.0025 to 0.254 mm/min). Vertical range is 24 in (610 mm), with 36 in (914 mm) optional for tall work. A FANUC 35iB control with the proprietary Blanchard HMI runs the cycle, including a teach mode with conversational programming, fine grinding, and auto spark-out and retract.

This is a wet process, and the enclosure is built for it: stainless steel with an automatic door, a base flushing system and an auxiliary door with work-light for viewing the work zone. External coolant systems, automatic coolant valves, a mist collector and a 2A2T wheel adapter for super-abrasives are optional. The machine weighs approximately 30,000 lb (13,608 kg). Bourn & Koch names steel, ceramic, silicone and cast iron among the materials it grinds.

Full Specifications

Parameter	Value
Grinding Wheel Diameter	22 in (559 mm)
Magnetic Chuck Diameter	42 in (1,067 mm)
Max Weight Capacity	3,000 lb (1,361 kg)
Max Swing	48 in (1,219 mm)
Standard Grinding Horsepower	50 hp (37.3 kW)
Vertical Range	24 in (610 mm)
Optional Vertical Range	36 in (914 mm)
Drive System	Servo
Feed Rate	0.0001 to 0.010 ipm (0.0025 to 0.254 mm/min)
Grinding Spindle Speed	720 rpm
Chuck Rotation Speeds	6-24 rpm, infinitely variable
Machine Weight	approx. 30,000 lb (13,608 kg)
CNC Control	FANUC 35iB Control (standard)

Specifications sourced from bourn-koch.com — verified 2026-10-04

Strengths & Limitations

Strengths

Direct drive magnetic chuck and grinding spindle rotation as standard
50 hp (37.3 kW) standard grinding horsepower at 720 rpm; the maker states the direct drive spindle provides up to 100HP
Hardened and ground linear rails on both servo axes
Full stainless steel enclosure with automatic door, plus a base flushing system, as standard
FANUC 35iB control with teach mode conversational programming and auto spark-out and retract

Limitations

Standard vertical range is 24 in (610 mm); the 36 in (914 mm) range is an option
Weight capacity is 3,000 lb (1,361 kg), against 10,000 lb (4,536 kg) on the Blanchard 32HAD-60
External coolant systems and the mist collector are optional equipment
The table for this model gives no X-axis travel figure

Best For

Flat grinding of parts up to 48 in (1,219 mm) swing Fast stock removal on steel and cast iron Ceramic work with the optional wheel adapter for super-abrasives Batches of small parts loaded across a 42 in (1,067 mm) magnetic chuck

Frequently Asked Questions

01 How big a part can the Blanchard 22AD-42 grind?

Maximum swing is 48 in (1,219 mm) over a 42 in (1,067 mm) magnetic chuck, and the weight capacity is 3,000 lb (1,361 kg). Vertical range is 24 in (610 mm) as standard and 36 in (914 mm) as an option. The grinding wheel is 22 in (559 mm) in diameter.

02 What horsepower does the Blanchard 22AD-42 have?

Standard grinding horsepower is 50 hp (37.3 kW), with a grinding spindle speed of 720 rpm. Bourn & Koch states that the direct drive grinding spindle provides up to 100HP, and increased grinding spindle horsepower is listed as optional equipment.

03 What control runs the Blanchard 22AD-42?

A FANUC 35iB control with a proprietary Blanchard Human Machine Interface. It offers a teach mode with conversational programming, fine grinding, auto spark-out and retract, and a remote jog button for the magnetic chuck. The enclosure door is automatic and interlocked.

04 How fine is the downfeed on the Blanchard 22AD-42?

The feed rate range is 0.0001 to 0.010 ipm (0.0025 to 0.254 mm/min). The spindle head (Z-Axis) and the carriage (X-Axis) are each powered by a servo motor with encoder feedback for accurate positioning, and the construction list names hardened and ground linear rails on both axes.

05 How does this model differ from the larger Blanchard 32HAD-60?

The Blanchard 32HAD-60 has a 60 in (1,524 mm) chuck, a 32 in (813 mm) wheel, 100 hp (74.6 kW) and a 10,000 lb (4,536 kg) capacity. The smaller machine answers with direct drive chuck and spindle rotation, linear rails and a full stainless steel enclosure, which the feature list of the larger one does not name.
