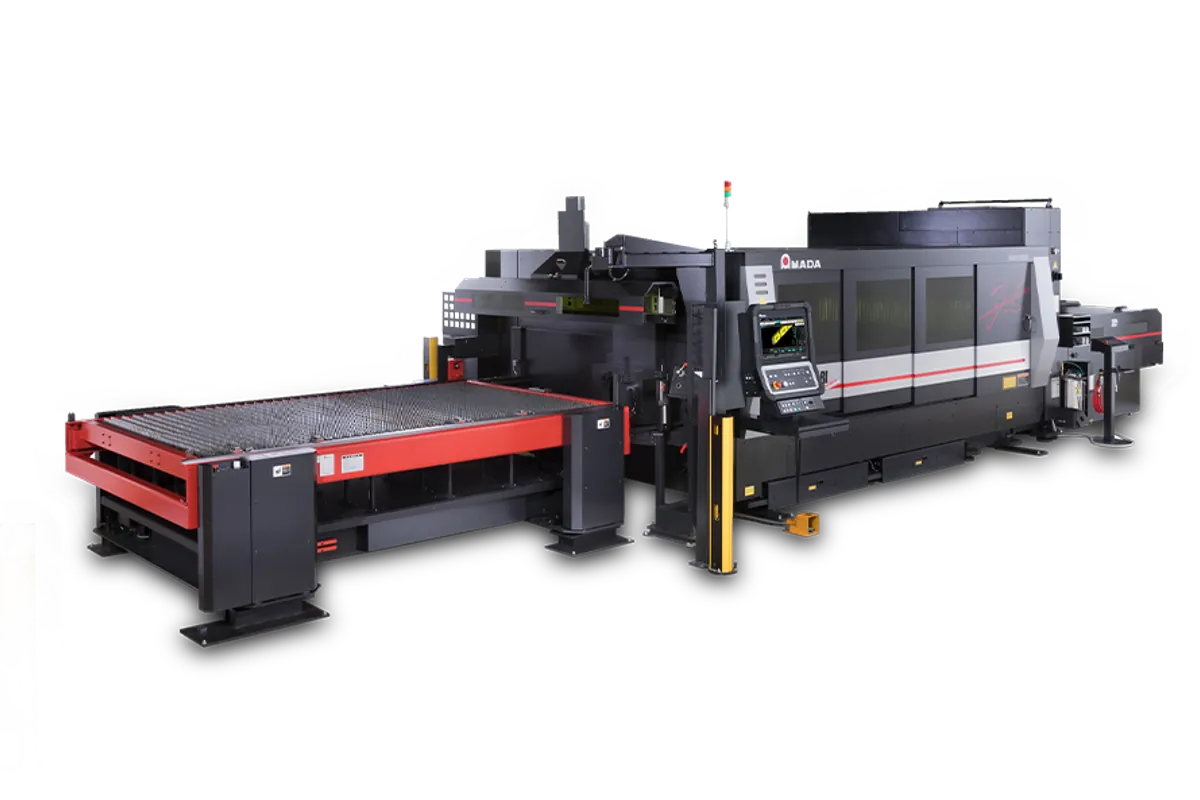

Amada ENSIS 3015 RIe
Image: amada.com, Amada
Key Specifications
laser power
machine type
working range x y
working range z
repeatable positioning accuracy
max table load
How much does the Amada ENSIS 3015 RIe cost?
Estimated price range
Our best estimate for a cnc laser cutting machine in this class — not a quote from Amada. Configuration moves it a long way.
Overview
The Amada ENSIS 3015 RIe is a fibre laser cutting machine that handles both flat sheet and tube: a 3070 x 1550 mm working range for sheet, plus a rotary index that takes round tube from 19 - 220 mm in diameter and up to 6000 mm long. It is offered at 3000 W, 6000 W and 9000 W.
The rotary index has its own limits and they are tighter than the flat-bed ones. Round tube runs 19 - 220 mm, square tube 19 - 150 mm, and rectangular tube up to 220 mm across the diagonals. Channel profiles are listed at 19 - 150 mm and angle profiles at 19 - 130 mm. A tube can weigh up to 200 kg. Wall thickness is 1 - 12 mm for tube and 1 - 9 mm for angle and channel. Maximum laser power on the rotary index is 3kW, so a 6000 W or 9000 W machine does not cut tube any harder than the 3000 W one; the larger source pays off on sheet.
On the flat bed, mild steel is listed to 25 mm at every power level. Stainless steel goes from 15 mm at 3000 W to 25 mm at 6000 W and 9000 W, and aluminium from 12 mm to 25 mm over the same step. Brass is 8 mm, 15 mm and 18 mm across the three levels, and copper 6 mm at 3000 W and 12 mm above it. Table load is 920 kg and repeatable positioning accuracy ± 0.01 mm.
The tube capability takes floor space. With the shuttle table the machine is 12505 mm long, against 9810 mm for the ENSIS 3015 AJe, and it is 2915 mm wide and 2532 mm high. The Z range is 200 mm and the axes are driven by helical rack and pinion. The ENSIS 3015 AJe is the alternative when no tube work is planned, and it is the one available at 12000 W and 15000 W.
Full Specifications
| Parameter | Value |
|---|---|
| Laser Power | 3000 W / 6000 W / 9000 W |
| Machine Type | Fibre laser cutting machine |
| Working Range X Y | 3070 x 1550 mm |
| Working Range Z | 200 mm |
| Repeatable Positioning Accuracy | ± 0.01 mm |
| Max Table Load | 920 kg |
| Drive System | Helical rack and pinion |
| Rotary Index Max Laser Power | 3kW |
| Rotary Index Round Tube Diameter | 19 - 220 mm |
| Rotary Index Square Tube | 19 - 150 mm |
| Rotary Index Rect Tube Across Diagonals | 220 mm |
| Rotary Index Channel Profile | 19 - 150 mm |
| Rotary Index Angle Profile | 19 - 130 mm |
| Rotary Index Max Tube Weight | 200 kg |
| Rotary Index Max Tube Length | 6000 mm |
| Rotary Index Tube Wall Thickness | 1 - 12 mm |
| Rotary Index Angle Channel Thickness | 1 - 9 mm |
| Max Thickness Mild Steel | 25 mm |
| Max Thickness Stainless Steel | 3000 W: 15 mm / 6000 W, 9000 W: 25 mm |
| Max Thickness Aluminium | 3000 W: 12 mm / 6000 W, 9000 W: 25 mm |
| Max Thickness Brass | 3000 W: 8 mm / 6000 W: 15 mm / 9000 W: 18 mm |
| Max Thickness Copper | 3000 W: 6 mm / 6000 W, 9000 W: 12 mm |
| Machine Length with Shuttle Table | 12505 mm |
| Machine Width | 2915 mm |
| Machine Height | 2532 mm |
Specifications sourced from amada.eu — verified 2026-10-03
Strengths & Limitations
Strengths
- Cuts sheet and tube on one machine: 3070 x 1550 mm flat working range plus a rotary index
- Round tube from 19 - 220 mm in diameter, up to 6000 mm long and 200 kg
- Square tube, channel and angle profiles from 19 mm, as well as rectangular tube to 220 mm across the diagonals
- Mild steel to 25 mm at all three power levels
- 200 mm of Z range and repeatable positioning accuracy of ± 0.01 mm
Limitations
- Laser power on the rotary index is capped at 3kW, whichever source is fitted
- Tube wall thickness is limited to 1 - 12 mm, and angle and channel thickness to 1 - 9 mm
- Length with shuttle table is 12505 mm, against 9810 mm for the ENSIS 3015 AJe
- Top power is 9000 W; the ENSIS 3015 AJe is listed up to 15000 W
- No machine weight is listed, so floor loading has to be requested
Best For
Frequently Asked Questions
01
On the rotary index: round tube 19 - 220 mm in diameter, square tube 19 - 150 mm, rectangular tube up to 220 mm across the diagonals, channel profile 19 - 150 mm and angle profile 19 - 130 mm. Maximum tube length is 6000 mm and maximum tube weight 200 kg. Tube wall thickness is 1 - 12 mm; angle and channel thickness is 1 - 9 mm.
02
Not according to the table. The rotary index is listed with a maximum laser power of 3kW, whether the machine has the 3000 W, 6000 W or 9000 W source. The higher levels raise the flat-sheet limits instead, for example stainless steel from 15 mm at 3000 W to 25 mm at 6000 W.
03
Mild steel: 25 mm at all power levels. Stainless steel: 15 mm at 3000 W, 25 mm at 6000 W and 9000 W. Aluminium: 12 mm at 3000 W, 25 mm at 6000 W and 9000 W. Brass: 8 mm, 15 mm and 18 mm at 3000 W, 6000 W and 9000 W. Copper: 6 mm at 3000 W and 12 mm at the two higher levels.
04
With the shuttle table the machine is 12505 mm long, 2915 mm wide and 2532 mm high. Tube up to 6000 mm long also has to be brought to the rotary index, so plan the material flow at that end of the machine. The table lists no machine weight.
05
The ENSIS 3015 RIe adds the rotary index for tube and profile, has a 200 mm Z range and helical rack and pinion drive, and is offered up to 9000 W. The ENSIS 3015 AJe is sheet-only in its table, lists a 100 mm Z range and AC Servo drives, and goes up to 15000 W. Both share the 3070 x 1550 mm working range and 920 kg table load.
Videos
AMADA AMERICA, INC.
Blackstone Machinery
More from Amada
Other CNC Laser Cutting Machines
Yawei HLF-2580
Trumpf TruLaser 5040 Fiber

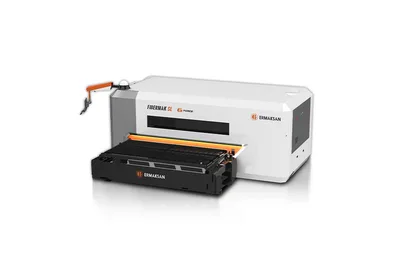

Ermak Fibermak SL 2.5x1.25
GF Machining CHARMILLES LASER P 400 U

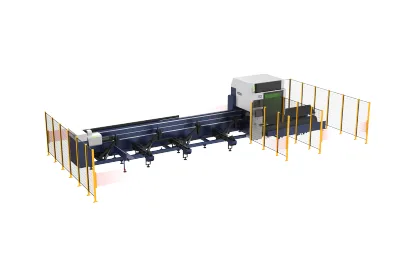

HSG R2
