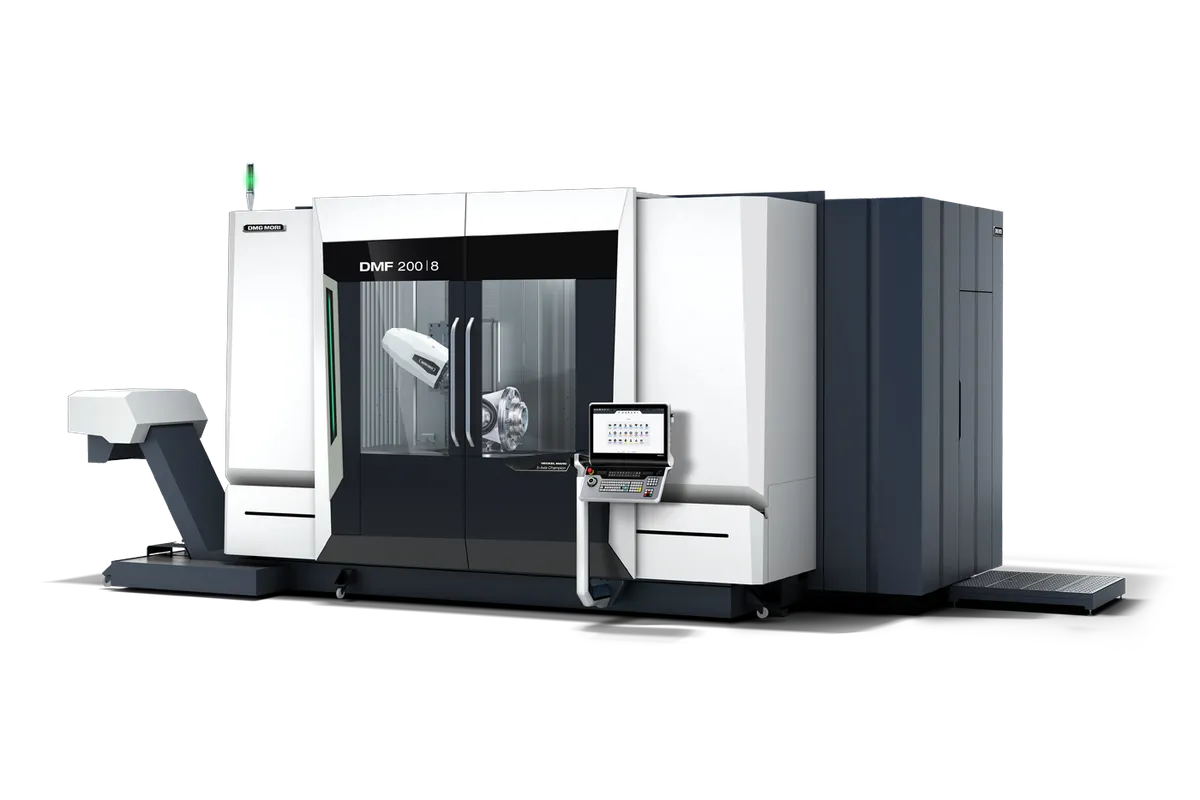

DMG Mori DMF 200|8 FD

$550,000 - $800,000 Updated 2026-03-19

Key Specifications

X Travel

2,000 mm (78.7 in)

Y Travel

800 mm (31.5 in)

Z Travel

850 mm (33.5 in)

Max Spindle

15,000 - 20,000 RPM

Tool Capacity

Up to 120 pockets

Max Workpiece ⌀

1,050 mm (41.3 in)

Overview

The DMG Mori DMF 200|8 FD is the mill-turn variant of the DMF 200|8 traveling-column machining center, adding a DirectDrive rotary table for turning operations to the proven long-part 5-axis platform. With 2,000 mm (78.7 in) of X-axis travel, 800 mm (31.5 in) on Y, and 850 mm (33.5 in) on Z, this machine handles workpieces up to 2,300 mm (90.6 in) long and weighing up to 2,000 kg (4,409 lb) — with the added capability to turn cylindrical features without moving the part to a lathe.

The traveling-column design moves the spindle along the X-axis while the workpiece stays stationary on the table. This means the full 2,000 kg table load is available at any X-axis position, regardless of how far the spindle extends. Maximum workpiece dimensions accommodate parts 2,300 mm long, 850 mm (33.5 in) wide, and 900 mm (35.4 in) tall, with a maximum turning diameter of 1,050 mm (41.3 in).

The FD option transforms the DMF 200|8 from a pure milling platform into a complete machining solution for long rotational parts. Turbine shafts, long hydraulic cylinders, large threaded components, and aerospace actuator housings that previously required separate milling and turning operations can now be fully machined in a single setup. The DirectDrive table provides the torque and speed needed for facing, boring, and cylindrical turning operations.

Spindle options range from 15,000 to 20,000 RPM with up to 200 Nm of torque. The tool magazine holds up to 120 pockets with maximum 400 mm tool length. Linear motor drive options are available for the X-axis for enhanced dynamic performance on long contouring passes.

Control options include Siemens Sinumerik ONE and Heidenhain TNC7 under CELOS X, with integrated mill-turn programming cycles for seamless transition between milling and turning modes. The DMF 200|8 FD fills a unique niche: long-part 5-axis mill-turn in a traveling-column format that no other machine platform can match. Specs sourced from DMG Mori published data.

Full Specifications

Parameter	Value
X-Axis Travel	2,000 mm (78.7 in)
Y-Axis Travel	800 mm (31.5 in)
Z-Axis Travel	850 mm (33.5 in)
Max Workpiece Length	2,300 mm (90.6 in)
Max Workpiece Width	850 mm (33.5 in)
Max Workpiece Height	900 mm (35.4 in)
Max Workpiece Diameter	1,050 mm (41.3 in)
Max Table Load	2,000 kg (4,409 lb)
Max Spindle Speed	15,000 - 20,000 RPM
Spindle Torque	Up to 200 Nm
Tool Capacity	Up to 120 pockets
Max Tool Length	400 mm
Drive Type	Ball screw (linear motor optional on X-axis)
Design	Traveling column with FD mill-turn
CNC Control	Siemens Sinumerik ONE / Heidenhain TNC7 (CELOS X)
2000 Mm	78.7 in.
800 Mm	31.5 in.
850 Mm	33.5 in.
1050 Mm	41.3 in.
900 Mm	35.4 in.
2000 Kg	4409.2 lbs.
2300 Mm	90.6 in.
Customer Benefits	MPC Graph: aktuelle und angelernte Prozesswerte. / MPC Diagnostics: Lagerzustand, Anzahl von Stoß und Crash.
Customer Benefitsflexible Application Possibilitiesin Process Measurement	Left : Semi-automatic Measurement solution. / Right : Automatic measurement solution.

Specifications sourced from us.dmgmori.com — verified 2026-03-28

Strengths & Limitations

Strengths

FD mill-turn option enables complete machining of long rotational parts without transferring to a separate lathe
2,000 mm X-axis travel handles long parts that conventional trunnion-table 5-axis machines cannot accommodate
Traveling-column design maintains full 2,000 kg table load regardless of X-axis position
Up to 120-tool magazine supports complex multi-operation mill-turn jobs on large workpieces
Linear motor option on X-axis delivers dynamic performance for high-speed contouring on long parts
Compact footprint relative to X-axis travel compared to equivalent gantry machines

Limitations

FD option adds $50,000-$70,000 over the standard DMF 200|8, requiring regular mill-turn work to justify
800 mm Y-axis travel can be limiting for wider workpieces compared to the DMF |11 series
200 Nm maximum spindle torque is lower than duoBLOCK models, limiting heavy roughing capability
Long-part fixturing with turning operations requires careful balancing for safe operation at speed

Best For

Aerospace manufacturers machining long structural members with both milled pockets and turned journals Energy sector shops producing turbine shafts, generator components, and long valve assemblies requiring mill-turn Oil and gas manufacturers machining long downhole tool bodies with milled flats and turned diameters Defense contractors producing long actuator housings and structural components with combined features Shops needing long-part complete machining without the footprint of separate milling and turning machines

Frequently Asked Questions

01 What does a DMG Mori DMF 200|8 FD cost?

New DMF 200|8 FD machines price between $550,000 and $800,000 depending on spindle, control, and linear motor configuration. The FD mill-turn option adds roughly $50,000-$70,000 over the standard DMF 200|8.

02 How does the FD option change the DMF 200|8?

The FD adds a DirectDrive rotary table for turning operations, enabling facing, boring, and cylindrical turning on the same machine that performs 5-axis milling. This is particularly valuable for long parts like turbine shafts and hydraulic cylinders that need both milled and turned features.

03 Should I choose the DMF 200|8 FD or the DMF 300|8 FD?

Choose the DMF 200|8 FD for parts up to 2,300 mm long and 2,000 kg. Step up to the DMF 300|8 FD when parts exceed 2,300 mm or 2,000 kg, as the 300|8 handles parts up to 3,300 mm long and 3,000 kg.

04 Can the DMF 200|8 FD handle interrupted turning cuts?

Yes. The traveling-column design and machine rigidity handle interrupted cuts during turning. However, fixturing must be carefully planned for long parts under turning loads, and workpiece balance becomes critical at higher RPMs.
