AWEA LG-14050

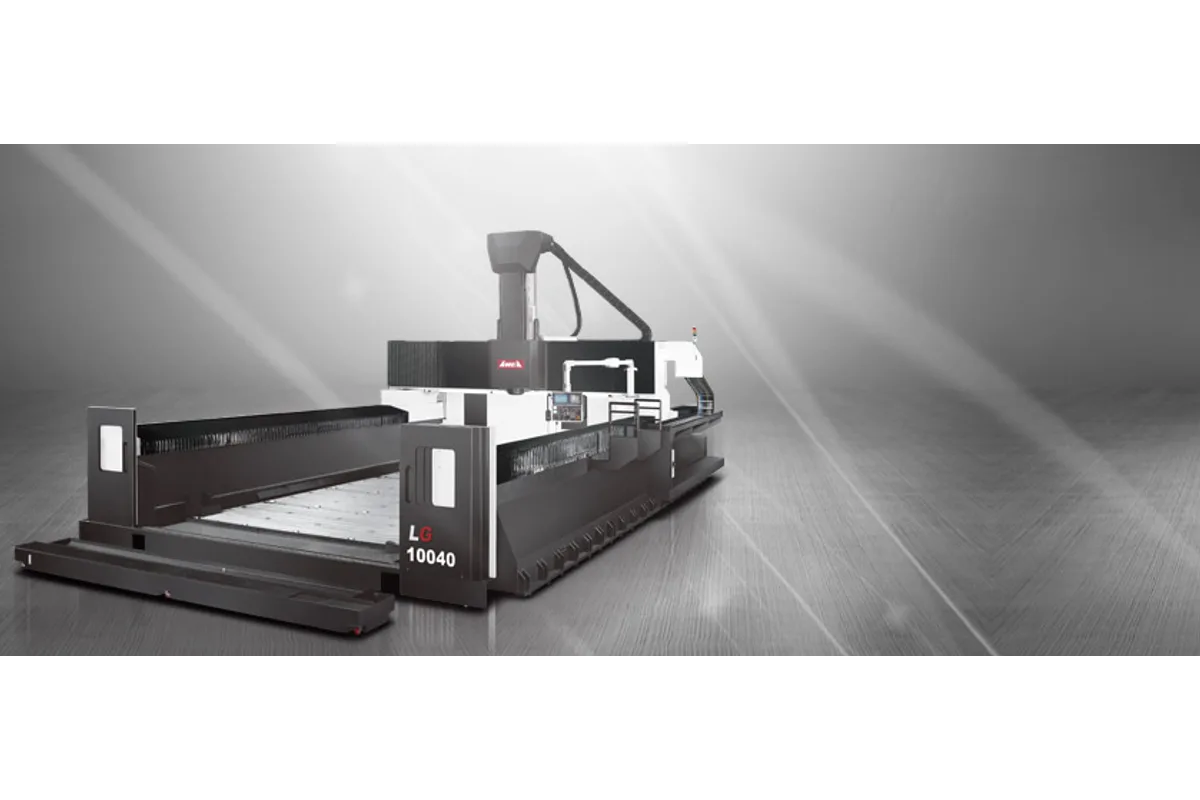

Image: awea.com, AWEA
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
How much does the AWEA LG-14050 cost?
Price estimate
We do not have a price for the AWEA LG-14050 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
14,000 mm (551.2 in) of X travel makes the AWEA LG-14050 the longest LG gantry machine with the 5,000 mm (196.9 in) Y crossbeam. No other LG has this X stroke: the next step is the LG-20070, at 20,000 mm (787.4 in) and with a 7,000 mm (275.6 in) Y. The fixed table is 14,000 x 4,800 mm (551.2 x 189.0 in) and Z travel is 1,000 mm (39.4 in).
A stroke like this is beyond ball screws. For LG models from 6 m of X upward AWEA specifies its patented zero backlash rack & pinion with a 1µm linear scale, the two sides of the gantry kept together by synchronous servo control. The X rapid holds at 20 m/min (787 ipm). Table and side columns are modular, which is how the maker stretches the same design to this length.
Accuracy over the full stroke is the figure to study. Under the VDI standard the X axis is listed at P = 0.060 mm with a repeatability of Ps = 0.045 mm, against P = 0.050 mm and Ps = 0.038 mm on the LG-10050. The crossbeam figures don't change with length: P = 0.040 mm over full travel and Ps = 0.030 mm for Y/Z. A feature that must be held closely is better located by Y than by X on this machine.
Services are the same as on the shorter 5,000 mm Y models. Power requirement is 80 kVA at 220 ±10 % Vac 3 phase 50 / 60 Hz, air is 5 ~ 8 (5) kg/cm², and the coolant tank holds 1,900 liter although the table it serves is far longer than that of the LG-6050, which has the same tank capacity.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 14,000 mm (551.2 in) |
| Y Axis Travel | 5,000 mm (196.9 in) |
| Z Axis Travel | 1,000 mm (39.4 in) |
| Table Size | 14,000 x 4,800 mm (551.2 x 189.0 in) |
| Max Table Load | 2,500 kg/m² |
| Distance Spindle Nose to Table | 200 ~ 1,200 mm (7.9 ~ 47.2 in) |
| Distance Between Columns with Water Eliminator | 5,800 (5,500) |
| Spindle Motor Power | 22 / 26 kW (30 / 35 HP) |
| Max Spindle Speed | Gear 4,000 rpm (Std.) ; Gear 5,000 / 6,000 rpm (Opt.) ; Built-in 6,000 / 8,000 rpm (Opt.) |
| Spindle Taper | CAT50 (7 / 24) |
| Rapid Traverse X | 20 m/min (787 ipm) |
| Rapid Traverse Y | 12 m/min (472 ipm) |
| Rapid Traverse Z | 10 m/min (394 ipm) |
| Cutting Feed Rate | 1 ~ 10 m/min (39 ~ 394 ipm) |
| Tool Capacity | 32 (60 Opt.) |
| Max Tool Diameter (full magazine) | Ø127 / 215 mm (Ø5.0 / 8.5 in) |
| Max Tool Length | 350 mm (13.8 in) |
| Max Tool Weight | 20 kg (44 lb) |
| Positioning Accuracy Jis B 6338 | ± 0.025 / Full Travel |
| Positioning Accuracy VDI 3441 | P = 0.060 mm |
| Positioning Accuracy Yz VDI 3441 | P = 0.040 mm / Full Travel |
| Repeatability Jis B 6338 | ± 0.003 mm |
| Repeatability VDI 3441 | Ps = 0.045 mm |
| Repeatability Yz VDI 3441 | Ps = 0.030 mm |
| Power Requirement | 80 kVA 220 ±10 % Vac 3 phase 50 / 60 Hz |
| Air Pressure Requirement | 5 ~ 8 (5) kg/cm² |
| Hydraulic Tank Capacity | 120 liter |
| Lubrication Tank Capacity | 6 liter |
| Coolant Tank Capacity | 1,900 liter |
Specifications sourced from awea.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 14,000 mm (551.2 in) of X travel, the longest stroke in the 5,000 mm Y group
- X rapid of 20 m/min (787 ipm), unchanged from the shorter models
- Rack & pinion X drive with a 1µm linear scale and synchronous servo control
- Crossbeam accuracy does not widen with length: P = 0.040 mm over full travel for Y/Z
- Power requirement of 80 kVA, no higher than the LG-6050
Limitations
- X positioning of P = 0.060 mm and repeatability of Ps = 0.045 mm under the VDI standard, the widest of the 5,000 mm Y group
- Coolant tank of 1,900 liter, the same capacity as on the LG-6050 with its 6,000 mm table
- No 14,000 mm model exists with another Y travel; wider work means the LG-20070
- Y rapid of 12 m/min (472 ipm) and Z rapid of 10 m/min (394 ipm)
- Tools are limited to 350 mm (13.8 in) in length and 20 kg (44 lb)
Best For
Frequently Asked Questions
01
Under the VDI standard, AWEA lists X-axis positioning at P = 0.060 mm and repeatability at Ps = 0.045 mm. The Y/Z row gives P = 0.040 mm over full travel and Ps = 0.030 mm. The JIS rows read ± 0.025 / Full Travel for positioning and ± 0.003 mm for repeatability.
02
Yes, the LG-20070, with 20,000 mm (787.4 in) of X travel. The LG-20070 also has 7,000 mm (275.6 in) of Y, a slower Y rapid of 10 m/min (394 ipm), and X figures of P = 0.10 mm and Ps = 0.080 mm under the VDI standard. Within the 5,000 mm (196.9 in) Y group the LG-14050 is the longest.
03
The power requirement is 80 kVA at 220 ±10 % Vac, 3 phase, 50 / 60 Hz. The air pressure requirement is printed as 5 ~ 8 (5) kg/cm². Tank capacities are 120 liter for hydraulics, 6 liter for lubrication and 1,900 liter for coolant.
04
AWEA states that the working table and side columns are of modular design and that the X-axis travel could be extended based on different machining requirements. The spec table for the 5,000 mm Y group lists four lengths, of which 14,000 mm (551.2 in) is the longest.
05
The listed X rapid is 20 m/min (787 ipm), the same as on the LG-10050. Cutting feed is 1 ~ 10 m/min (39 ~ 394 ipm). The other rapids are 12 m/min (472 ipm) for Y and 10 m/min (394 ipm) for Z.
