AWEA BL-4024S

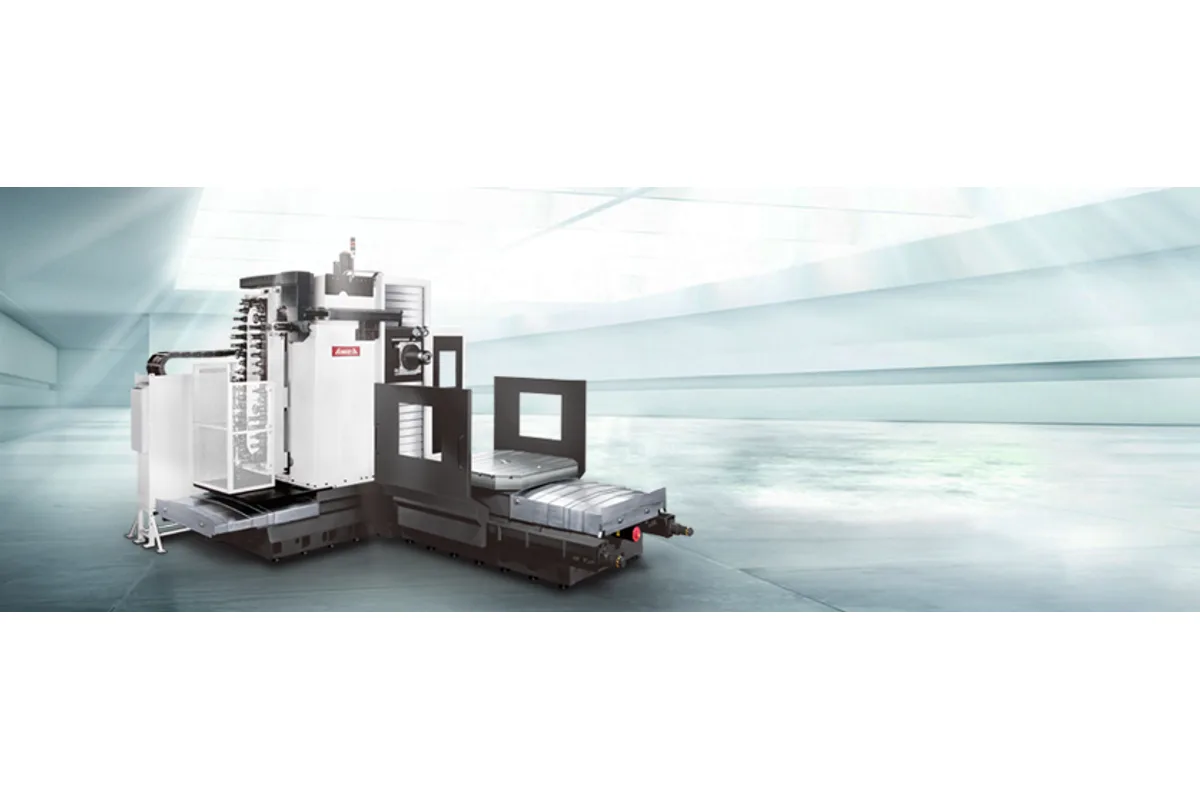

Image: awea.com, AWEA
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
How much does the AWEA BL-4024S cost?
Price estimate
We do not have a price for the AWEA BL-4024S that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
For the biggest boring jobs in the range AWEA offers the BL-4024S: full-size BL travels of 4,000 mm (157.5 in) in X and 2,400 mm (94.5 in) in Y, combined with the high-torque quill spindle. It weighs 39,500 kg (87,081 lb).
Installation deserves attention first. The machine is 5,115 mm (201.4 in) high. Its electrical requirement is 70 kVA at 3 phase, 50 / 60 Hz, and for the S models the table shows only the 220 supply, where the FM models such as the BL-4024FM also show 380~415. Compressed air must be 5 ~ 8 (5) kg/cm². A 560 liter coolant tank and a 4.6 liter lubrication tank need filling. An enclosure splash guard is optional, so decide early whether coolant containment around a part this size is required.
Then the cutting side. The Ø120 mm quill reaches 600 mm (23.6 in) on W and the gear box gives 1,308 Nm (965 lb-ft), with a 2,400 rpm limit. Z travel is 1,300 mm (51.2 in), no more than on the smallest BL, and spindle nose to table top is 885 mm (34.8 in).
Accuracy over such a stroke is quoted as P= 0.025 mm full travel and Ps= 0.018 mm under VDI. HEIDENHAIN linear scales on 3 axes are standard equipment.
Smaller alternatives with the same head are the BL-3024S at 35,500 kg (78,263 lb) and, on the lower column, the BL-4018S at 38,000 kg (83,774 lb).
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 4,000 mm (157.5 in) |
| Y Axis Travel | 2,400 mm (94.5 in) |
| Z Axis Travel | 1,300 mm (51.2 in) |
| W Axis Travel | 600 mm (23.6 in) |
| Table Size | 1,600 x 1,800 mm (63.0 x 70.9 in) |
| Max Table Load | 15,000 kg (33,069 lb) |
| Distance Spindle Nose to Table | 885 mm (34.8 in) |
| Boring Spindle Size | Quill with Ø120 mm |
| Spindle Motor Power | 22 / 26 kW (30 / 35 HP) |
| Max Spindle Speed | 2,400 rpm |
| Spindle Torque | 1,308 Nm (965 lb-ft) |
| Spindle Taper | BT50 |
| Rapid Traverse Xyz | 12,000 mm/min (472 ipm) |
| Rapid Traverse W | 5,000 mm/min (197 ipm) |
| Cutting Feed Rate | 1 ~ 5,000 mm/min (0.04 ~ 197 ipm) |
| Tool Capacity | 40T |
| Max Tool Diameter (full magazine) | Ø125 / Ø250 mm (Ø4.9 / Ø9.8 in) |
| Max Tool Length | 400 mm (15.7 in) |
| Max Tool Weight | 25 kg (55 lb) |
| Positioning Accuracy Jis B 6338 | ± 0.01 mm / Full Travel |
| Positioning Accuracy VDI 3441 | P= 0.025 mm / Full Travel |
| Repeatability Jis B 6338 | ± 0.003 mm |
| Repeatability VDI 3441 | Ps= 0.018 mm |
| Power Requirement | 70 kVA, 220±10%, 3 phase, 50 / 60 Hz |
| Air Pressure Requirement | 5 ~ 8 (5) kg/cm² |
| Lubrication Tank Capacity | 4.6 liter |
| Coolant Tank Capacity | 560 liter |
| Machine Weight | 39,500 kg (87,081 lb) |
| Machine Height | 5,115 mm (201.4 in) |
Specifications sourced from awea.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 4,000 x 2,400 mm (157.5 x 94.5 in) X-Y travel with 1,308 Nm (965 lb-ft) at the spindle
- HEIDENHAIN linear scales on 3 axes as standard equipment
- Chip removal by two augers and a caterpillar type conveyor as standard
- A little lighter than the ram-type BL-4024FM: 39,500 kg (87,081 lb) against 40,500 kg (89,286 lb)
- Ø120 mm quill with 600 mm (23.6 in) of extension
Limitations
- Spec table shows only a 220 supply for the S models at 70 kVA
- 5,115 mm (201.4 in) high and 39,500 kg (87,081 lb): building and foundation must suit
- Z travel is 1,300 mm (51.2 in), the same as the smallest model
- 2,400 rpm top speed rules out high-speed finishing
- Splash guard enclosure costs extra as an option
Best For
Frequently Asked Questions
01
A 70 kVA, 3 phase, 50 / 60 Hz supply, compressed air at 5 ~ 8 (5) kg/cm², a foundation for 39,500 kg (87,081 lb) of machine plus the workpiece, and headroom for 5,115 mm (201.4 in). Floor dimensions are not in the specification table and must be requested.
02
In the published tables, yes. The S models list 70 kVA with 220 ±10% only, while the BL-4024FM row lists 220 / 380~415 ±10%. Buyers on a 380~415 supply should ask AWEA how the S version is connected.
03
The quill extends 600 mm (23.6 in) on W and Z travel is 1,300 mm (51.2 in). Tools in the magazine can be 400 mm (15.7 in) long from the gauge line. AWEA's series text names deep hole boring as one of the purposes of the BL.
04
Its VDI rows are wider: P= 0.025 mm and Ps= 0.018 mm, where the BL-2024S shows P= 0.016 mm and Ps= 0.012 mm. The JIS rows are the same for both, ± 0.01 mm over full travel and ± 0.003 mm.
05
Two augers and a caterpillar type chip conveyor are standard. The coolant tank holds 560 liter. AWEA adds that a horizontal boring mill layout gives better chip removal than a vertical one.
