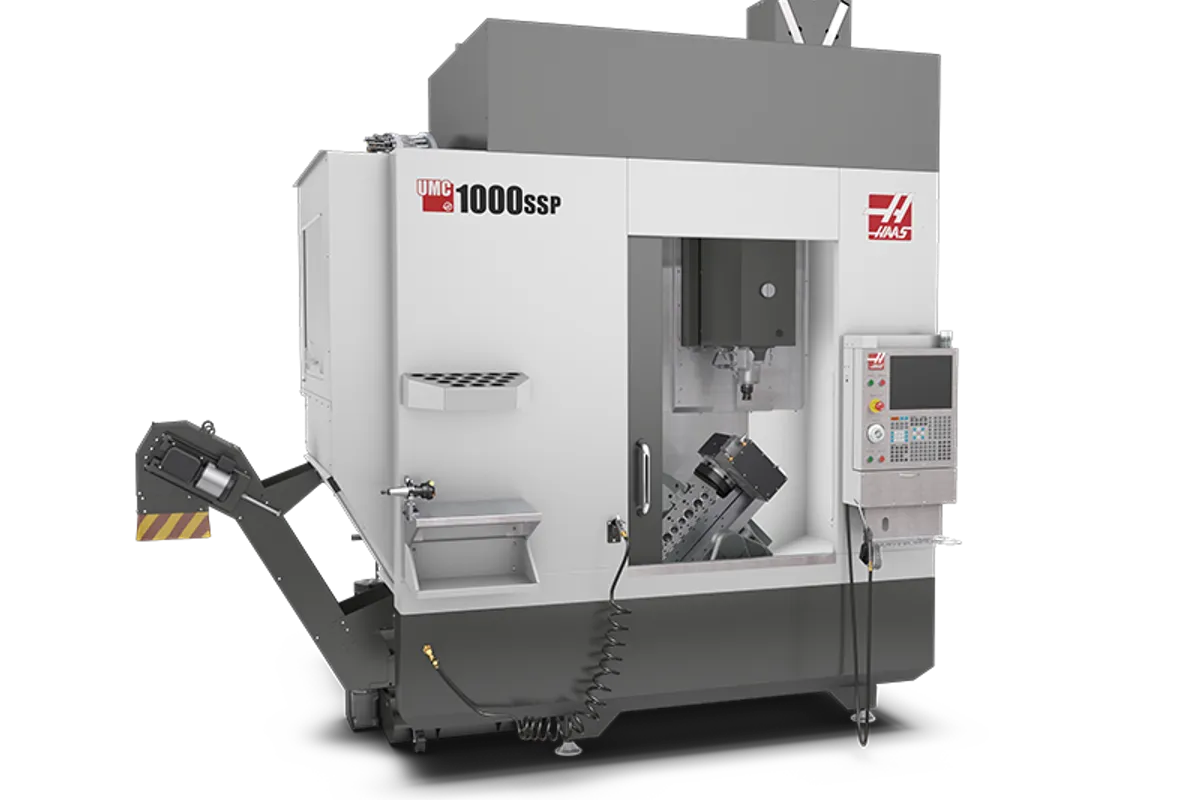

Haas UMC-1000SS-P

List US$311,995 Specs verified 2026-10-02 · haascnc.com Updated 2026-10-02

Image: haascnc.com, Haas Automation

Key Specifications

X Travel

40 in (1,016 mm)

Y Travel

25 in (635 mm)

Z Travel

25 in (635 mm)

Max Spindle

12,000 rpm

Spindle Taper

CT40 / BT40 / HSK-A63

Tool Capacity

30+1

How much does the Haas UMC-1000SS-P cost?

Manufacturer list price

US$311,995

As published by Haas Automation, verified 2026-10-02. Options, tooling, freight and installation are extra.

Overview

The Haas UMC-1000SS-P is a five-axis machining center built around a long table instead of a round platter. A 40 × 15 in (1,016 × 381 mm) table turns a full 360° on the A axis and tilts from 45° to -45° on B. Linear travels are 40 × 25 × 25 in (1,016 × 635 × 635 mm), and as the SS model it has a 12,000 rpm spindle with 1,200 ipm (30.5 m/min) rapids.

The layout suits parts that are long and slender. The table is as long as the X travel, so a part can be supported along its whole length, but it has to rotate inside an A-axis part swing of 11.9 in (302 mm) and weigh no more than 350 lb (159 kg) with its fixture. The UMC-1000SS, on the same travels, takes 1,000 lb (454 kg) on a 25 in (635 mm) platter and tilts from 120° to -35°. Choosing the P gives up that load and tilt range in exchange for length.

The two rotary axes are not equally strong. B has 2,240 ft-lbf (3,037 N·m) of torque and a 2,000 ft-lbf (2,712 N·m) brake. A has 210 ft-lbf (285 N·m) and a 200 ft-lbf (271 N·m) brake, about a tenth of the B figures, so a heavy cut taken well away from the A centreline deserves a check before the job is quoted. Both axes move at 100°/sec, and Haas names cycloidal rotary drives in its feature list for this model.

The spindle is the 30 hp (22.4 kW) inline direct-drive unit with 90 ft-lbf (122 N·m) at 2,000 rpm. The UMC-1000-P has that same rating with an 8,100 rpm top speed, a 650 ipm (16.5 m/min) cutting feedrate and 900 ipm (22.9 m/min) rapids, so the SS buys speed, not torque. Its 30+1 side-mount changer swaps tools in 1.8 s. Haas lists a starting price of US$311,995, and the machine ships at 17,000 lb (7,711 kg).

Full Specifications

Parameter	Value
X-Axis Travel	40 in (1,016 mm)
Y-Axis Travel	25 in (635 mm)
Z-Axis Travel	25 in (635 mm)
Spindle Nose to Table (max)	30.6 in (777 mm)
Spindle Nose to Table (min)	5.6 in (142 mm)
Spindle Motor Power	30 hp (22.4 kW)
Max Spindle Speed	12,000 rpm
Spindle Torque	90 ft-lbf @ 2,000 rpm (122 N·m @ 2,000 rpm)
Spindle Drive	Inline Direct-Drive
Spindle Taper	CT40 / BT40 / HSK-A63
Spindle Bearing Lubrication	Air / Oil Injection
Spindle Cooling	Liquid Cooled
A Axis Travel	360 °
A Axis Max Speed	100 °/sec
A Axis Torque	210 ft-lbf (285 N·m)
A Axis Brake Torque	200 ft-lbf (271 N·m)
A Axis Max Part Swing	11.9 in (302 mm)
B Axis Travel	45 ° to -45 °
B Axis Max Speed	100 °/sec
B Axis Torque	2,240 ft-lbf (3,037 N·m)
B Axis Brake Torque	2,000 ft-lbf (2,712 N·m)
Table Size	40 × 15 in (1,016 × 381 mm)
T-Slot Width	0.626 in to 0.63 in (15.9 mm to 16 mm)
T-Slots	1
Max Table Load	350 lb (159 kg)
Max Cutting Feedrate	833 ipm (21.2 m/min)
Rapid Traverse Rate	1,200 ipm (30.5 m/min)
Max Thrust X	3,300 lbf (14,680 N)
Max Thrust Y	3,300 lbf (14,680 N)
Max Thrust Z	4,050 lbf (18,015 N)
Tool Changer Type	SMTC
Tool Capacity	30+1
Max Tool Diameter (full magazine)	2.5 in (64 mm)
Max Tool Diameter (adjacent pockets empty)	5 in (127 mm)
Max Tool Length	12 in (305 mm)
Max Tool Weight	12 lb (5.4 kg)
Tool Change (tool-to-tool)	1.8 s
Tool Change (chip-to-chip)	2.4 s
Coolant Capacity	55 gal (208 L)
Air Required	4 scfm @ 100 psi (113 L/min @ 6.9 bar)
Inline Air Hose	3/8 in
Air Coupler	3/8 in
Air Pressure Min	80 psi (5.5 bar)
Electrical Service (low voltage)	220 VAC 3-phase, 70 A
Electrical Service (high voltage)	440 VAC 3-phase, 35 A
Shipping Domestic Pallet	168 × 92.5 × 115 in (427 × 235 × 292 cm)
Shipping Export Pallet	169 × 91.8 × 100 in (429 × 233 × 254 cm)
Machine Weight	17,000 lb (7,711 kg)
Shipping Export Crate with 70 plus 1 SMTC	168 × 95 × 141 in (427 × 241 × 358 cm)
Shipping Export Crate for Sheet Metal	102 × 63 × 28 in (259 × 160 × 71 cm)
Machine Weight for Sheet Metal Crate	1,060 lb

Specifications sourced from haascnc.com — verified 2026-10-02

Strengths & Limitations

Strengths

40 × 15 in (1,016 × 381 mm) table on a 360° A axis supports long parts along their whole length
12,000 rpm inline direct-drive spindle with 1,200 ipm (30.5 m/min) rapids and an 833 ipm (21.2 m/min) cutting feedrate
A and B both move at 100°/sec, and Haas lists cycloidal rotary drives for this model
B axis has 2,240 ft-lbf (3,037 N·m) of torque and a 2,000 ft-lbf (2,712 N·m) brake
Side-mount 30+1 tool changer at 1.8 s tool-to-tool and 2.4 s chip-to-chip
A rollaway coolant tank is listed as standard; coolant capacity is 55 gal (208 L)

Limitations

Table load is 350 lb (159 kg), against 1,000 lb (454 kg) on the platter of the UMC-1000SS
B tilt is limited to 45° either side; the UMC-1000SS tilts from 120° to -35°
A-axis part swing is 11.9 in (302 mm), so part and fixture must stay inside that diameter to rotate
A-axis torque is 210 ft-lbf (285 N·m) with a 200 ft-lbf (271 N·m) brake, which restricts heavy cuts far from the axis centreline
The table has 1 T-slot, so most workholding will need its own fixture plate

Best For

Long, narrow parts up to 350 lb (159 kg) machined on several sides Aluminium profiles and structural parts cut at up to 12,000 rpm Parts that rotate within 11.9 in (302 mm) of A-axis swing Work needing full 360° A rotation with tilt of 45° either way

Frequently Asked Questions

01 How does the UMC-1000SS-P differ from the UMC-1000SS?

In the work surface and the rotary axes. The UMC-1000SS has a 25 in (635 mm) platter rated for 1,000 lb (454 kg), with B tilting from 120° to -35° and C turning 360°. The UMC-1000SS-P has a 40 × 15 in (1,016 × 381 mm) table rated for 350 lb (159 kg), with A turning 360° and B tilting 45° to -45°. Both list 40 × 25 × 25 in (1,016 × 635 × 635 mm) travels, a 12,000 rpm spindle and a 17,000 lb (7,711 kg) shipping weight.

02 How large a part fits on the UMC-1000SS-P?

The table is 40 × 15 in (1,016 × 381 mm) and carries 350 lb (159 kg). A part must rotate within the 11.9 in (302 mm) A-axis part swing. The spindle nose sits between 5.6 in (142 mm) and 30.6 in (777 mm) from the table, and that distance has to cover the fixture, the part and the tool, which can be up to 12 in (305 mm) long.

03 How strong are the rotary axes?

They differ a great deal. The B tilt axis has 2,240 ft-lbf (3,037 N·m) of torque and a 2,000 ft-lbf (2,712 N·m) brake. The A axis that spins the table has 210 ft-lbf (285 N·m) of torque and a 200 ft-lbf (271 N·m) brake. Both move at 100°/sec. Plan roughing so that cutting forces act close to the A-axis centreline.

04 What is the difference between the UMC-1000SS-P and the UMC-1000-P?

Speed. The UMC-1000-P is listed at 8,100 rpm with a 650 ipm (16.5 m/min) cutting feedrate, 900 ipm (22.9 m/min) rapids and a 15,600 lb (7,077 kg) shipping weight. The UMC-1000SS-P is listed at 12,000 rpm, 833 ipm (21.2 m/min), 1,200 ipm (30.5 m/min) and 17,000 lb (7,711 kg). Table size, the 350 lb (159 kg) load, the axis ranges and the 30 hp (22.4 kW) spindle rating are the same on both.

05 Which tools does the tool changer accept?

The side-mount changer holds 30+1 tools up to 12 in (305 mm) long and 12 lb (5.4 kg). Diameter is limited to 2.5 in (64 mm) with every pocket full, or 5 in (127 mm) when the adjacent pockets are left empty. The spindle taper is a choice of CT40, BT40 or HSK-A63. Haas also lists an export crate size for a 70+1 changer, which is a separate configuration.

06 What are the shipping dimensions of the UMC-1000SS-P?

The machine is listed at 17,000 lb (7,711 kg) on a domestic pallet of 168 × 92.5 × 115 in (427 × 235 × 292 cm) or an export pallet of 169 × 91.8 × 100 in (429 × 233 × 254 cm). A separate sheet-metal crate of 102 × 63 × 28 in (259 × 160 × 71 cm) is listed at 1,060 lb. These are shipping figures, not the installed size.
