Anger Machining Meteor 1500 (A63)

Q: How much does the Anger Machining Meteor 1500 (A63) cost?

The price estimate for the Anger Machining Meteor 1500 (A63) is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/anger-meteor-1500-a63#price; the request is passed to Anger Machining or an authorised dealer.

Specs verified 2026-10-05 · anger-machining.com Updated 2026-10-05

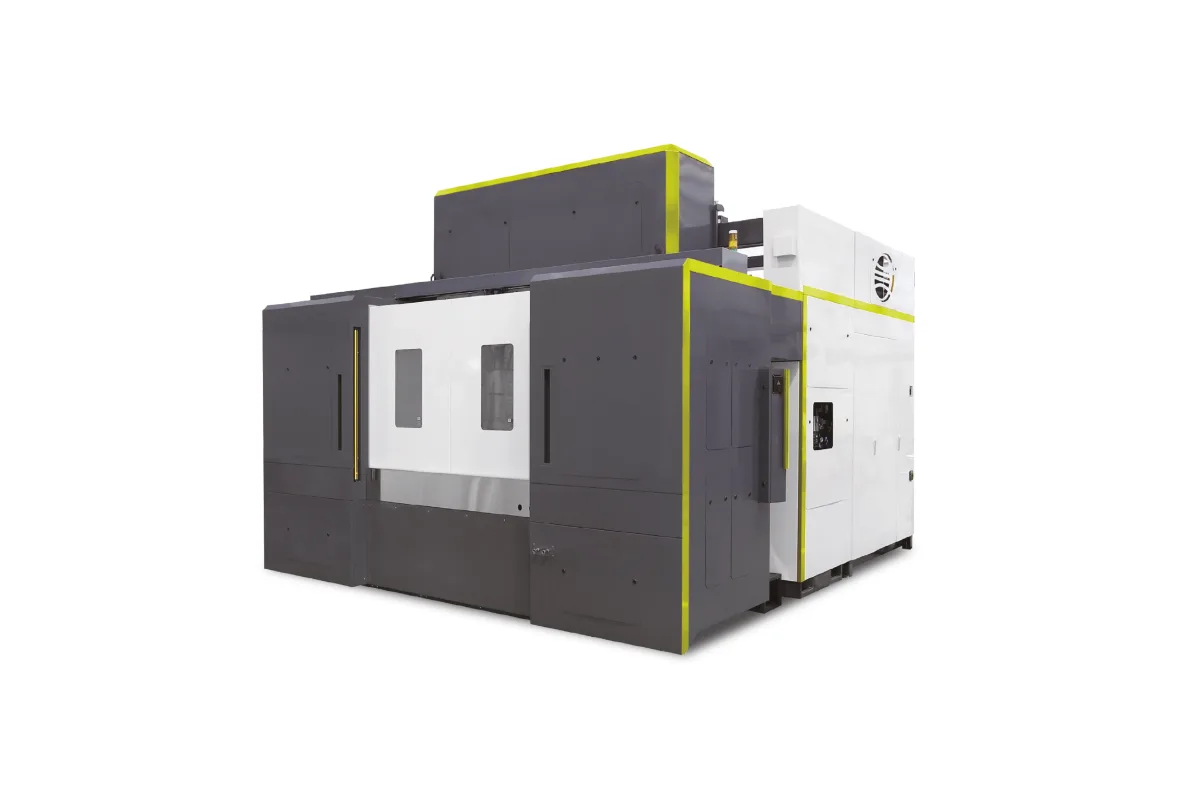

Anger Machining Meteor 1500 horizontal machining center

Image: anger-machining.com, Anger Machining

Key Specifications

Max Spindle

18,000 rpm

Spindle Taper

HSK-A63

Tool Capacity

29 pcs.

Spindle Power

30/50 kW (40.2/67.1 hp), S1/S6-30%

Repeatability

±0.003 mm (±0.00012 in), as per VDI 3441 / VDI 2617

number of axes

4 (5)

How much does the Anger Machining Meteor 1500 (A63) cost?

Price estimate

Uncertain

We do not have a price for the Anger Machining Meteor 1500 (A63) that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Anger Machining Meteor 1500 (A63) is the high-speed version of the Meteor 1500 horizontal machining center: an HSK-A63 spindle at 18,000 rpm on a frame that swings parts up to Ø1,500 mm around its A-axis. Travels are 1,600 mm (63.0 in) in X, 900 mm (35.4 in) in Y and 630 mm (24.8 in) in Z.

This is a machine for light-alloy structures. The spindle is rated 30/50 kW and 50/80 Nm (S1/S6-30%), which is power for fast milling and drilling in aluminium, not torque for big cutters in steel. Subframes, battery frames and carrier systems are the parts Anger has in mind. The workpiece is carried on a dual-drive A-axis and may weigh up to 500 kg (1,102 lb).

Axis speed is the other half of the argument. Rapids are 90/80/80 m/min with accelerations of 10/15/15 m/s² on X/Y/Z, and the X-axis is linear-driven. Chip-to-chip time is 3.8 s from a 29-tool magazine. The Meteor 1500 (A100) gives up some of this: its travels are 1,550 mm in X and 800 mm in Y and its rapids 70/60/80 m/min.

A fifth axis is an option: the table gives the number of axes as 4 (5), and Anger describes an optional B-axis for multi-side machining. Coolant through the spindle goes up to 120 bar. Repeatability is stated as ±0.003 mm as per VDI 3441 / VDI 2617, and the machine weighs 22,000 kg (48,501 lb).

Full Specifications

Parameter	Value
Number of Axes	4 (5)
X Axis Travel	1,600 mm (63.0 in)
Y Axis Travel	900 mm (35.4 in)
Z Axis Travel	630 mm (24.8 in)
Max Part Size	1,600/Ø1,500 mm (63.0/Ø59.1 in)
Axis Acceleration Xyz	10/15/15 m/s²
Rapid Traverse Xyz	90/80/80 m/min (3,543/3,150/3,150 ipm)
Repeatability	±0.003 mm (±0.00012 in), as per VDI 3441 / VDI 2617
Max Spindle Speed	18,000 rpm
Spindle Motor Power	30/50 kW (40.2/67.1 hp), S1/S6-30%
Spindle Torque	50/80 Nm (36.9/59.0 lb-ft), S1/S6-30%
Spindle Taper	HSK-A63
Tool Capacity	29 pcs.
Max Tool Diameter (full magazine)	230 mm (9.1 in)
Tool Length	510 mm (20.1 in)
Tool Weight	8 kg (18 lb)
Chip to Chip Time	3.8 s (at 1,800 rpm)
Max Load A Axis	500 kg (1,102 lb)
Machine Weight	22,000 kg (48,501 lb)
Machine Dimensions	4,200/5,560/3,550 mm (165.4/218.9/139.8 in)
Operating Voltage	3x380 V
CNC Control	Siemens/Fanuc

Specifications sourced from anger-machining.com — verified 2026-10-05

Strengths & Limitations

Strengths

18,000 rpm HSK-A63 spindle with 30/50 kW (S1/S6-30%)
Rapids of 90/80/80 m/min and a linear-driven X-axis
Swing diameter up to Ø1,500 mm on a dual-drive A-axis
Chip-to-chip time of 3.8 s at 1,800 rpm
Through-spindle coolant up to 120 bar for deep-hole drilling
Repeatability of ±0.003 mm as per VDI 3441 / VDI 2617

Limitations

Spindle torque is 50/80 Nm, a fraction of the 200/320 Nm of the Meteor 1500 (A100)
A-axis load is 500 kg, against 800 kg on the Meteor 1500 (A100)
Single 29-tool magazine; no larger magazine is listed in the A63 column
The B-axis that makes it a 5-axis machine is an option

Best For

Aluminium subframes and battery frames up to 1,600 mm long High-speed drilling and milling at up to 18,000 rpm Structural parts needing a swing of up to Ø1,500 mm Workpieces and fixtures within 500 kg on the A-axis

Frequently Asked Questions

01 What is the difference between the Meteor 1500 (A63) and (A100)?

The spindle and what follows from it. The A63 column lists an HSK-A63 spindle with 18,000 rpm, 30/50 kW and 50/80 Nm; the Meteor 1500 (A100) has an HSK-A100 spindle with 12,000 rpm, 42/65 kW and 200/320 Nm. The A63 version travels further in X and Y, moves faster and weighs 22,000 kg, while the Meteor 1500 (A100) carries 800 kg on the A-axis and weighs 25,000 kg.

02 How large a part can it hold?

The maximum part size is given as 1,600/Ø1,500 mm, that is 1,600 mm in length with a swing diameter of Ø1,500 mm, and the A-axis carries up to 500 kg (1,102 lb). Linear travels are 1,600 mm, 900 mm and 630 mm in X, Y and Z.

03 Is the Meteor 1500 (A63) a 4-axis or 5-axis machine?

Both are possible. The table states the number of axes as 4 (5). The fourth axis is the dual-drive A-axis that carries the workpiece, and Anger describes the B-axis as optional, extending the swing range for multi-side machining of large components.

04 What tooling does the A63 version take?

HSK-A63 tools, 29 of them in the magazine. The table allows a tool diameter of 230 mm, a tool length of 510 mm and a tool weight of 8 kg (18 lb). Chip-to-chip time is 3.8 s at 1,800 rpm.

05 Which controls are available?

The NC control row reads Siemens/Fanuc, and Anger calls the control system Digital Twin-ready. The operating voltage is 3x380 V. Machine dimensions are 4,200/5,560/3,550 mm (L/W/H).
