Anger Machining THA-5000(P)

Q: How much does the Anger Machining THA-5000(P) cost?

The price estimate for the Anger Machining THA-5000(P) is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/anger-tha-5000p#price; the request is passed to Anger Machining or an authorised dealer.

Specs verified 2026-10-05 · anger-machining.com Updated 2026-10-05

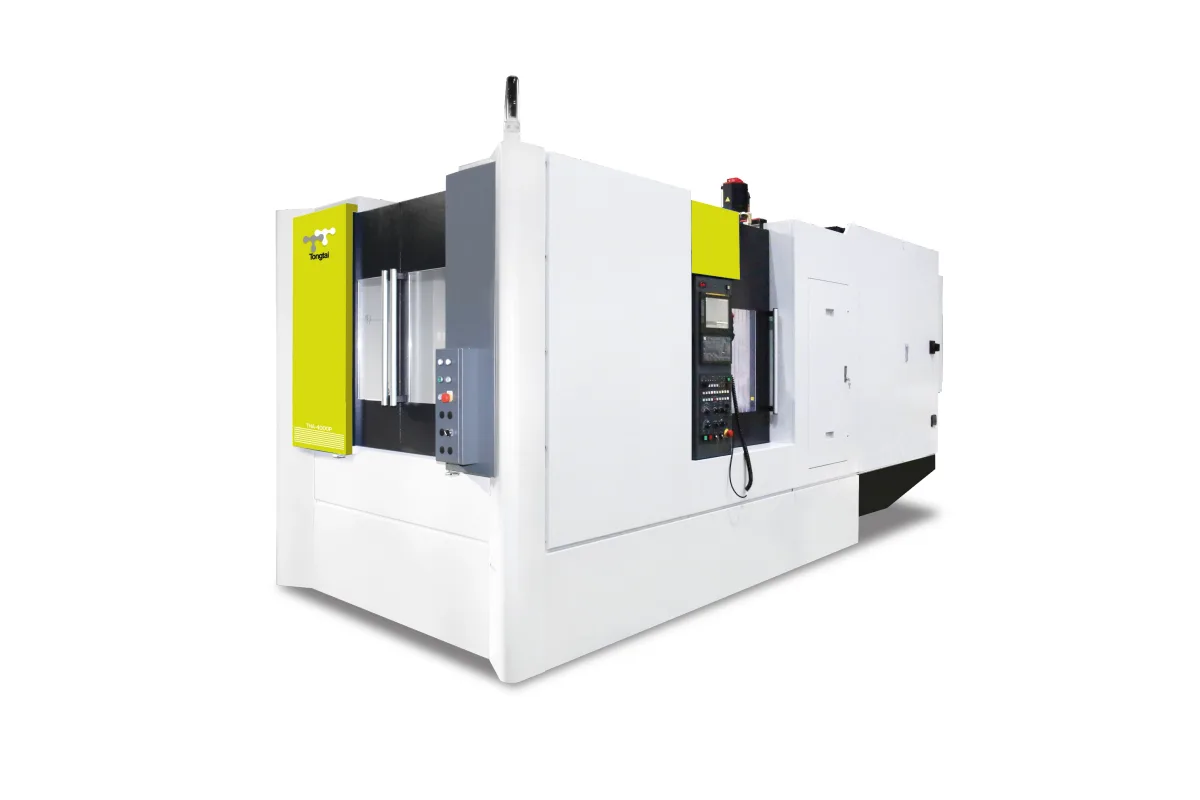

Anger Machining THA series horizontal machining center

Image: anger-machining.com, Anger Machining

Key Specifications

Max Spindle

15,000; 20,000 rpm

Spindle Taper

BBT-40 (HSK63)

Tool Capacity

40(60)

Table Size

500x500 mm (19.7x19.7 in)

Spindle Power

15/37 (30/40-40%) kW (S1/S6-15%)

number of axes

How much does the Anger Machining THA-5000(P) cost?

Price estimate

Uncertain

We do not have a price for the Anger Machining THA-5000(P) that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

With a 500x500 mm pallet and 500 kg (1,102 lb) of table load, the Anger Machining THA-5000(P) is the larger of the two THA horizontal machining centers. It moves 730 mm (28.7 in) in X and Y and 830 mm (32.7 in) in Z and accepts parts up to Ø800/1,000 mm.

The extra envelope adds little mass. Machine weight is 9,200 kg against 9,000 kg for the THA-4000(P), and the connected power is the same 45 kVA. Anger attributes the low mass to a honeycomb portal structure and a symmetrical double-wall column, which it says cut overall weight by 25%.

Longer tools are the practical gain for boring deep housings: tool length is 550 mm, where the THA-4000(P) stops at 410 mm, although tool weight drops to 10 kg and diameter stays at Ø80 mm. The magazine is smaller than on the sibling, 40 tools as listed and 60 tools in brackets, so parts needing a very large tool set are better placed on the THA-4000(P) and its magazine of up to 240 tools.

Spindle and dynamics are shared across the series. The direct-drive spindle is listed at 15,000 rpm with 15/37 kW and 102/249 Nm (S1/S6-15%), or at 20,000 rpm, and the axes accelerate at 10/10/10 m/s². Chip-to-chip time is 3 s and the pallet changer needs 8 s. Siemens and Fanuc controls are offered.

Full Specifications

Parameter	Value
Number of Axes	4
X Axis Travel	730 mm (28.7 in)
Y Axis Travel	730 mm (28.7 in)
Z Axis Travel	830 mm (32.7 in)
Max Part Size	Ø800/1,000 mm (Ø31.5/39.4 in)
Axis Acceleration Xyz	10/10/10 m/s²
A Axis 180 Rotation Time	0.5 s for 180°
Max Spindle Speed	15,000; 20,000 rpm
Spindle Motor Power	15/37 (30/40-40%) kW (S1/S6-15%)
Spindle Torque	102/249 (29.1/38.7-40%) Nm (S1/S6-15%)
Spindle Taper	BBT-40 (HSK63)
Tool Capacity	40(60)
Max Tool Diameter (full magazine)	Ø80 mm (Ø3.1 in)
Tool Length	550 mm (21.7 in)
Tool Weight	10 kg (22 lb)
Chip to Chip Time	3 s (at 1,800 rpm)
Table Size	500x500 mm (19.7x19.7 in)
Max Table Load	500 kg (1,102 lb)
Pallet Change Time	8 s
Machine Weight	9,200 kg (20,282 lb)
Machine Dimensions	2,290/4,885(5,840)/2,985 mm
Operating Voltage	3x380 V
Power Requirement	45 kVA
CNC Control	Siemens, Fanuc
Lubrication	CL

Specifications sourced from anger-machining.com — verified 2026-10-05

Strengths & Limitations

Strengths

Parts up to Ø800/1,000 mm and 500 kg on a 500x500 mm pallet
Tool length up to 550 mm for deep bores
Weighs 9,200 kg and draws 45 kVA, close to the smaller THA-4000(P) at 9,000 kg
Pallet change in 8 s and chip-to-chip in 3 s
Thermal compensation on the X/Y/Z axes, according to Anger

Limitations

Magazine is 40 tools, or 60 tools in the bracketed version; the THA-4000(P) goes to 240 tools
Tool weight is limited to 10 kg and tool diameter to Ø80 mm
Listed as a 4-axis machine; there is no 5-axis option in the table
Coolant through the spindle at 70 bar is an option

Best For

Cast and aluminium housings up to Ø800/1,000 mm Series parts up to 500 kg including fixture Deep boring and drilling with tools up to 550 mm long Pallet-changer production with short cycles

Frequently Asked Questions

01 What is the pallet size and load of the THA-5000(P)?

The table lists a 500x500 mm table and a maximum table load of 500 kg (1,102 lb). The maximum part size is Ø800/1,000 mm. An automatic pallet changer with an 8 s changeover time is in the table, and Anger describes it as optional.

02 How long can tools be?

Up to 550 mm (21.7 in), with a maximum diameter of Ø80 mm and a maximum weight of 10 kg (22 lb). The magazine holds 40 tools, or 60 tools in the version shown in brackets, and the interface is BBT-40 with HSK63 as the alternative.

03 What are the axis travels?

730 mm (28.7 in) in X, 730 mm (28.7 in) in Y and 830 mm (32.7 in) in Z. Acceleration is 10/10/10 m/s² on X/Y/Z. A 180° rotation of the A-axis, as the table labels it, is listed at 0.5 s.

04 Which spindle does the THA-5000(P) use?

A direct-drive spindle, headed SPINDLE (FANUC) in the table. It is listed at 15,000 rpm with 15/37 kW and 102/249 Nm (S1/S6-15%). A 20,000 rpm version is also shown. Anger states that the 15,000 rpm spindle gives powerful cutting performance in aluminium and cast materials.

05 How accurate is the rotary table?

Anger describes a worm-drive B-axis rotary table with hydraulic clamping that generates 6.5 tons of clamping force, a positioning accuracy of ±5–8 µm and 0.01° indexing. Those are statements from the feature text; the specification table itself has no accuracy row for this series.
