Amada EML 2515 AJe

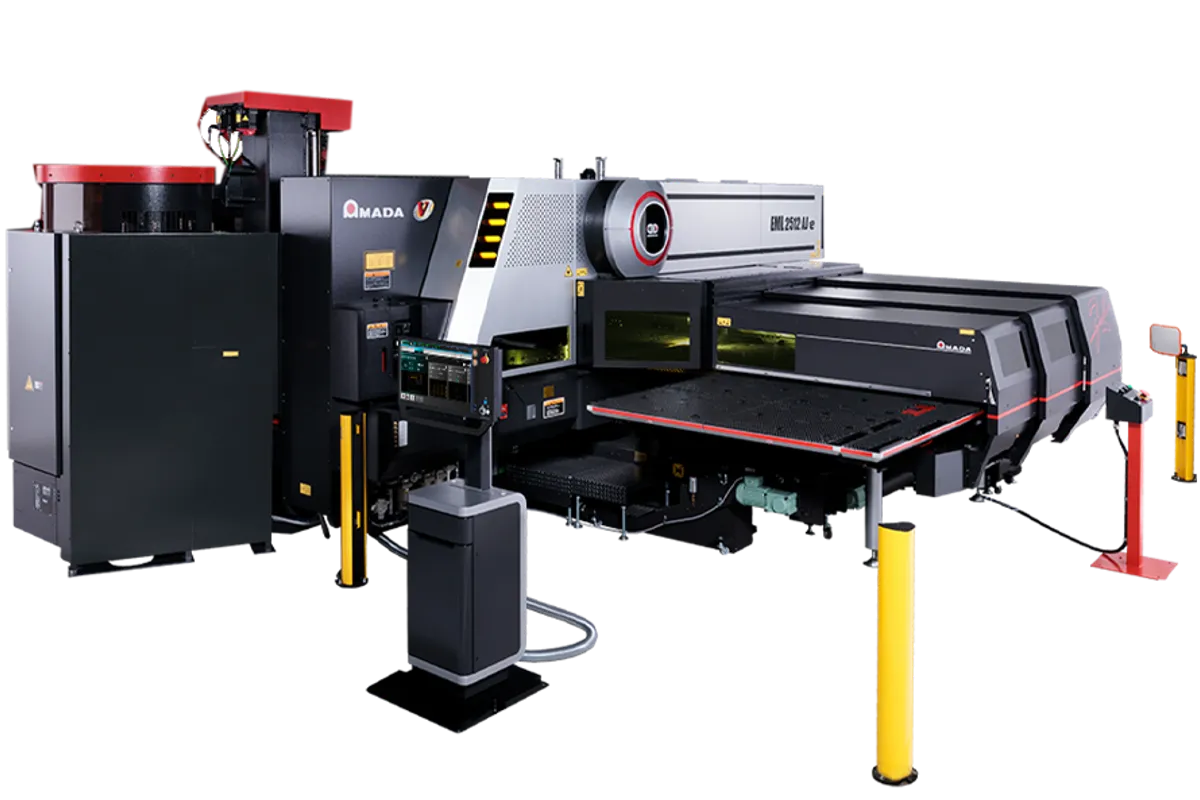

Image: amada.com, Amada
Key Specifications
press capacity
laser power
machine frame
punching accuracy
turret stations
turret type
How much does the Amada EML 2515 AJe cost?
Estimated price range
Our best estimate for a cnc punch presse in this class — not a quote from Amada. Configuration moves it a long way.
Overview
The Amada EML 2515 AJe is a punch and laser combination machine: a 300 kN turret punch press and a 3000 W laser sharing one bridge frame and one sheet table. Amada lists a 44-station Z-Turret, a punching accuracy of ± 0.1 mm and a maximum table load of 220 kg.
Combining the two processes is about finishing a part in one clamping. Holes and formed features come from the turret. Outlines, large cutouts and shapes with no matching tool come from the laser. Because the sheet never leaves the clamps between the two, the laser-cut profile stays registered to the punched features, and a second machine, a second program and the handling between them drop out.
The axis speeds show a table built for both jobs. Simultaneous X/Y speed is 128 m/min when punching and 141 m/min in laser mode, on AC Servo drives. The 220 kg table load is the figure to hold against your heaviest sheet, since it caps the combination of sheet size and thickness the table will carry whatever the punch or laser could process.
This is a large installation. The machine measures 5689 mm in length, 6927 mm in width and 2525 mm in height and weighs 24000 kg, close to the 25000 kg of the EM 3612 ZRTe punch press. Amada's table does not state the working range, the thickness the laser will cut or the type of laser source, so those belong on the list of questions for the supplier, along with gas and extraction requirements.
Full Specifications
| Parameter | Value |
|---|---|
| Press Capacity | 300 kN |
| Laser Power | 3000 W |
| Machine Frame | Bridge frame |
| Punching Accuracy | ± 0.1 mm |
| Turret Stations | 44 |
| Turret Type | Z-Turret |
| Max Table Load | 220 kg |
| Table Drive | AC Servo drives |
| Simultaneous Axis Speed Punching X Y | 128 m/min |
| Simultaneous Axis Speed Laser X Y | 141 m/min |
| Machine Length | 5689 mm |
| Machine Width | 6927 mm |
| Machine Height | 2525 mm |
| Machine Weight | 24000 kg |
Specifications sourced from amada.eu — verified 2026-10-03
Strengths & Limitations
Strengths
- 300 kN punching and a 3000 W laser on one machine, so parts are punched and cut in one clamping
- 44-station Z-Turret keeps a broad tool set loaded alongside the laser
- Simultaneous X/Y axis speed of 128 m/min punching and 141 m/min in laser mode
- Bridge frame with a stated punching accuracy of ± 0.1 mm
Limitations
- Maximum table load is 220 kg, which limits large thick sheets
- Occupies 5689 x 6927 mm of floor and weighs 24000 kg
- Amada's table gives no working range or laser cutting thickness
- The type of laser source is not stated in the table
Best For
Frequently Asked Questions
01
A 300 kN turret punch press and a 3000 W laser on one bridge frame. The sheet stays in the same clamps for both, so punched holes and laser-cut contours are produced in one setup with a stated punching accuracy of ± 0.1 mm.
02
Amada lists a simultaneous X/Y axis speed of 128 m/min in punching and 141 m/min in laser operation. The table is moved by AC Servo drives.
03
Maximum table load is 220 kg. Work out the weight of your largest and thickest sheet before assuming it can be loaded, because the table limit applies regardless of the 300 kN press capacity.
04
The machine is 5689 mm long, 6927 mm wide and 2525 mm high and weighs 24000 kg. Allow additional room for sheet loading, part removal and service access, and have the floor checked for the weight.
05
A Z-Turret with 44 stations. For comparison, the EM 3612 ZRTe punch press has a 32-station ZR turret with 4 Auto Index stations and a Tool Storage Unit as its tool changer.
