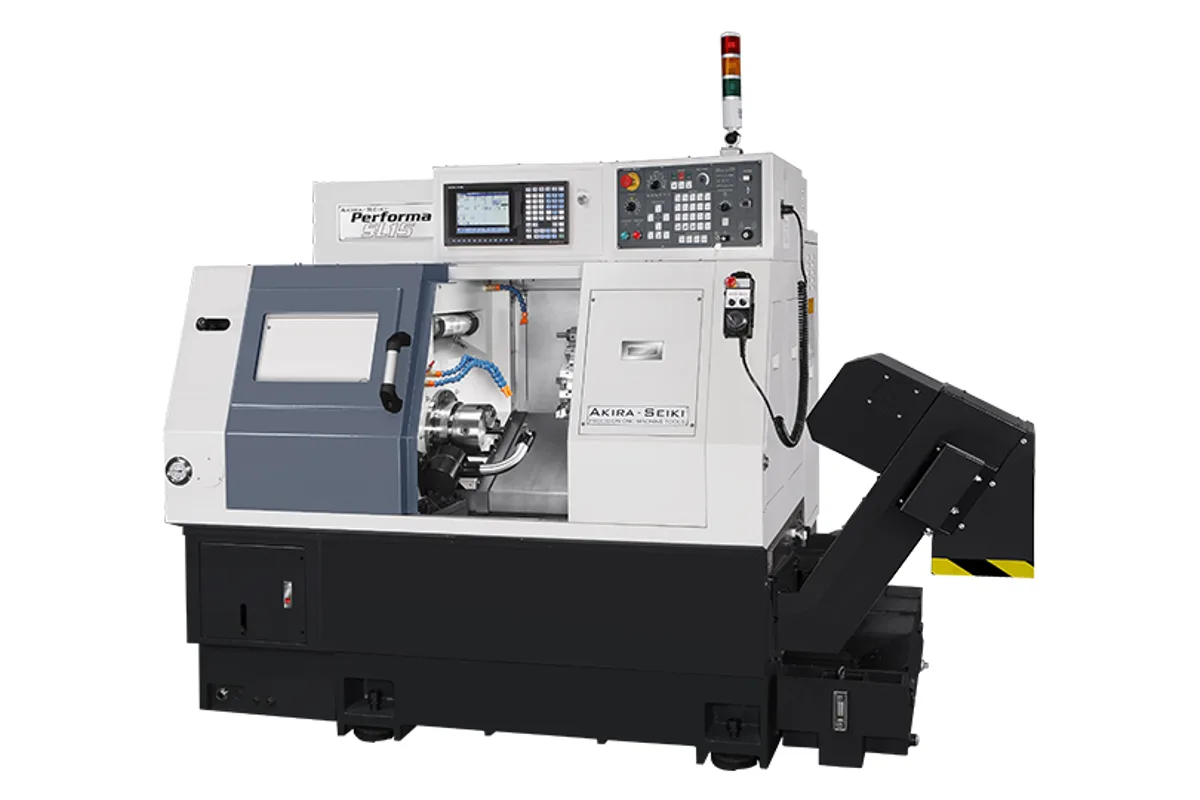

Akira Seiki SL15
Image: akiraseiki.com, Akira Seiki
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
axes configuration
swing over bed
How much does the Akira Seiki SL15 cost?
Price estimate
We do not have a price for the Akira Seiki SL15 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Akira Seiki SL15 is the smallest turret lathe in the SL two-axis range, set up as a collet machine. The chuck row lists a CR42 or 5C collet, the draw tube bore is 42 mm (1.7 in), and maximum cutting length is 200 mm (7.9 in). Maximum cutting diameter is 290 mm (11.4 in) under a 450 mm (17.7 in) swing.
It shares its headstock with the SL20: A2-5 nose, 6,000 rpm, 24 HP (17.9 kW) and 137 Nm (101 lb-ft) at peak. That is a strong spindle for bar work of this diameter, and it means the SL15 can take real cuts in steel instead of only skimming.
The turret has 10 stations and indexes in 0.5 s. OD tools are 20 mm (0.79 in) square and boring bars 25 mm (0.98 in). X travel is 150 + 15 mm (5.9 + 0.59 in) and Z travel 220 mm (8.7 in), with rapids of 36 m/min (1,417 ipm).
No tailstock is listed for this model; the SL20, with 350 mm (13.8 in) of Z, is the version with one. So the SL15 suits short chucking and bar parts that do not need support. It weighs 2,500 kg (5,512 lb) and needs 20 kVA. The coolant tank holds 120 L (32 gal), with a chip drawer as standard and a conveyor as an option. The control is the AKIRA Mi:845.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | AKIRA Mi:845 (Fanuc G code compatible) |
| Axes Configuration | X+Z |
| Swing Over Bed | 450 mm (17.7 in) |
| Swing Over Cross Slide | 290 mm (11.4 in) |
| Max Turning Diameter | 290 mm (11.4 in) |
| Max Turning Length | 200 mm (7.9 in) |
| Chuck Size | Collet CR42 / 5C |
| Draw Tube Bore | 42 mm (1.7 in) |
| Max Spindle Speed | 6,000 rpm |
| Spindle Motor Power | 24 HP (17.9 kW) |
| Spindle Torque | 137 Nm (101 lb-ft) |
| Spindle Nose | A2-5 |
| X Axis Travel | 150 + 15 mm (5.9 + 0.59 in) |
| Z Axis Travel | 220 mm (8.7 in) |
| Rapid Traverse Xz | 36 m/min (1,417 ipm) |
| Cutting Feed Rate | 10 m/min (394 ipm) |
| Turret Stations | 10 |
| OD Tool Size | 20 mm (0.79 in) |
| Boring Bar Shank | 25 mm (0.98 in) |
| Turret Index Time | 0.5 s |
| Coolant Tank Capacity | 120 L (32 gal) |
| Chip Disposal | Drawer (STD); Conveyor (OPT) |
| Power Requirement | 20 kVA |
| Machine Weight | 2,500 kg (5,512 lb) |
Specifications sourced from akiraseiki.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 24 HP (17.9 kW) and 137 Nm (101 lb-ft) at peak on a small collet lathe
- 6,000 rpm A2-5 spindle for small-diameter work
- Turret index time of 0.5 s
- 2,500 kg (5,512 lb) machine on a 20 kVA supply
Limitations
- Z travel of 220 mm (8.7 in) and a 200 mm (7.9 in) cutting length
- No tailstock in the table
- Collet workholding with a 42 mm (1.7 in) bore
- 120 L (32 gal) coolant tank
Best For
Frequently Asked Questions
01
Swing over bed is 450 mm (17.7 in), maximum cutting diameter 290 mm (11.4 in) and maximum cutting length 200 mm (7.9 in). The draw tube bore is 42 mm (1.7 in).
02
The SL20 has a 6" chuck, a 45 mm (1.8 in) bore, 350 mm (13.8 in) of Z travel and a tailstock with an MT3 quill. The SL15 is the shorter collet version with the same spindle power and turret.
03
Peak power is 24 HP (17.9 kW) and peak torque 137 Nm (101 lb-ft), at speeds up to 6,000 rpm on an A2-5 nose. The SL20 uses the same spindle.
04
The turret has 10 stations. OD tool size is 20 mm (0.79 in) and the boring bar shank 25 mm (0.98 in). Tool change time with a neighbouring tool is 0.5 s.
