Mazak INTEGREX e-800H

Est. $1,000,000 - $1,800,000 Specs verified 2026-10-02 · mazak.com Updated 2026-10-02

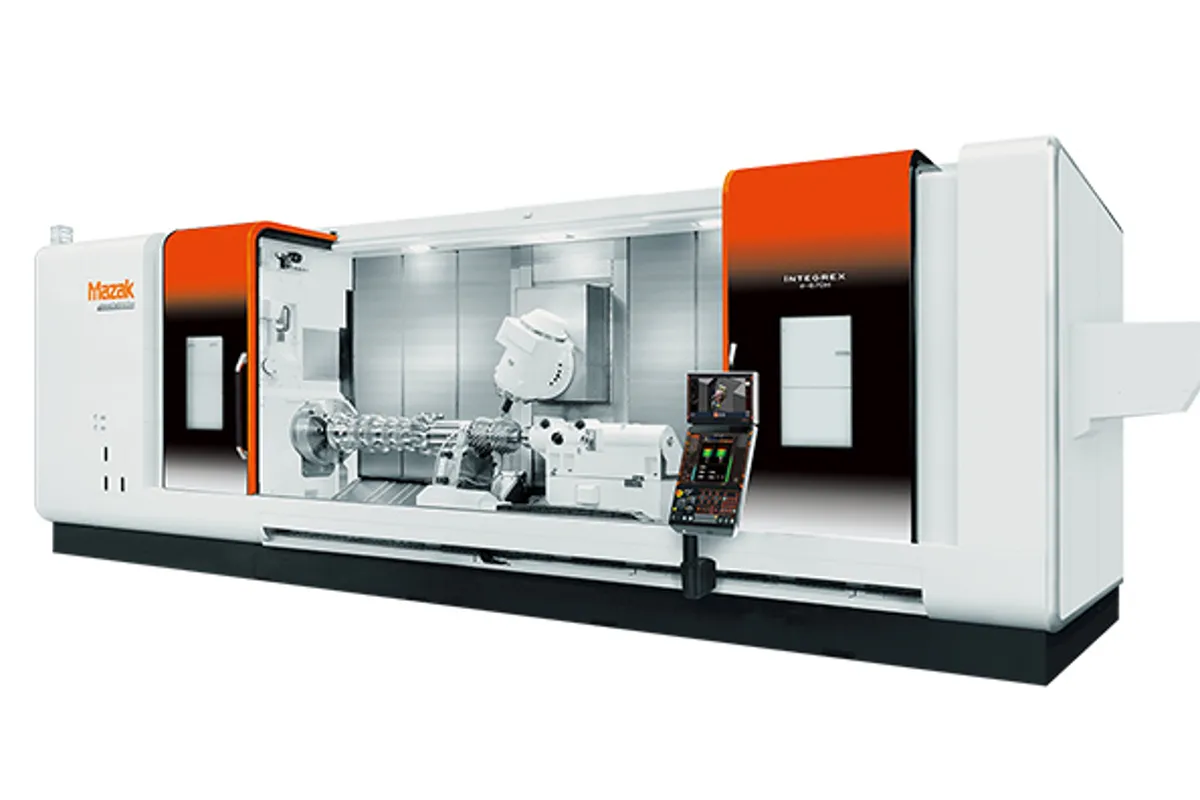

Image: mazak.com, Yamazaki Mazak

Key Specifications

X Travel

51 in (1,295 mm)

Y Travel

32 in (813 mm)

Z Travel

172 in (4,369 mm)

Max Spindle

700 rpm

Spindle Taper

CAT50

Tool Capacity

40 tools

How much does the Mazak INTEGREX e-800H cost?

Estimated price range

Est.$1,000,000 - $1,800,000

Our best estimate for a mill-turn / multi-tasking machine in this class — not a quote from Yamazaki Mazak. Configuration moves it a long way.

Overview

The Mazak INTEGREX e-800H is a horizontal mill-turn machine for very large shafts: 172 in (4,369 mm) of Z travel in the 4000U bed length, 51 in (1,295 mm) of X, 32 in (813 mm) of Y, and a machine weight of 173,280 lb (78,599 kg). Mazak's series page places it in the 24 to 50 inch chuck group.

Everything on the turning side is sized for mass, not speed. The spindle is limited to 700 rpm, and its motor is given as 45 kW (60 HP) both as the continuous figure and at 40% ED. The tailstock carries a No.100 metric centre and pushes with 16,860 lb (7,648 kg) of thrust. Rapids follow the same logic at 709 ipm (18 m/min) in X and Y and 945 ipm (24 m/min) in Z. On the INTEGREX e-670H the three linear axes all rapid at 1,575 ipm (40 m/min), so on parts with a lot of repositioning the smaller machine moves between features more than twice as fast in X and Y.

Milling is done by a CAT50 spindle on a B axis that indexes in 0.0001° increments. It runs to 10,000 rpm and is rated 30 kW (40 HP) continuous or 37 kW (50 HP) at 40% ED, with 191 Nm (141 ft-lb) of continuous torque and 260 Nm (192 ft-lb) at 40% ED. Beside a workpiece of this size that is a spindle for keyways, flats, bolt circles and cross holes done in the same clamping as the turning. Large face mills in tough alloys will run out of torque before they run out of taper.

The magazine holds 40 tools up to 26 in (660 mm) long and 66 lb (30 kg), 5 in (127 mm) in diameter or 10 in (254 mm) with the adjacent pockets empty. For deep bores, Mazak's series page describes a long boring bar system with a dedicated stocker, four bars on the e-800H, and an ATC maximum length of 39.37 in. Installation is a building project in itself: the machine covers 472 in (11,989 mm) × 236 in (5,994 mm) and stands 183 in (4,648 mm) high.

Full Specifications

Parameter	Value
Bed Length Type	4000U
Max Spindle Speed	700 rpm
Spindle Power Intermittent	45 kW (60 HP) (40% ED)
Spindle Motor Power	45 kW (60 HP) continuous
Milling Spindle Speed	10,000 rpm
Milling Spindle Torque Intermittent	260 Nm (192 ft-lb) (40% ED)
Milling Spindle Torque	191 Nm (141 ft-lb) continuous
Milling Spindle Power Intermittent	37 kW (50 HP) (40% ED)
Milling Spindle Power	30 kW (40 HP) continuous
B Axis Indexing Increment	0.0001°
Spindle Taper	CAT50
Tool Capacity	40 tools
Max Tool Diameter (full magazine)	Ø5 in (127 mm)
Max Tool Diameter (adjacent pockets empty)	Ø10 in (254 mm)
Max Tool Length	26 in (660 mm)
Max Tool Weight	66 lb (30 kg)
X-Axis Travel	51 in (1,295 mm)
Y-Axis Travel	32 in (813 mm)
Z-Axis Travel	172 in (4,369 mm)
Rapid Traverse X	709 ipm (18 m/min)
Rapid Traverse Y	709 ipm (18 m/min)
Rapid Traverse Z	945 ipm (24 m/min)
Tailstock Taper	No.100 Metric center
Tailstock Thrust	16,860 lb (7,648 kg)
Floor Space Required	472 in (11,989 mm) × 236 in (5,994 mm) (W × L)
Machine Height	183 in (4,648 mm)
Machine Weight	173,280 lb (78,599 kg)

Specifications sourced from mazak.com — verified 2026-10-02

Strengths & Limitations

Strengths

172 in (4,369 mm) of Z travel in the 4000U bed length, with 51 in (1,295 mm) of X and 32 in (813 mm) of Y
Tailstock with a No.100 metric centre and 16,860 lb (7,648 kg) of thrust for heavy shafts
Turning spindle motor of 45 kW (60 HP) continuous
CAT50 milling spindle with 10,000 rpm and 30 kW (40 HP) continuous on a B axis indexing in 0.0001° steps
40-tool magazine accepts tools up to 26 in (660 mm) long and 66 lb (30 kg)
Long boring bar system described for the series, with a dedicated stocker for four bars on the e-800H

Limitations

A 700 rpm spindle ceiling suits large diameters but leaves small journals and bores short of surface speed
X and Y rapids of 709 ipm (18 m/min) are less than half the 1,575 ipm (40 m/min) of the INTEGREX e-670H
At 173,280 lb (78,599 kg) on a 472 in (11,989 mm) × 236 in (5,994 mm) footprint, it demands a prepared foundation and heavy rigging
Milling torque is 191 Nm (141 ft-lb) continuous, modest beside the size of part the machine holds
Mazak's table states no maximum turning diameter or swing; only the 24 to 50 inch chuck grouping appears on the series page

Best For

Very long shafts and rolls using up to 172 in (4,369 mm) of Z travel Heavy workpieces held against 16,860 lb (7,648 kg) of tailstock thrust Large-diameter turning at up to 700 rpm on a 45 kW (60 HP) continuous motor Keyways, flats and cross holes milled in the same setup as the turning Deep bores reached with the series' long boring bar system

Frequently Asked Questions

01 What separates the INTEGREX e-800H from the e-670H?

Size and pace. The e-800H has 172 in (4,369 mm) of Z, 51 in (1,295 mm) of X and 32 in (813 mm) of Y, a 700 rpm spindle and rapids of 709 ipm (18 m/min) in X and Y. The INTEGREX e-670H has 123 in (3,124 mm) of Z, 40 in (1,016 mm) of X and 26 in (660 mm) of Y, a 1,600 rpm spindle and 1,575 ipm (40 m/min) rapids. The INTEGREX e-670H weighs 68,342 lb (30,999 kg), well under half of the 173,280 lb (78,599 kg) of the e-800H.

02 What are the turning spindle and tailstock figures?

Maximum spindle speed is 700 rpm. Mazak's table gives the spindle motor as 45 kW (60 HP) continuous and the same 45 kW (60 HP) at 40% ED. The tailstock has a No.100 metric centre and 16,860 lb (7,648 kg) of thrust. No chuck size or maximum turning diameter is given in the table; the series page places the model in the 24 to 50 inch chuck group.

03 How capable is the milling spindle on the e-800H?

It is a CAT50 spindle with a top speed of 10,000 rpm, rated 30 kW (40 HP) continuous and 37 kW (50 HP) at 40% ED. Torque is 191 Nm (141 ft-lb) continuous and 260 Nm (192 ft-lb) at 40% ED. The B axis indexes in 0.0001° increments, so the spindle can be set to any angle for milling, drilling and boring on a turned part.

04 How much room does the e-800H take up?

Mazak lists a footprint of 472 in (11,989 mm) × 236 in (5,994 mm) (W × L), a height of 183 in (4,648 mm) and a weight of 173,280 lb (78,599 kg). Crane capacity, floor loading and the route into the building should be checked against those numbers before anything else.

05 Is a vertical machine a better fit for short, large-diameter parts?

Often, yes. The e-800H is built around length between a chuck and a tailstock. The INTEGREX e-1250V/8 is a vertical-table alternative with a maximum turning diameter of 57 in (1,448 mm), a 5,952 lb (2,700 kg) table load and 53 in (1,346 mm) of Z travel. Discs and rings inside those limits are easier to load flat onto a table; long shafts belong on the horizontal machine.
