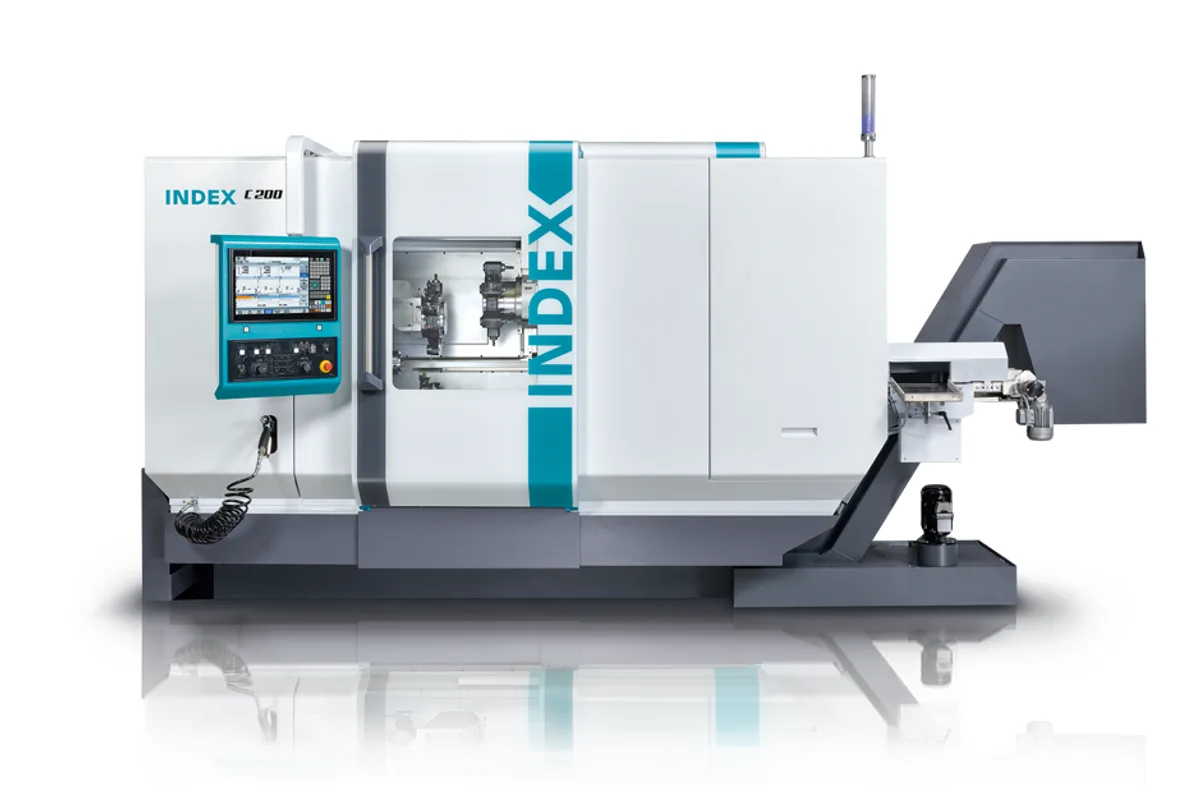

INDEX C200

$420,000 - $620,000 Updated 2026-03-16

Key Specifications

Rapid Traverse

30 m/min (X, Z), 20 m/min (Y)

Max Turn Length

550 mm

max bar capacity

52 mm (2.047 in)

max turning diameter

80 mm (3.15 in)

main spindle speed

7,000 RPM

counter spindle speed

7,000 RPM

Overview

The INDEX C200 is a compact, highly capable turn-mill machining center from INDEX-Traub, designed for complete 5-axis machining of complex precision components from bar stock up to 52mm diameter. The C200 occupies the entry point of INDEX's C-series turn-mill platform, delivering the multi-axis simultaneous machining capability and Swiss-influenced precision that INDEX is known for in a smaller, more accessible footprint and investment level than the larger C400 and C600.

The C200's architecture combines a main spindle and counter spindle with a B-axis-equipped milling spindle, enabling true 5-axis simultaneous machining in a compact machine that serves the precision parts market for complex small-to-medium components. B-axis capability allows the milling spindle to approach the workpiece at any angle within its range, enabling angled milling, complex surface contouring, and multi-plane feature machining without workpiece repositioning—completing in one cycle what previously required multiple setups.

INDEX's iXpanel control interface, built on Siemens 840D sl, provides an intuitive programming environment that simplifies the creation of complex multi-axis synchronized programs. INDEX's Virtual Machine simulation capability allows complete program verification before cutting, reducing setup time and minimizing the risk of expensive crashes or scrapped first articles.

The C200 targets the medical device, aerospace, and precision automotive markets where complex small components must be produced with Swiss-type precision but require the expanded milling capability of a turn-mill machining center. For contract manufacturers handling diverse complex part families in the 10-52mm diameter range, the C200 provides exceptional part completion rates and dimensional consistency in a machine designed for shop floor reliability.

Full Specifications

Parameter	Value
Max Bar Capacity	52 mm (2.047 in)
Max Turning Diameter	80 mm (3.15 in)
Max Turning Length	550 mm
Main Spindle Speed	7,000 RPM
Counter Spindle Speed	7,000 RPM
Milling Spindle Speed	12,000 RPM
Number Of Axes	5 simultaneous (X, Y, Z, B, C + counter spindle)
B Axis Range	−10° to +190°
Turret Stations	12 (VDI 30)
Y Axis Stroke	±50 mm
CNC Control	Siemens 840D sl (INDEX iXpanel)
Rapid Traverse Rate	30 m/min (X, Z), 20 m/min (Y)
Machine Weight	7,500 kg (16,534 lb)
Floor Space	3.0 m × 2.2 m
Guest Name	Dietary Restriction
David	None
Bob	None
Nancy	None
Mary	Vegetarian
Formula	Formula Output
Index	3
Goal	Formula
Find Marys Dietary Restriction	=INDEX(A1:D6, MATCH("Mary", A1:A6, 0), MATCH("Dietary Restriction", A1:D1, 0))
Find Who Is At Table Number 2	=INDEX(A1:D6, MATCH(2, D1:D6, 0), MATCH("Guest Name", A1:D1, 0))
Spindle Clearance	65 (90) mm
Chuck Size	160 mm

Specifications sourced from index-group.com — verified 2026-03-28

Strengths & Limitations

Strengths

[object Object]
[object Object]
[object Object]
[object Object]
[object Object]

Limitations

[object Object]
[object Object]
[object Object]
[object Object]

Best For

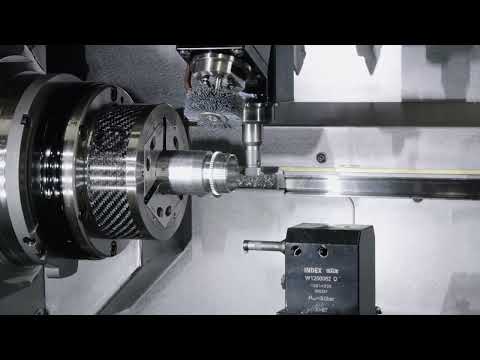

Medical device manufacturers producing complex orthopedic, dental, and cardiovascular components requiring 5-axis features in the under-52mm class Aerospace precision parts suppliers machining complex connectors, hydraulic fittings, and multi-feature actuator components Contract manufacturers competing for complex small part programs that require 5-axis turn-mill capability Shops consolidating Swiss lathe + 5-axis machining center sequences into a single C200 cycle Precision automotive suppliers machining complex fuel injection, transmission, and sensor components Defense manufacturers producing guidance system components and precision instrumentation hardware

Frequently Asked Questions

01 What is the INDEX C200 price?

A new INDEX C200 typically ranges from approximately $420,000 to $620,000 depending on configuration, tooling package, and options. Used C200 machines are less common due to the machine's relative newness in some markets, but when available typically sell for $200,000–$350,000.

02 What is the difference between the INDEX C200, C400, and C600?

The C200 is the compact entry in INDEX's C series with 52mm bar capacity, the C400 is the mid-size machine with 65mm bar capacity and expanded Y-axis stroke, and the C600 is the large configuration with 80mm bar capacity and twin spindle capability for the most demanding large-diameter complex parts. All share the C-series architecture with B-axis milling spindle and Siemens 840D sl control.

03 Does the INDEX C200 require specialized programming software?

The C200 programs via the Siemens 840D sl control with INDEX's iXpanel interface, which includes INDEX's proprietary programming cycles and a Virtual Machine simulation environment. Major CAM systems (Mastercam, Hypermill, ESPRIT) offer post-processors for INDEX turn-mill machines. INDEX also provides application programming support through its applications engineering team.

04 What is the B-axis range on the INDEX C200?

The B-axis on the C200 provides a range from −10° to +190°, enabling the milling spindle to approach the workpiece from virtually any angle. This broad range facilitates drilling and milling at compound angles, back-boring, and complex surface contouring in a single setup without workpiece repositioning.

05 How does the INDEX C200 compare to a Swiss-type lathe for 52mm parts?

A Swiss-type lathe like the Star SH-51 provides guide bushing precision for longer slender parts and optimized Swiss-type cycle times for turned-dominant parts. The INDEX C200 offers superior 5-axis milling capability, more milling spindle power, and larger Y-axis stroke for parts with significant prismatic machining content. Choose the C200 when milling and surface complexity dominates; choose Swiss-type when the part is predominantly turned with guide bushing precision requirements.
